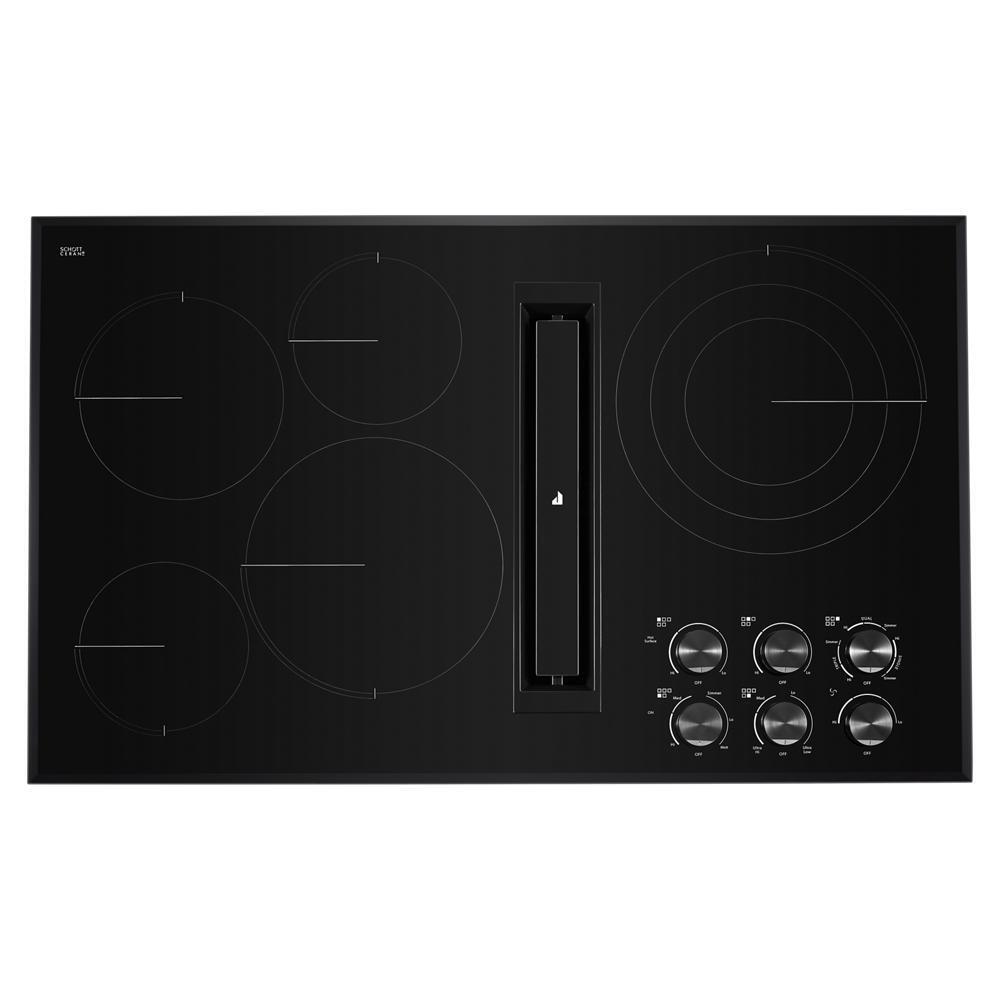

Black Floating Glass 36" JX3™ Electric Downdraft Cooktop
Model: JED3536GB
Black Floating Glass 36" JX3™ Electric Downdraft Cooktop
Model: JED3536GBQuick Specs
Black Floating Glass 36" JX3™ Electric Downdraft Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Perimetric Extraction
Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
JX3(TM) Downdraft Ventilation System with 3 Speeds
Developed and refined by JennAir(R), this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
DuraFinish(R) Glass Protection
DuraFinish(R) Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

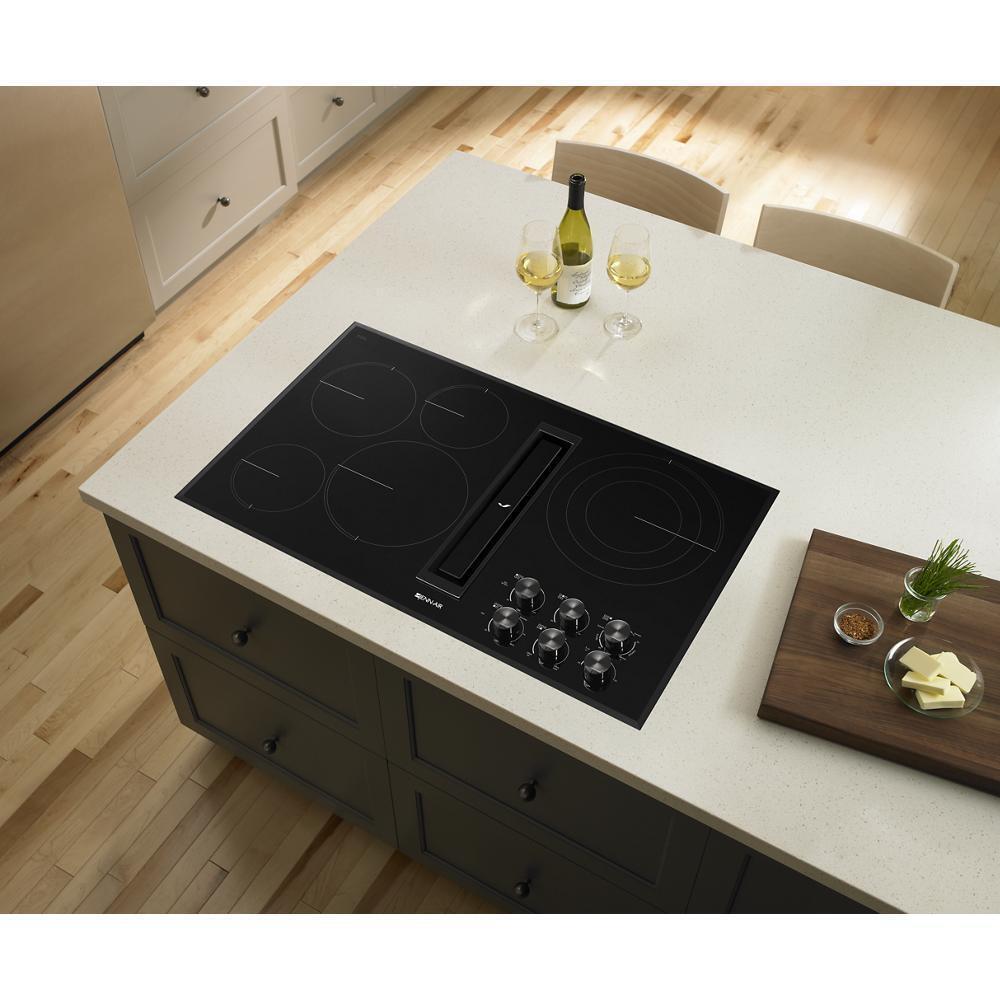

Semi-Flush Installation
Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.
Oblivion Glass Design
Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.

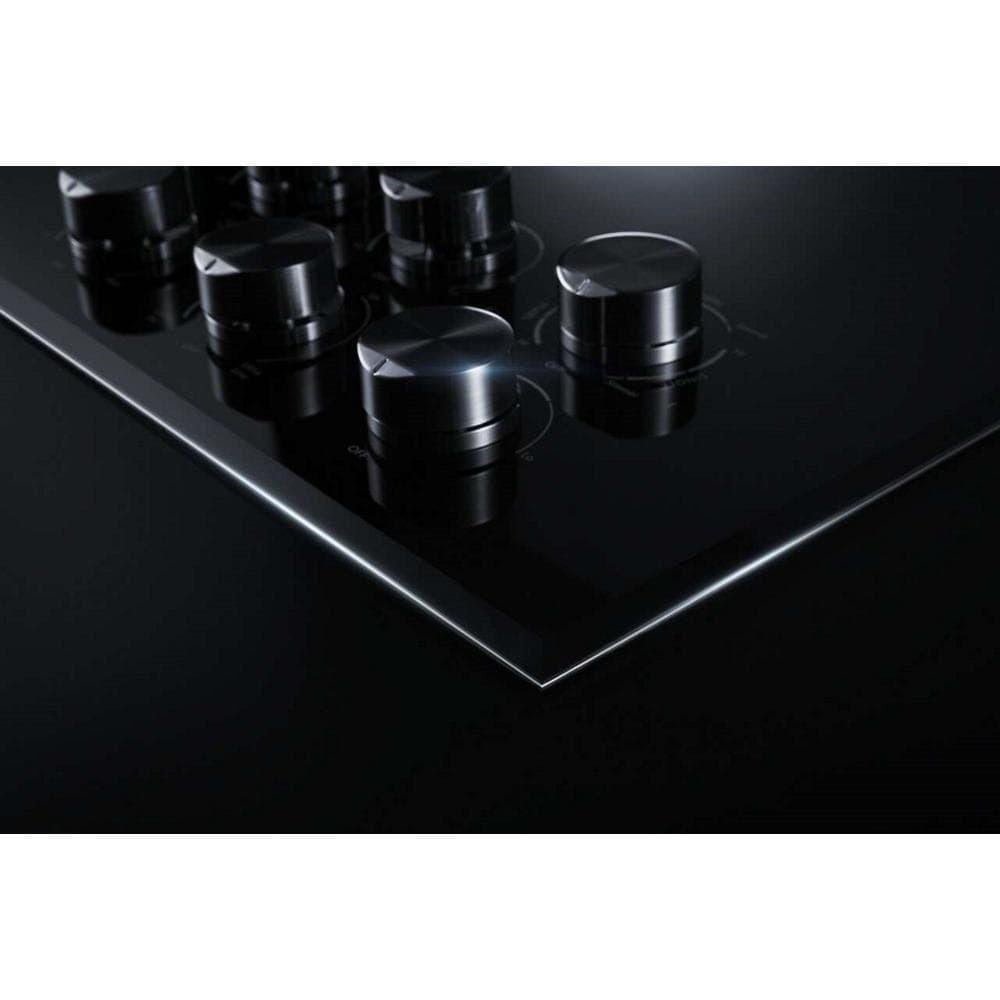

Color-Coordinating Die-Cast Metal Knobs

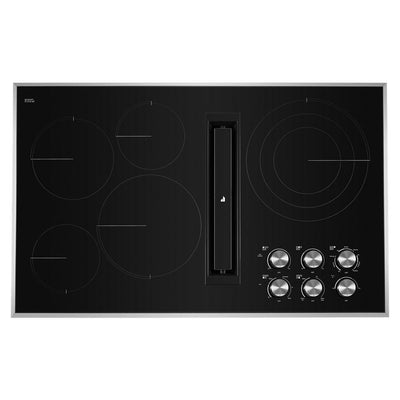

Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
- 12"/9"/6" Triple-Choice™ Element
- Reaching a powerful 4,500 watts, this three-tiered element allows you to experience the ultimate versatility in power levels and heating efficiency, accommodating various-sized cookware.
- Color-Coordinating Die-Cast Metal Knobs
- Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
- Convertible to Duct-Free Ventilation
- Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
- DuraFinish® Glass Protection
- DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
- JX3™ Downdraft Ventilation System with 3 Speeds
- Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class blower system.
- Oblivion Glass Design
- Sleek black glass that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits.
- Perimetric Extraction
- Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
- Semi-Flush Installation
- Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified.

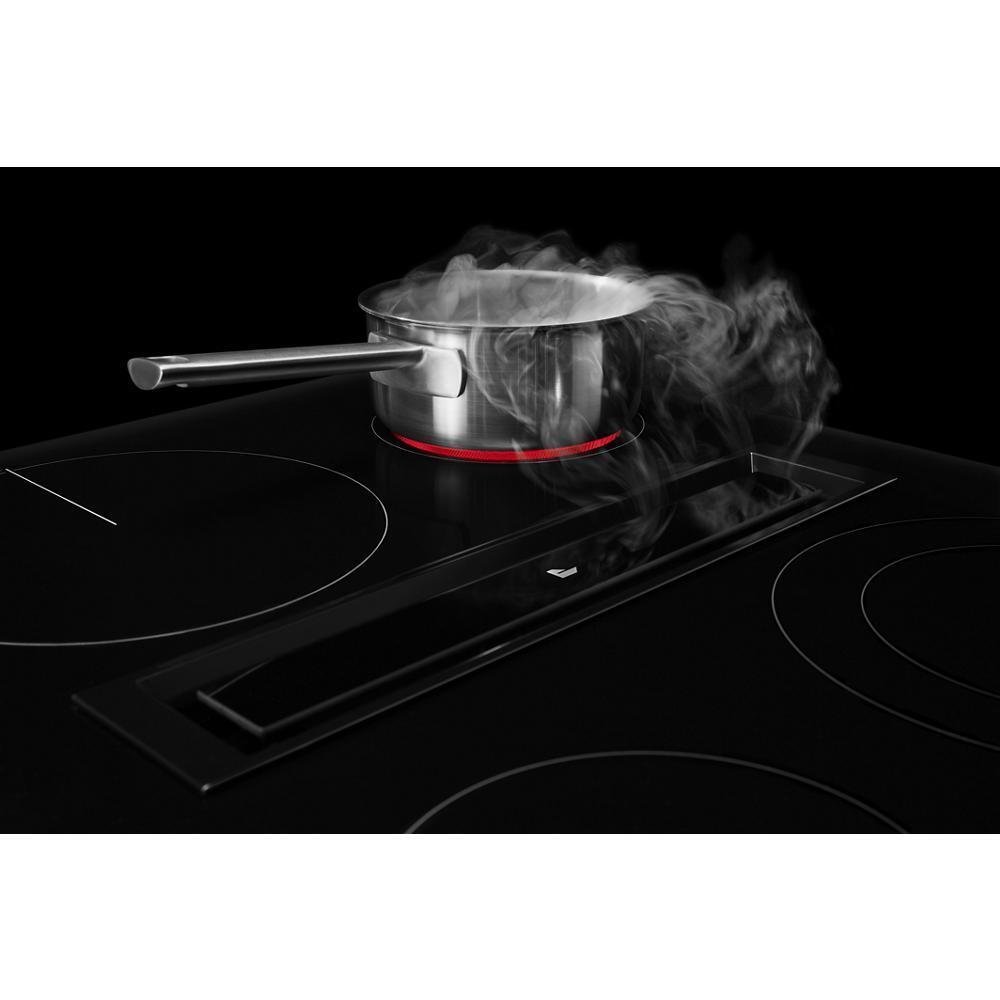

- Helps capture smoke, steam and odors at the cooking surface.

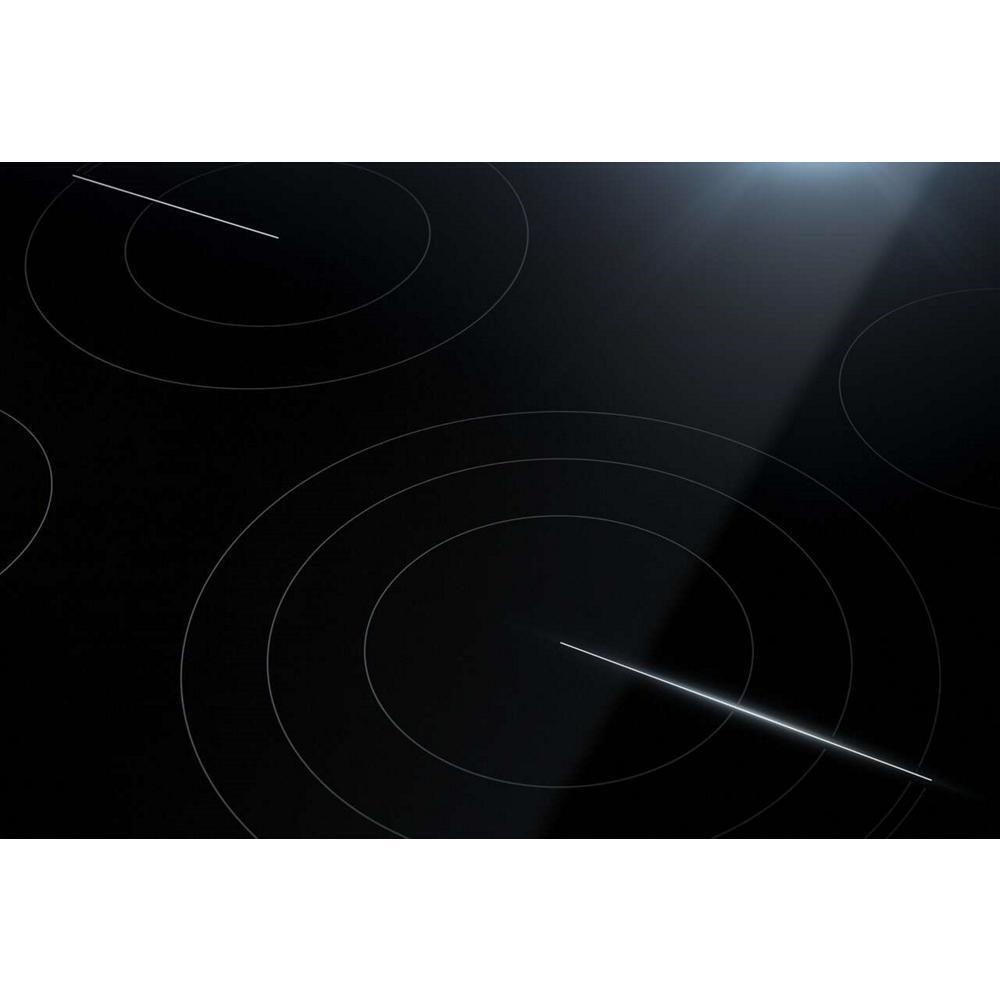

- A frameless cooktop in sleek black glass
- Installs semi-flush, 3mm above the countertop
| Certifications | |
| Ada Compliant | Yes |
| Prop65 | Standard |
| Ul | Yes |
| Controls | |
| Control Location | Right Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
| Cooktop Details | |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Digital Display | No |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | No |
| Cooktop Selections | Convertible to Duct Free Ventilation; DownDraft |
| Design Expression | Black Glass |
| Fuel Type | Electric Radiant |
| Installs Over Built-in Oven | No |
| Lp Convertible | No |
| Number of Vent Speeds | 3 |
| Power Outage Compatible | No |

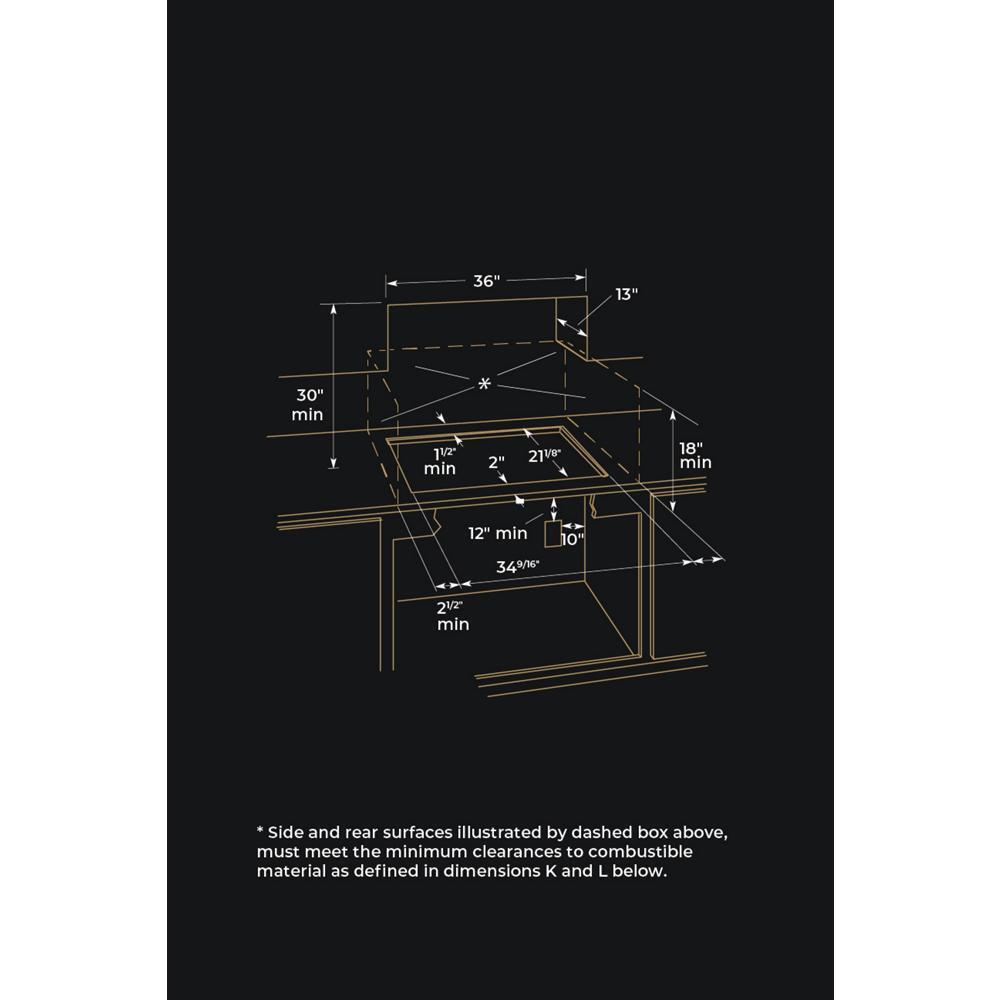

| Dimensions | |
| Product Height | 3.6875 |
| Cutout Depth | 21.125 |
| Carton Height | 23.78 |
| Gross Weight | 82 |
| Carton Depth | 26.38 |
| Carton Width | 41.5 |
| Cutout Width | 34.563 |
| Product Depth | 22.0625 |
| Net Weight | 69 |
| Product Width | 36.3125 |
| Electrical | |
| Power Cord Included | No |
| Element/burner Details | |
| Center Front Element-burner Power | 3,200W |
| Center Front Element-burner Size | 10in. |
| Center Front Element-burner Type | Single |
| Center Rear Element-burner Power | 1,200W |
| Center Rear Element-burner Size | 6in. |
| Center Rear Element-burner Type | Single |
| Cooktop Element Style | Radiant |
| Cooktop Type | Downdraft |
| Left Front Element-burner Power | 1,300W |
| Left Front Element-burner Size | 6in. |
| Left Front Element-burner Type | Hyper |
| Left Rear Element-burner Power | 1,800W |
| Left Rear Element-burner Size | 8in. |
| Left Rear Element-burner Type | Single |

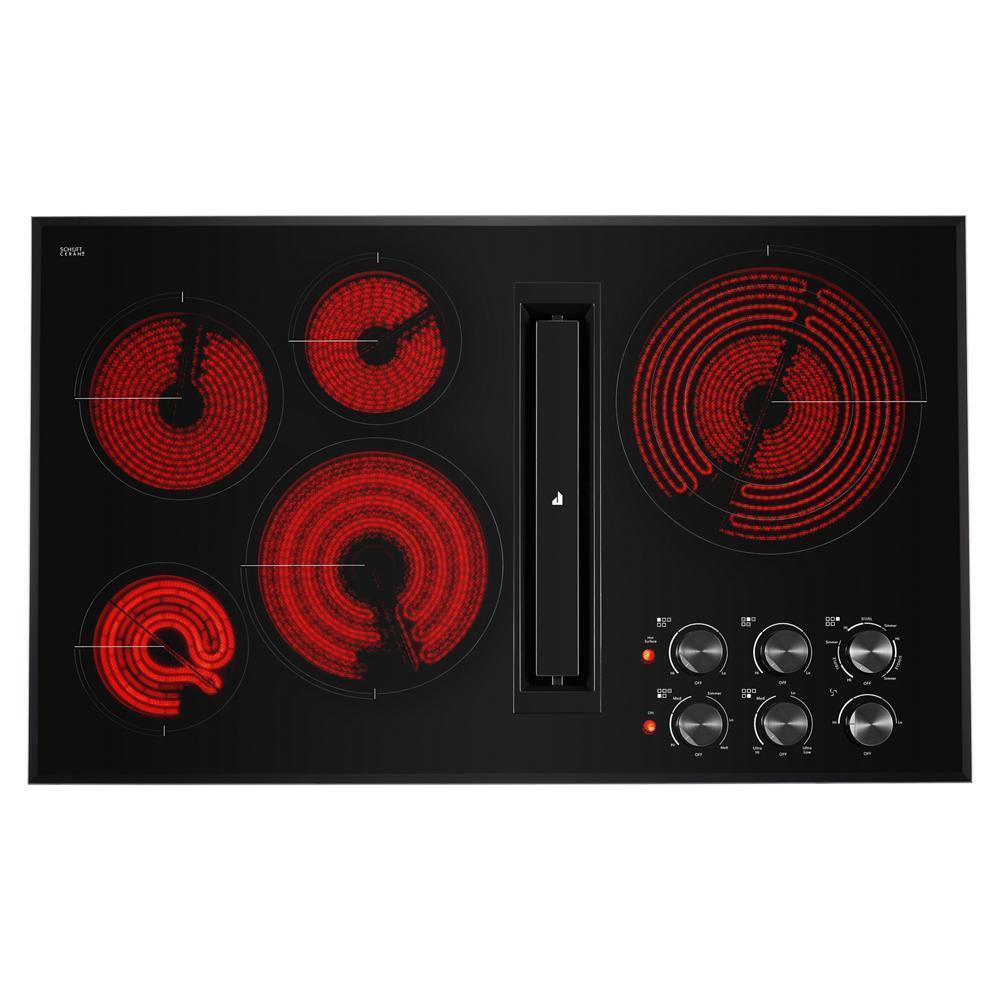

| Number of Cooking Element-burners | 5 |
| Power Boost | No |
| Right Rear Element-burner Power | 3000W/1950W/1050W |
| Right Rear Element-burner Size | 12in./9in./6in. |
| Right Rear Element-burner Type | Triple |
| Exterior Details | |
| Knob Color | Black |
| Knob Type | Metal |
| Ventilation Details | |
| Cfm Motor Class | 310 |
| Downdraft Vent | Yes |
| Ventilation Type | Downdraft |
- Helps capture smoke, steam and odors at the cooking surface.
- A frameless cooktop in sleek black glass
- Installs semi-flush, 3mm above the countertop
