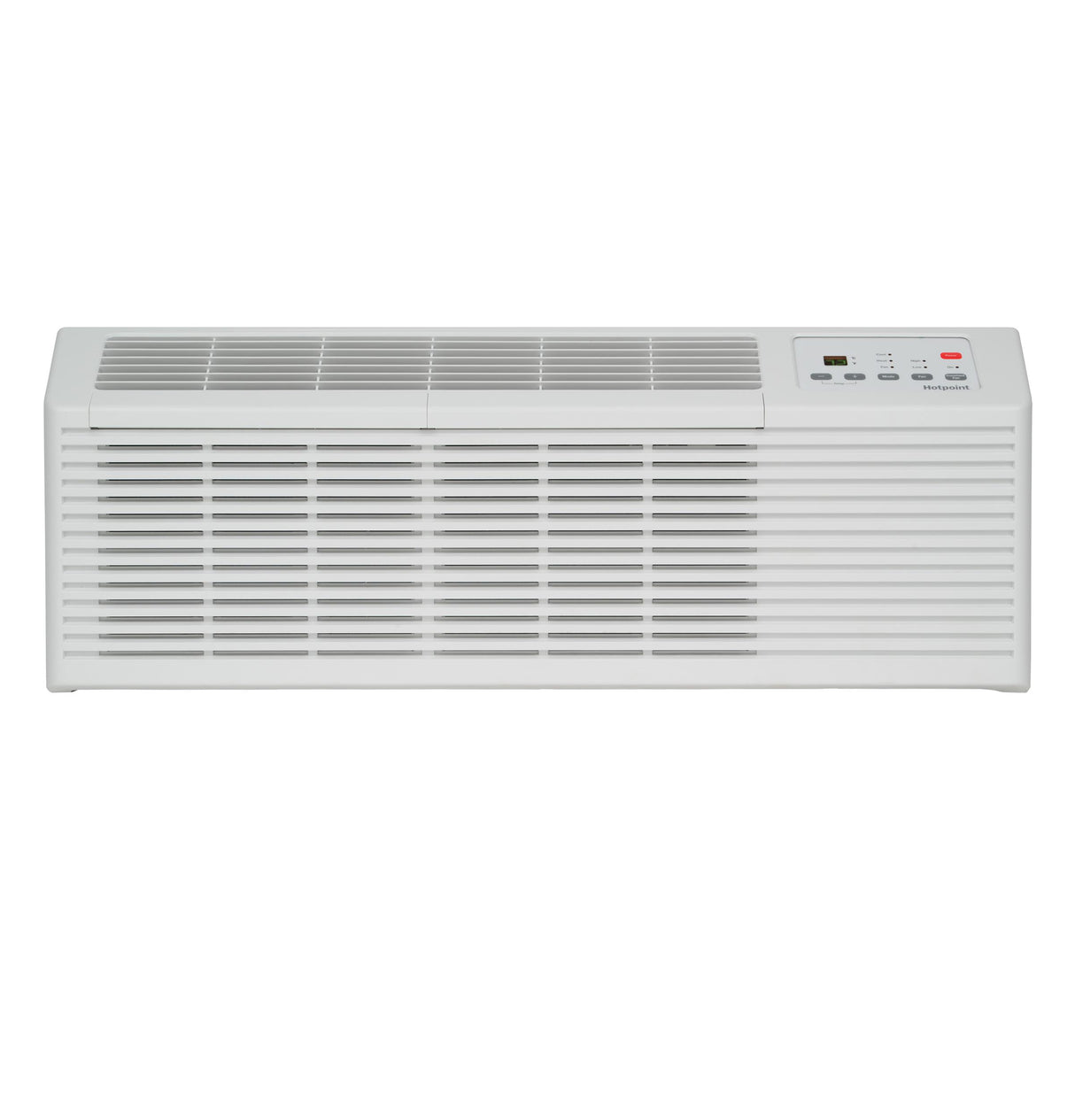

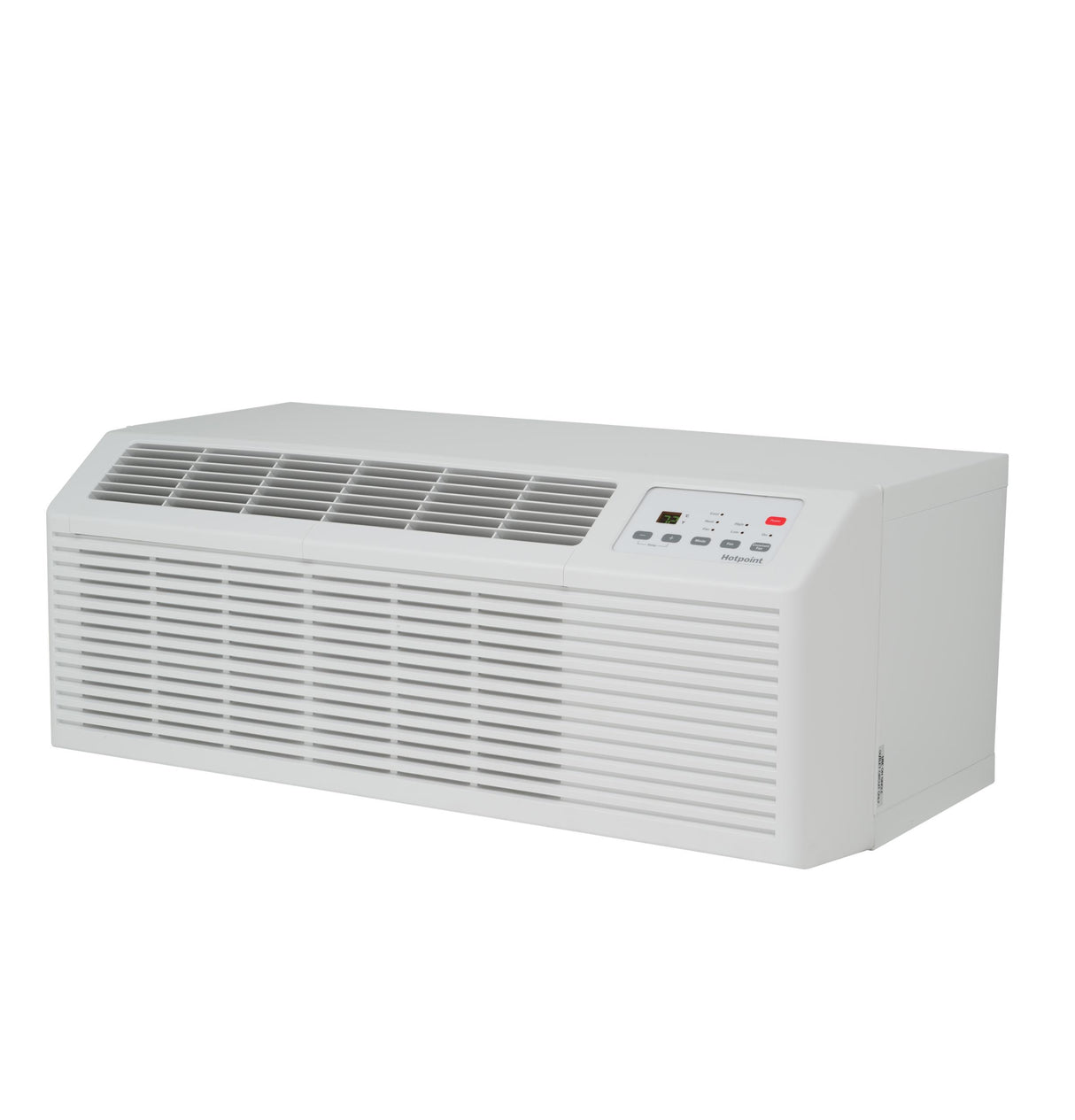

Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
Model: AHES15D3XXA
Authorized Dealer
1
of
5
Loading...
Authorized Dealer
Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp
Model: AHES15D3XXAQuick Specs
Width
42.4"
Depth
20.9"
Height
16"
ADA
NO
Wifi
NO
Hotpoint® PTAC with Electric Heat 15,000 BTU, 230/208V, 20amp is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-4 days
In Stock
Regular price
$1,007.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
42.4"
Depth
20.9"
Height
16"
ADA
NO
Wifi Connected
NO
- 2 Fan Speeds
- 4 Temperature-Limiting Options
- Auto Dimming Display
- Slinger Ring Condensate Removal
- Coverless Control Panel
- Automatic Emergency Heat
- Freeze/Frost & Overheat Protection
- Auto Power Recovery
- Self-Diagnostics
- Constant Fan Button
- 2 Fan Speeds
- 4 Temperature-Limiting Options
- Auto Dimming Display
- Slinger Ring Condensate Removal
- Coverless Control Panel
- Automatic Emergency Heat
- Freeze/Frost & Overheat Protection
- Auto Power Recovery
- Self-Diagnostics
- Constant Fan Button
(B)2 Fan Speeds(/B)(BR)(BR)(B)4 Temperature-Limiting Options(/B)(BR)(BR)(B)Auto Dimming Display(/B)(BR)(BR)(B)Slinger Ring Condensate Removal(/B)(BR)(BR)(B)Coverless Control Panel(/B)(BR)(BR)(B)Automatic Emergency Heat(/B)(BR)(BR)(B)Freeze/Frost & Overheat Protection(/B)(BR)(BR)(B)Auto Power Recovery(/B)(BR)(BR)(B)Self-Diagnostics(/B)(BR)(BR)(B)Constant Fan Button(/B)(BR)(BR)
| CAPACITY | |
| Cooling BTUH (MAX) | 14500 Btu |
| Cooling EER (BTUH / Watt) | 9.7/9.7 |
| Cooling BTUH (MIN) | 14300 Btu |
| APPEARANCE | |
| Installation | Through-the-Wall |
| Color Appearance | White |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| POWER / RATINGS | |
| Cooling - Amperes | 7.1/6.6 |
| Cooling - Watts | 1490/1470 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3500 |
| Voltage (MAX) | 230 V |
| WEIGHTS & DIMENSIONS | |
| Overall Width | 42.4 in |
| Approximate Shipping Weight | 104 lb |
| Overall Height | 16 in |
| Overall Depth | 20.9 in |
| Net Weight | 94 lb |
| FEATURES | |
| Control Type | Electronic |
| Fan Speed Selections | 2 Cooling 2 Fan Only 2 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Chassis Type | Slide-In |
| Fan Motor | 1 |
| Unit Features | Auto Power Recovery Automatic Indoor Frost Control Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility (Accessory Kit Required) |
| Temperature Range | 62 - 80 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Concealed Manual Vent Control |
| Heating System | Electric Resistance |
- 2 Fan Speeds
- 4 Temperature-Limiting Options
- Auto Dimming Display
- Slinger Ring Condensate Removal
- Coverless Control Panel
- Automatic Emergency Heat
- Freeze/Frost & Overheat Protection
- Auto Power Recovery
- Self-Diagnostics
- Constant Fan Button
 | |
|---|---|
