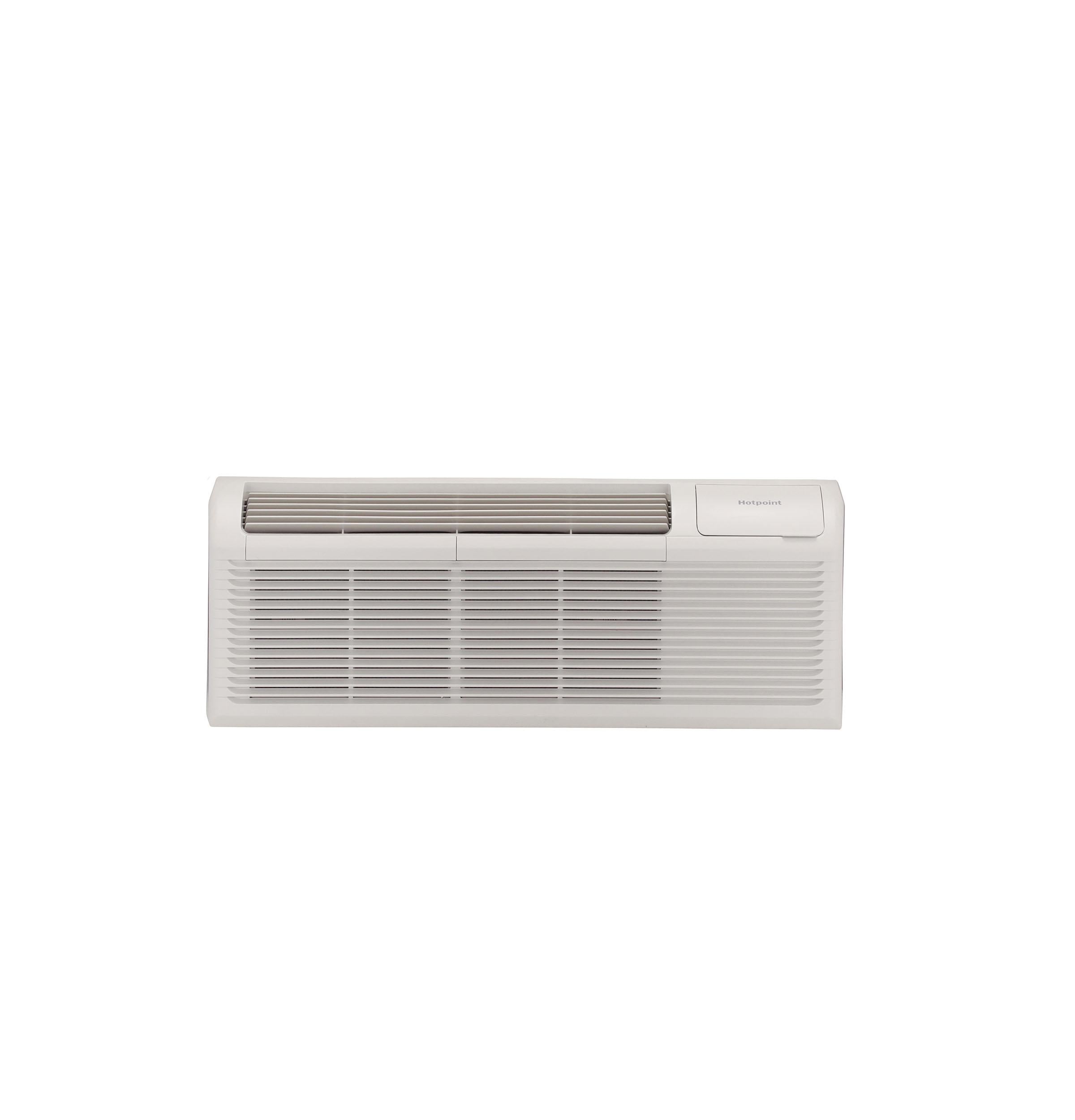

Hotpoint® PTAC with Electric Heat 12,000 BTU, 230/208V, 20amp
Model: AH12E12D3B
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
Hotpoint® PTAC with Electric Heat 12,000 BTU, 230/208V, 20amp
Model: AH12E12D3BHotpoint® PTAC with Electric Heat 12,000 BTU, 230/208V, 20amp is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
| CAPACITY | |
| Cooling BTUH (MAX) | 12000 Btu |
| CFM Indoor Fan Low | 310 |
| CFM Indoor Fan Medium | 348 |
| CFM Indoor Fan High | 383 |
| Cooling EER (BTUH / Watt) | 10.7 |
| Cooling BTUH (MIN) | 11800 Btu |
| APPEARANCE | |
| Installation | Through-the-Wall |
| Color Appearance | White |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed system |
| Parts Warranty | Limited 2-year entire appliance |
| POWER / RATINGS | |
| Cooling - Amperes | 4.9/5.3 |
| Cooling - Watts | 1120/1100 |
| Voltage (MIN) | 208 V |
| Heating - Electric - Heater Watts | 3535/2900 |
| Voltage (MAX) | 230 V |
| Heating - Electric - Heater Amps | 15.3/13.7 |
| WEIGHTS & DIMENSIONS | |
| Overall Width | 42.4 in |
| Approximate Shipping Weight | 119.5 lb |
| Overall Height | 16 in |
| Overall Depth | 20.9 in |
| Net Weight | 108.7 lb |
| FEATURES | |

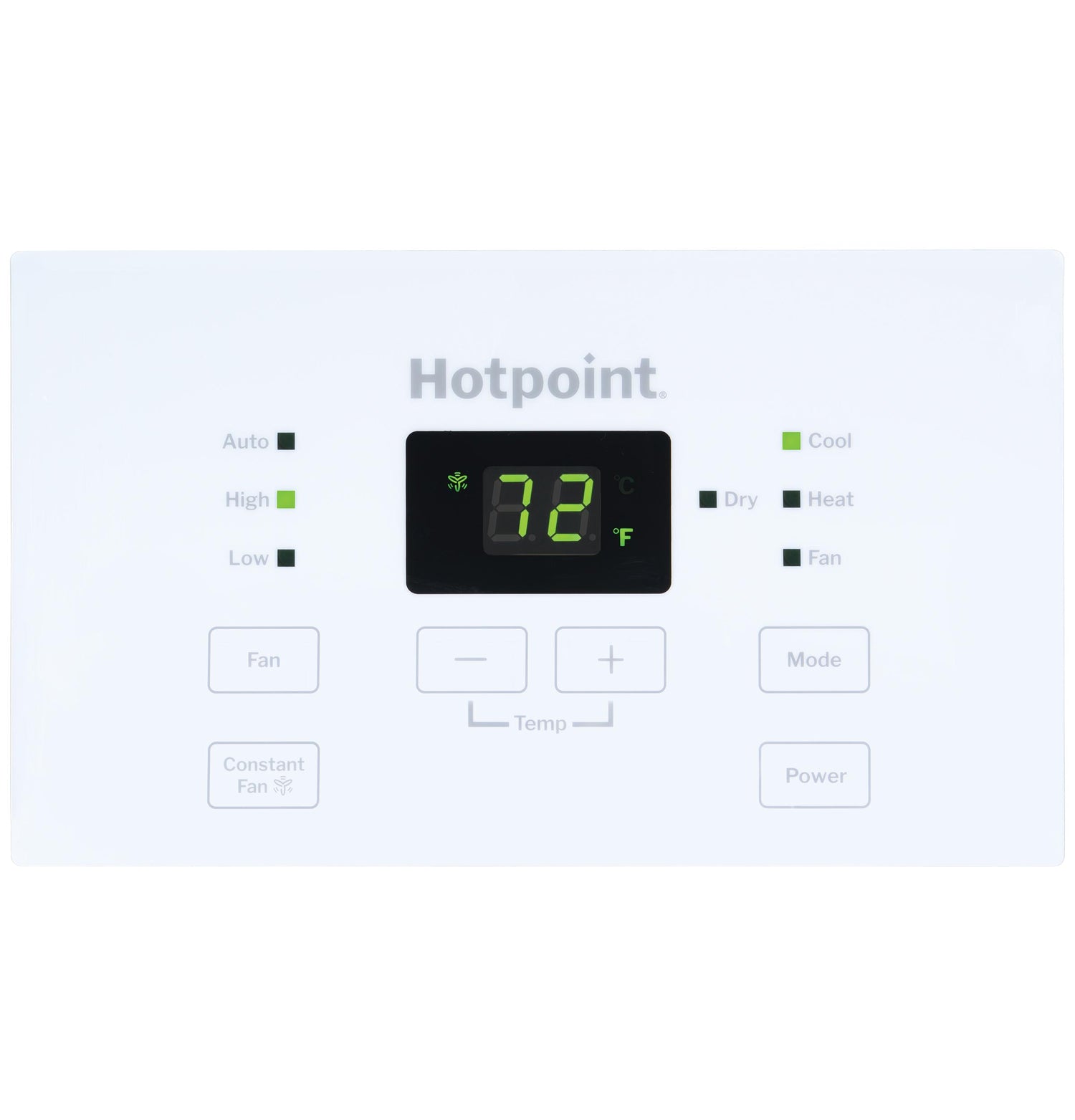

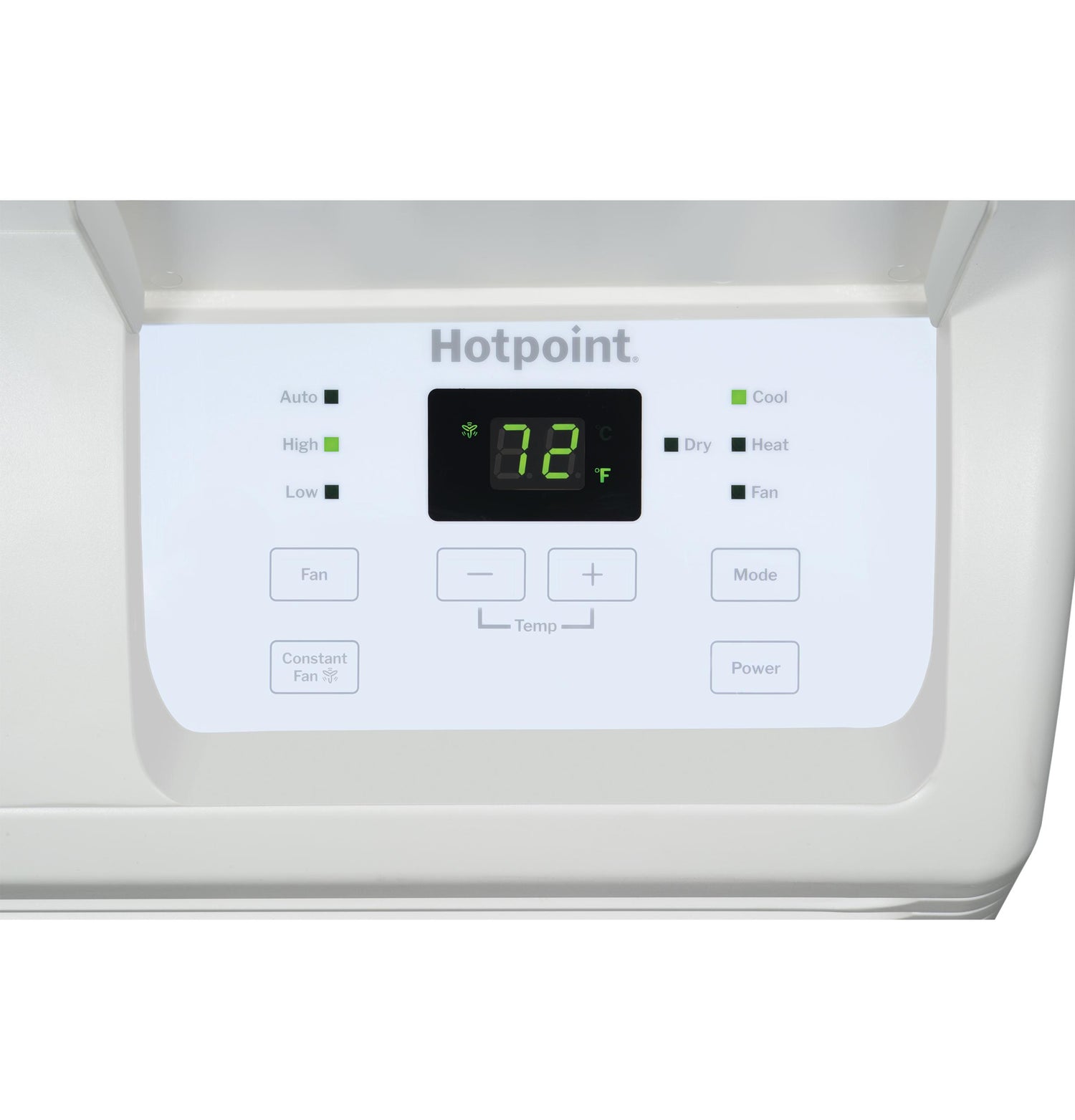

| Control Type | Electronic |
| Fan Speed Selections | 3 Cooling 3 Fan Only 3 Heating |
| Discharge Grille | 2-position |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R32 |
| Manual Vent Control | Hidden |
| "SmartFan" Fan Cycle | Yes |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Unit Features | Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Power Cord (LCDI) included Remote Thermostat Compatibility |
| Temperature Range | 62 - 80 F |
| Heat - Cool | Yes |
| Auto Power Recovery | Yes |
| Rotary Compressor | Yes |
| Outdoor Vent / Exhaust | Yes |
| Venting Features | Concealed Manual Vent Control Vent Air Filter |
| Heating System | Electric Resistance |
 | |
|---|---|
| Product Type & Dimensions | |
