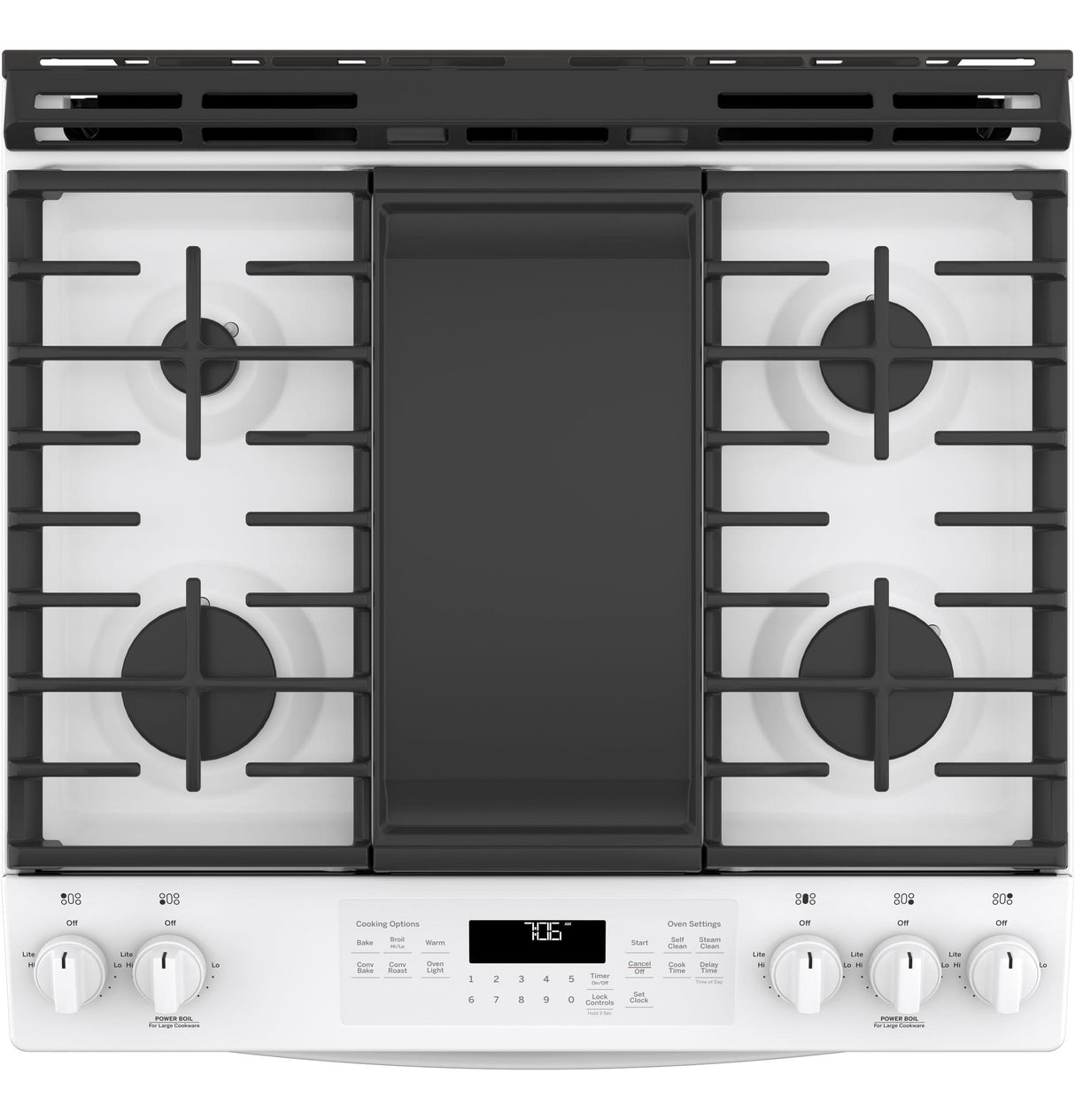

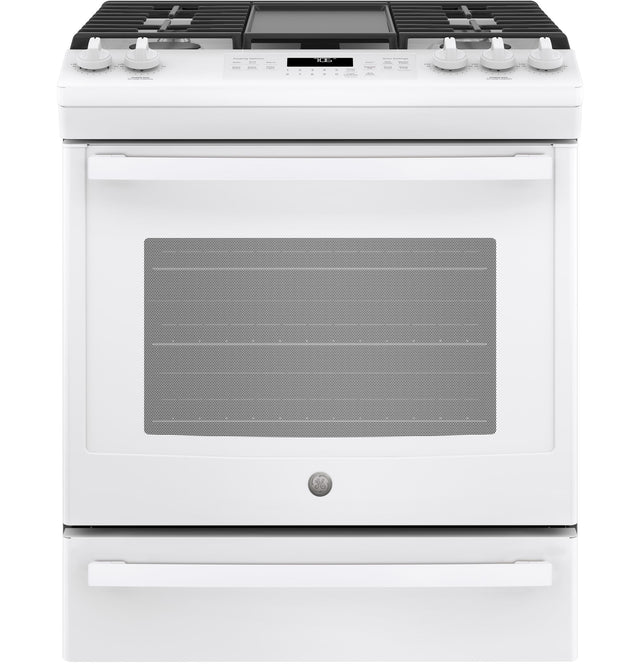

GE® 30" Slide-In Front-Control Convection Gas Range
Model: JGS760DELWW
Authorized Dealer
1
of
11
Loading...
Authorized Dealer
GE® 30" Slide-In Front-Control Convection Gas Range
Model: JGS760DELWWQuick Specs
Depth
29.25"
Height
36.25"
Sabbath
YES
ADA
NO
Wifi
NO
Burner
Sealed
Storage
YES
Warming
NO
Color
GE® 30" Slide-In Front-Control Convection Gas Range is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$2,083.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
29.25"
Height
36.25"
Sabbath Mode
YES
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of burners
4
Continuous Grate
NO
Convection
YES
Self Clean
YES
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
RPM
-1.0
Drawer Proof Mode
NO
Dual Fuel
NO
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Smooth-glide storage drawer
Drawer opens and closes easily for instant access and extra storage
Fit Guarantee
Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details

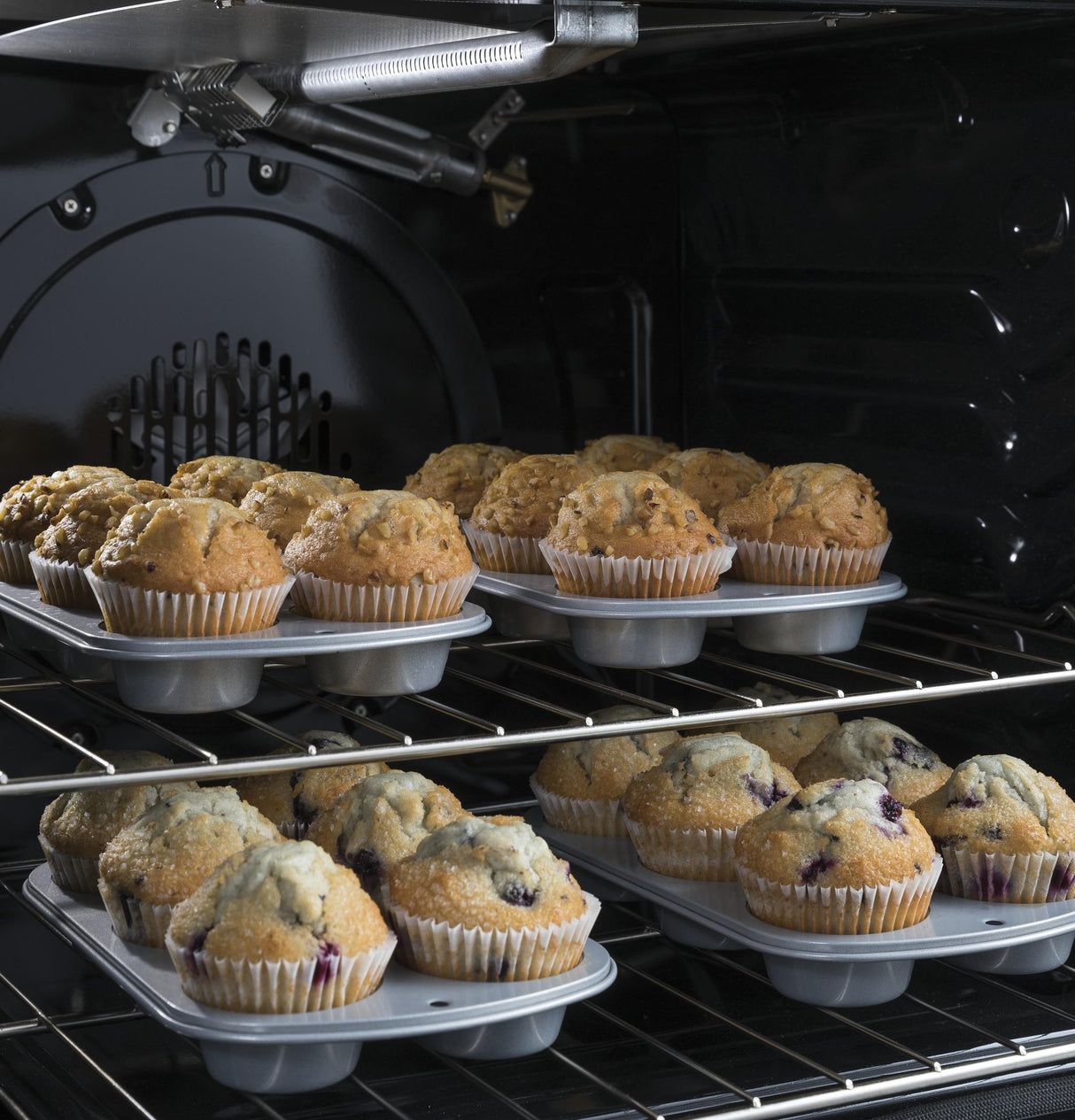

Gas convection
Evenly bake foods like roasts and cookies with this helpful feature that uses a fan to circulate heated air
Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle
Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

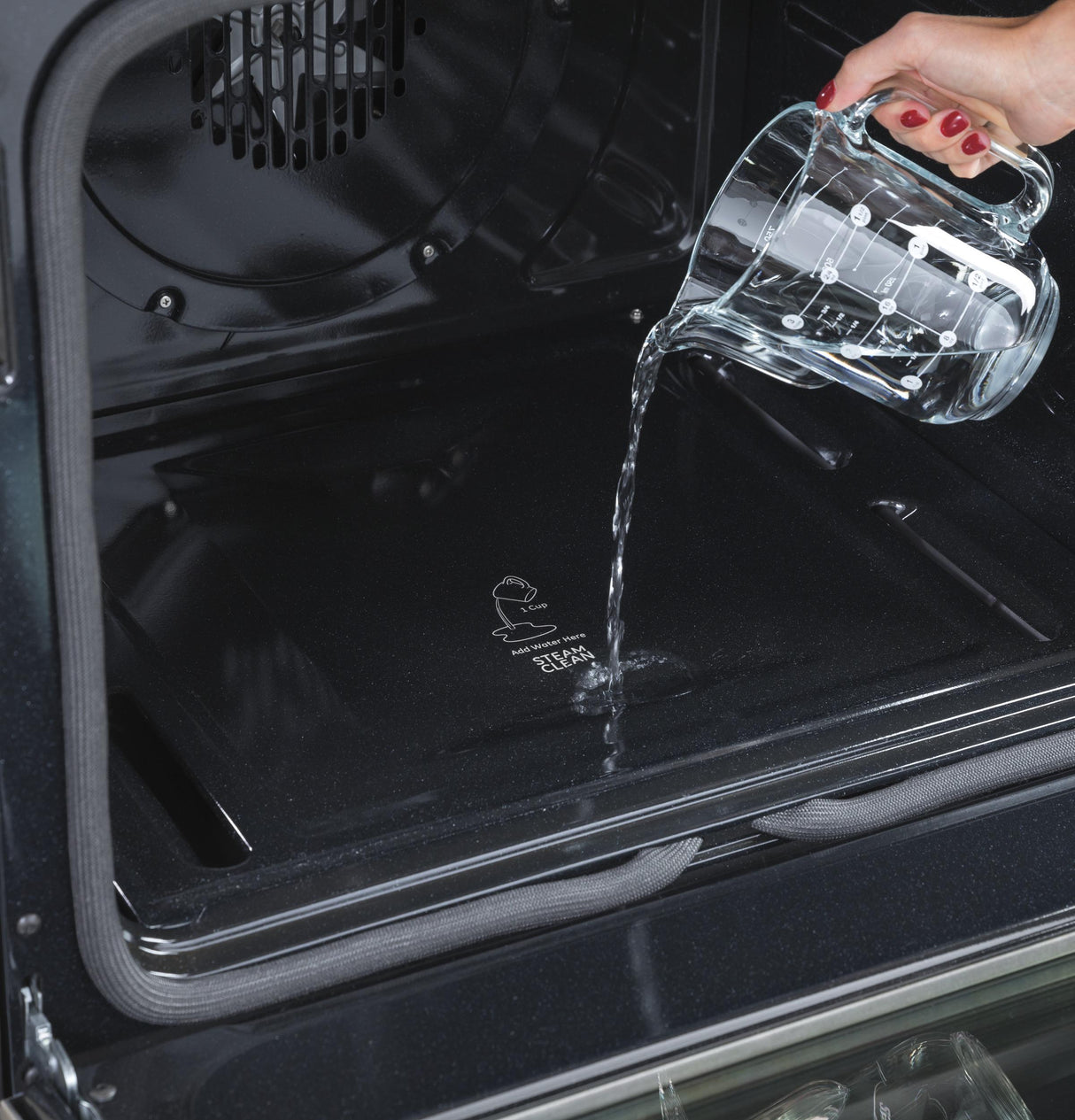

Self-clean with Steam Clean option
Clean your oven the way you want
18,000 BTU Power Boil burner
Prepare your favorite pasta dishes faster by boiling water in less time
10,000 BTU oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware
Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
Precise Simmer burner
Delicate foods don't burn with low, even heat
- Fit Guarantee
- Replace your old 30" free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications. See offer criteria and details
- Edge-to-edge cooktop
- A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner
- Extra-large integrated non-stick griddle
- Cook up to six grilled cheeses at once on the industry's largest integrated griddle
- 18,000 BTU Power Boil burner
- Prepare your favorite pasta dishes faster by boiling water in less time
- Gas convection
- Evenly bake foods like roasts and cookies with this helpful feature that uses a fan to circulate heated air
- Self-clean with Steam Clean option
- Clean your oven the way you want
- 10,000 BTU oval burner
- Large oval fifth burner is ideal for griddle or odd-size cookware
- Heavy duty, dishwasher safe grates
- Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
- Precise Simmer burner
- Delicate foods don't burn with low, even heat
- Smooth-glide storage drawer
- Drawer opens and closes easily for instant access and extra storage
- Fit Guarantee
- Edge-to-edge cooktop
- Extra-large integrated non-stick griddle
- 18,000 BTU Power Boil burner
- Gas convection
- Self-clean with Steam Clean option
- 10,000 BTU oval burner
- Heavy duty, dishwasher safe grates
- Precise Simmer burner
- Smooth-glide storage drawer
| CAPACITY | |
| Total Capacity (cubic feet) | 5.6 |
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Product Type | Ranges Slide-In Single Oven |
| App Filter - Fuel Type | Gas |
| App Filter - Cooking Technology | Convection |
| App Filter - Convection | Yes |
| App Filter - Edge-to-Edge Cooktop | Yes |
| App Filter - Drawer Type | Storage |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Cooktop Type | Continuous Grates |
| APPEARANCE | |
| Cooktop Burner Grate Color | Matte Black |
| Handle | Color-Matched |
| Installation | Flush Appearance Free-standing cut-out |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Color-Matched |
| Color Appearance | White |
| POWER / RATINGS | |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 16.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| ACCESSORIES | |
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | Non-Stick Griddle (Included) |
| LP Conversion Kit | Included |
| Trim Kit | JXFILLR1DD Optional |

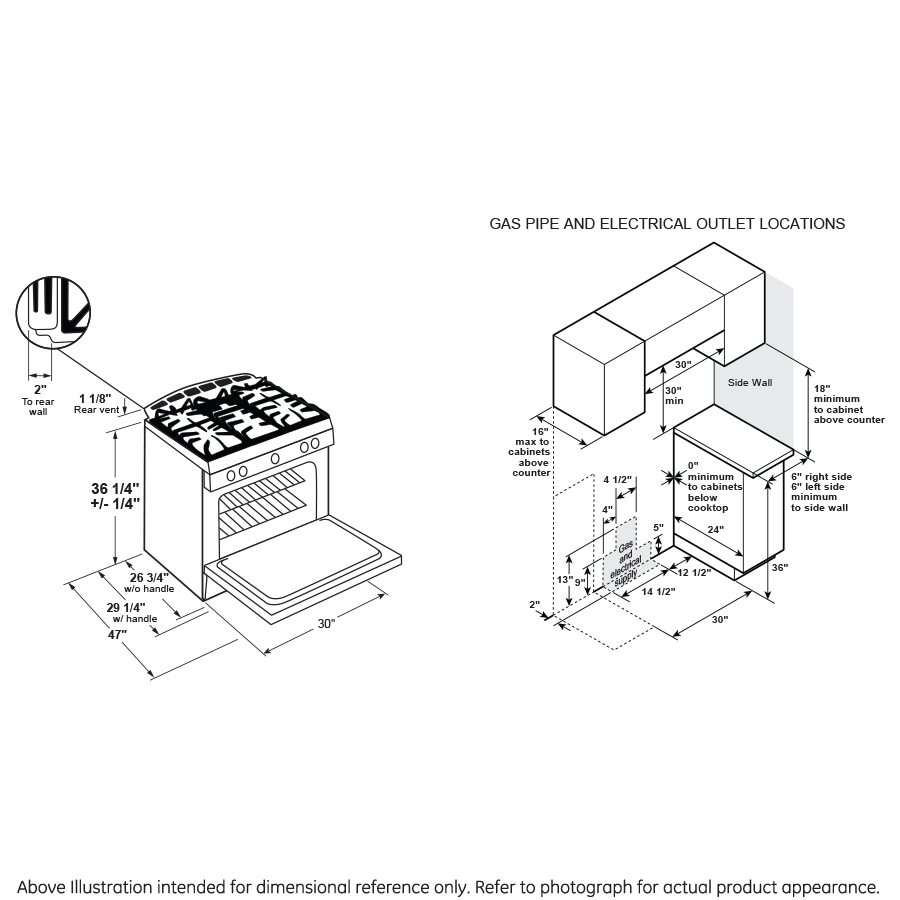

| WEIGHTS & DIMENSIONS | |
| Net Weight | 224 |
| Depth Without Handle | 26.75 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Cabinet Width | 30 |
| Approximate Shipping Weight | 244 |
| Overall Width | 30 |
| Cabinet Opening | 30 |
| Overall Height | 36.25 |
| Height to Top of Rear Vent Trim | 37.375 |
| Overall Depth | 29.25 |
| Depth with Door Open | 47.5 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| FEATURES | |
| Ignition System | Electronic |
| Burner - Right Rear | 9,500 BTU |
| Oven Interior | 1 Auto Incandescent Light Black |

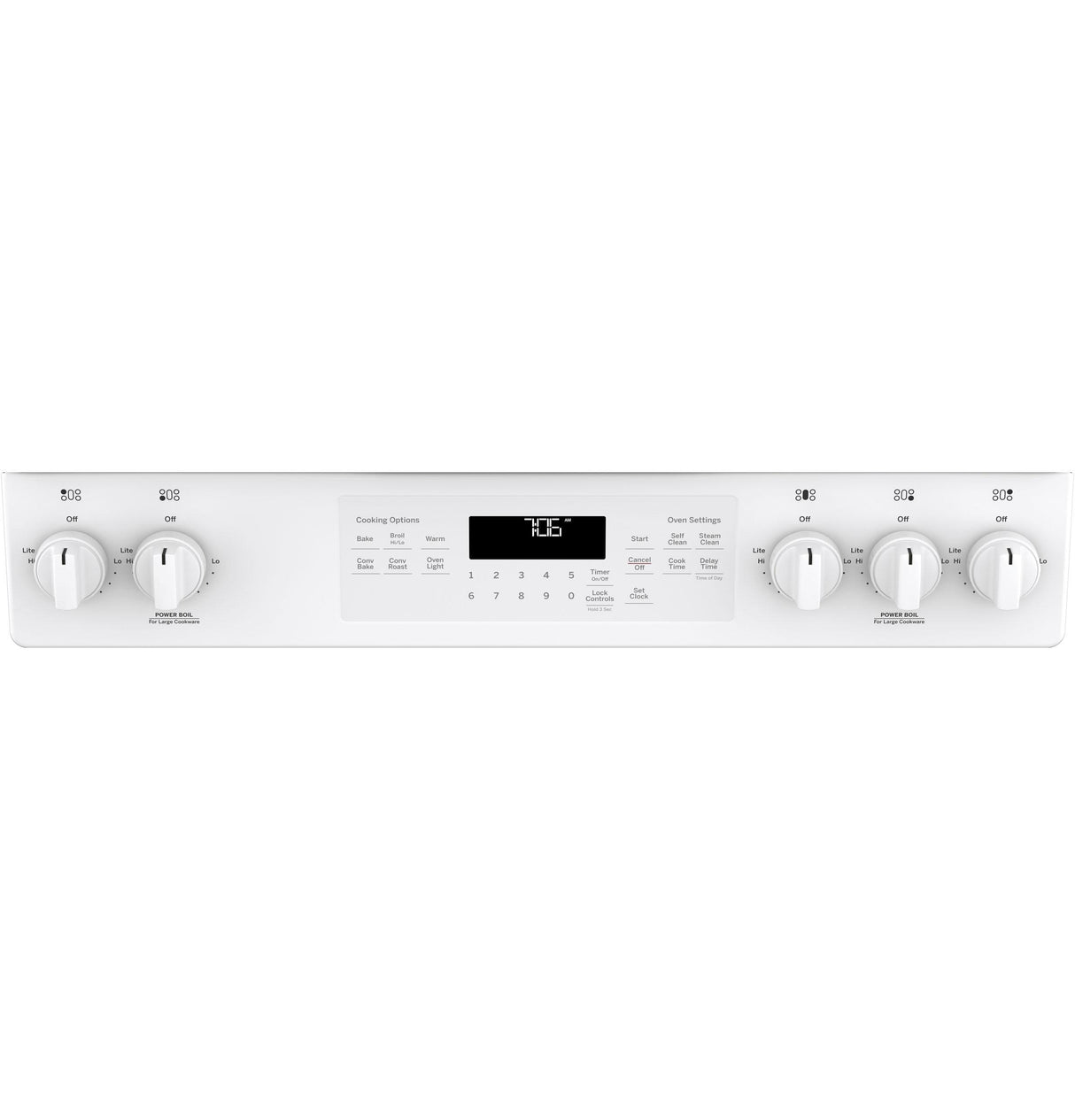

| Oven Control Features | Audible Preheat Signal Auto Recipe Conversion Auto Self Clean Certified Sabbath Mode Control Lock Capability Dual Broil Electronic Clock & Kitchen Timer In-Oven Broiling |
| Oven Rack Features | 3 Oven Racks |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Product Type | Slide-In Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas (factory set) |
| Burner - Center | 10,000 BTU Oval |
| Control Location | Front |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 18,000 BTU |
| Drawer Type | Storage |
| Cooking Technology | Convection |
| Configuration | Range with Smooth Glide Storage Drawer |
| Oven Cooking Modes | Convection Bake Convection Roast |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 15,000 BTU Power Boil |
| Cooktop Surface | Color-Matched Deep Recessed Edge-to-Edge |
| Self-Clean Oven Door Lock | Automatic |
