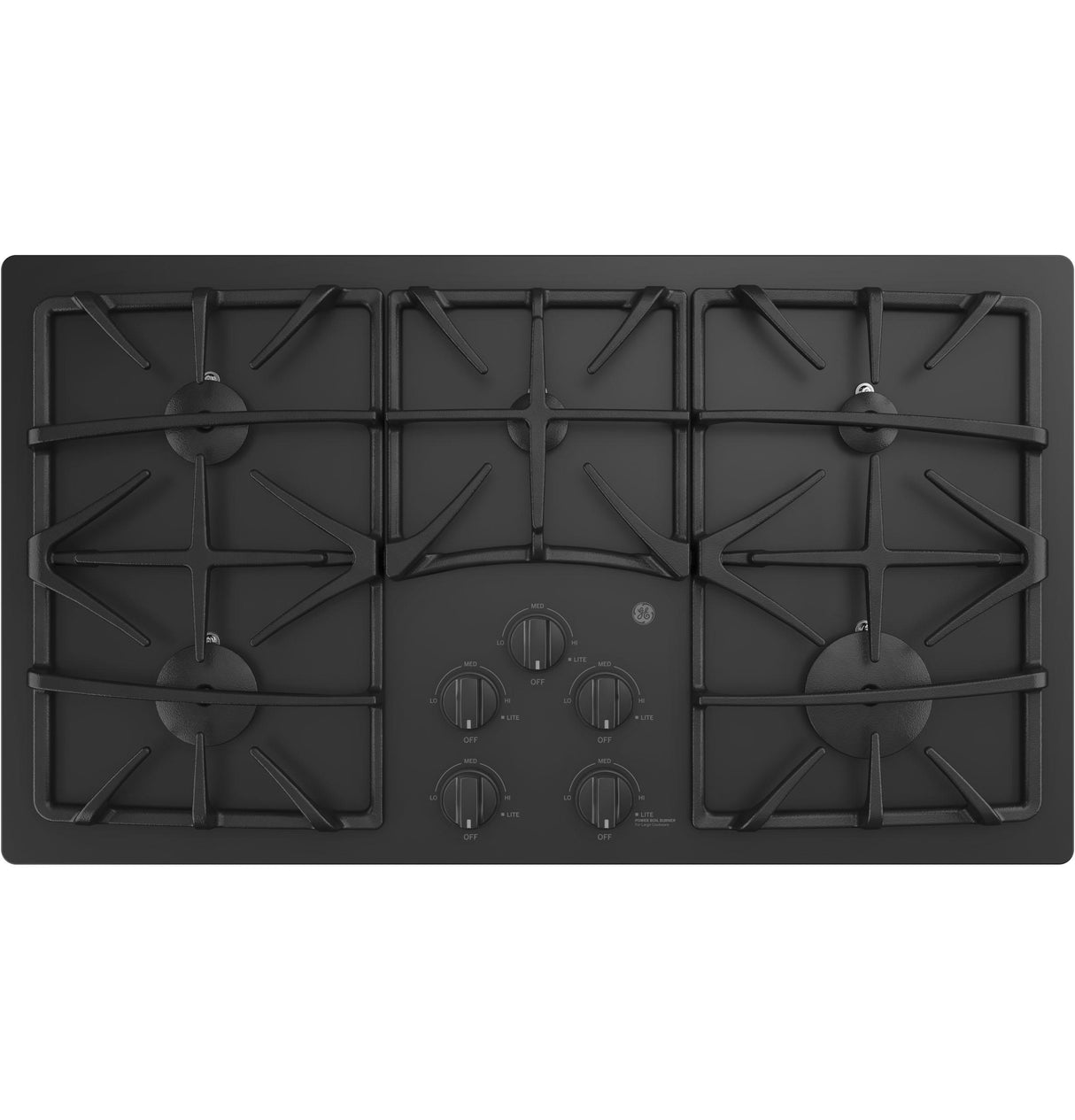

GE® 36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates
Model JGP5536DLBB
Authorized Dealer
1
of
11
Loading...
Authorized Dealer
GE® 36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates
Model JGP5536DLBBQuick Specs
Depth
21 1/4
Height
3 7/8
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Burners
5
Grate
YES
GE® 36" Built-In Gas on Glass Cooktop with 5 Burners and Dishwasher Safe Grates is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,293.52
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
21 1/4
Height
3 7/8
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking oven number of burners
5
Continuous Grate
YES
Downdraft Ventilation
NO
RPM
-1.0
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Gas on Glass Cooktop
Sleek and easy to clean cooking surface
Start Cooking Faster with Power Boil
15,000 BTU Power Boil burner delivers intense heat for faster boiling

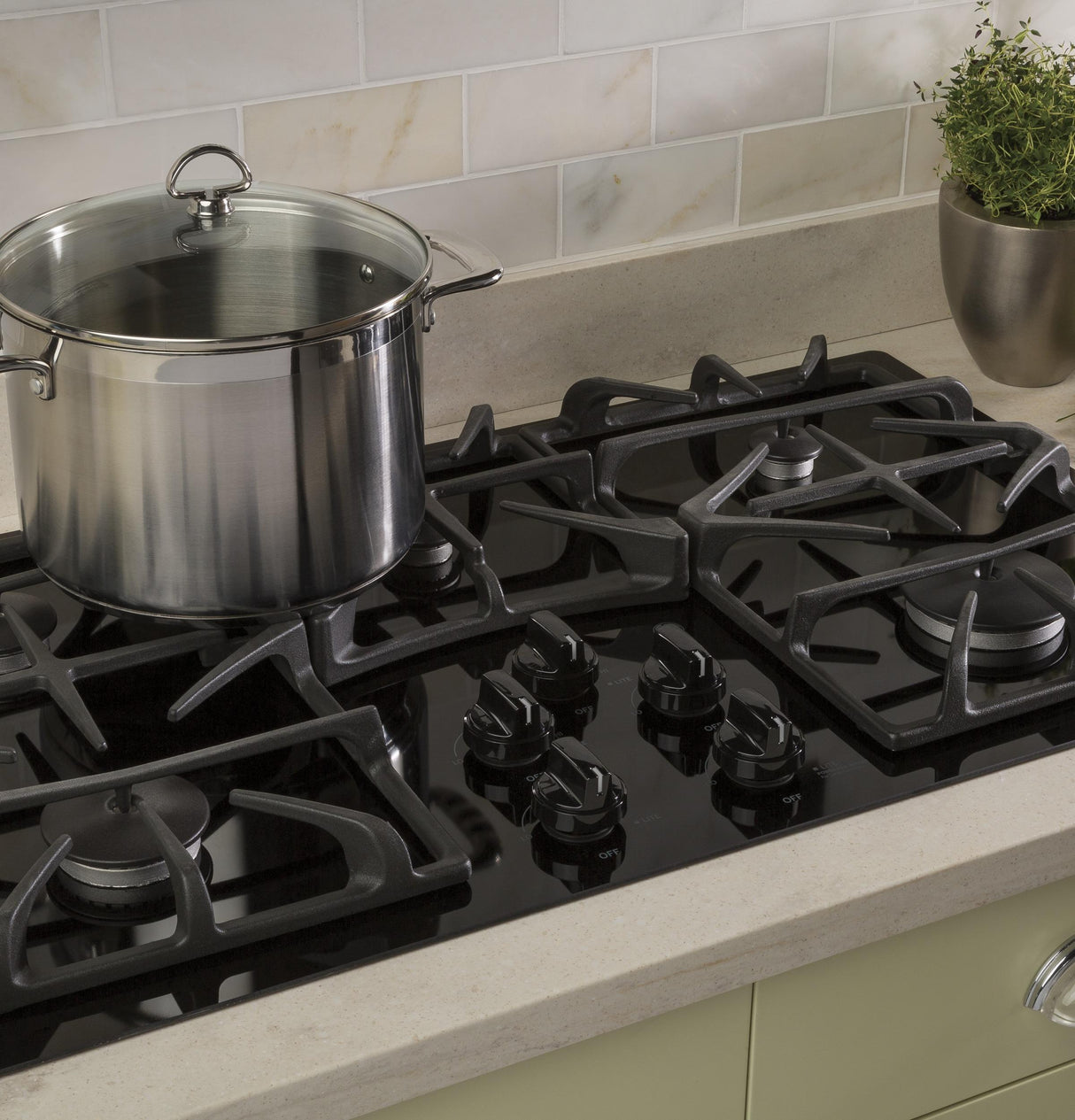

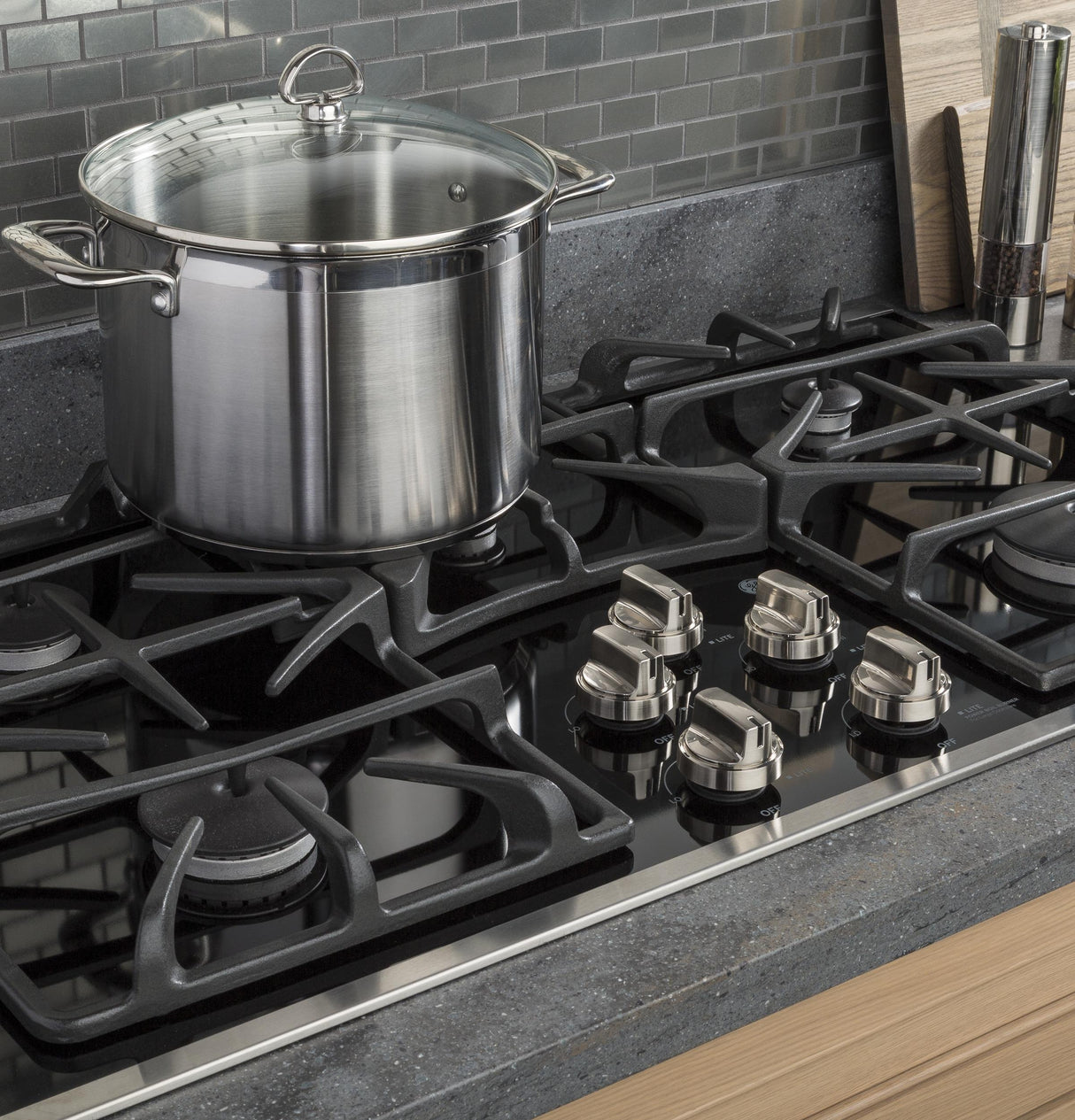

Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware

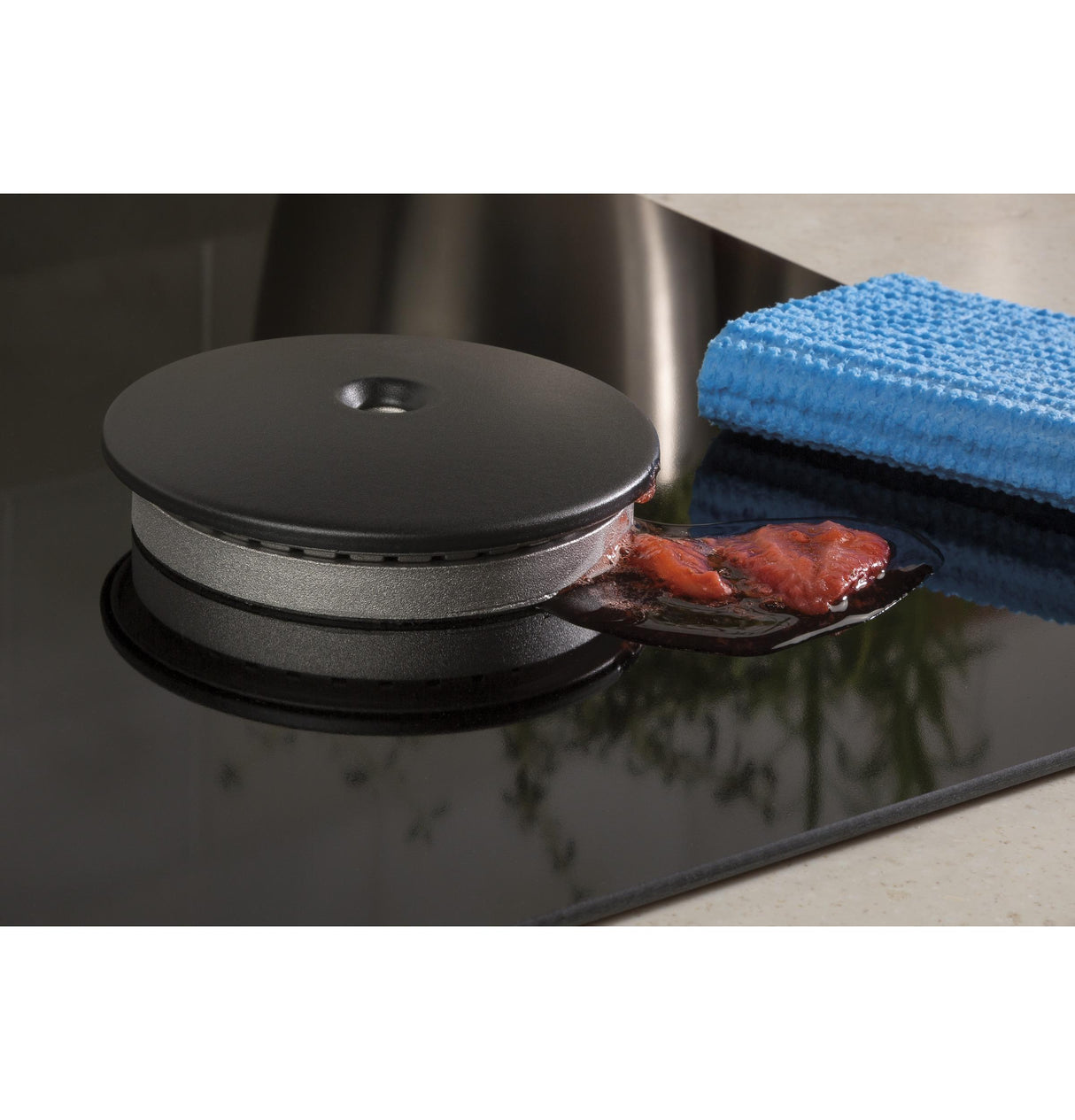

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
Precise Simmer Burner
Protect delicate foods with low, even heating
Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

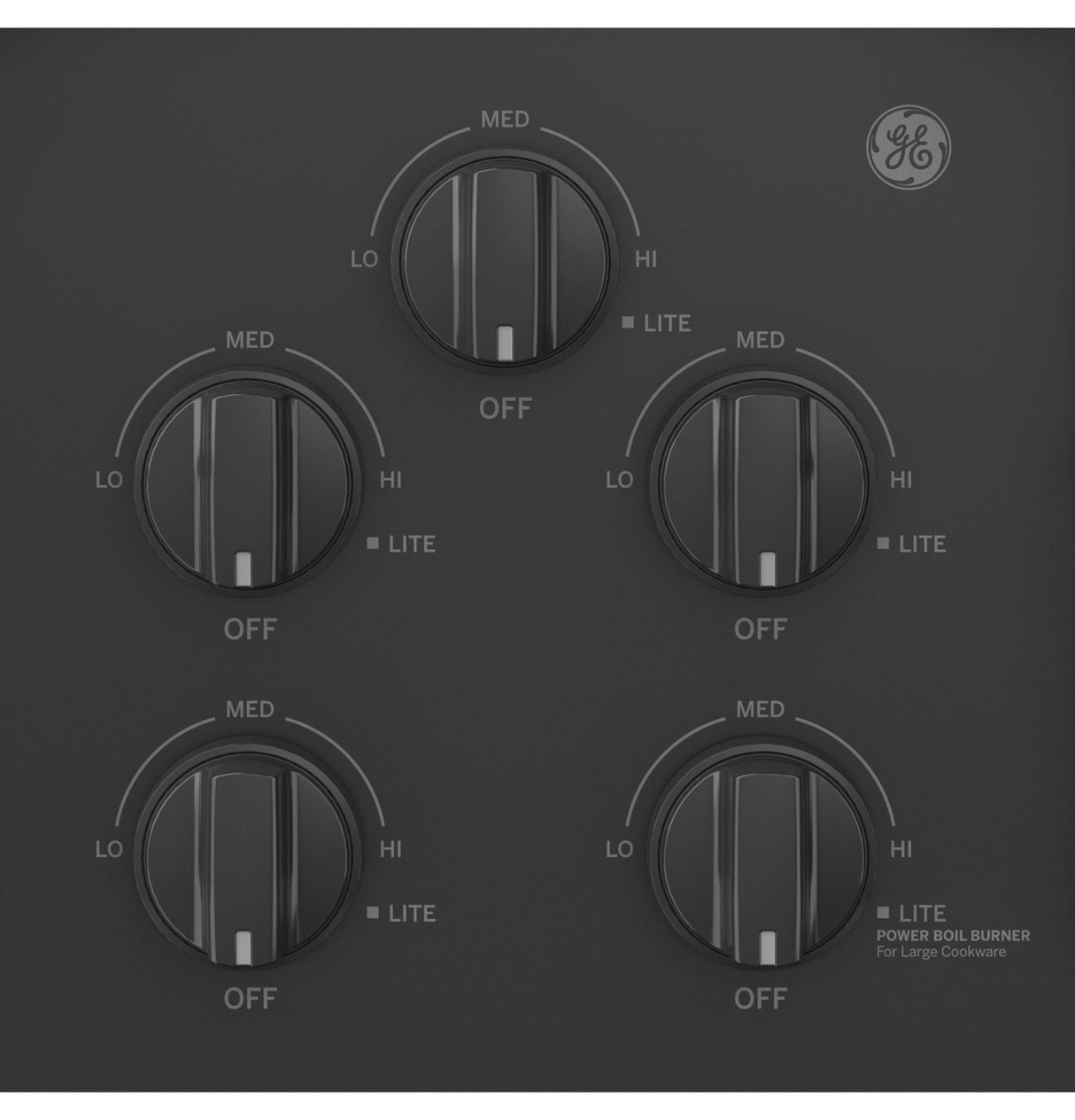

Control Lock Capability
Protects against unintended activation

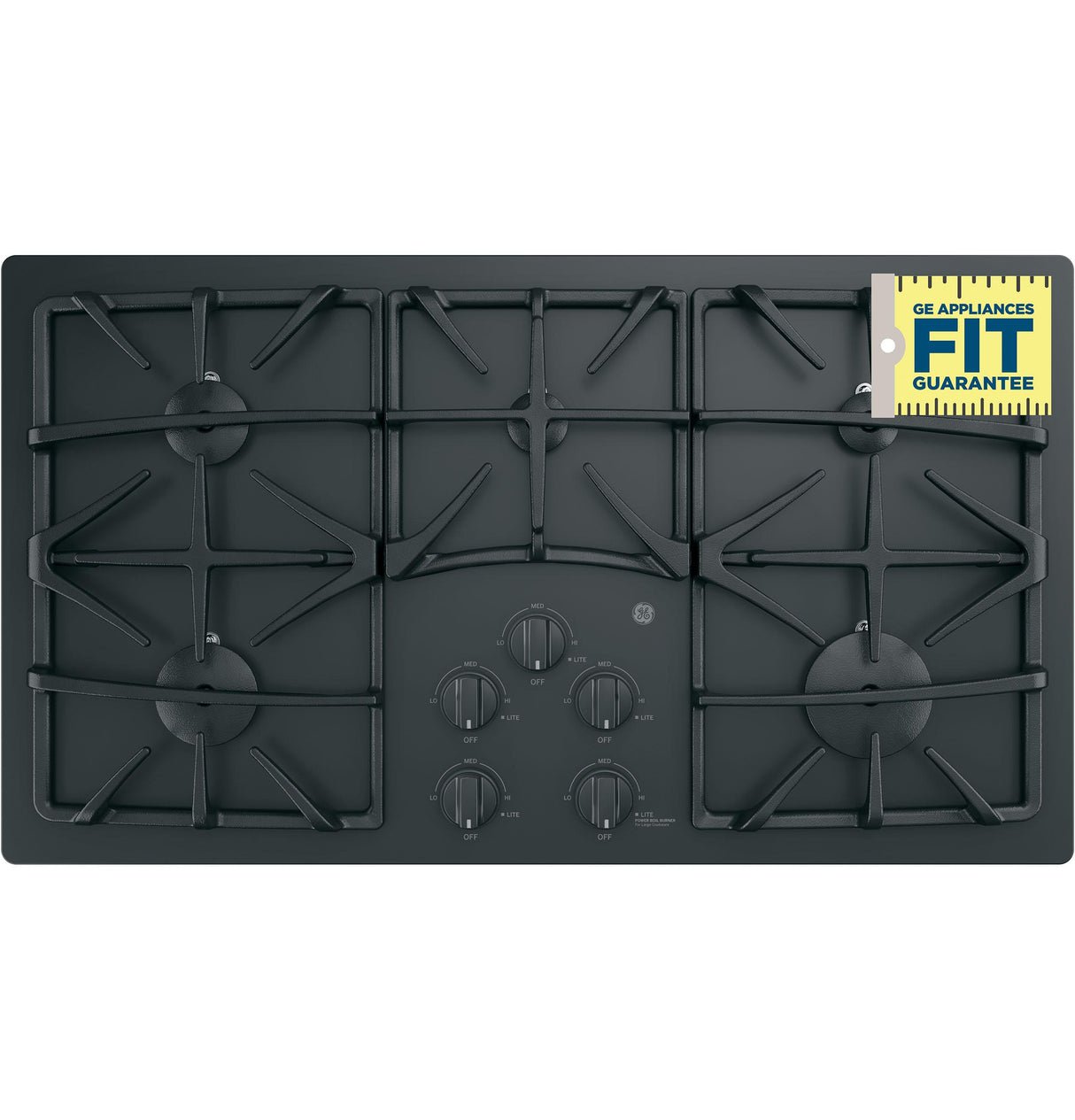

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- 36" Cooktop with 5 Burners
- Enjoy ultimate cooktop flexibility and more cooking space with 5 sealed burners
- Gas on Glass Cooktop
- Sleek and easy to clean cooking surface
- Spend Less Time Cleaning Up
- Sealed cooktop burners contain spills and make cleaning quick and easy
- Maximize Your Cooking Space
- Continuous cast iron grates provide more room for large cookware
- Dishwasher-Safe Grates
- Heavy-duty grates are easy to clean in the dishwasher
- Start Cooking Faster with Power Boil
- 15,000 BTU Power Boil burner delivers intense heat for faster boiling
- Precise Simmer Burner
- Protect delicate foods with low, even heating
- Control Lock Capability
- Protects against unintended activation
- Fit Guarantee
- Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- 36" Cooktop with 5 Burners
- Gas on Glass Cooktop
- Spend Less Time Cleaning Up
- Maximize Your Cooking Space
- Dishwasher-Safe Grates
- Start Cooking Faster with Power Boil
- Precise Simmer Burner
- Control Lock Capability
- Fit Guarantee
| FILTER | |
| App Filter - Cabinet Width | Cooking 36 in. |
| App Filter - Cooktop Type | Continuous Grates |
| App Filter - Fuel Type | Gas |
| App Filter - Control Type | Rotary knobs |
| APPEARANCE | |
| Color Appearance | Black |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Dishwasher Safe Gloss Black |
| POWER / RATINGS | |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 13.0; (1) 9.1; (1) 8.1; (2) 6.0 |
| Hertz | 60 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 11.0; (1) 9.1; (2) 6.0 |
| Electrical Requirements | 120V |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| Cooktop Cleaning | Cream (WB64X5027) |

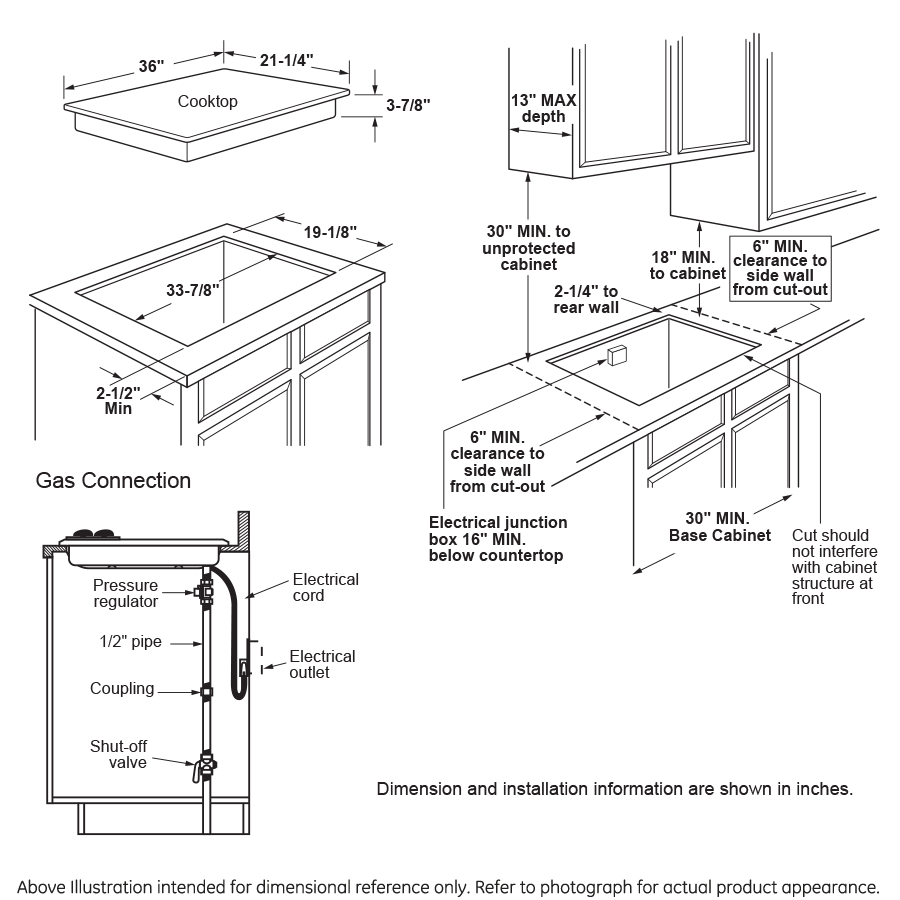

| WEIGHTS & DIMENSIONS | |
| Overall Height | 3.875 in |
| Cutout Depth (in) | 19.125 |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 56 lb |
| Overall Width | 36 in |
| Net Weight | 49 lb |
| Cutout Width (in) | 33.875 |
| Overall Depth | 21.25 in |
| FEATURES | |
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 6,000 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas |
| Control Location | Front Center |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Burner - Center | 6,000 BTU |
| Cooktop Surface | Black Gas-On-Glass Ceramic |
| Burner - Left Rear | 9,100 BTU |
| Control Type | Knob |
| Cooktop Burner Grate Material | Deluxe Cast |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe Matte Black |
| Burner - Left Front | 11,000 BTU |
| Product Type | Cooktop |
