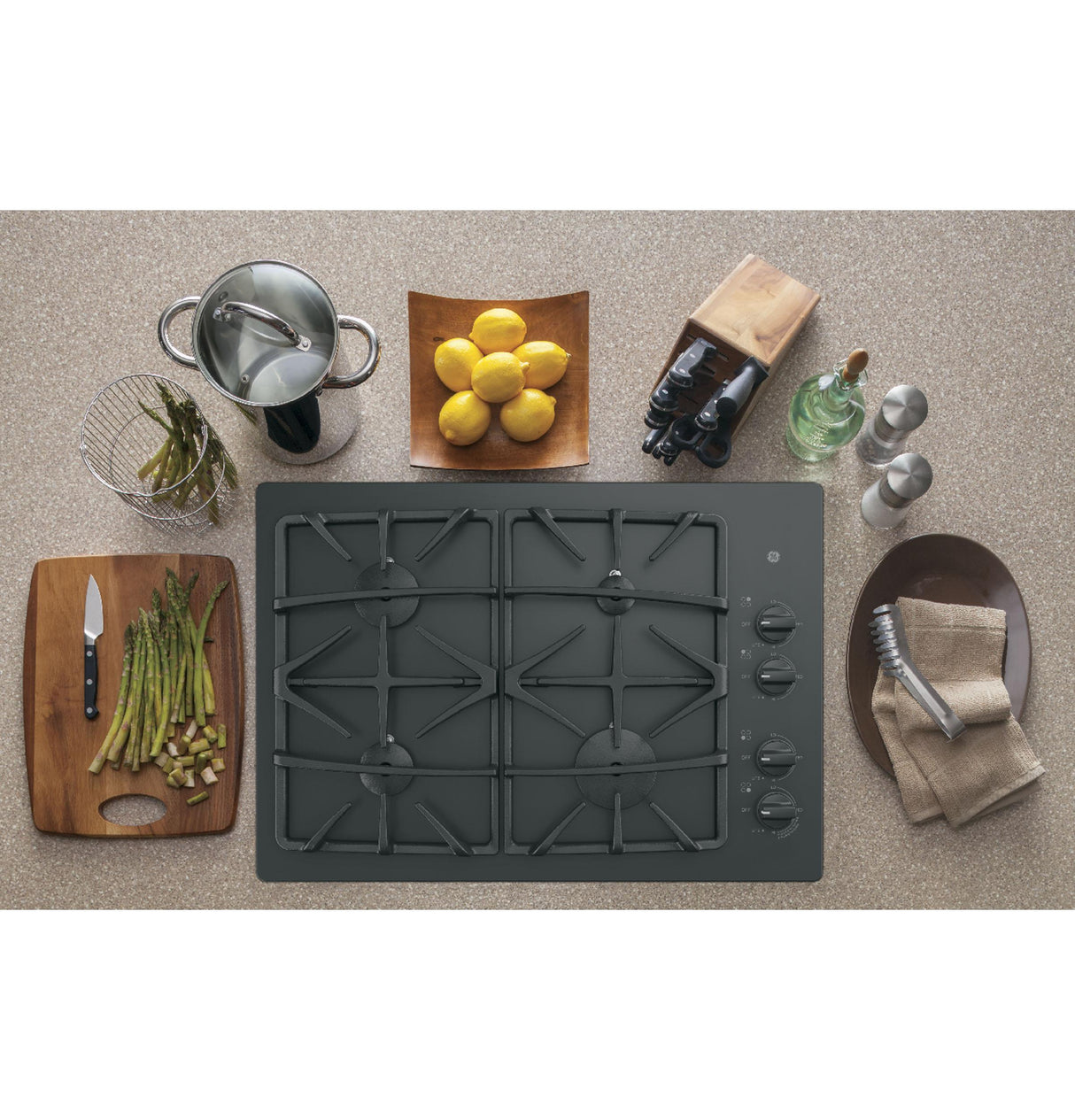

GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates
Model JGP5530DLBB
Authorized Dealer
1
of
12
Loading...
Authorized Dealer
GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates
Model JGP5530DLBBQuick Specs
Depth
21.25
Height
5.5
Sabbath
NO
ADA
YES
Wifi
NO
Burner
Sealed
Burners
4
Grate
YES
GE® 30" Built-In Gas on Glass Cooktop with Dishwasher Safe Grates is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,202.15
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
21.25
Height
5.5
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Burner Type
Sealed
Cooking oven number of burners
4
Continuous Grate
YES
Downdraft Ventilation
NO
RPM
-1.0
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Gas on Glass Cooktop
Sleek and easy to clean cooking surface

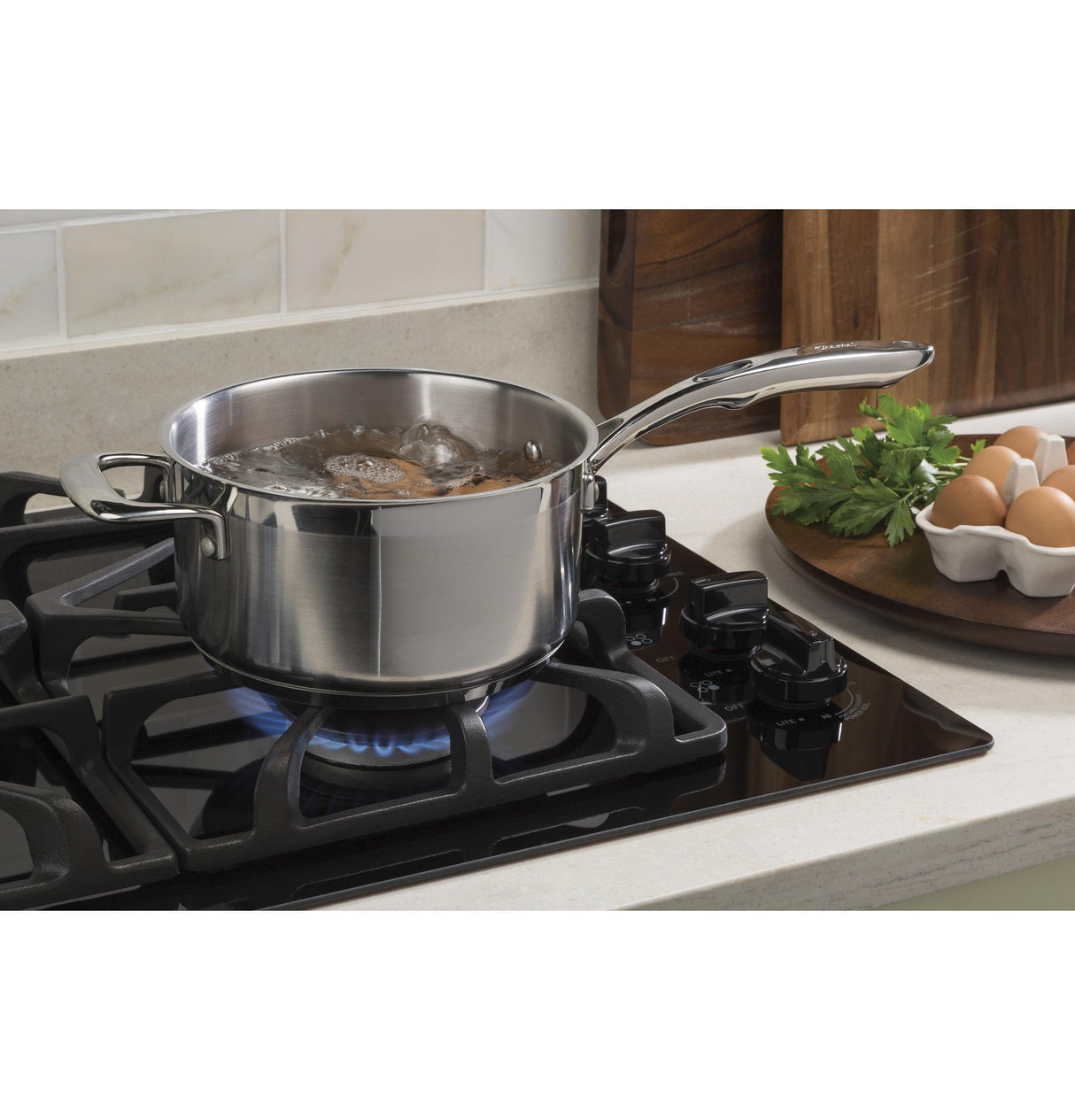

Start Cooking Faster with Power Boil
15,000 BTU Power Boil burner delivers intense heat for faster boiling
Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware

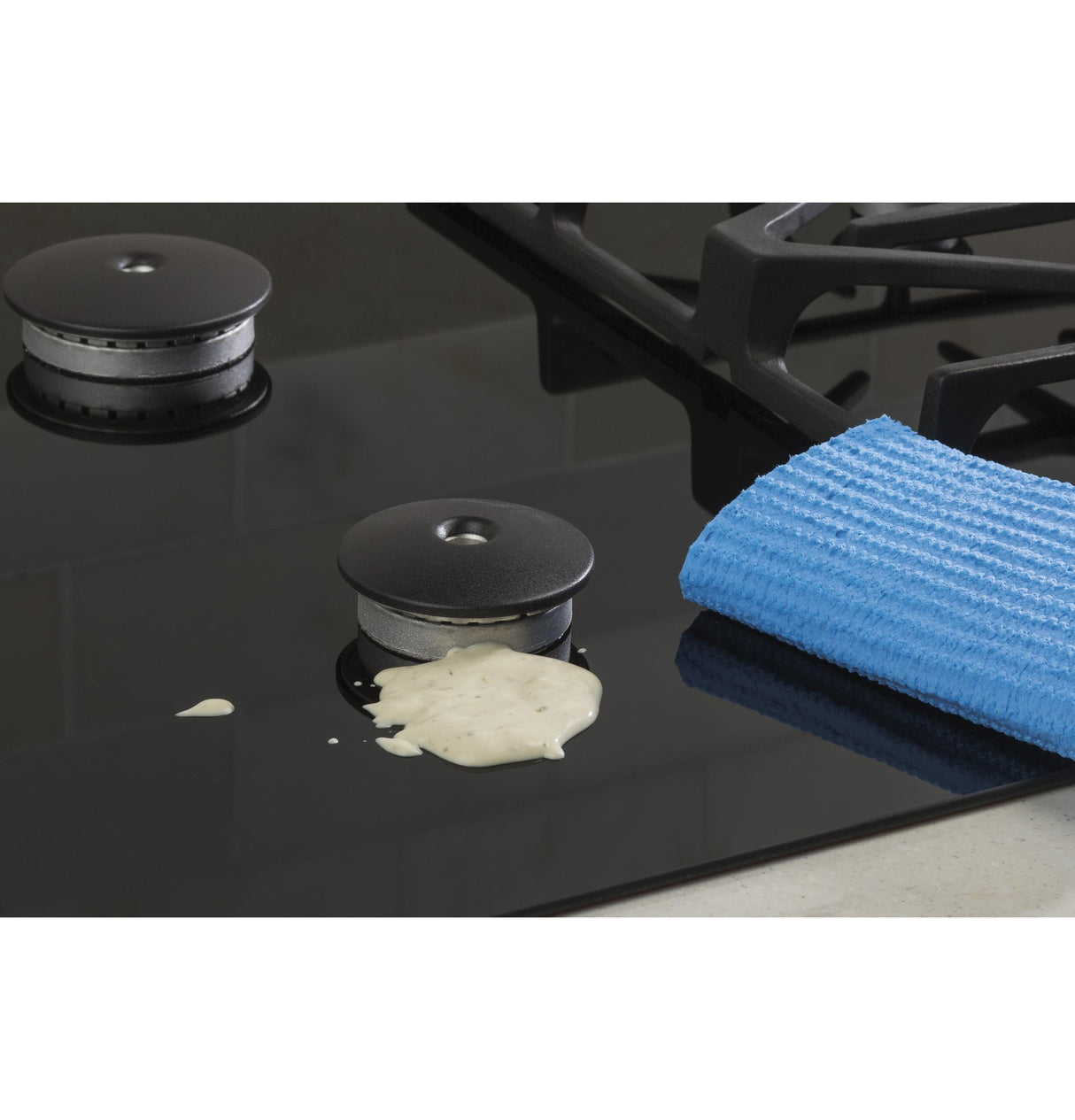

Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy

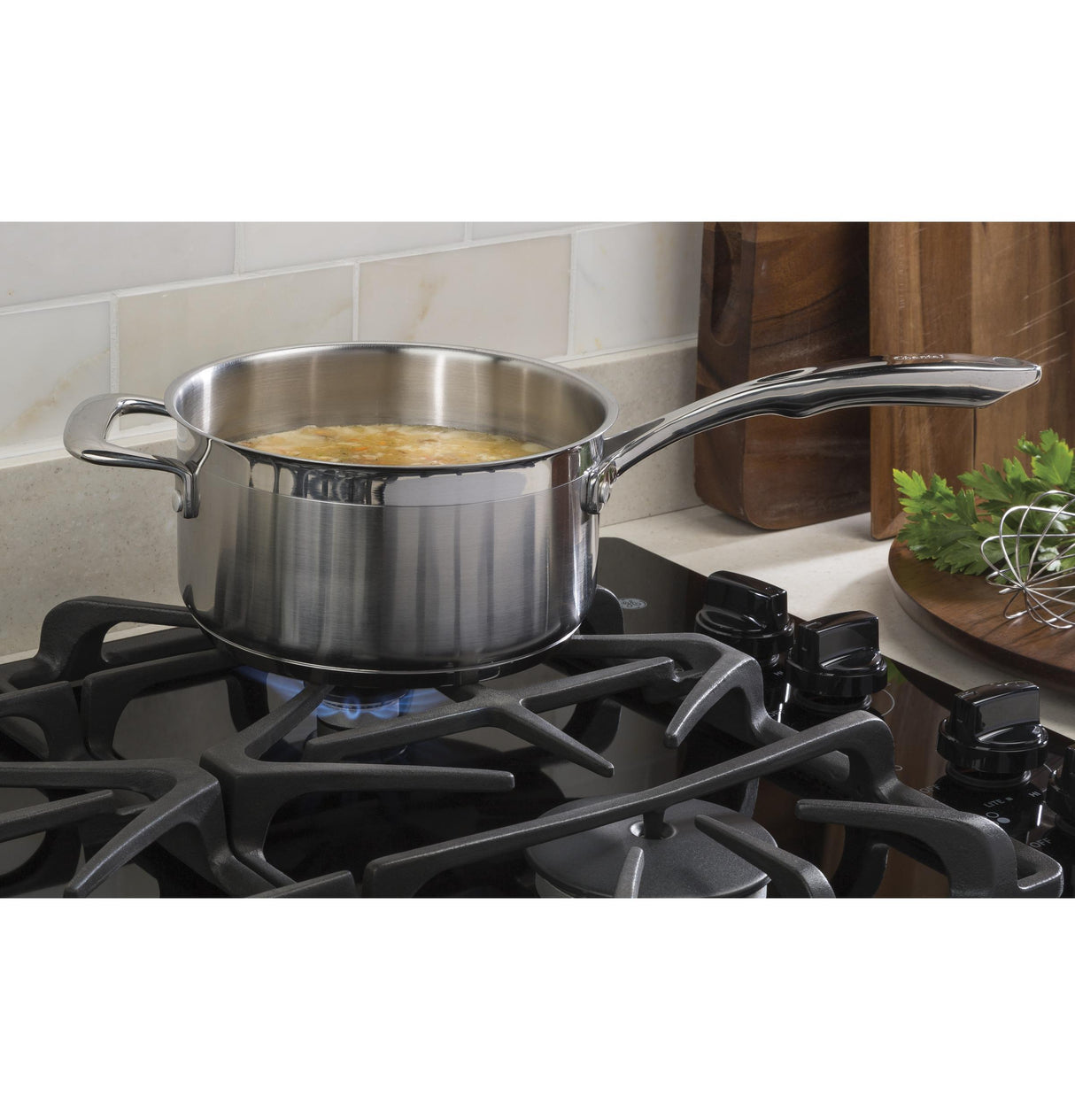

Precise Simmer Burner
Protect delicate foods with low, even heating

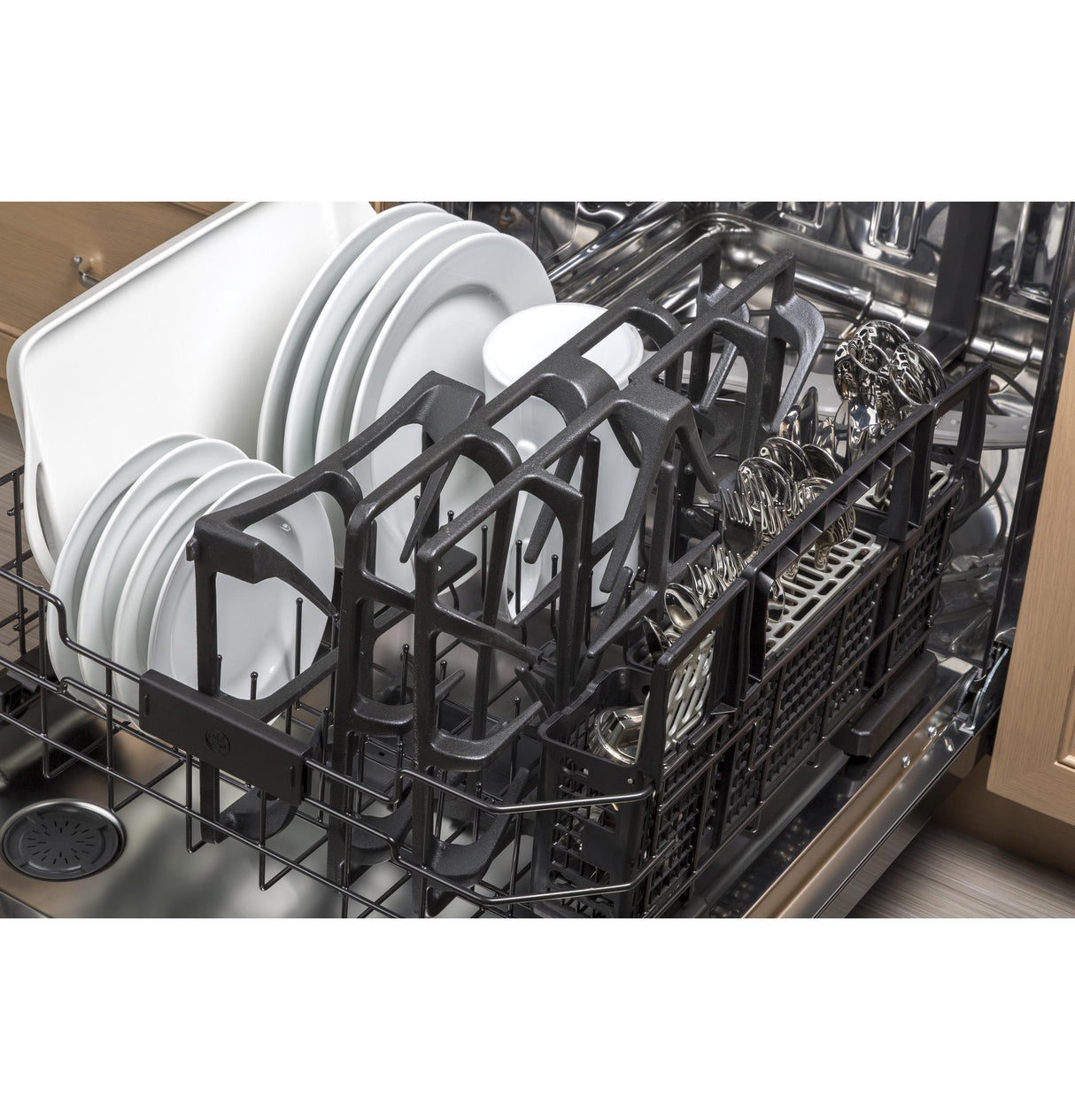

Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

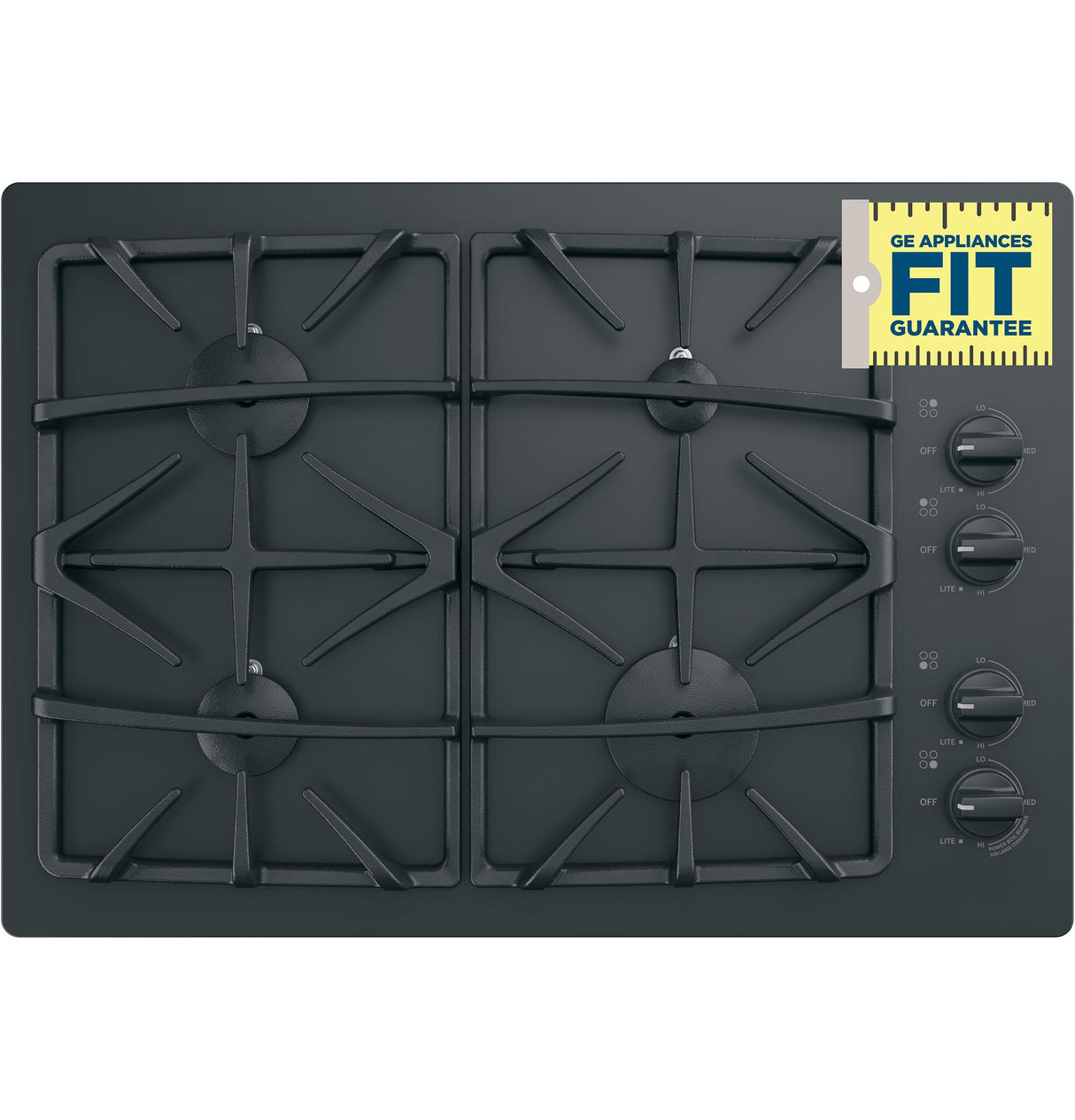

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- Gas on Glass Cooktop
- Sleek and easy to clean cooking surface
- Spend Less Time Cleaning Up
- Sealed cooktop burners contain spills and make cleaning quick and easy
- Maximize Your Cooking Space
- Continuous cast iron grates provide more room for large cookware
- Dishwasher-Safe Grates
- Heavy-duty grates are easy to clean in the dishwasher
- Start Cooking Faster with Power Boil
- 15,000 BTU Power Boil burner delivers intense heat for faster boiling
- Precise Simmer Burner
- Protect delicate foods with low, even heating
- Fit Guarantee
- Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- Gas on Glass Cooktop
- Spend Less Time Cleaning Up
- Maximize Your Cooking Space
- Dishwasher-Safe Grates
- Start Cooking Faster with Power Boil
- Precise Simmer Burner
- Fit Guarantee
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Cooktop Type | Continuous Grates |
| App Filter - Fuel Type | Gas |

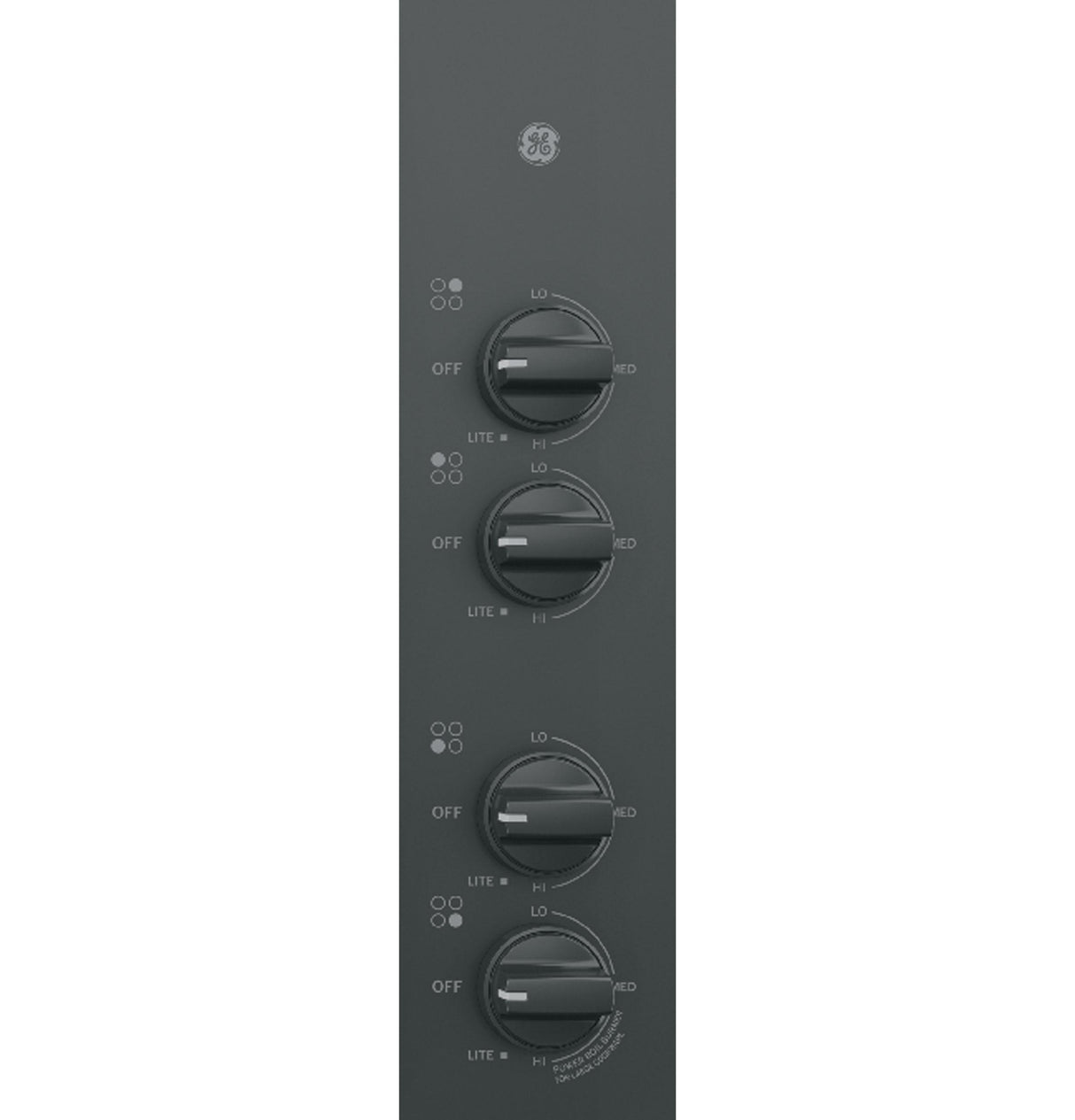

| App Filter - Control Type | Rotary knobs |
| APPEARANCE | |
| Color Appearance | Black |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Dishwasher Safe Gloss Black |
| POWER / RATINGS | |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 13.0; (1) 9.1; (1) 8.1; (1) 6.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 11.0; (1) 9.1; (1) 6.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| Cooktop Cleaning | Cream (WB64X5027) |
| WEIGHTS & DIMENSIONS | |
| Overall Height | 5.5 |
| Cabinet Width | 30 |
| Approximate Shipping Weight | 48 |

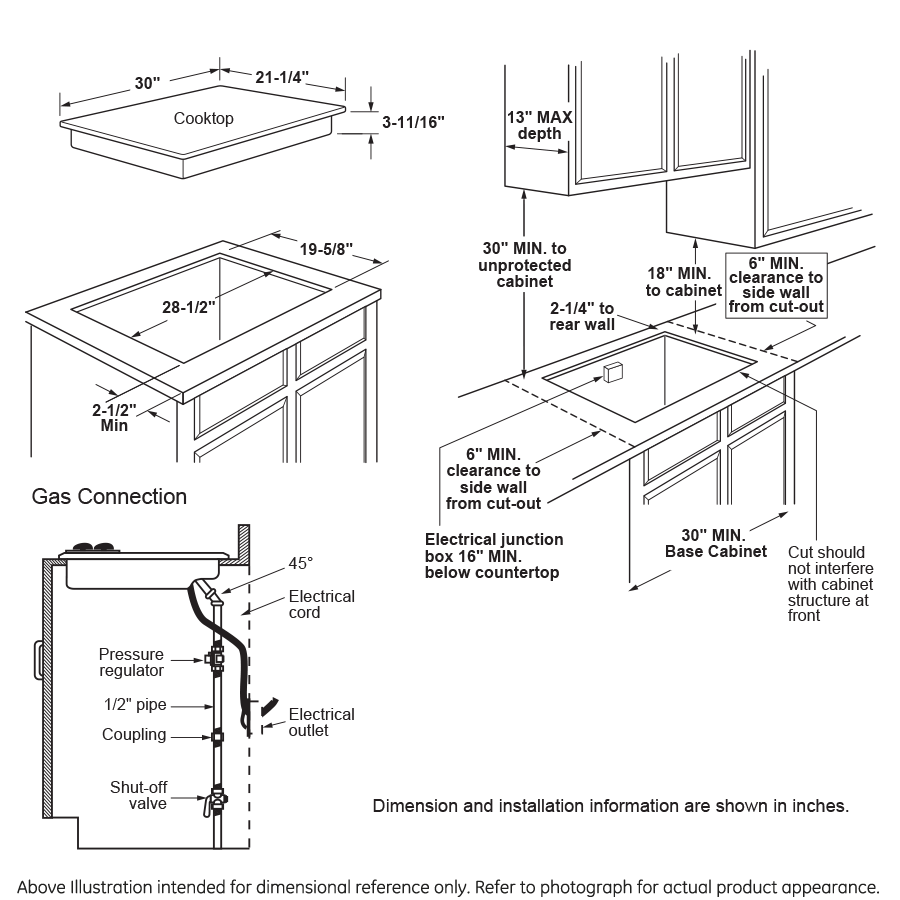

| Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
| Overall Width | 30 |
| Net Weight | 42 |
| Overall Depth | 21.25 |
| FEATURES | |
| Cooktop Burner Type | 4 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 6,000 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas (factory set) |
| Control Location | Right Side |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Cooktop Surface | Black Gas-On-Glass Ceramic |
| Burner - Left Rear | 11,000 BTU |
| Control Type | Knob |
| Cooktop Burner Grate Material | Deluxe Cast |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe Matte Black |
| Burner - Left Front | 9,100 BTU |
