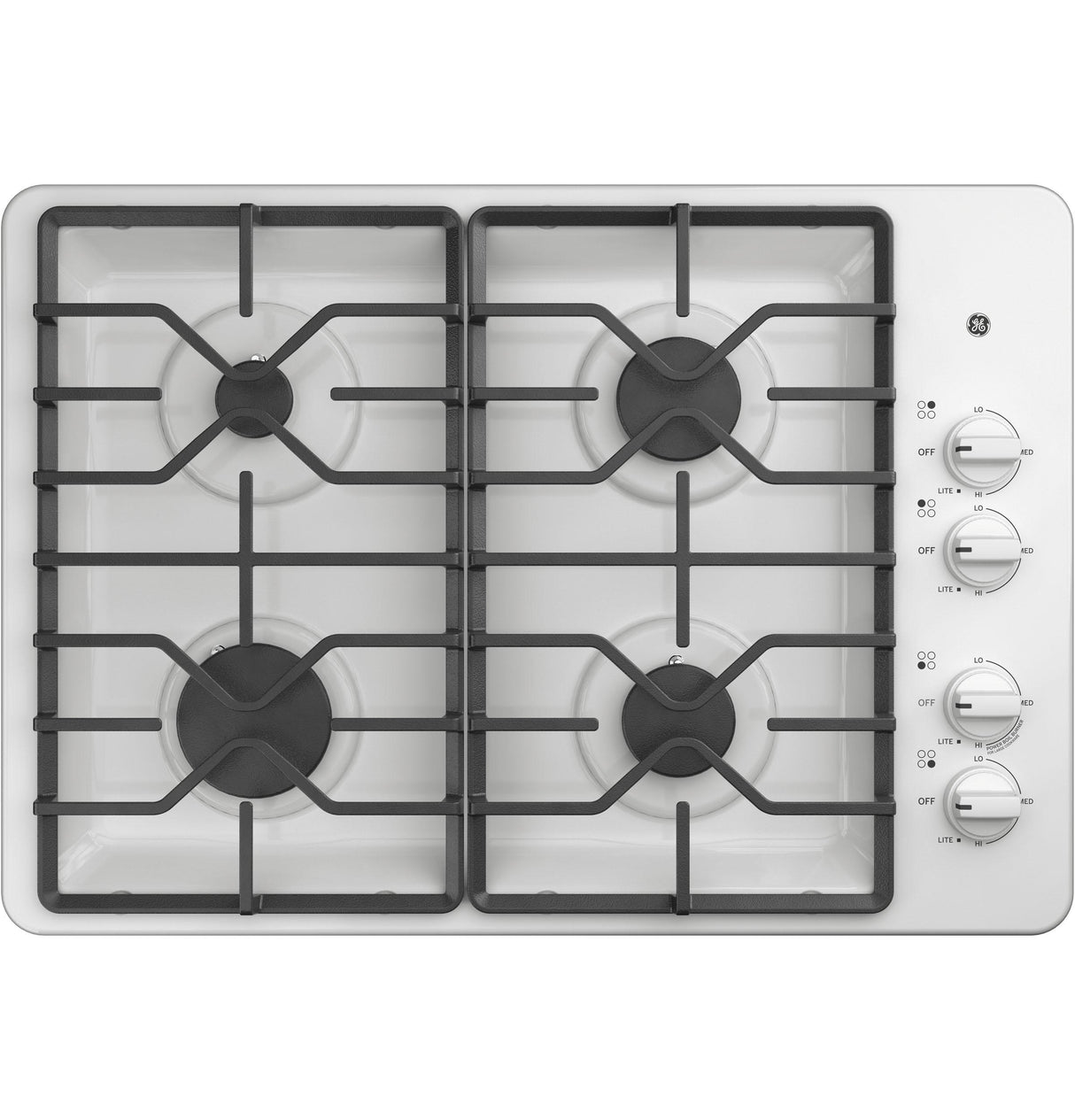

GE® 30" Built-In Gas Cooktop
Model: JGP3530DLWW
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
GE® 30" Built-In Gas Cooktop
Model: JGP3530DLWWQuick Specs
Depth
21"
Height
4 3/4"
Sabbath
NO
ADA
NO
Wifi
NO
Burner
Sealed
Burners
4
Grate
YES
GE® 30" Built-In Gas Cooktop is backordered and will ship as soon as it is back in stock.
Not Available to Order
Regular price
$961.73
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
21"
Height
4 3/4"
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Burner Type
Sealed
Cooking oven number of burners
4
Continuous Grate
YES
Downdraft Ventilation
NO
RPM
-1.0
Energy Star Rated
NO
Oven Ignition Type
ELECTRONIC
Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher
Precise Simmer Burner
Protect delicate foods with low, even heating
Start Cooking Faster with Power Boil
18,000 BTU Power Boil burner delivers intense heat for faster boiling
MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops
Spend Less Time Cleaning Up
Sealed cooktop burners contain spills and make cleaning quick and easy
- Fit Guarantee
- Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
- Start Cooking Faster with Power Boil
- 18,000 BTU Power Boil burner delivers intense heat for faster boiling
- Precise Simmer Burner
- Protect delicate foods with low, even heating
- Spend Less Time Cleaning Up
- Sealed cooktop burners contain spills and make cleaning quick and easy
- Dishwasher-Safe Grates
- Heavy-duty grates are easy to clean in the dishwasher
- Designed for Easy Cleaning
- Recessed surface helps contain spills and make cleaning easy
- MAX Burner System
- Delivers the same maximum BTU power to propane and natural gas cooktops
- Fit Guarantee
- Start Cooking Faster with Power Boil
- Precise Simmer Burner
- Spend Less Time Cleaning Up
- Dishwasher-Safe Grates
- Designed for Easy Cleaning
- MAX Burner System
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Cooktop Type | Continuous Grates |
| App Filter - Fuel Type | Gas |
| App Filter - Control Type | Rotary knobs |
| APPEARANCE | |
| Color Appearance | White |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | Dishwasher Safe Gloss White |
| POWER / RATINGS | |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |

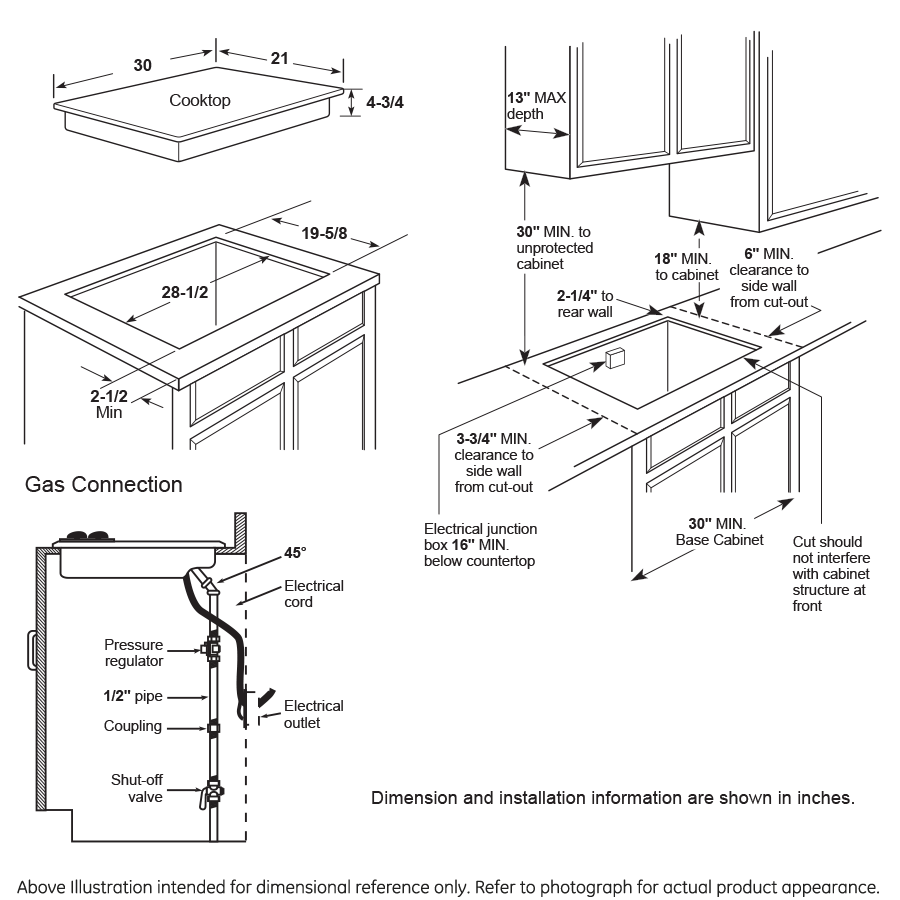

| WEIGHTS & DIMENSIONS | |
| Overall Height | 4.75 in |
| Cutout Depth (in) | 19-5/8 |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 44 lb |
| Overall Width | 30 in |
| Net Weight | 38 lb |
| Cutout Width (in) | 28-1/2 |
| Overall Depth | 21 in |
| FEATURES | |
| Cooktop Burner Type | 4 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 9,500 BTU |
| Burner - Right Front | 12,000 BTU |
| Fuel Type | Natural Gas (factory set) |
| Control Location | Right Side |
| Cooktop Type | Continuous Grates |
| Ignition System | Electronic |
| Cooktop Surface | Deep Porcelain-Enamel White |
| Burner - Left Rear | 5,000 BTU |
| Control Type | Knob |
| Cooktop Burner Grate Material | Standard Cast |
| Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
| Burner - Left Front | 18,000 BTU Power Boil |
