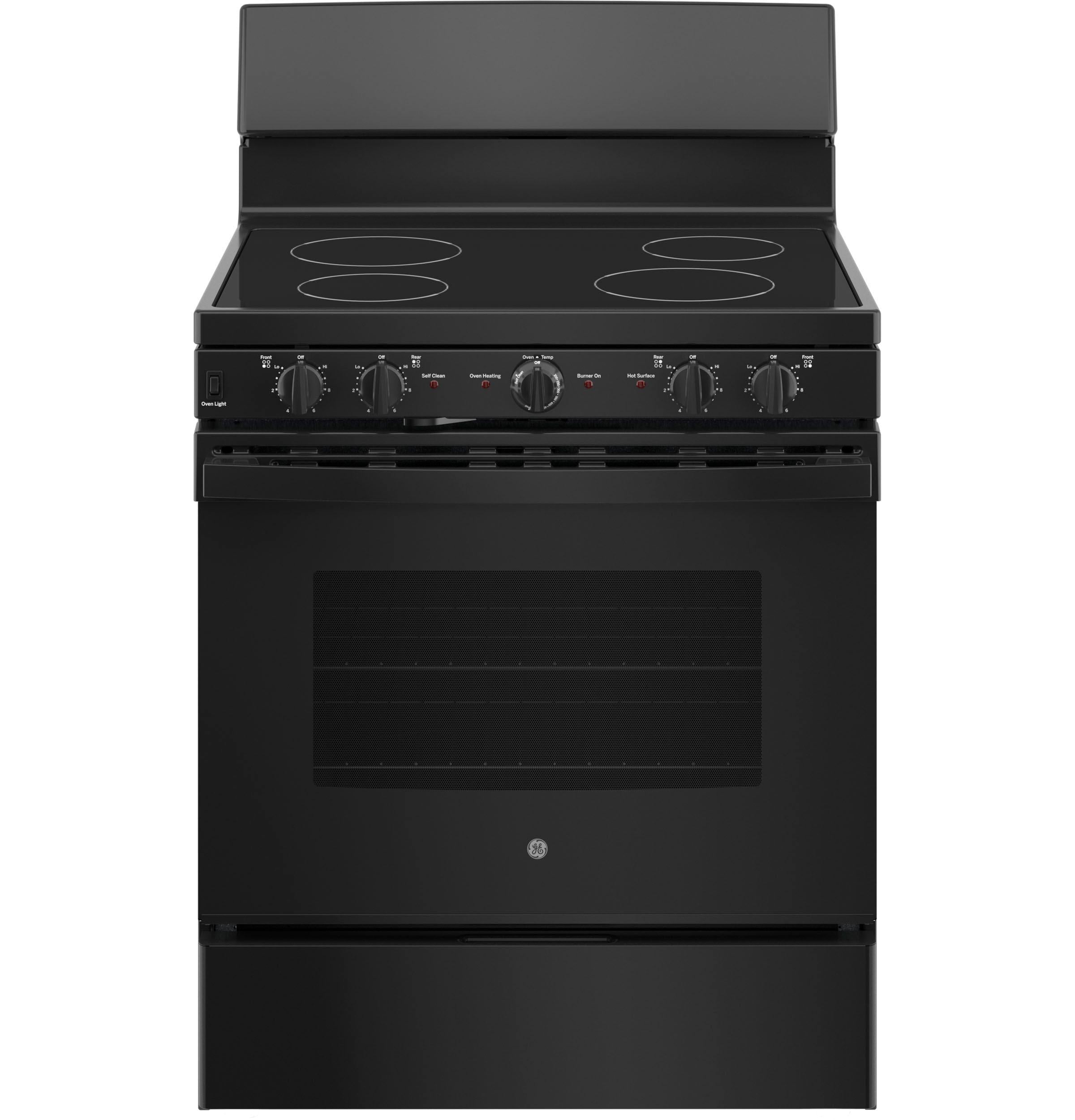

GE® ENERGY STAR® 30" Free-Standing Electric Radiant Smooth Cooktop Range
Model JB480DYBB
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
GE® ENERGY STAR® 30" Free-Standing Electric Radiant Smooth Cooktop Range
Model JB480DYBBQuick Specs
Depth
29
Height
30
Sabbath
NO
ADA
NO
Wifi
NO
Storage
YES
Warming
NO
Cooktop
4
GE® ENERGY STAR® 30" Free-Standing Electric Radiant Smooth Cooktop Range is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/24/2026
Regular price
$1,573.57
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
29
Height
30
Sabbath Mode
NO
ADA
NO
Wifi Connected
NO
Cooking has Storage Drawer
YES
Cooking has Warning Drawer
NO
Cooking oven number of cooktop element
4
Convection
NO
Self Clean
YES
Oven Rack Type
SLIDING
Downdraft Ventilation
NO
Cooking is Induction
NO
RPM
-1.0
Drawer Proof Mode
NO
Energy Star Rated
NO
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access
Self-clean oven
Cleans the oven cavity without the need for scrubbing

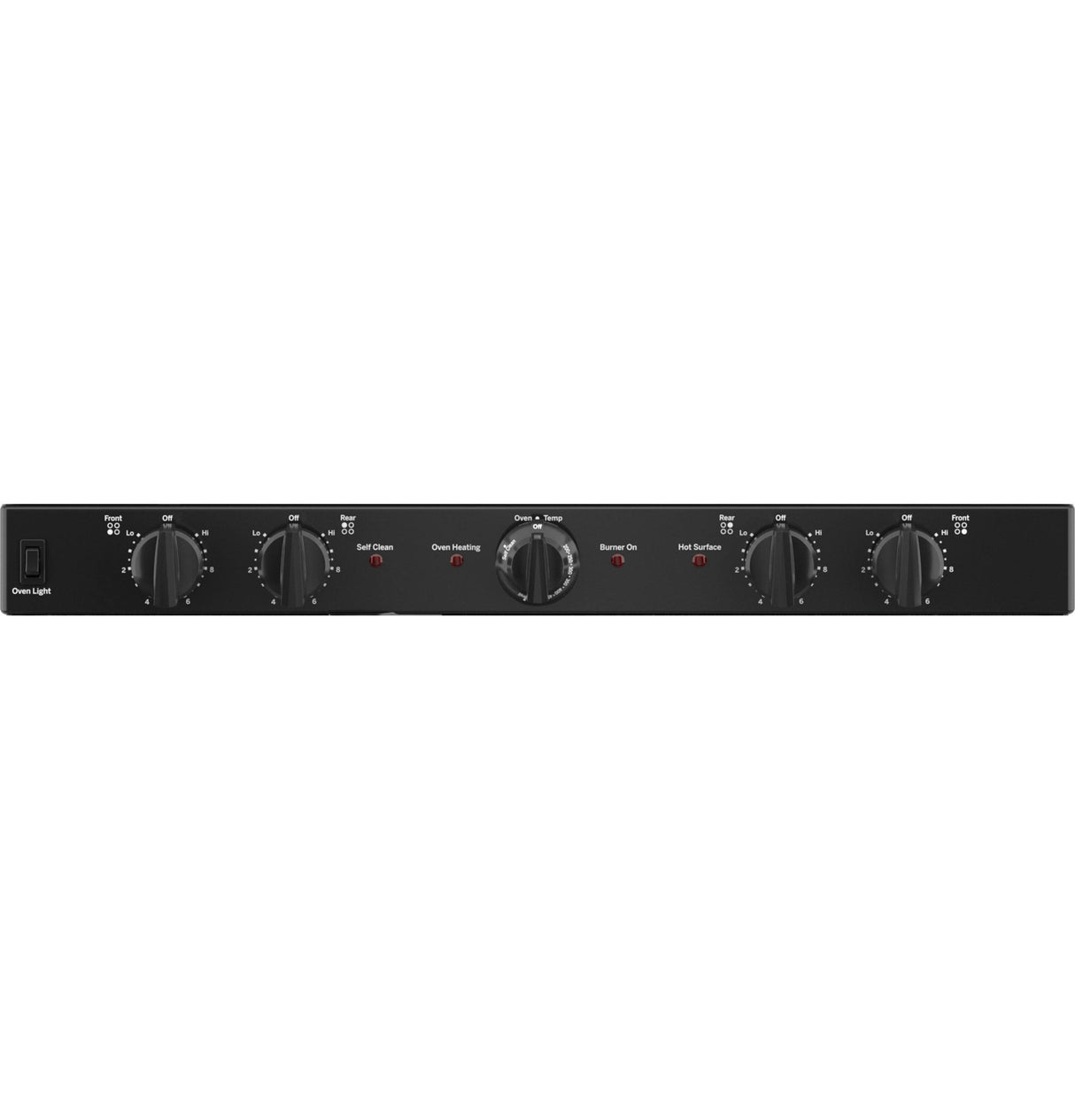

- Front controls
- Easily-accessible controls make it simple to control the stovetop and oven
- 5.0 cu. ft. oven capacity
- Cook more dishes at once
- Self-clean oven
- Cleans the oven cavity without the need for scrubbing
- Dual-element Bake
- Upper and lower elements produce even heat and great results
- Removable full-width storage drawer
- Large trays and other cookware can be conveniently stored for quick access
- Front controls
- 5.0 cu. ft. oven capacity
- Self-clean oven
- Dual-element Bake
- Removable full-width storage drawer
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| APPEARANCE | |
| Oven Door Features | Big View Oven Window Glass Door |
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Control Knobs | Color-Matched |
| Handle Color | Black |
| Color Appearance | Black |
| POWER / RATINGS | |
| KW Rating at 240V | 10.5 |
| Bake Wattage | 2585W |
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| Hertz | 60 |
| KW Rating at 208V | 7.9 |
| Amp Rating at 240V | 40 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 141 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth with Door Open | 46.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 161 lb |
| Overall Width | 30 in |
| Overall Depth | 29 in |
| Overall Height | 47 in |
| FEATURES | |
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8" 2000W |
| Oven Features | 4-Pass Bake Element 6-Pass Broil Element |
| Storage Drawer Features | Removable Full-Width |
| Fuel Type | Electric |
| Oven Interior | 1 Incandescent Light |
| Oven Control Features | Oven "ON" Light Self-Cleaning Cycling Light |
| Cooktop Burner Type | Radiant Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1500W |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | Yes |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Type | Radiant Smoothtop |
| Element - Left Rear | 8" 2000W |
| Element - Right Rear | 6" 1500W |
| Cooktop Surface | Black Ceramic Glass |
| Control Location | Front |
| Drawer Type | Storage |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Control Type | Rotary knobs |
| Cooking Technology | Traditional |
- Front controls
- 5.0 cu. ft. oven capacity
- Self-clean oven
- Dual-element Bake
- Removable full-width storage drawer
 | |
|---|---|
