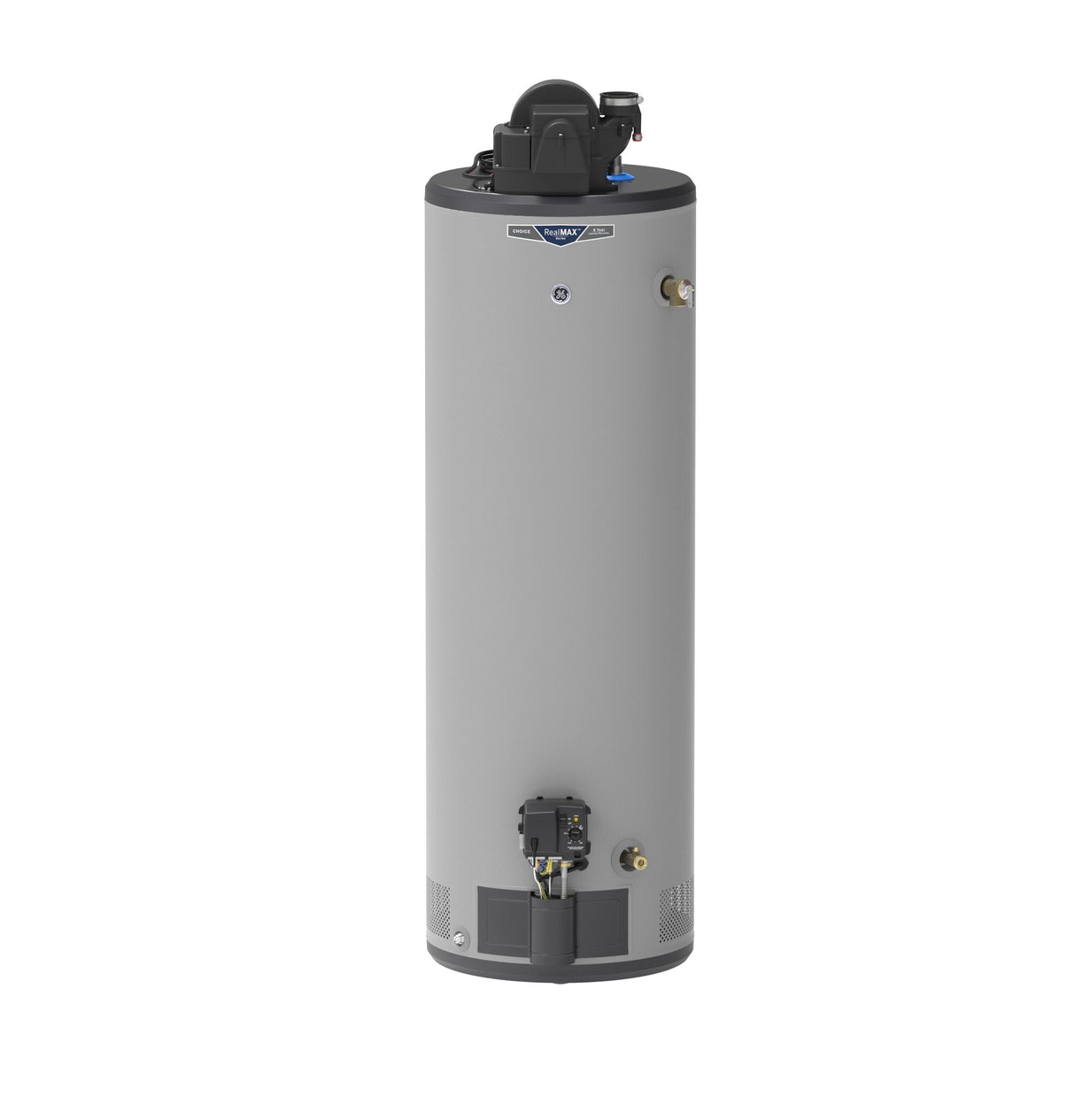

GE RealMAX Choice 40-Gallon Tall Natural Gas Power Vent Low-NOx Water Heater
Model GG40T08AYV
GE RealMAX Choice 40-Gallon Tall Natural Gas Power Vent Low-NOx Water Heater
Model GG40T08AYVQuick Specs
GE RealMAX Choice 40-Gallon Tall Natural Gas Power Vent Low-NOx Water Heater is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

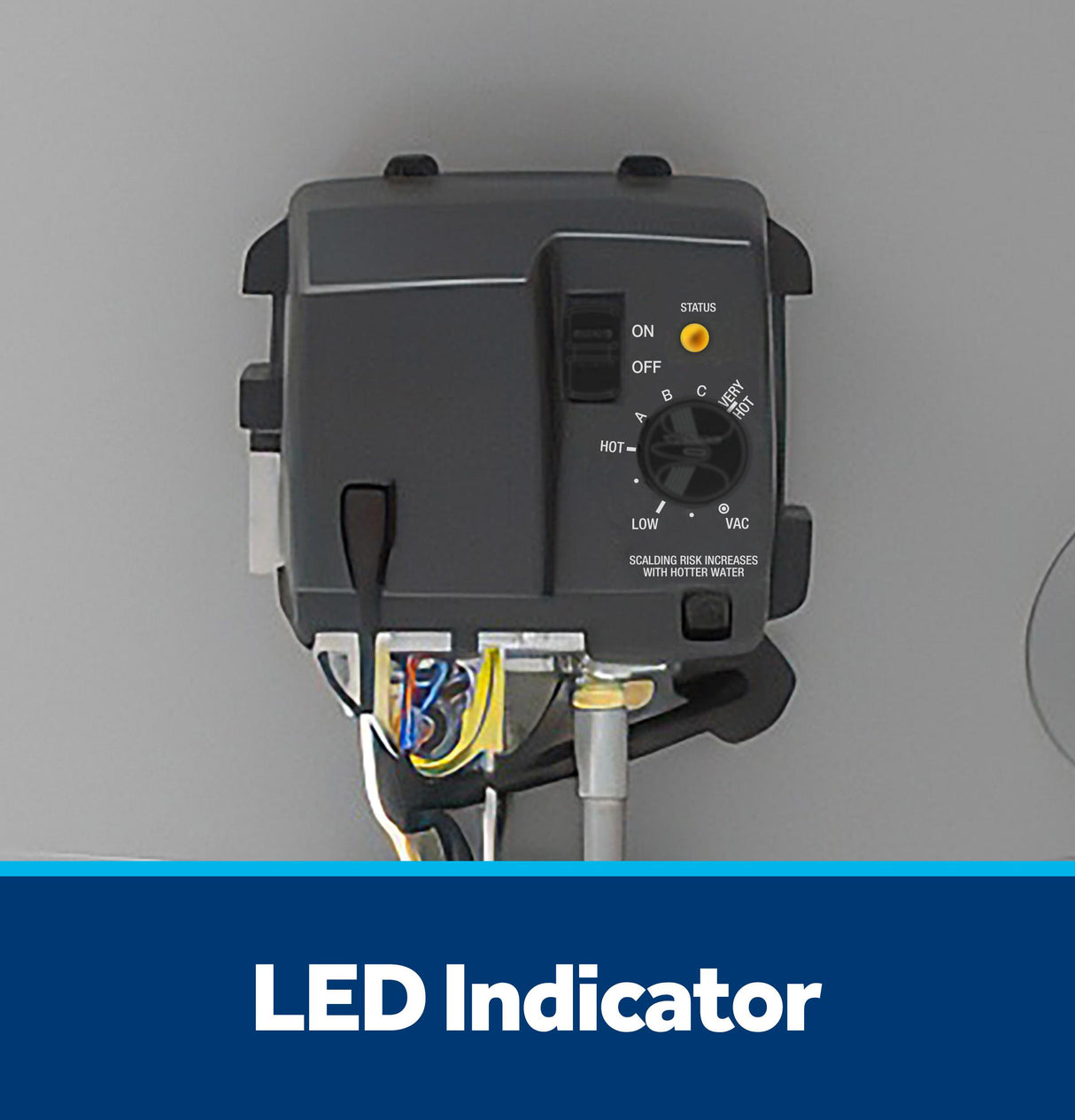

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator.

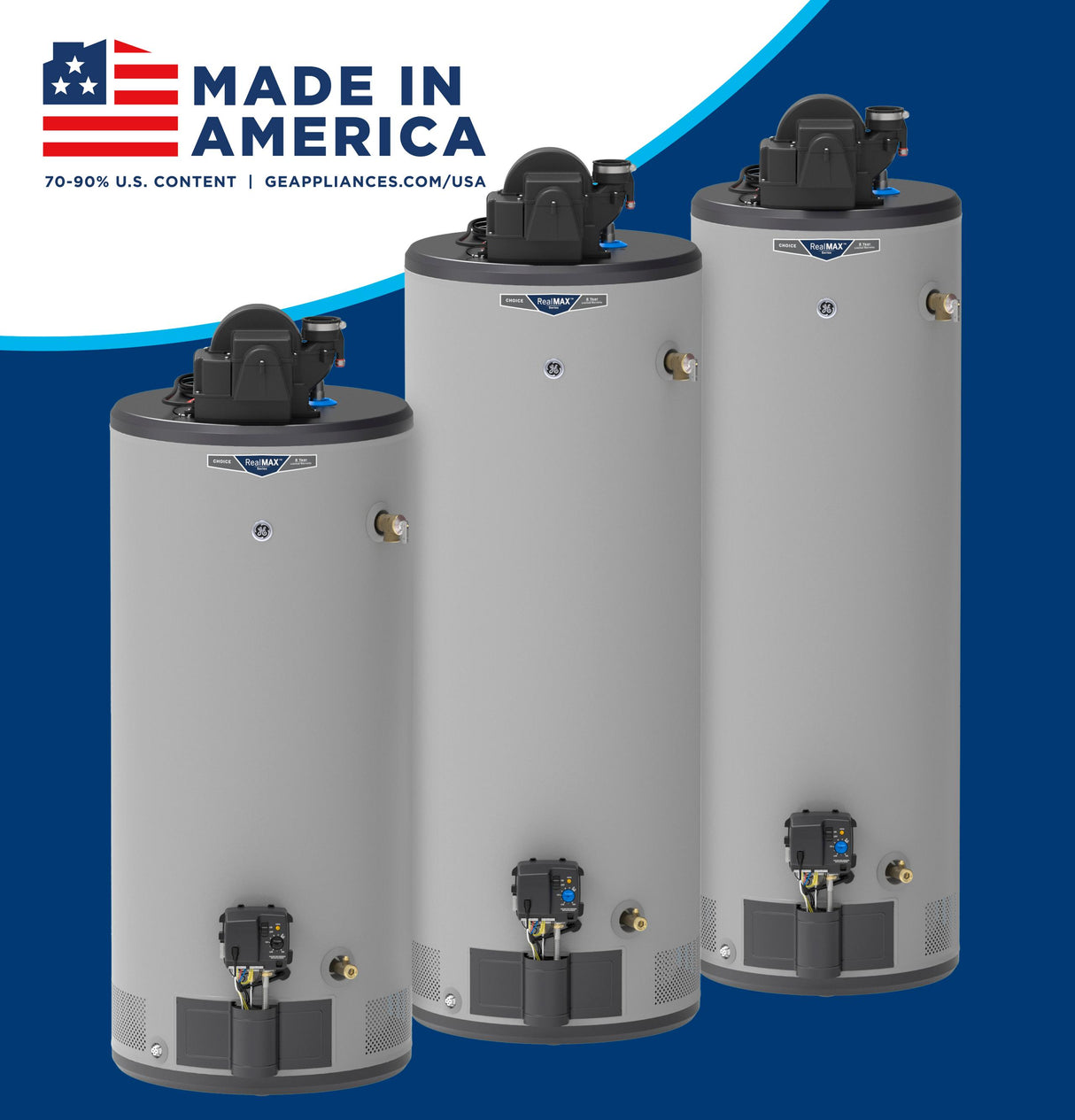

Made in America
Get the added confidence of an American-made water heater.

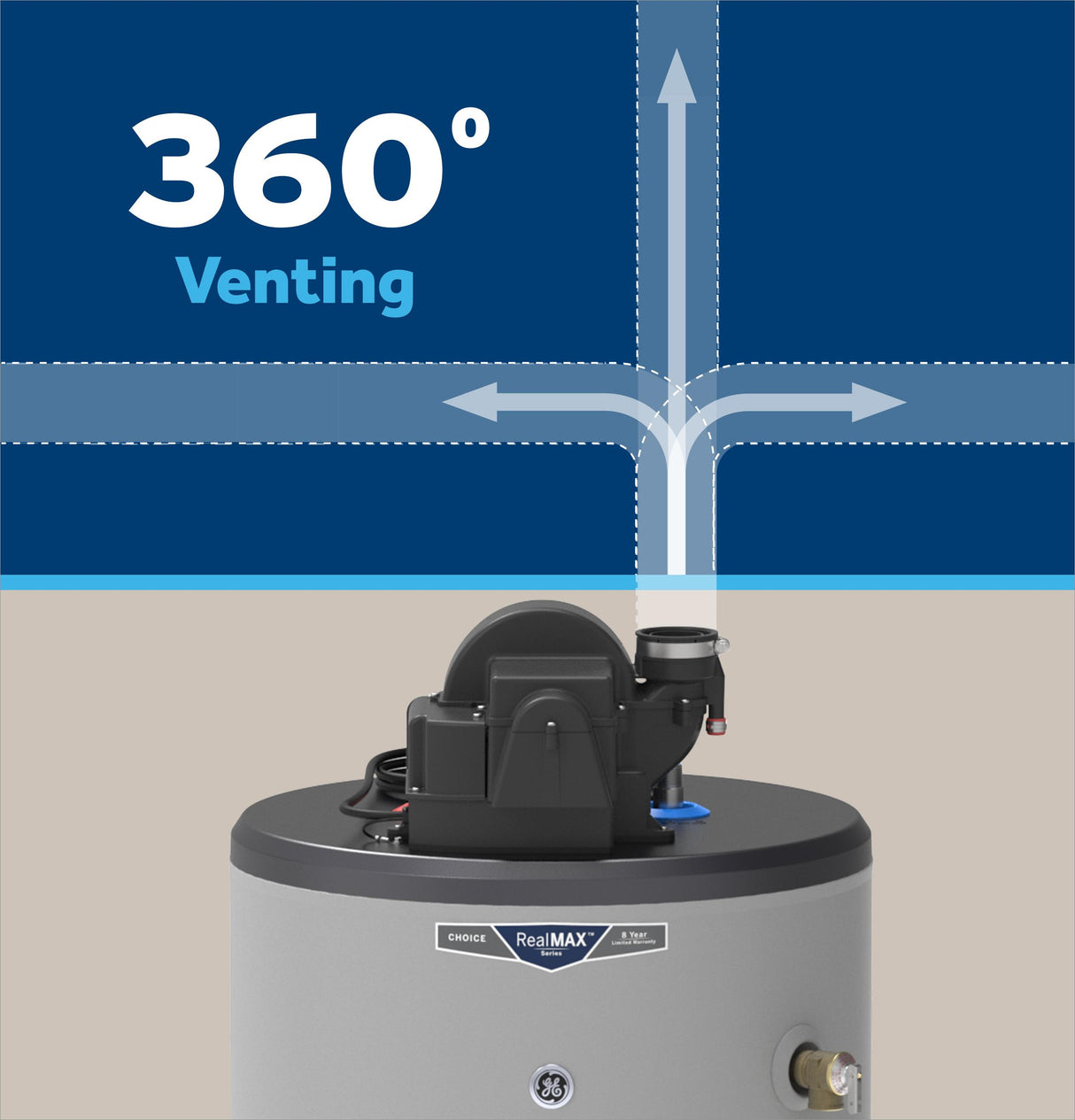

Power Vent
Get easy, anywhere venting. Gas power vent water heaters offer flexible venting options with lengths up to 150 feet and either vertical or horizontal termination.

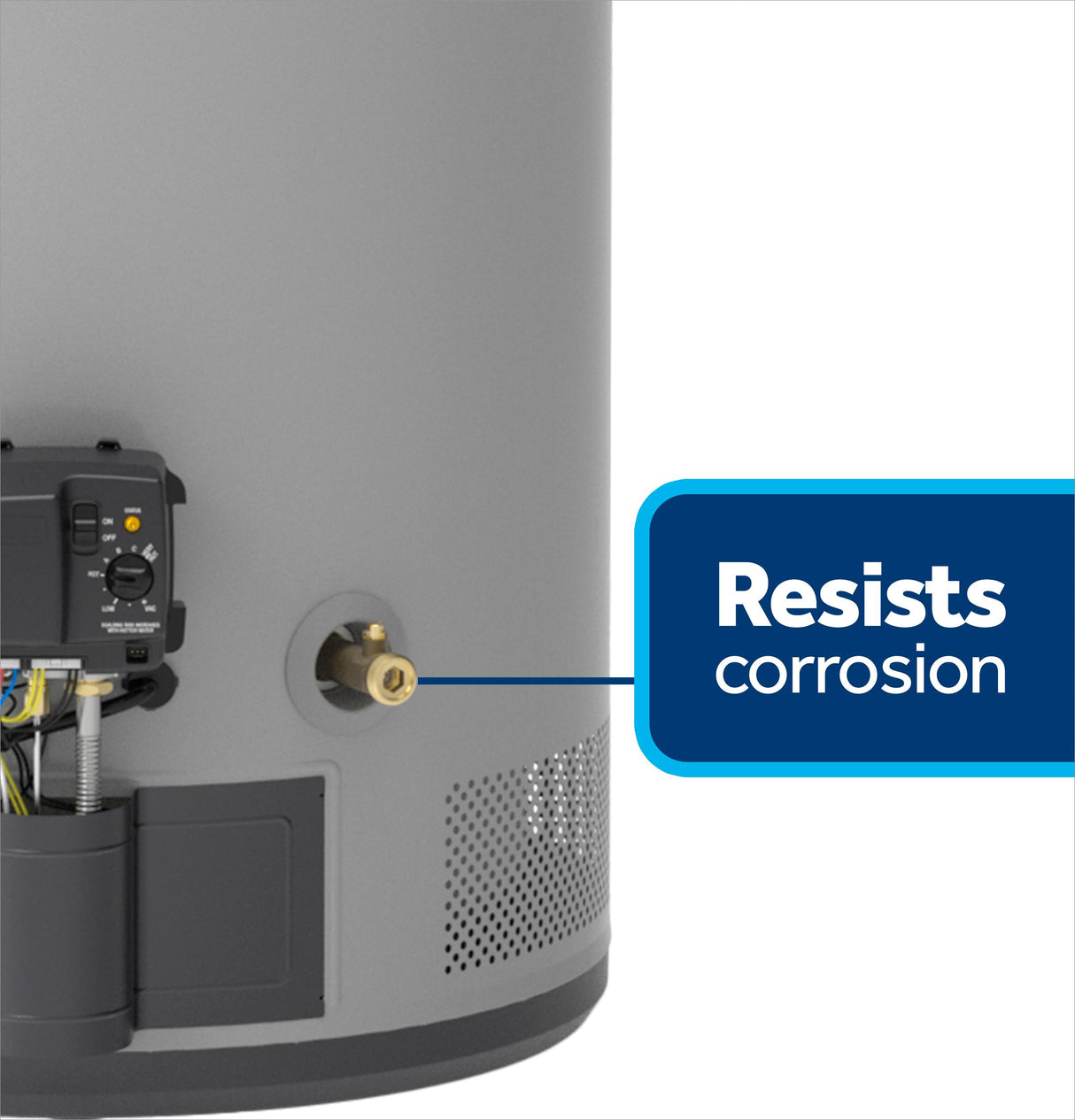

Brass Drain Valve
Get the lasting durability of a corrosion-resistant, rust-proof full port brass drain valve.

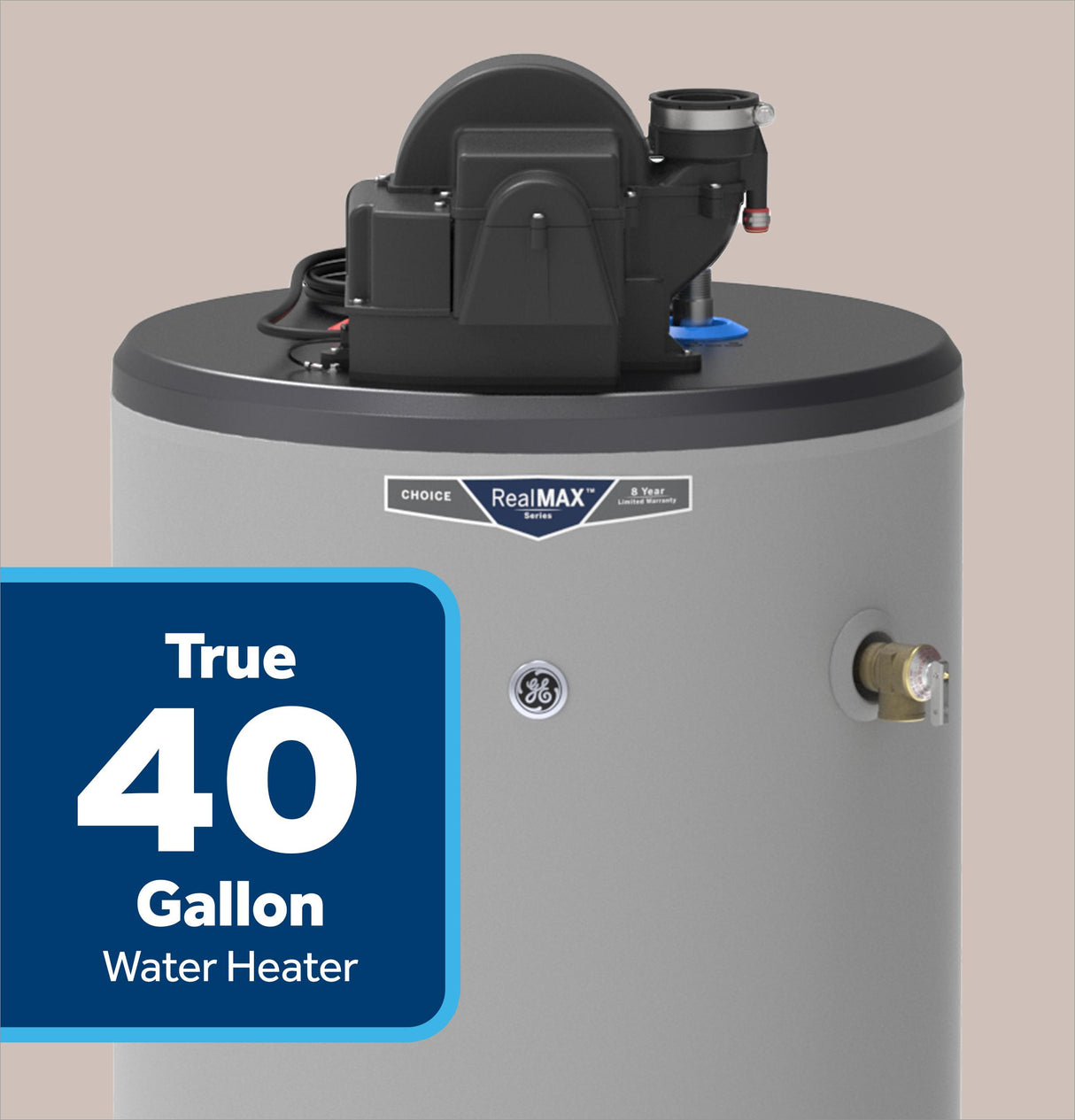

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water. (Compared to steel tank water heaters per DOE -rated gallon capacity.)
Household Size
With its 40-gallon water tank, this unit provides plenty of hot water for a family of up to four people.

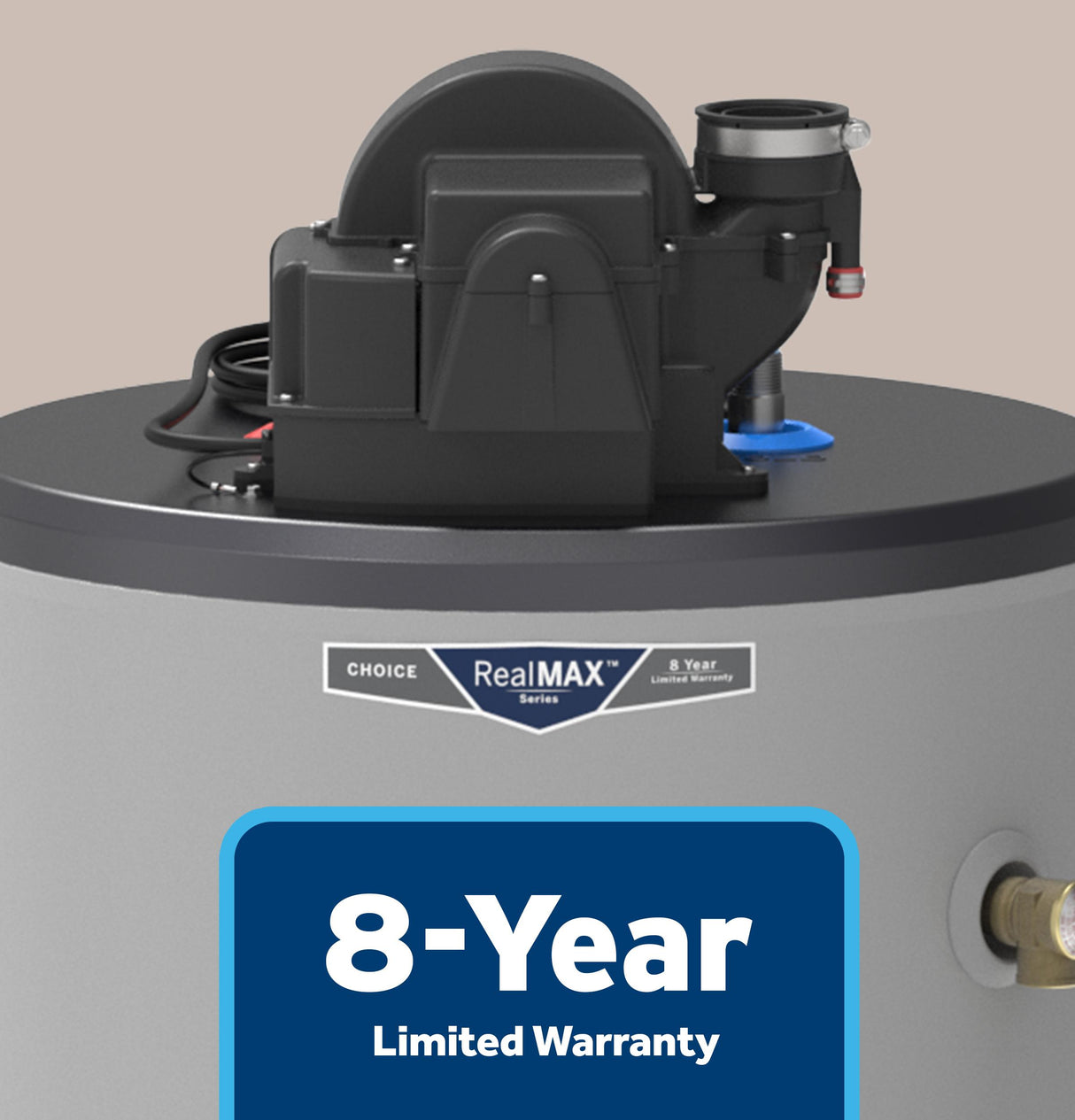

Leading Warranty
RealMAX(TM) Choice water heaters carry an 8-year tank and parts limited warranty
Maximum Performance
Live comfortably with this best-in-class gas water heater with a first-hour delivery of 82 gallons of hot water usage. (40-gallon model as measured through DOE first-hour rating.)

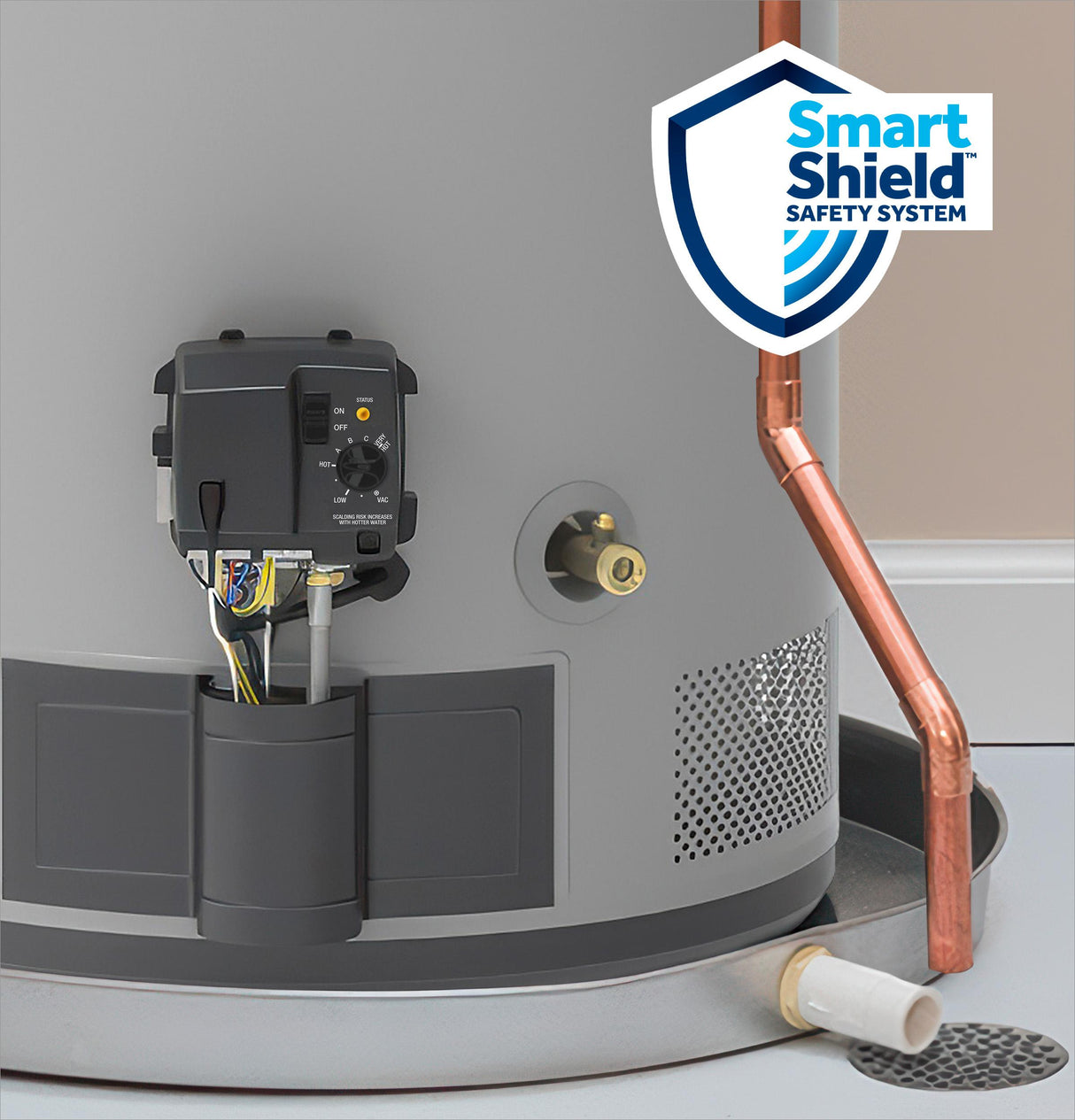

SmartShield(TM) Safety System
For added safety, the SmartShield(TM) Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.
- Power Vent
- Get easy, anywhere venting. Gas power vent water heaters offer flexible venting options with lengths up to 150 feet and either vertical or horizontal termination.
- Household Size
- With its 40-gallon water tank, this unit provides plenty of hot water for a family of up to four people.
- Real Capacity
- Get the most hot showers from the only water heater that holds a true 40 gallons of water. (Compared to steel tank water heaters per DOE -rated gallon capacity.)
- Maximum Performance
- Live comfortably with this best-in-class gas water heater with a first-hour delivery of 82 gallons of hot water usage. (40-gallon model as measured through DOE first-hour rating.)
- Brass Drain Valve
- Get the lasting durability of a corrosion-resistant, rust-proof full port brass drain valve.
- Leading Warranty
- RealMAX™ Choice water heaters carry an 8-year tank and parts limited warranty
- SmartShield™ Safety System
- For added safety, the SmartShield™ Safety System monitors the surrounding air and automatically shuts off the unit if abnormal temperatures or the presence of flammable vapors are detected.
- Self-Diagnostic
- Monitors and reports on gas system status via LED status indicator.
- Made in America
- Get the added confidence of an American-made water heater.
- Power Vent
- Household Size
- Real Capacity
- Maximum Performance
- Brass Drain Valve
- Leading Warranty
- SmartShield(TM) Safety System
- Self-Diagnostic
- Made in America
| CAPACITY | |
| Unit Capacity | 40 Gallons |
| APPEARANCE | |
| Color Appearance | Gray |
| POWER / RATINGS | |
| First Hour Delivery GPH | 82 gal/hr |
| Burner BTU Size (k) | 42 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | 8-year limited |
| Labor Warranty | 1-year limited |
| WEIGHTS & DIMENSIONS | |
| Product Height (to top of water inlet/outlet connections) | 60.25 in |
| Height to Gas Control | 11.5 in |
| Approximate Shipping Weight | 154 lb |
| Overall Width | 20 in |
| Overall Height | 66.333333 in |
| Product Height (to top of unit) | 58.75 in |
| Net Weight | 142 lb |
| Product Diameter | 20 in |
| Overall Depth | 20 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| FEATURES | |
| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Vent | Power Vent |
| Controls | LED Indicator |
| UEF | 0.68 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Tall |
| Fuel Type | Natural Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Tall |
| Drain Valve Type | Brass |
| Product Type | Power Vent Gas |
| Family Size | 2-5 People |
| Bin Testing | High |
| Water Connection Location | Top |
| Overheat Protection | Dry Burning Protection |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Altitude Rating | 10100 ft |
| Temperature Setting | 45-160° F Range |
