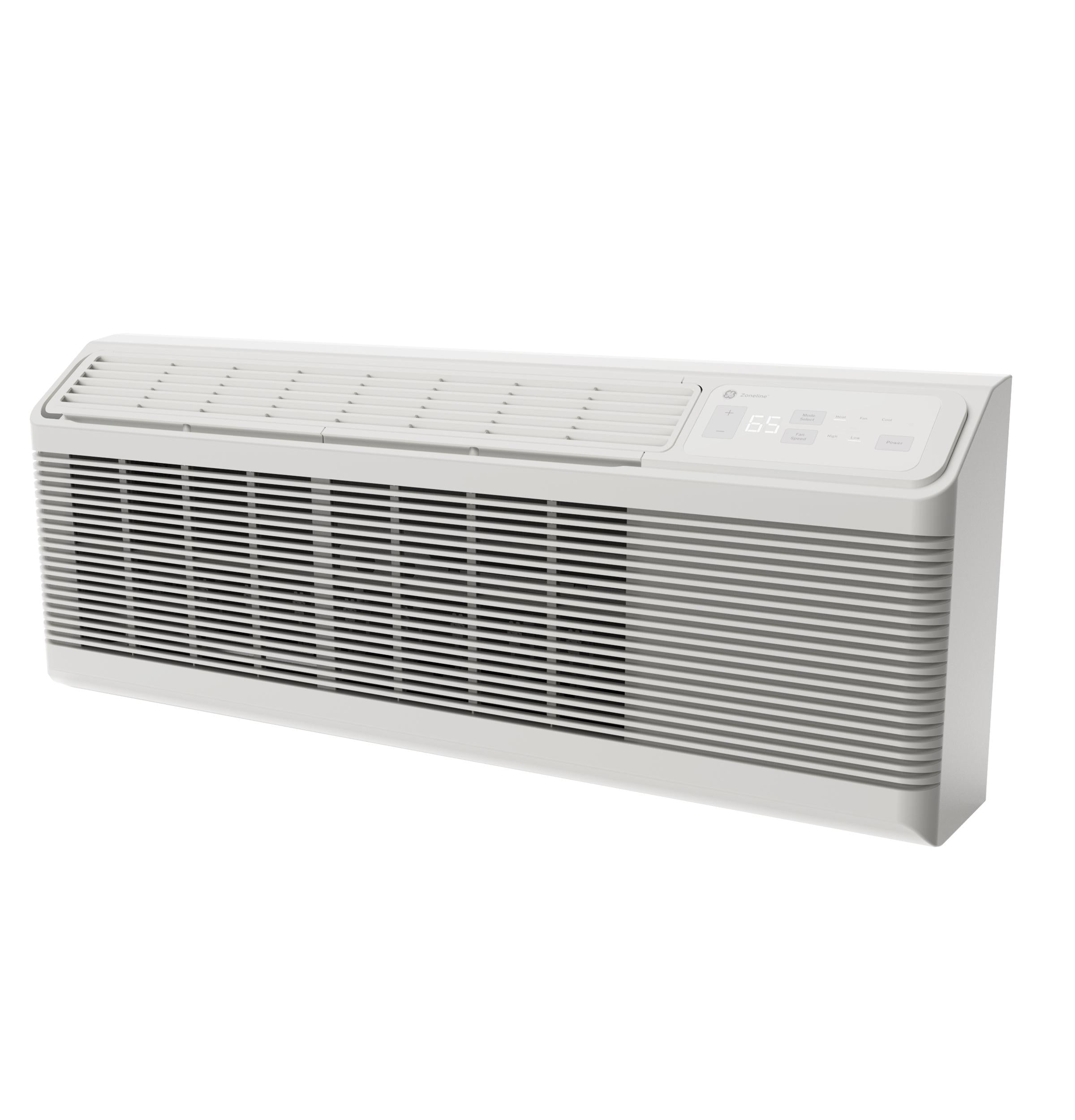

GE Zoneline® Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 9,000 BTU, 230/208 Volt
Model: AZES09DCXXA
Authorized Dealer
Loading...
Authorized Dealer
GE Zoneline® Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 9,000 BTU, 230/208 Volt
Model: AZES09DCXXAQuick Specs
Width
42"
Depth
20.8125"
Height
16"
ADA
NO
Wifi
NO
CFM
375 CFM
RPM
-1.0
Cool Cap
64
GE Zoneline® Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 9,000 BTU, 230/208 Volt is backordered and will ship as soon as it is back in stock.
Estimated to ship in 4-9 days
In Stock Shortly
Sale Price
Sale price
$1,401.00
Regular price
$1,411.00
Unit price
/
Unavailable
You save 0%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
42"
Depth
20.8125"
Height
16"
ADA
NO
Wifi Connected
NO
Vent CFM
375 CFM
RPM
-1.0
Cooling Capacity
64
Cooling Power
64.0
Energy Star Rated
NO
Designed & Assembled in America
Date of Manufacture - 2025 or later
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25(degree)F
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
- Electronic temperature limiting
- Fresh air vent
- Designed & Assembled in America
- Date of Manufacture - 2025 or later
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25(degree)F
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
- Electronic temperature limiting
- Fresh air vent
- Designed & Assembled in America
| CAPACITY | |
| Cooling BTUH (MAX) | 9500 Btu |
| CFM Indoor Fan Low | 265 |
| CFM Indoor Fan High | 375 |
| Cooling EER (BTUH / Watt) | 12.3 / 12.5 |
| Dehumidification (pts./hr.) | 2.2 (High Speed) |
| Vent CFM (high fan at zero ESP) | 38.5 |
| Cooling BTUH (MIN) | 9500 Btu |
| APPEARANCE | |
| Color Appearance | Grey White |
| POWER / RATINGS | |
| Cooling - Amperes; L.R. | 21.0 |
| Hertz | 60 |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.9 |
| Cooling - Amperes | 3.6/3.9 |
| Cooling - Watts | 770/755 |
| Voltage (MIN) | 208 V |
| Voltage (MAX) | 230 V |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| ACCESSORIES | |
| Accessories Required for Installation | Outdoor Grille RAB42 - Wall Case |
| WEIGHTS & DIMENSIONS | |
| Overall Width | 42 in |
| Approximate Shipping Weight | 113 lb |
| Overall Height | 16 in |
| Overall Depth | 20.8125 in |
| Net Weight | 103 lb |
| FEATURES | |
| Zoneline Features | "Smart Fan" Fan Cycle Control Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Universal Heaters |
| Louver Style | Reversible |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Refrigerant Charge (oz.) | 27 |
| Discharge Grille | 2-position |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Sensible Heat Ratio | 0.75 |
| Power Factor | 95 |
| Refrigerant Type | R454B |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Filter Type | Rigid Frame Slide-Out |
| Manual Vent Control | Hidden |
| Chassis Type | Slide-In |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 24-Step |
| Heat Sentinel | Yes |
| Fan Speed Control | Yes |
| Freeze Sentinel | Yes |
| Temperature Range | 60 - 85 F |
| Corrosion Treated | Yes |
| Heat - Cool | Yes |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Central Desk Control Compatibility | Yes |
| Rotary Compressor | Yes |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Heating System | Resistance only |
- R454B - Most environmentally friendly refrigerant on the market
- Heat pump down to 25(degree)F
- Electronic touch controls with LED display
- Quiet Operation - baked on mastic sound barrier
- Corrosion protection package
- SMC basepan and bulkhead
- Electronic temperature limiting
- Fresh air vent
- Designed & Assembled in America
 | |
|---|---|
