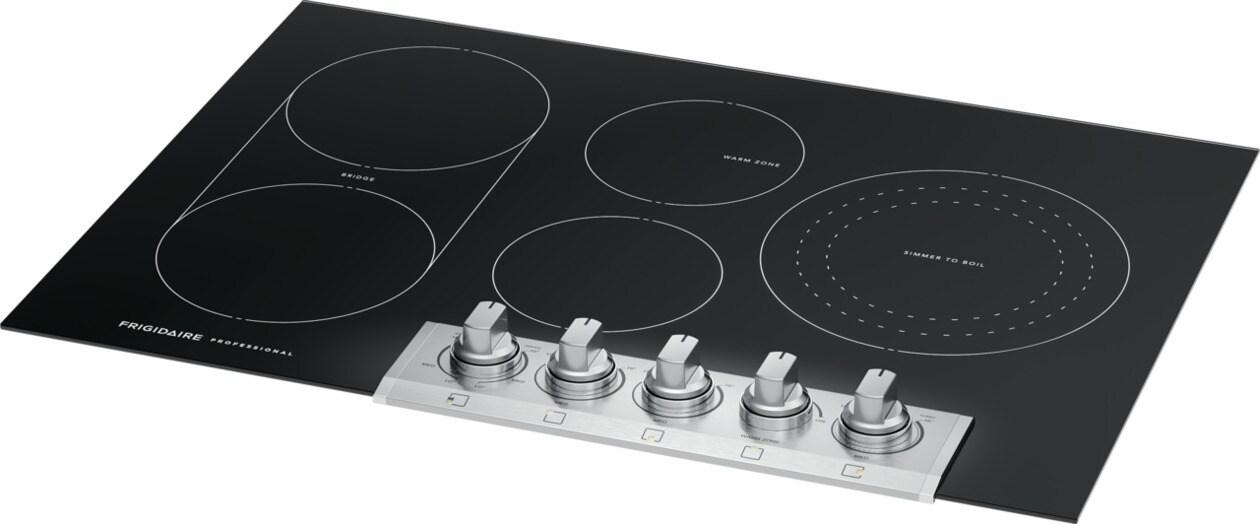

30" Electric Cooktop
Model PCCE3080AF30" Electric Cooktop
Model PCCE3080AFQuick Specs
30" Electric Cooktop is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- EvenTemp® Element
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
- Bridge Element
- Connect two elements to create a larger cooking surface, perfect for griddles or large pans.
- Frigidaire® Fit Promise
- We promise that your new 30" Frigidaire Professional radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100(1) * 1Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
- Keep Warm Zone
- Keeps dishes warm while the rest finish so that your entire meal is ready when you are.

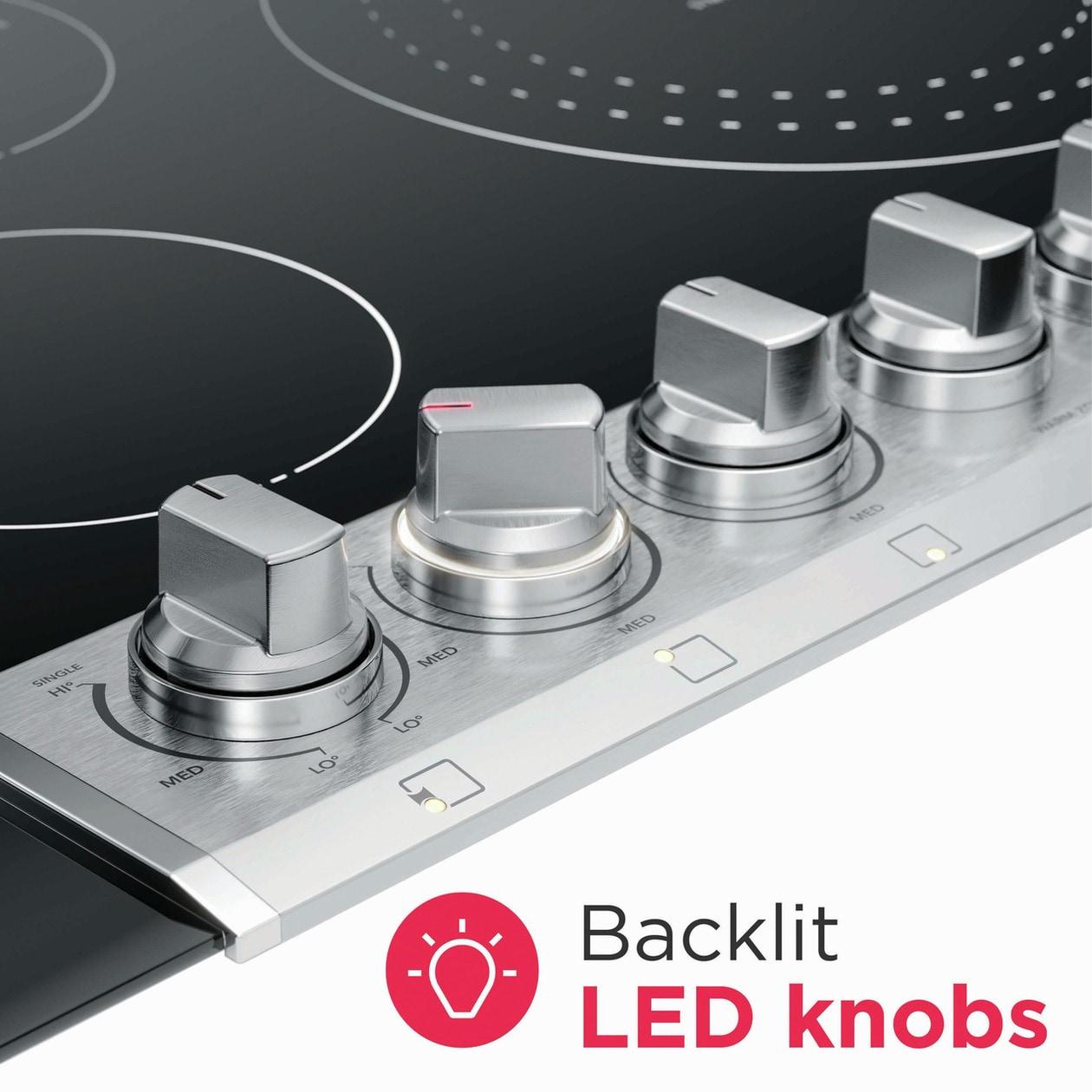

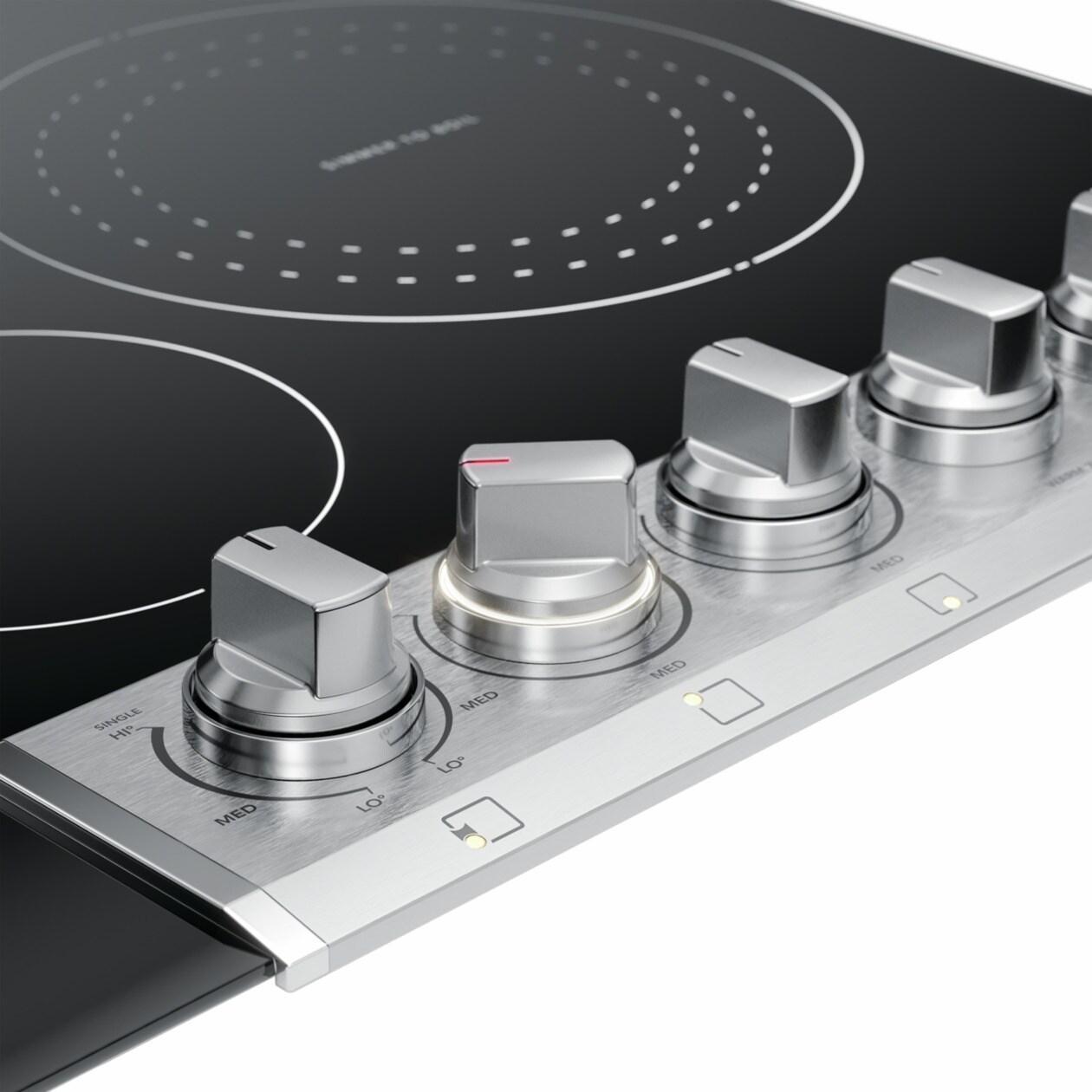

- Backlit LED Knobs
- Lights up when an element is on, so you know when your cooktop is in use.
- Front Control Design
- Adjust the cooking temperature without having to reach over hot items on the cooktop
- Easy-to-Clean Glass Cooktop
- Wipe away spills more easily with the smooth ceramic glass cooktop
- Installation over Wall Oven Approved
- Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
- Smudge-Proof® Stainless Steel
- Resists fingerprints and cleans easily.
- ADA Compliant
- Product complies with the Americans with Disabilities Act. * When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, and Amended August 5, 2005.
- EvenTemp(R) Element
- Bridge Element
- Frigidaire(R) Fit Promise
- Keep Warm Zone
- Backlit LED Knobs
- Front Control Design
- Easy-to-Clean Glass Cooktop
- Installation over Wall Oven Approved
- Smudge-Proof(R) Stainless Steel
- ADA Compliant
The Frigidaire Professional 30" Radiant Cooktop provides consistent results with an Even TempTM element that reduces hot spots and delivers even heat across the entire cooking surface. The convenient bridge element allows you to connect two elements to create a larger cooking surface, perfect for a griddle or large pan. And get peace of mind that the cooktop will fit your existing cutout with our Frigidaire Fit Promise.
| Product Line | Electric Cooktop |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Built-In |
| Factory | Rayong |
| Color | Stainless Steel |
| Cooktop | |
| Bridge Element | Yes |
| Bridge Element Location | Left |
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
| Cooktop Performance | |
| Right Front Element Burner Size | 9" |
| Left Front Element Burner Size | 7" |
| Left Rear Element Burner Size | 7" |
| Center Front Element Burner Size | 6" |
| Right Front Element Burner | 3200 Watts |
| Left Front Element Burner | 1800 Watts |
| Left Rear Element Burner | 1800 Watts |
| Center Front Element Burner | 1200 Watts |
| Center Rear Element Burner | 100 Watts |
| Keep Warm Burner Location | Center Rear |
| Display | |
| Control Location | Front |
| Display Type | Mechanical |
| Dimensions and Volume | |

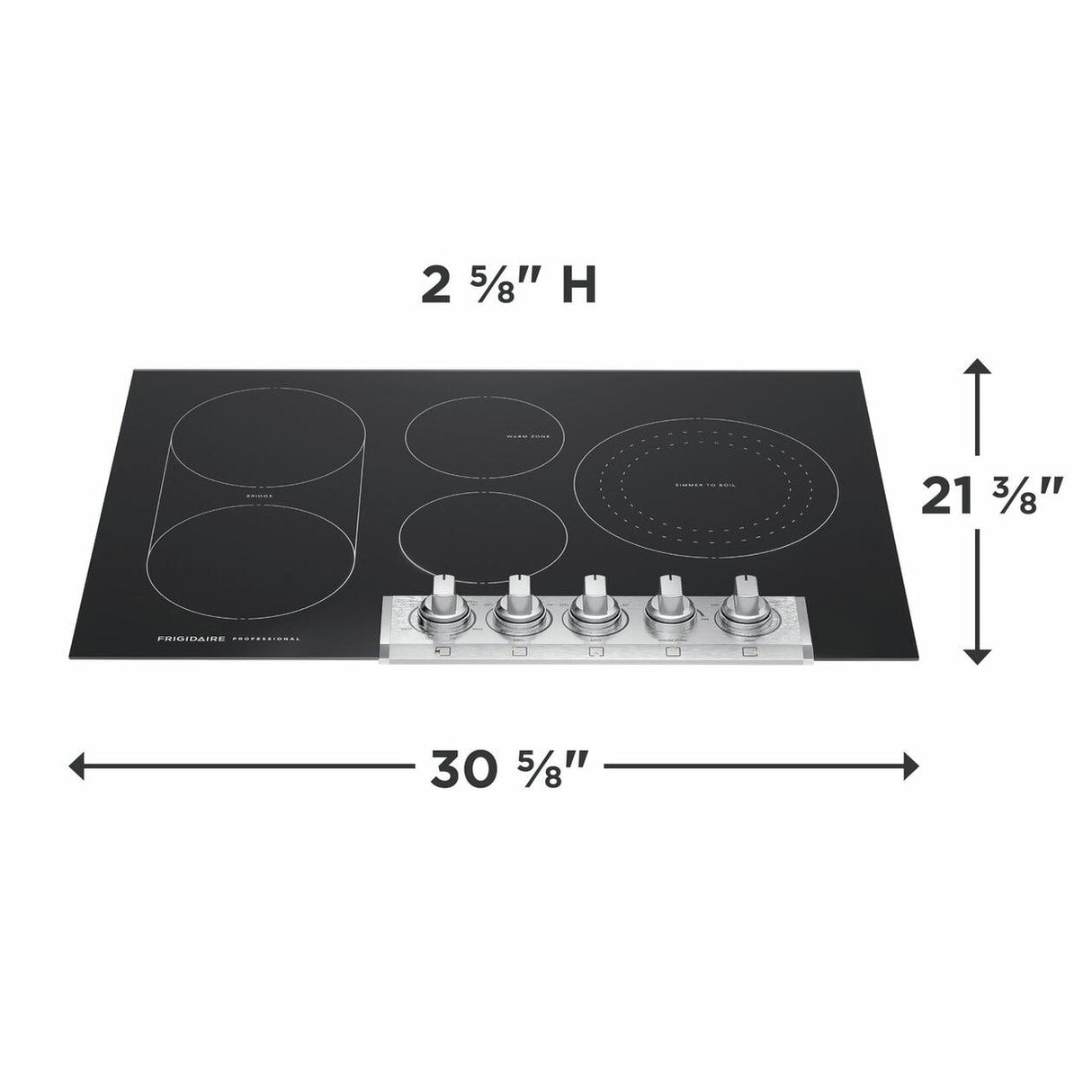

| Height | 2 5/8" |
| Width | 30 5/8" |
| Depth | 21 3/8" |
| Cutout Height | 5" |
| Minimum Cutout Width | 28 1/2" |
| Minimum Cutout Depth | 19 5/8" |
| Maximum Cutout Width | 29 7/8" |
| Maximum Cutout Depth | 20 1/2" |
| Electrical Specifications | |
| Connected Load @ 240V | 8.1 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 34 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Installation | |
| Installed Over a Wall Oven | Yes |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
- EvenTemp(R) Element
- Bridge Element
- Frigidaire(R) Fit Promise
- Keep Warm Zone
- Backlit LED Knobs
- Front Control Design
- Easy-to-Clean Glass Cooktop
- Installation over Wall Oven Approved
- Smudge-Proof(R) Stainless Steel
- ADA Compliant
