Undercabinet 30" Ventilation Hood
Model: FCVW3052AS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Undercabinet 30" Ventilation Hood
Model: FCVW3052ASQuick Specs
Width
30"
Depth
19.75"
Height
4.9375"
ADA
NO
Wifi
NO
CFM
220 CFM
Energy
NO
Undercabinet 30" Ventilation Hood is backordered and will ship as soon as it is back in stock.
Extended Delivery Time - Message us for ETA
Available to Order
Sale Price
Sale price
$203.00
Regular price
$399.00
Unit price
/
Unavailable
You save 49%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30"
Depth
19.75"
Height
4.9375"
ADA
NO
Wifi Connected
NO
Vent CFM
220 CFM
Energy Star Rated
NO
- Filter Indicator Light
- Let's you know when it's time to change your filter.
- Carbon Charcoal Filter Included
- Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
- Refresh Air with Two Speed Fan
- Quickly move odors and steam away from the cooktop's surface with two levels of ventilation that recirculate air up to 220 CFM.
- Bright LED Lighting
- Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.

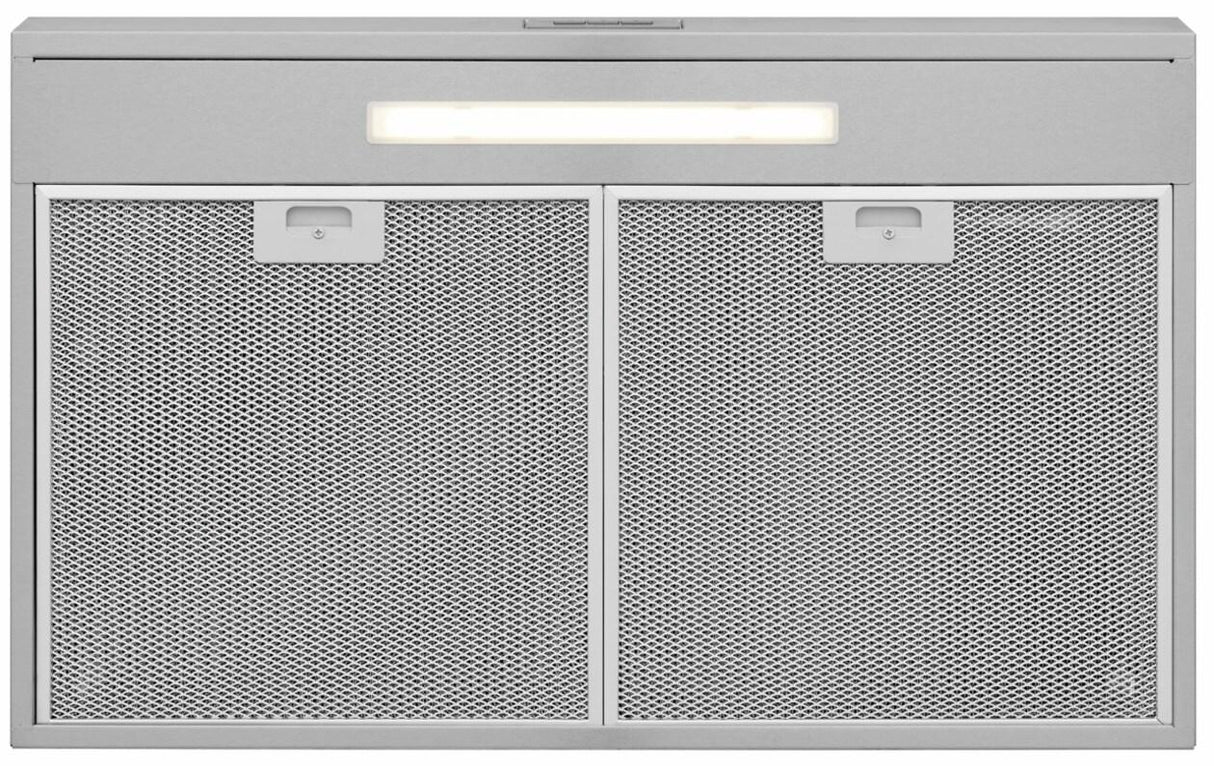

- Dishwasher Safe Grease Filter
- Easily clean the aluminum grease filter by putting it in the dishwasher.

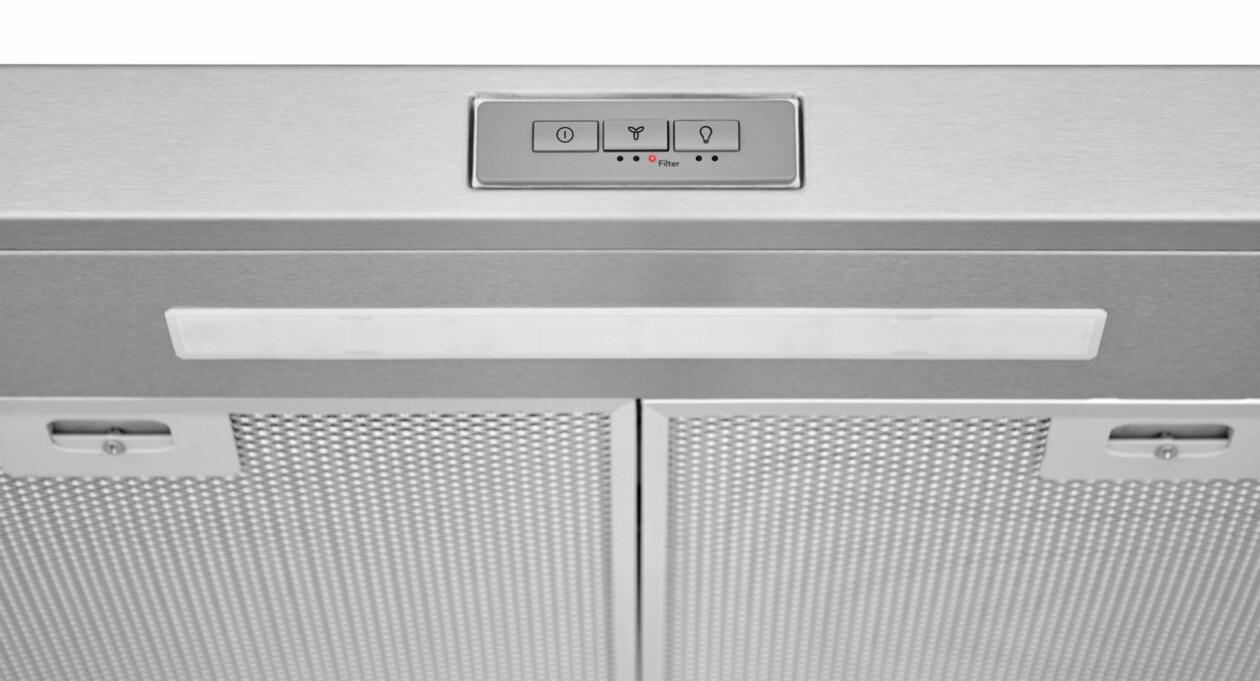

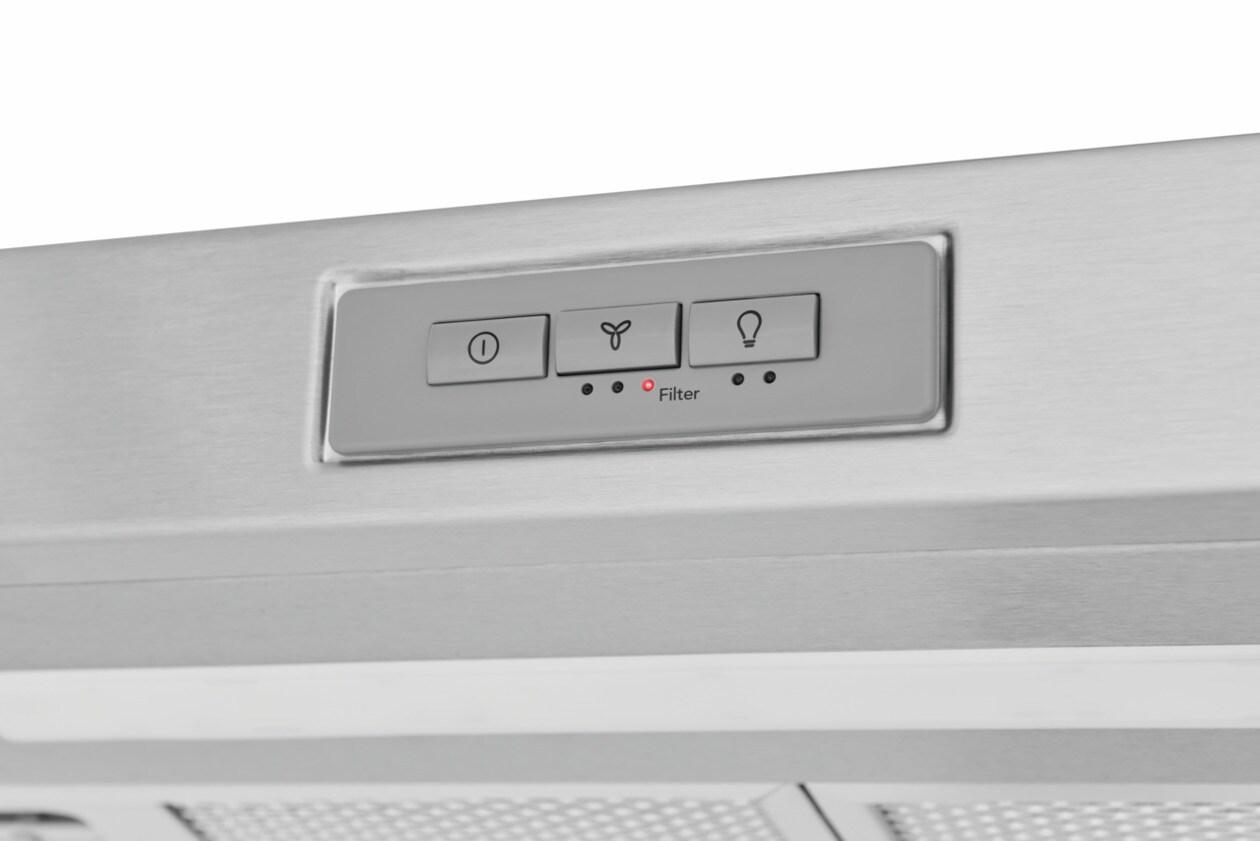

- Electronic Touch Controls
- Quickly control fan speed and lighting levels with electronic touch controls.
- Convertible Design for Installation
- Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
- Power Button
- Easily turn on/off the fan and light with the press of a button.

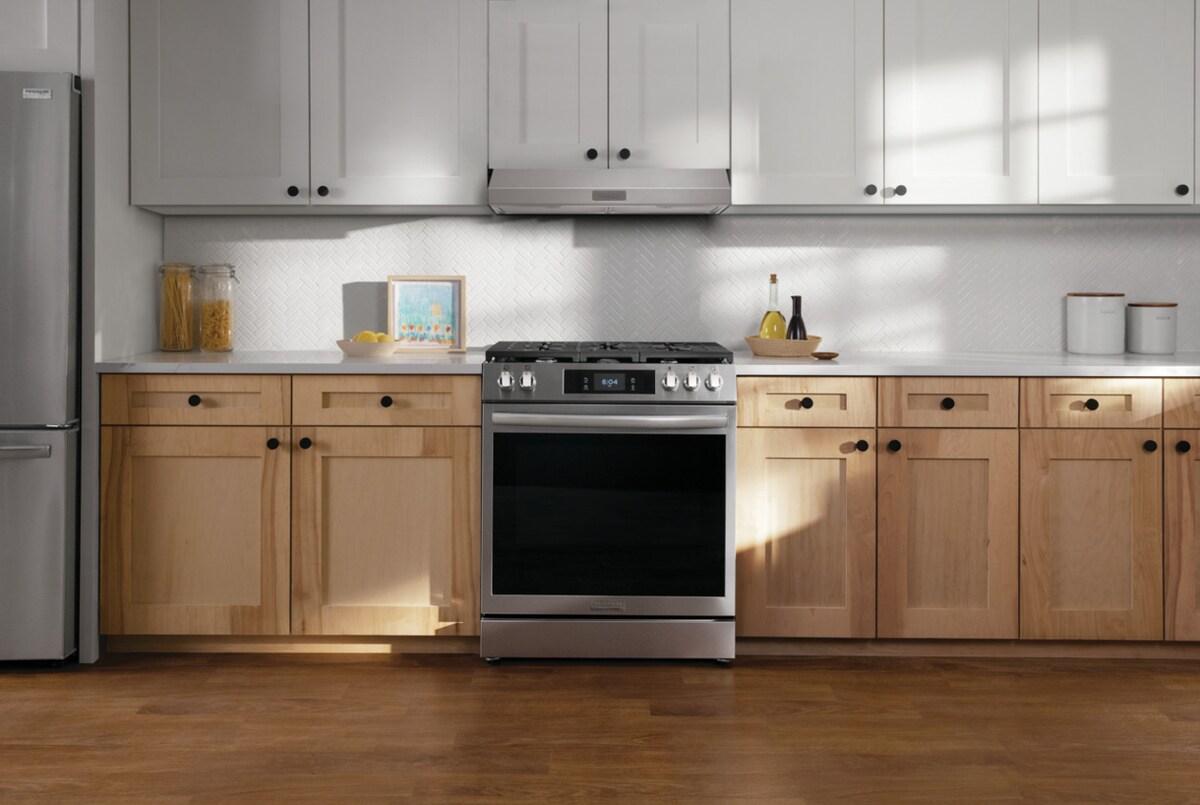

- Stylish Built-in Look
- Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
- AHAM Certified
- Filter Indicator Light
- Carbon Charcoal Filter Included
- Refresh Air with Two Speed Fan
- Bright LED Lighting
- Dishwasher Safe Grease Filter
- Electronic Touch Controls
- Convertible Design for Installation
- Power Button
- Stylish Built-in Look
- AHAM Certified

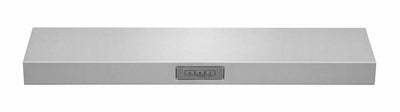

The Frigidaire Undercabinet 30" Ventilation Hood features a filter indicator light that reminds you when it's time to replace your carbon charcoal filter to continue capturing odors and circulating fresher air. Also offers LED lighting that illuminates the cooktop, soft touch controls that make selecting fan and lighting options easier, and the dual speed fan that recirculates air at 220 CFM.
| Product Line | Under Cabinet |
| Power Type | Electric 120v |
| Size | 30" |
| Installation Type | Downdraft Vent |
| Factory | Sourced |
| Color | Stainless Steel |
| Ventilation System | |
| Ventilation Options | Convertible |
| Ducted Vent | Optional (See Manual) |
| Ductless Vent | Yes - Out of the Box |
| Exhaust Fan Speeds | 2 |
| Maximum Air Flow Capacity | 220 CFM |
| Minimum Air Flow Capacity | 100 CFM |
| Maximum Sones Rating | 5.8 sone |
| Minimum Sones Rating | 2.7 sone |
| Grease Filter Included | Yes |
| Grease Filter Quantity | 2 |
| Grease Filter Type | Aluminum Mesh |
| Grease Filter Dishwasher Safe | Yes |
| Charcoal Filter Included | Yes |
| Charcoal Filter Quantity | 2 |
| Controls | |
| Control Type | Electronic |
| Filter Change Indicator | Yes |
| Surface Light System | |
| Lighting Type | LED Strip |
| Number of Lights | 1 |
| Number of Light Settings | 2 |

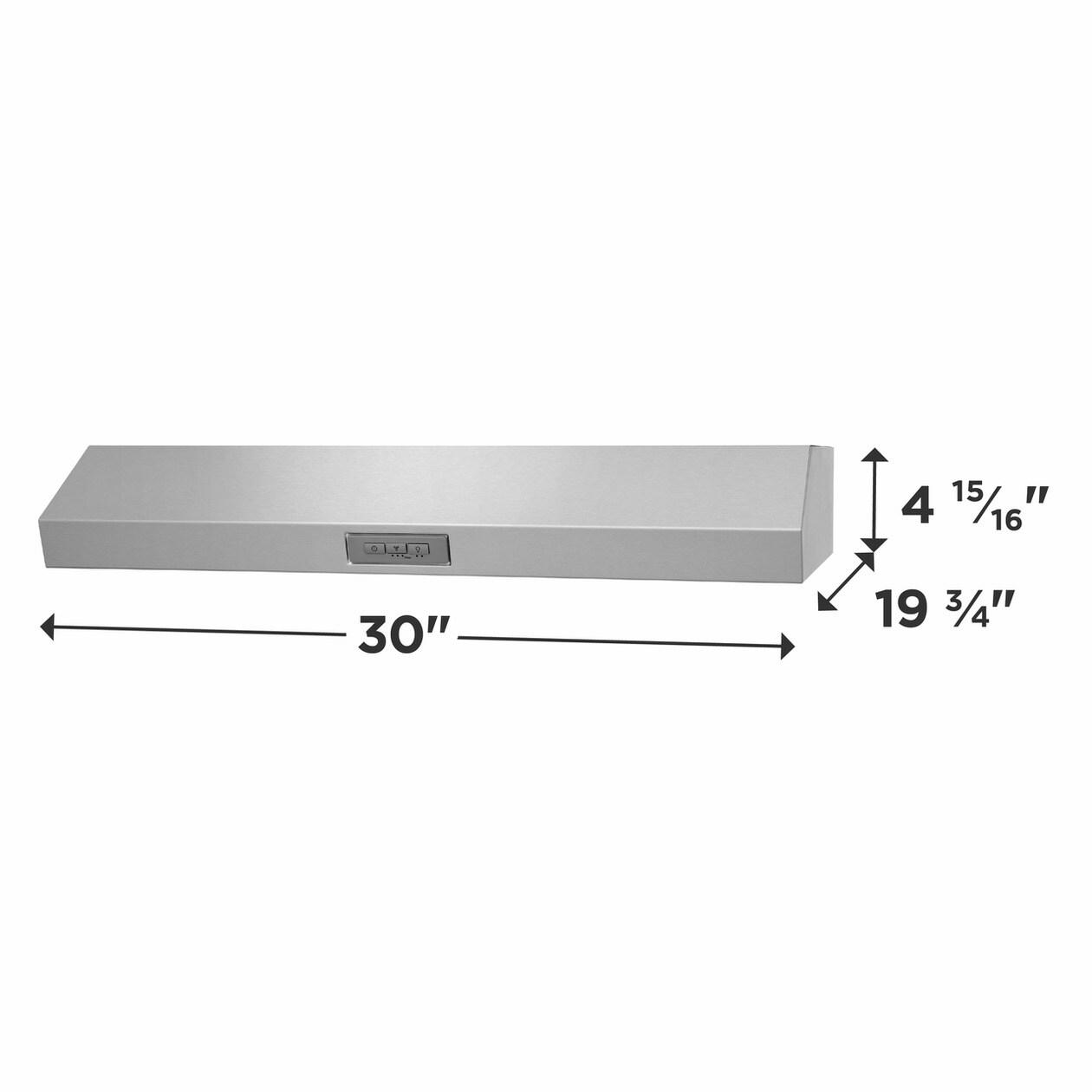

| Dimensions and Volume | |
| Height | 4 15/16" |
| Width | 30" |
| Depth | 19 3/4" |
| Electrical Specifications | |
| Voltage Rating | 120 V |
| Watts @ 120 Volts | 42 Watts |
| Installation | |
| Duct Exit Location | Top |
| Hardwired | Yes |
| Power Supply Connection Type | Hard Wired |
| General Specifications | |
| Product Weight | 13 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications and Approvals | |
| cUL Listed | Yes |
| HVI Listed | Yes |
| UL Listed | Yes |
