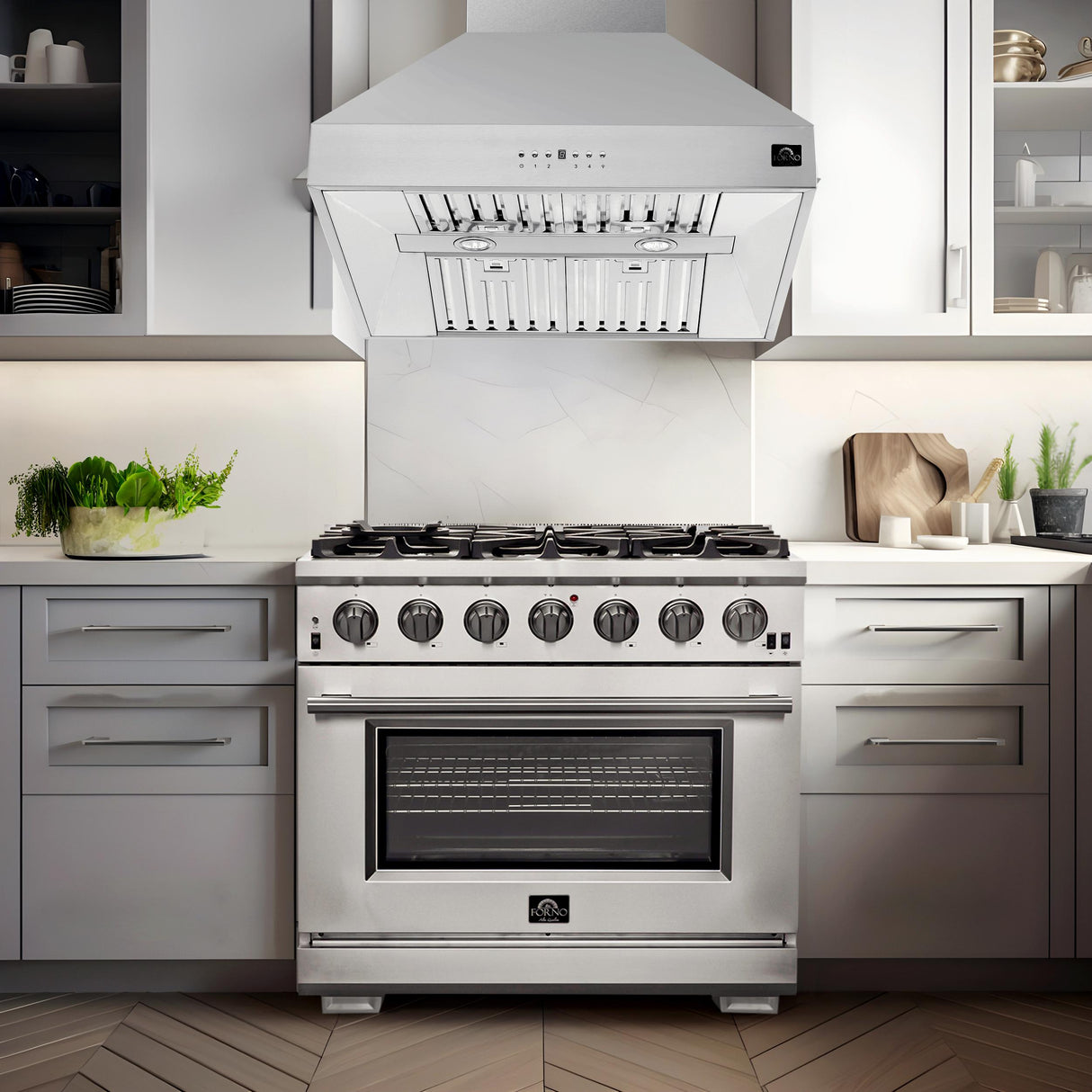

Forno Orvieto 36-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel
Model FRHWM509436
Authorized Dealer
1
of
9
Loading...
Authorized Dealer
Forno Orvieto 36-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel
Model FRHWM509436Quick Specs
Depth
23.62
Height
44.29
Energy
NO
Forno Orvieto 36-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,089.98
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
23.62
Height
44.29
Energy Star Rated
NO
- Equipped with a powerful energy-efficient 1200 CFM
- Filters are made of washable Stainless-Steel
- 4 speed touch control for easy operation makes it simple
- This wall mount rangehood is equipped with a powerful energy-efficient 1200 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.

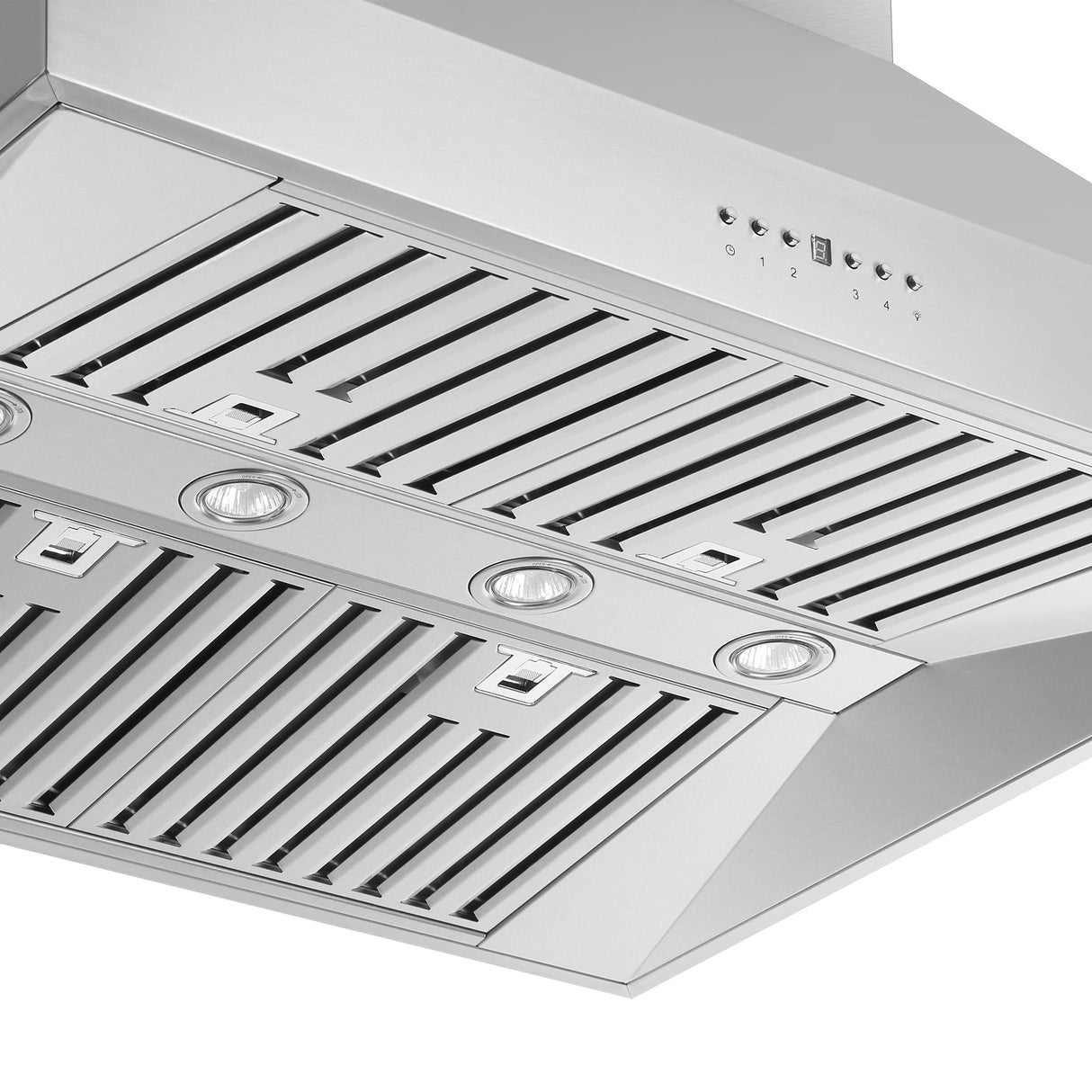

- Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.

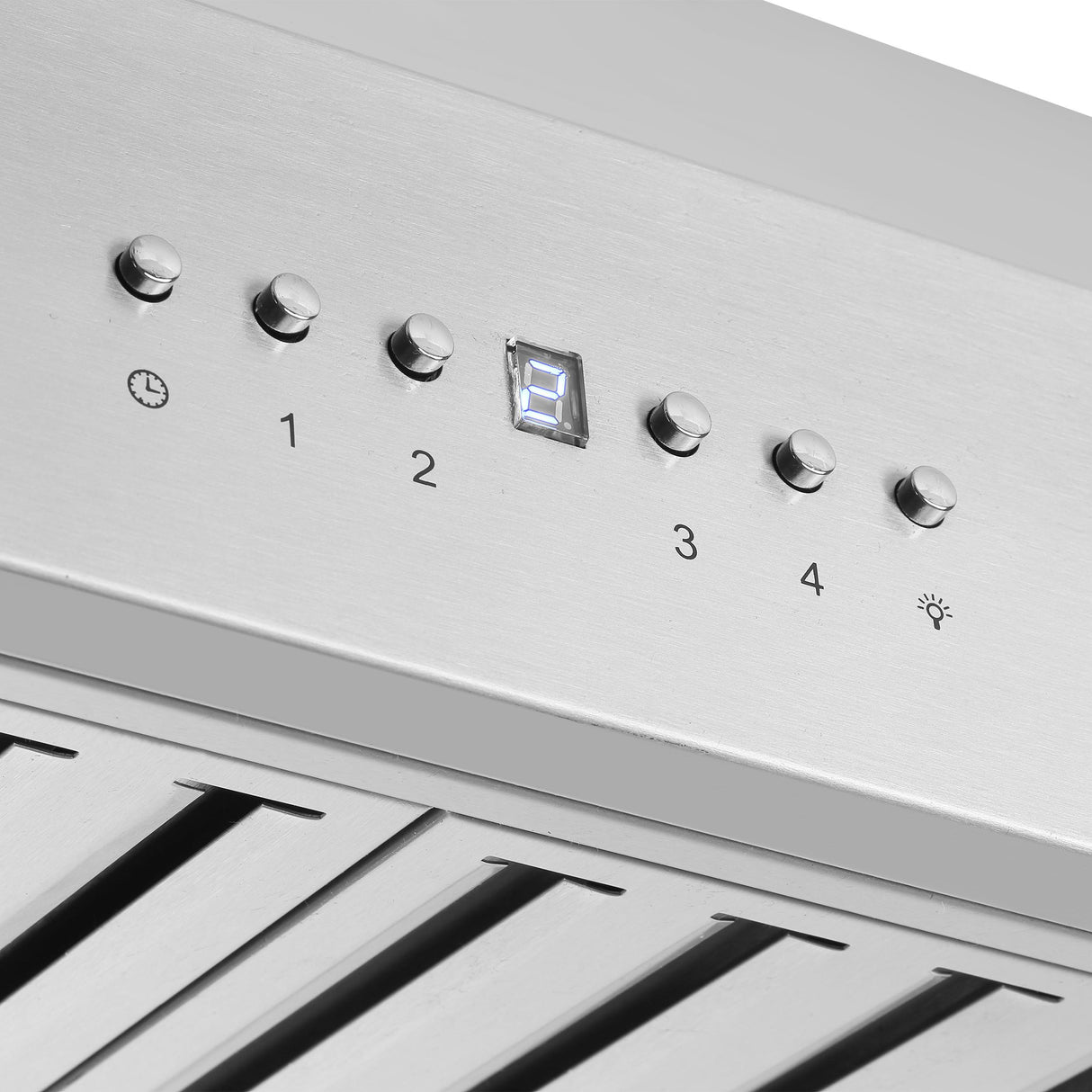

- 4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.
- Four Surface lights offer bright illumination for cooktop surface.

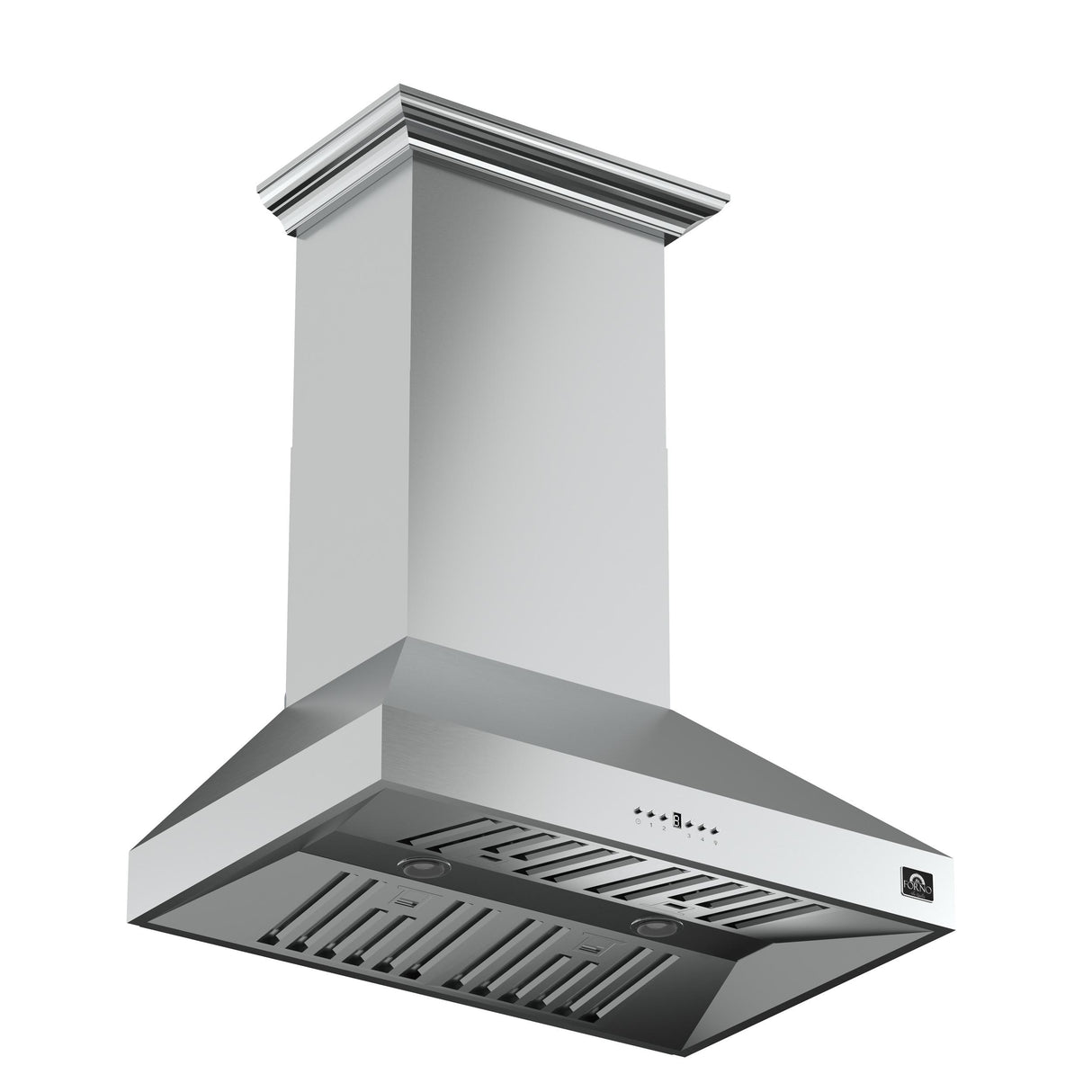

- The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
- Maximum power ventilation at a low noise level of 68dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 25dB.
The Orvieto 36" Stainless Steel Wall Mount Range Hood delivers powerful ventilation with a 1200 CFM motor and four-speed push-button control for optimal air purification. High-grade stainless steel construction ensures long-lasting durability, while integrated noise reduction technology keeps operation quiet. Decorative crown molding adds a refined touch to any kitchen aesthetic. Bright, energy-efficient surface lights enhance visibility over your cooktop, and dishwasher-safe stainless steel baffle filters efficiently capture grease, smoke, and odors for easy cleanup and improved indoor air quality.
| Brand Name | FORNO |
| Collection Name | Alta Qualita |
| Product UPC | 686136950800 |
| Serie's Name | Orvieto |
| Adjustable Height | Yes |
| Air Discharge Direction | Vertically Upward |
| Air Flow Speed 1 | 935 |
| Air Flow Speed 2 | 1274 |
| Air Flow Speed 3 | 1614 |
| Air Flow Speed 4 | 2039 |
| Backsplash Dimensions W x H (inch) | Does not Apply |
| Backsplash Included | No |
| Blower Material | Metal |
| Bulb Type | GU10 |
| Bulb Wattage | 1.50 |
| CFM speed 1 | 550 |
| CFM speed 2 | 750 |
| CFM speed 3 | 950 |
| CFM speed 4 | 1200 |
| Carton Depth Box 1 (Inch) | 39.4 |
| Carton Height Box 1 (Inch) | 32.7 |
| Carton Weight Box 1 (LBS) | 104.06 |
| Carton Width Box 1 (Inch) | 21.7 |
| Carton includes a Export Pallet | Yes |
| Charcoal Filters | No |
| Chimney Extension Kit | Yes |
| Chimney Short Kit | Yes |
| Circuit Breaker Amperage (A) | 15 |
| Clean Filter Alert | No |
| Clock | No |
| Color/Finish | Stainless Steel |
| Commercial Warranty | No |
| Crown Molding | Yes |
| Cutout dimensions W x D x H (inch) | Does Not Apply |
| Damper | Yes |
| Damper Type | 10-in Round |
| Decibel Speed 1 (dB) | 48.00 |
| Decibel Speed 2 (dB) | 53.00 |
| Decibel Speed 3 (dB) | 60.00 |
| Decibel Speed 4 (dB) | 68.00 |
| Dishwasher Safe Filters | Yes |
| Duct Type | 10-in Round |
| Duct length (inch) | 59.00 |
| Energy Policy Act 1992 Compliant | Does Not Apply |
| Energy Star Certified | No |
| Exhaust Vent Location | Roof / Wall |
| File/Certification Number | 5014042 |
| Filter Material | Stainless Steel |
| Filter Type | Baffle |
| Fingerprint-Resistant | No |
| Hardware Finish | Stainless Steel |
| Heat Sensors | No |
| Heating Lamp Included | No |
| Market | CANADA,USA |
| Maximum CFM | 1200 |
| Maximum Decibel (dB) | 68.00 |
| Maximum Sones | 16.00 |
| Minimum CFM | 550 |
| Minimum Decibel (dB) | 48.00 |
| Minimum Height from Cooktop | 30.00 |
| Minimum Product Height (IN) | 29.14 |
| Minimum Sones | 2.00 |
| Model Number | FRHWM5094-36 |
| Motor(s) Power (Watts) | 120 |
| Needs to be shipped on a pallet | Yes |
| Number of Blower(s) | 2 |
| Number of Box | 1 |
| Number of Heating Lamp | 0 |
| Number of Lights | 3 |
| Number of exhaust Vent | 1 |
| Number of light settings | 1 |
| Power Cord Included | Yes |
| Power Cord Length (ft) | 47.24 |
| Power off Function | Yes |
| Power off Information | 3 Minutes |
| Primary Material | Stainless Steel |
| Product Depth (INCH) | 23.62 |
| Product Description (more detailed) <= 100 characters | Forno Orvieto 36" Wall Mount Range Hood In Stainless-Steel, 1200 CFM with Baffle Filters & Chimney |
| Product Dimensions W x D x H (inches) | 35.43x23.62x44.29 |
| Product Height | 44.29 |
| Product Name (Short & Sweet) < 36 Characters | Orvieto 36'' Wall Mount Range Hood |
| Product Name (Short & Sweet) < 36 Characters French | Orvieto hotte murale de 36 po |
| Product Overall Weight (lbs) | 71.70 |
| Product Width (IN) | 35.43 |
| RPM Speed 1 | 880 |
| RPM Speed 2 | 1050 |
| RPM Speed 3 | 1350 |
| RPM Speed 4 | 1510 |
| Range Hood Shape | Pyramid |
| Rangehood Chimney | Yes |
| Remote Control | No |
| Removable Grease Filter | Yes |
| Required Assets | 62.5 |
| Reversible Blower | No |
| Running Amperage (A) | 3.7 |
| Safety Listing | cETLus |
| Shipping Depth Box 1 (with pallet) | 48 |
| Shipping Height Box 1 (Height carton + 6-inch of the pallet) | 38.7 |
| Shipping Weight Box 1 (Carton Weight + 35 lbs) | 139.06 |
| Shipping Width Box 1 (with pallet) | 40 |
| Sones Speed 1 | 2.00 |
| Sones Speed 2 | 6.00 |
| Sones Speed 3 | 11.00 |
| Sones Speed 4 | 16.00 |
| Speed Control | 4 |
| Speed Control Type | Push Button Control |
| Vent Style | External |
| Vent Type | Ducted |
| Volts | 120 |
| Warming Shelves Dimensions W x D x H (inch) | Does not Apply |
| Warming selve included | No |
| Warranty Script (English) | Experience peace of mind with FORNO products, backed by a 2-year warranty covering labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances, delivering quality and performance you can trust. |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty on Parts | 2 Years |
| Wi-Fi Compatibility | No |
| label | Forno Orvieto 36-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel |
- Equipped with a powerful energy-efficient 1200 CFM
- Filters are made of washable Stainless-Steel
- 4 speed touch control for easy operation makes it simple
- This wall mount rangehood is equipped with a powerful energy-efficient 1200 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.
- Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.
- 4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.
- Four Surface lights offer bright illumination for cooktop surface.
- The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
- Maximum power ventilation at a low noise level of 68dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 25dB.
 | |
|---|---|
