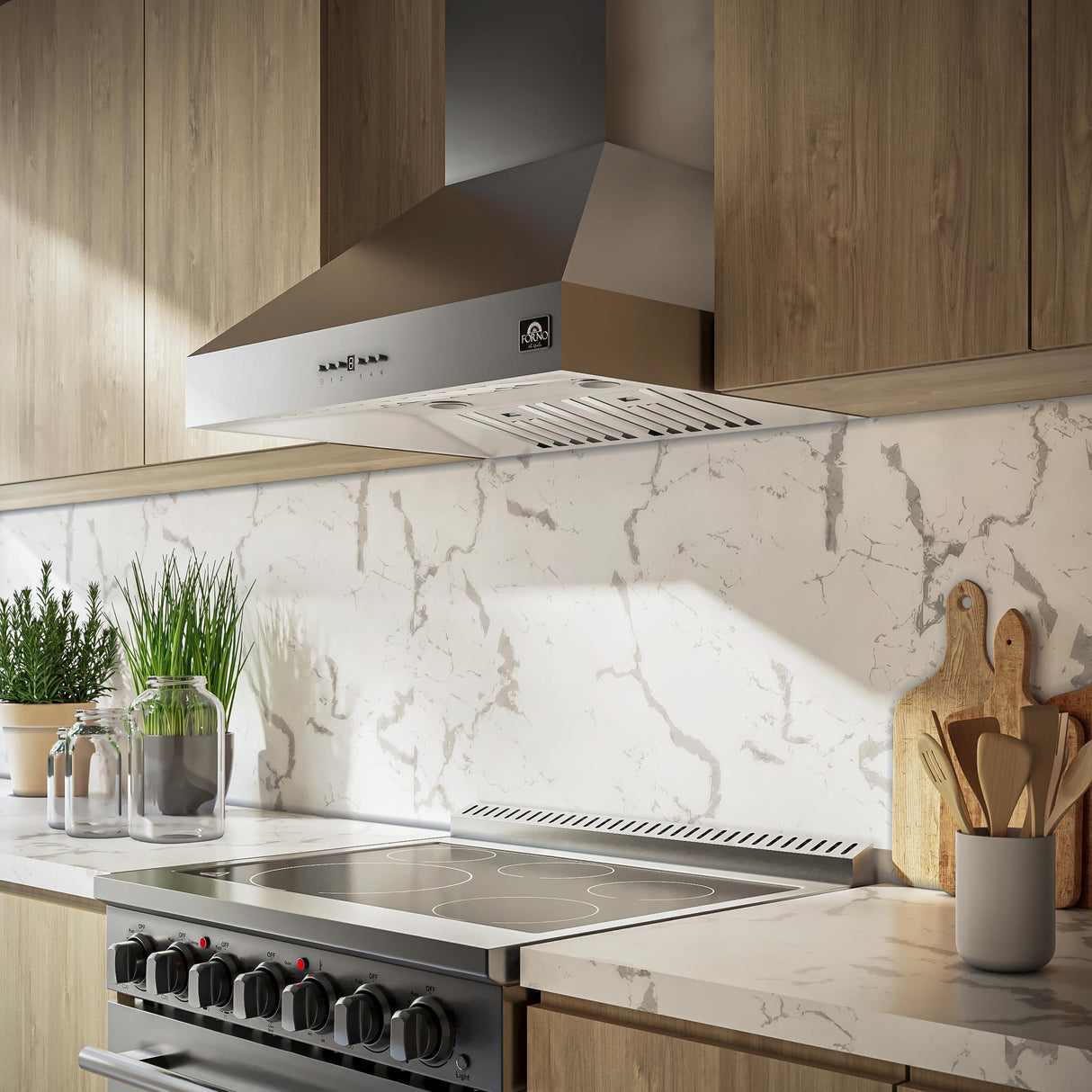

Forno Orvieto 30-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel
Model FRHWM509430Quick Specs
Depth
23.62
Height
45.15
Energy
NO
Forno Orvieto 30-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$731.55
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Depth
23.62
Height
45.15
Energy Star Rated
NO
- Equipped with a powerful energy-efficient 600 CFM
- Filters are made of washable Stainless-Steel

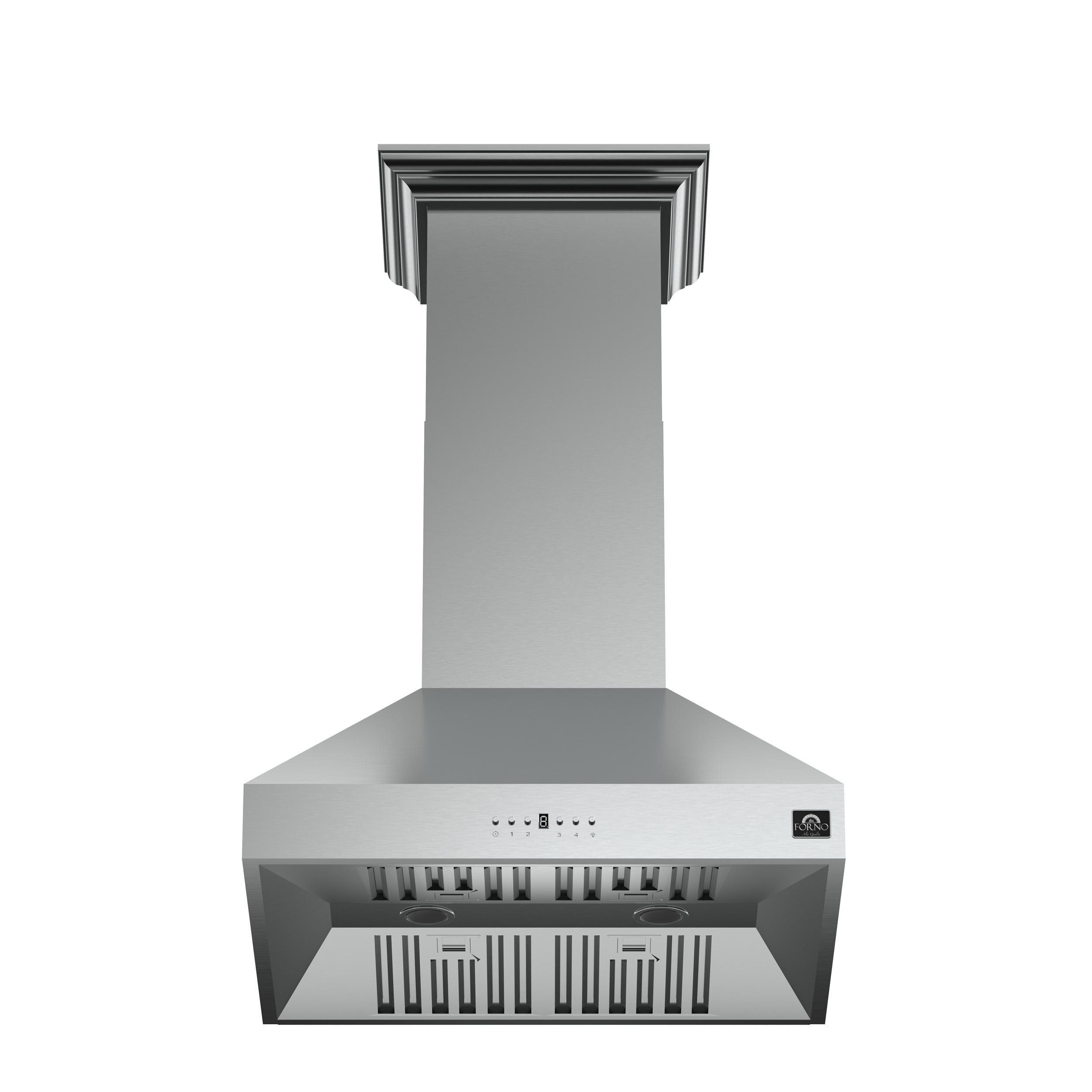

- The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
- Maximum power ventilation at a low noise level of 65dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 48dB.
- 4 speed touch control for easy operation makes it simple
- Crown Molding
- Automatic Shut-Off Timer
- All Stainless-Steel
- This wall mount rangehood is equipped with a powerful energy-efficient 600 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.

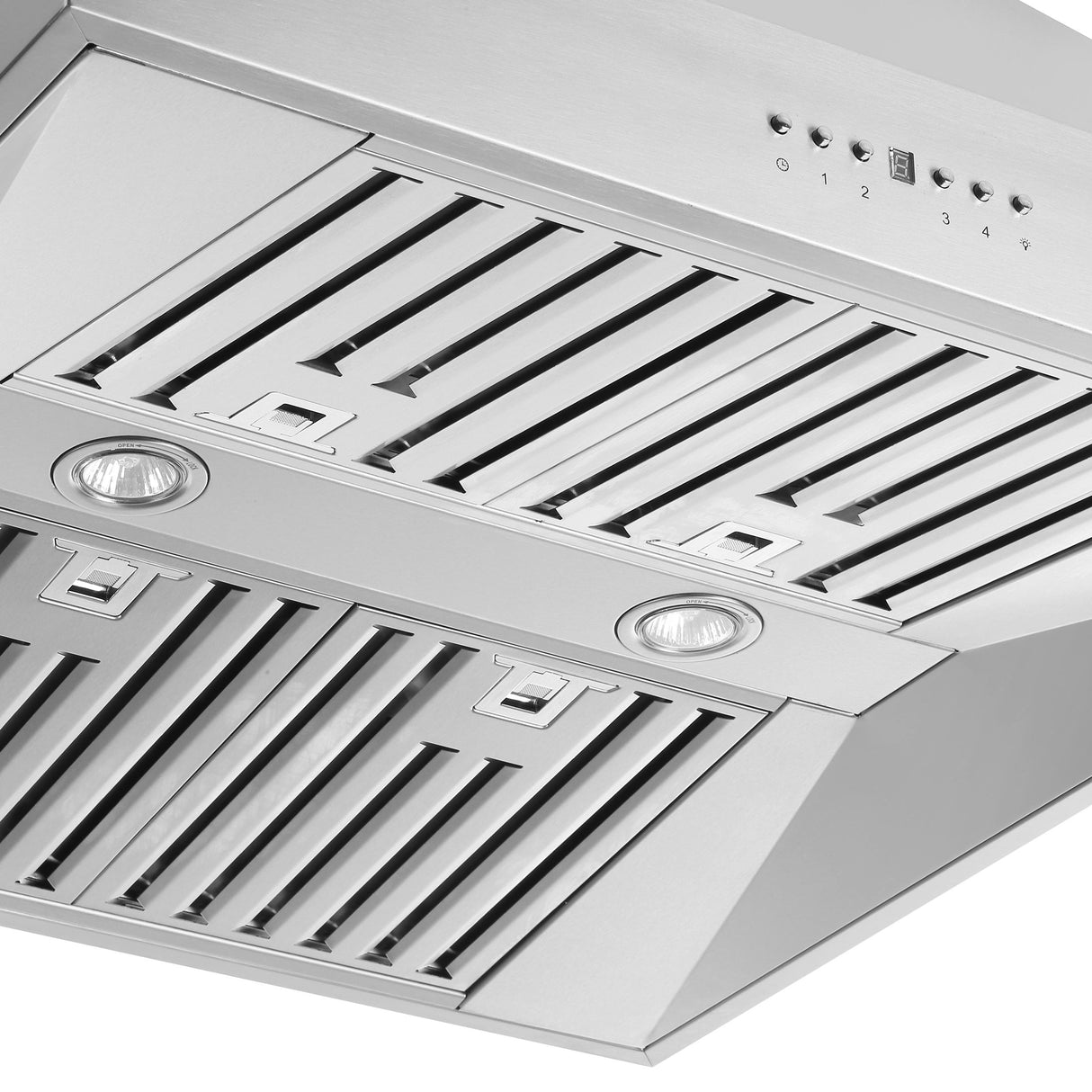

- Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.

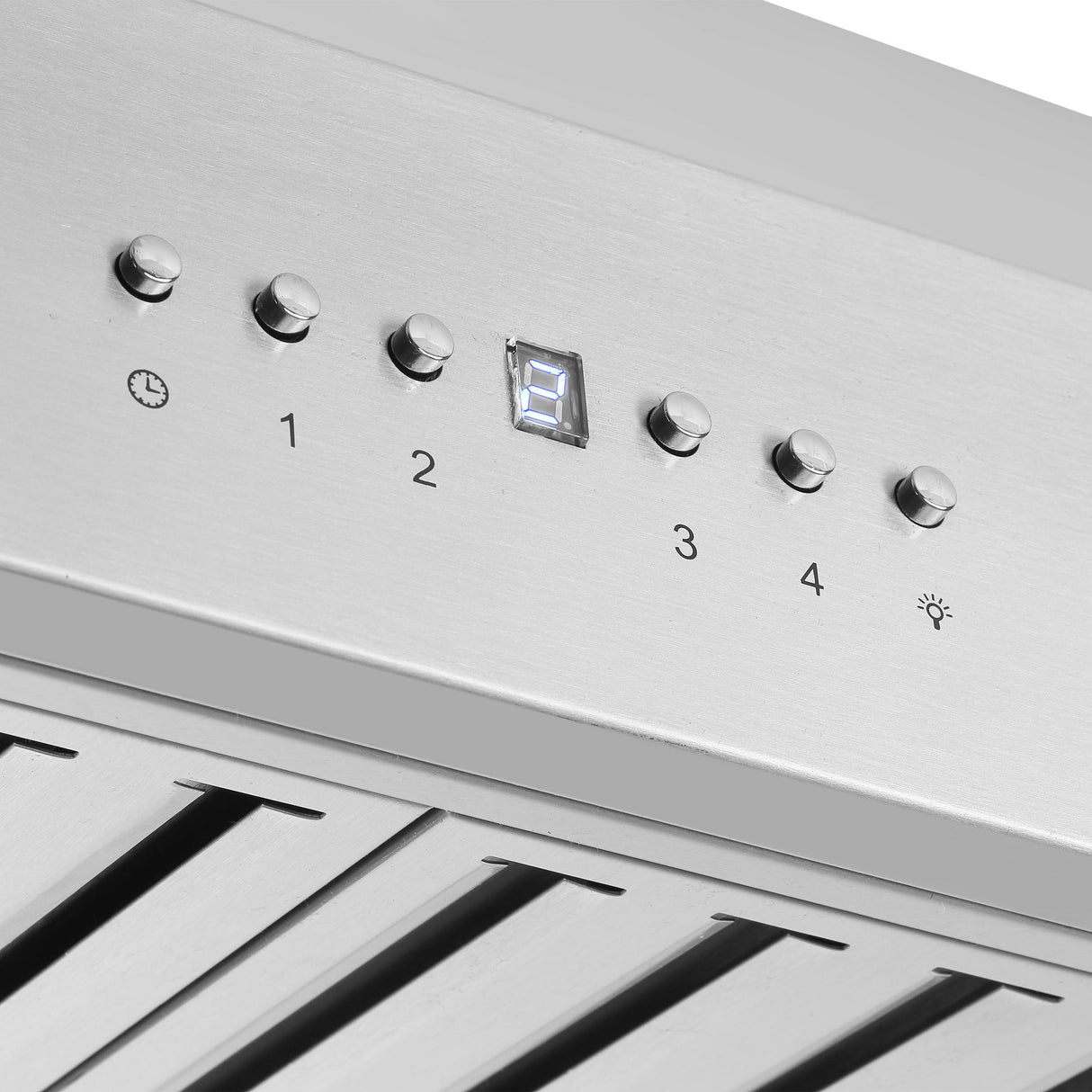

- 4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.
- Two surface lights offer bright illumination for cooktop surface.

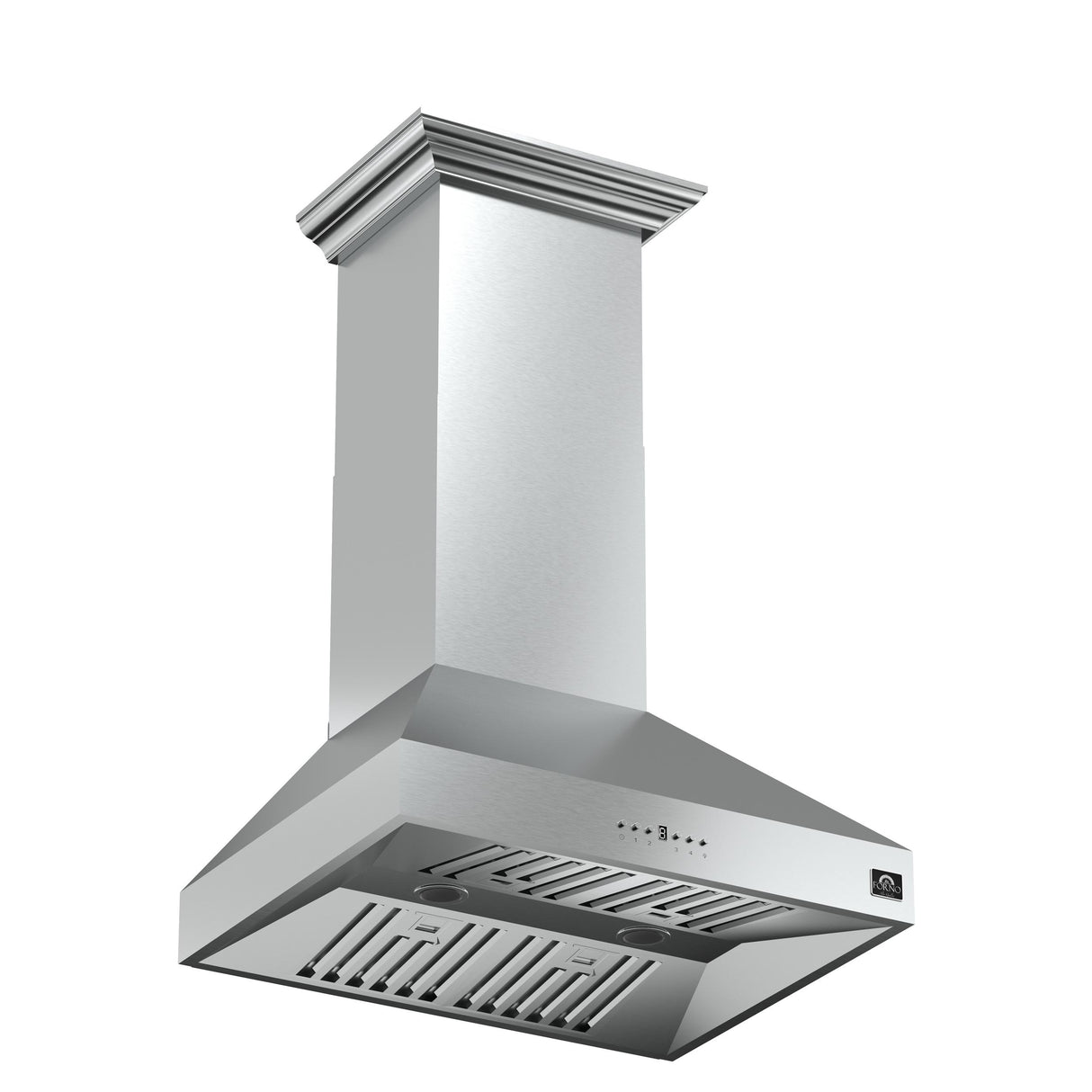

The Orvieto 30" Stainless Steel Wall Mount Range Hood delivers powerful ventilation with a 600 CFM motor and four-speed push-button control for optimal air purification. High-grade stainless steel construction ensures long-lasting durability, while integrated noise reduction technology keeps operation quiet. Decorative crown molding adds a refined touch to any kitchen aesthetic. Bright, energy-efficient surface lights enhance visibility over your cooktop, and dishwasher-safe stainless steel baffle filters efficiently capture grease, smoke, and odors for easy cleanup and improved indoor air quality.
| Brand Name | FORNO |
| Collection Name | Alta Qualita |
| Product UPC | 686136950794 |
| Serie's Name | Orvieto |
| ADA Compliant | No |
| Adjustable Height | Yes |
| Air Discharge Direction | Vertically Upward |
| Air Flow Speed 1 | 467 |
| Air Flow Speed 2 | 637 |
| Air Flow Speed 3 | 807 |
| Air Flow Speed 4 | 1019 |
| Backsplash Dimensions W x H (inch) | Does not Apply |
| Backsplash Included | No |
| Blower Material | Metal |
| Bulb Type | LED GU10 |
| Bulb Wattage | 1.50 |
| CEE Tier Qualified | Not Rated |
| CFM speed 1 | 275 |
| CFM speed 2 | 375 |
| CFM speed 3 | 475 |
| CFM speed 4 | 600 |
| Carton Depth Box 1 (Inch) | 33.66 |
| Carton Height Box 1 (Inch) | 32.7 |
| Carton Weight Box 1 (LBS) | 75 |
| Carton Width Box 1 (Inch) | 21.7 |
| Carton includes a Export Pallet | Yes |
| Charcoal Filters | No |
| Chimney Extension Kit | Yes |
| Chimney Short Kit | Yes |
| Circuit Breaker Amperage (A) | 15 |
| Clean Filter Alert | No |
| Clock | No |
| Color/Finish | Stainless Steel |
| Commercial Warranty | No |
| Control Location | Front |
| Crown Molding | Yes |
| Cutout Depth (INCH) | 26.62 |
| Cutout Height (INCH) | 45.16 |
| Cutout Width (INCH) | 30 |
| Cutout dimensions W x D x H (inch) | 30 x 26.62 x 45.16 |
| Damper | Yes |
| Damper Size | 6 |
| Damper Type | 6-in Round |
| Decibel Speed 1 (dB) | 44.00 |
| Decibel Speed 2 (dB) | 51.00 |
| Decibel Speed 3 (dB) | 58.00 |
| Decibel Speed 4 (dB) | 65.00 |
| Digital Display | No |
| Dimmable Lighting | No |
| Dishwasher Safe Filters | Yes |
| Display Type | LED |
| Duct Type | 6-in Round |
| Duct length (inch) | 59.00 |
| Energy Policy Act 1992 Compliant | Does Not Apply |
| Energy Star Certified | No |
| Exhaust Vent Location | Roof / Wall |
| File/Certification Number | 5014042 |
| Filter Material | Stainless Steel |
| Filter Type | Baffle |
| Fingerprint-Resistant | No |
| Hardware Finish | Stainless Steel |
| Heat Sensors | No |
| Heating Lamp Included | No |
| Heating Lamp Maximum Wattage | 0 |
| Heating Lamp Type | N/A |
| Heating Lamp Wattage | 0.00 |
| ISTA 6A | Yes |
| Installation Kit | Yes |
| Installation Type | Wall Mounted |
| Light(s) Control | Push Button Controlled |
| Lighting Color | White |
| Market | CANADA,USA |
| Maximum CFM | 600 |
| Maximum Decibel (dB) | 65.00 |
| Maximum Sones | 13.00 |
| Minimum CFM | 275 |
| Minimum Decibel (dB) | 44.00 |
| Minimum Height from Cooktop | 30.00 |
| Minimum Product Height (IN) | 29.14 |
| Minimum Sones | 3.00 |
| Model Number | FRHWM5094-30 |
| Motor(s) Power (Watts) | 60 |
| Needs to be shipped on a pallet | Yes |
| Number of Blower(s) | 1 |
| Number of Box | 1 |
| Number of Heating Lamp | 0 |
| Number of Lights | 2 |
| Number of exhaust Vent | 1 |
| Number of light settings | 1 |
| Power Cord Included | Yes |
| Power Cord Length (ft) | 4.00 |
| Power Cord Location | Top |
| Power off Function | Yes |
| Power off Information | 3 Minutes |
| Primary Material | Stainless Steel |
| Product Depth (INCH) | 23.62 |
| Product Description (more detailed) <= 100 characters | Forno Orvieto 30" Wall Mount Range Hood In Stainless-Steel, 600 CFM with Baffle Filters & Chimney |
| Product Description (more detailed) > 100 characters | Forno Orvieto 30" Wall Mount Range Hood In Stainless-Steel, 600 CFM, Baffle Filters, Chimney with Crown Molding |
| Product Dimensions W x D x H (inches) | 29.53x23.62x45.15 |
| Product Height | 45.15 |
| Product Name (Short & Sweet) < 36 Characters | Orvieto 30'' Wall Mount Range Hood |
| Product Name (Short & Sweet) < 36 Characters French | Orvieto 30'' hotte murale |
| Product Overall Weight (lbs) | 44.00 |
| Product Width (IN) | 29.53 |
| RPM Speed 1 | 880 |
| RPM Speed 2 | 1050 |
| RPM Speed 3 | 1350 |
| RPM Speed 4 | 1510 |
| Range Hood Shape | Pyramid |
| Rangehood Chimney | Yes |
| Remote Control | No |
| Removable Grease Filter | Yes |
| Required Assets | 87.5 |
| Reversible Blower | No |
| Running Amperage (A) | 1.8 |
| Sabbath Mode | No |
| Safety Listing | cETLus safety listing |
| Shipping Depth Box 1 (with pallet) | 48 |
| Shipping Height Box 1 (Height carton + 6-inch of the pallet) | 38.7 |
| Shipping Weight Box 1 (Carton Weight + 35 lbs) | 110 |
| Shipping Width Box 1 (with pallet) | 40 |
| Smudge Resistant | No |
| Sones Speed 1 | 3.00 |
| Sones Speed 2 | 5.00 |
| Sones Speed 3 | 8.00 |
| Sones Speed 4 | 13.00 |
| Speed Control | 4 |
| Speed Control Type | Push Button Control |
| Star-K Certified | No |
| TAA Compliant | No |
| Title 20 - California Regulation | Yes |
| UPLR Compliant | Yes |
| Vent Fan | Yes |
| Vent Location | Top |
| Vent Style | External |
| Vent Type | Ducted |
| Volts | 120 |
| Warming Shelves Dimensions W x D x H (inch) | Does not Apply |
| Warming selve included | No |
| Warranty Script (English) | Experience peace of mind with FORNO products, backed by a 2-year warranty covering labor and parts. Our commitment ensures your satisfaction and confidence in the reliability of our appliances, delivering quality and performance you can trust. |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty on Parts | 2 Years |
| Wi-Fi Compatibility | No |
| label | Forno Orvieto 30-Inch Wall Mount Range Hood, LED Lighting, Heavy Duty, Stainless Steel |
- Equipped with a powerful energy-efficient 600 CFM
- Filters are made of washable Stainless-Steel
- The chimney includes a stainless steel decorative molding trim which adds an elegant, modern feel and a beautiful finishing touch.
- Maximum power ventilation at a low noise level of 65dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 48dB.
- 4 speed touch control for easy operation makes it simple
- Crown Molding
- Automatic Shut-Off Timer
- All Stainless-Steel
- This wall mount rangehood is equipped with a powerful energy-efficient 600 CFM, designed to capture smoke, gases, steam and grease to keep your cooking area free of unwanted odors.
- Filters are made of washable Stainless-Steel with a baffle design and designed to capture grease, smoke, odors and grease from the air.
- 4 speed touch control for easy operation makes it simple to adjust the fan speed settings for air flow and ventilation levels according to your needs.
- Two surface lights offer bright illumination for cooktop surface.
 | |
|---|---|
