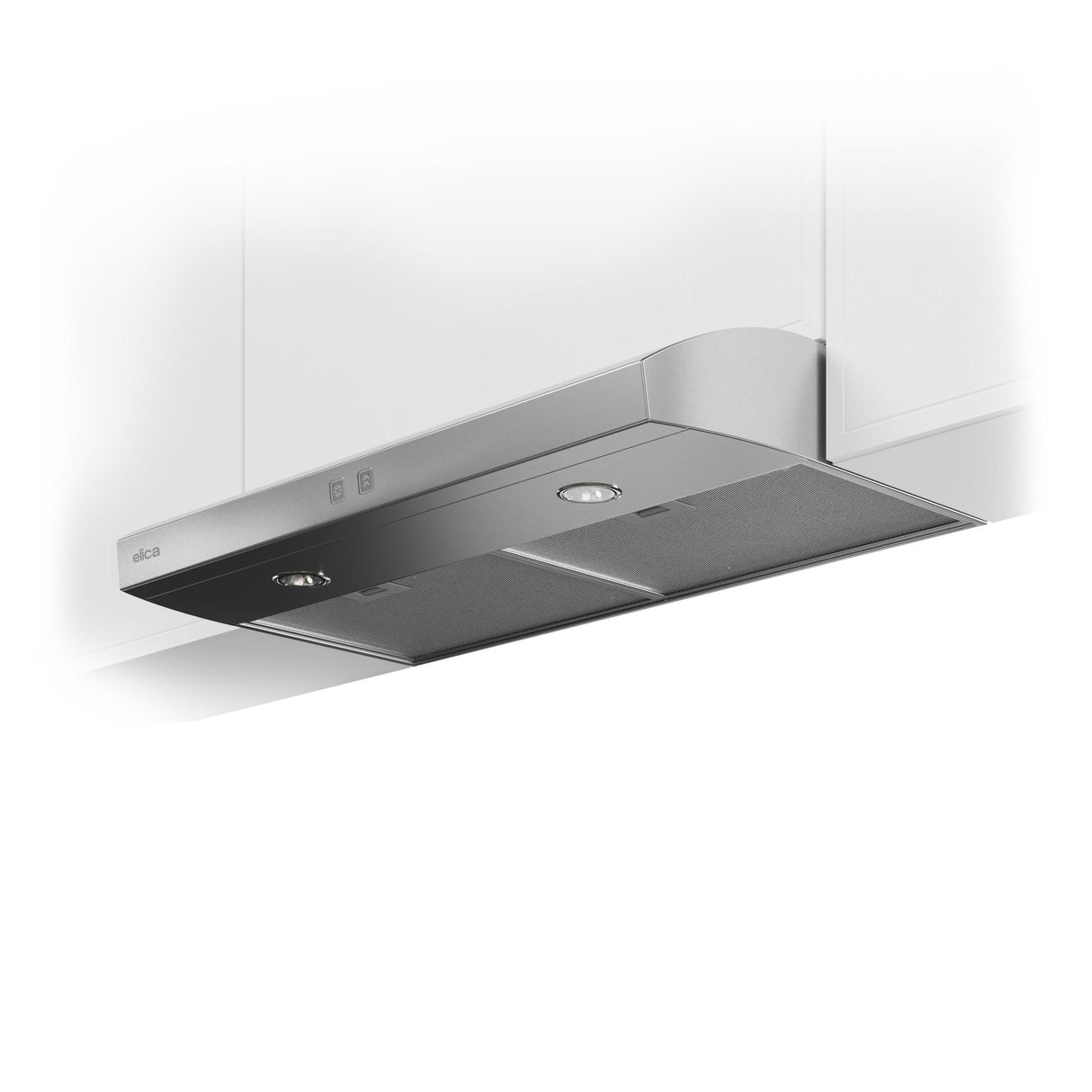

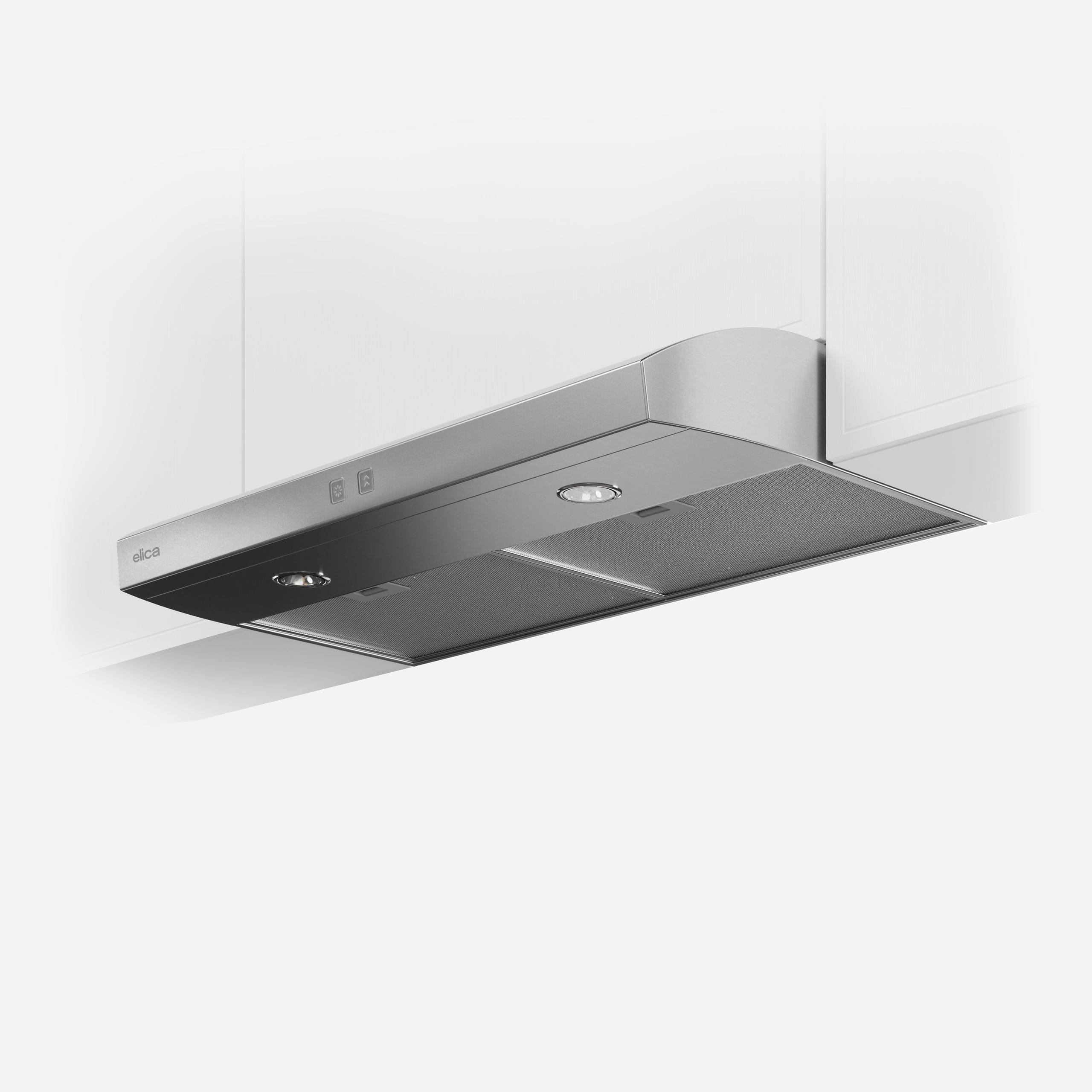

BELLAGIO Undercabinet Range Hood 30" wide - 400CFM
Model: EBL430S2
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
BELLAGIO Undercabinet Range Hood 30" wide - 400CFM
Model: EBL430S2Quick Specs
Width
30"
Depth
12"
Height
4.75"
ADA
NO
Wifi
NO
CFM
400 CFM
Energy
NO
BELLAGIO Undercabinet Range Hood 30" wide - 400CFM is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-4 days
In Stock
Sale Price
Sale price
$488.00
Regular price
$589.00
Unit price
/
Unavailable
You save 17%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
30"
Depth
12"
Height
4.75"
ADA
NO
Wifi Connected
NO
Vent CFM
400 CFM
Energy Star Rated
NO
- 3X Layer Mesh Filter
- Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
- CFM Reduction
- CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
- LED Light
- LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
- 3x layer mesh
- Led light
- CFM reduction system
With a compact 4 3/ height, Bellagio is an ideal choice where under-cabinet space is limited. Equipped with an upgraded 4-speed, 400 CFM internal blower that provides sufficient ventilation power, dishwasher-safe, anodized aluminum mesh filters, and multiple backlight color touch controls illuminated in elegant white, green, blue, or red. Available in 30 or 36 width, Bellagio is designed for standard ducted installation, and can also be installed as a recirculating system using the Recirculating Kit, available as an accessory.
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 12.50 |
| NET WEIGHT (kg) | 10.00 |
| CARTON LENGHT (mm) | 864.00 |
| CARTON HEIGHT (mm) | 618.00 |
| CARTON WIDTH (mm) | 249.00 |
| VOLUMEN (M3) | 0.10 |
| SHIPPING WEIGHT | 27.56 |
| NET WEIGHT | 22.05 |
| CARTON LENGHT | 34.02 |
| CARTON HEIGHT | 24.33 |
| CARTON WIDTH | 9.80 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh, Led light, CFM reduction system |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 26.00 |
| db (max) | 51.00 |
| SONES | 0.9 - 5.0 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Rectangular 10 x 3 1/4" or round 7" (sold separately) |
| DUCT SHAPE | Rectangular or round (sold separately) |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | 10" |
| RECTANGULAR DUCT WIDTH | 3.25 |
| Round duct diameter | 7" |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 3A |
| HERTZ | 60.00 |
| WATTS | 445.00 |
| LIGHTING | LED 2 x 2.1 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Electronic Touch Controls with Adjustable Color Backlight |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 4.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Hardwired |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes |
| DIMENSIONS | 76 x 51 x 12 |
| DIMENSIONS inches | 30" x 20" x 4 3/4" |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 4 3/4" |
| Maximum Overall Height - Top to Bottom | 4 3/4" |
| Overall Height - Top to Bottom | 4 3/4" |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 20" |
| Hood Height | 4 3/4" |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | = 24 |
| Minimum Height Above Cooktop (GAS) | = 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02178 |
| CHIMNEY EXTENSION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | KIT02723 |
| NON RETURN VALVE | - |
| UPGRADE FILTER | GRI0131086A |
| CFM REDUCTION KIT | - |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| VERSION ADVANCES | They changed from Tecne Series to comfort |
| CERTIFICADO NOM | Activo |
- 3x layer mesh
- Led light
- CFM reduction system
 | |
|---|---|
