Terazzo, UC, 30", SS, 400 CFM
Model ZTEE30AS
Authorized Dealer
Loading...
Authorized Dealer
Terazzo, UC, 30", SS, 400 CFM
Model ZTEE30ASQuick Specs
Depth
U_21
Height
U_7 3/8
Terazzo, UC, 30", SS, 400 CFM is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
U_21
Height
U_7 3/8

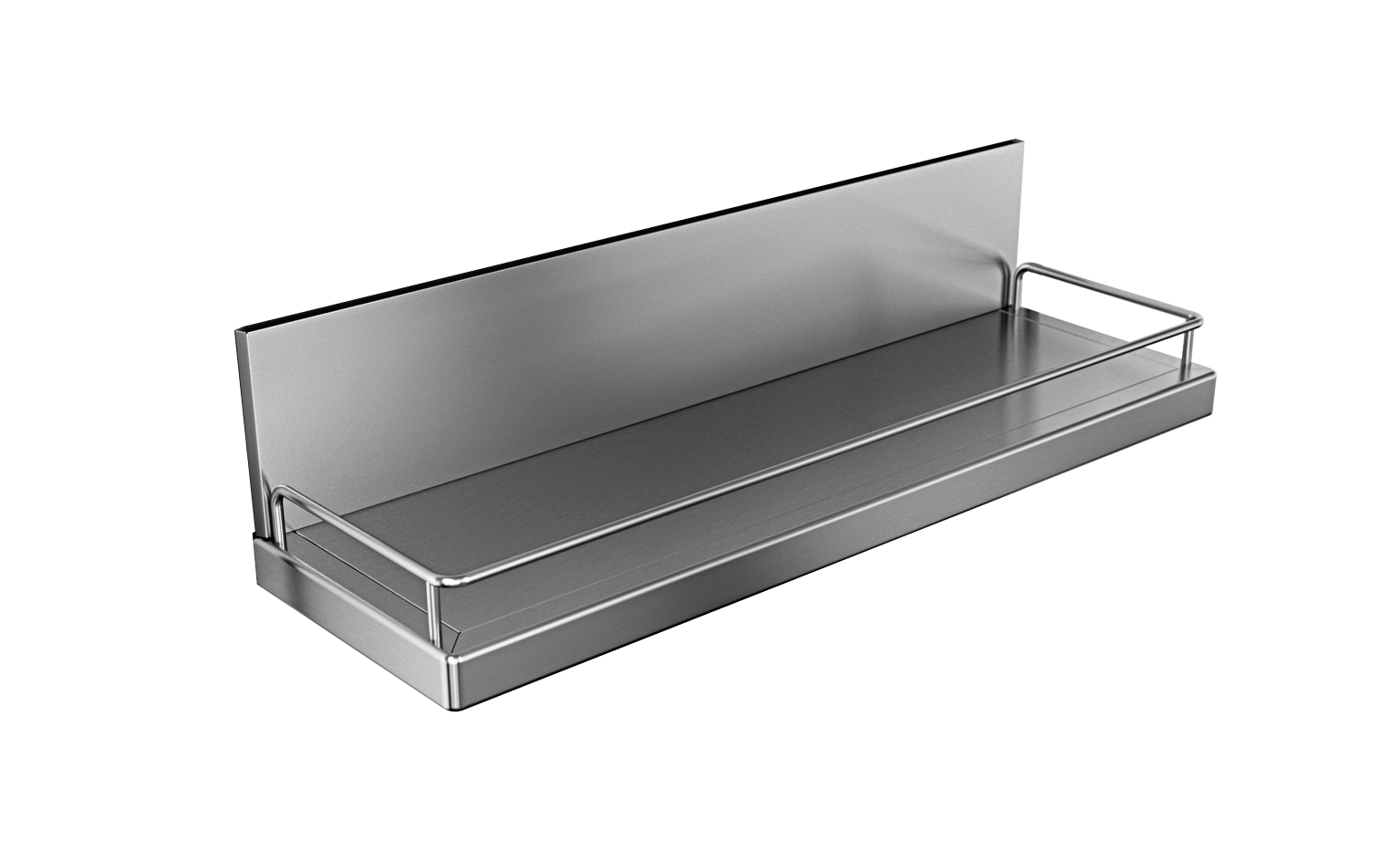

- Adjustable utensil bar
- This utensil bar can be installed at multiple heights to accommodate hanging utensils.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Adjustable utensil bar
- Optional Ductless Recirculating Kit
Terazzo, UC, 30", SS, 400 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328001833 |
| GTIN | 00646328001833 |
| Country of Origin | Taiwan |
| Model Group | ZTE |
| Model Name | Terazzo Under-Cabinet |
| Collection | Core Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 400 |
| Internal Blower 1 Min. Sones | 2 |
| Internal Blower 1 Max Sones | 5 |
| Minimum CFM | 210 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 50 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200030 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 3.25 x 10 |
| Duct Size; Vertical; IN | 7, 3.25 x 10 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-0200, MUA006A, Z0B0040, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 204 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.9375 |
| Net Depth; IN | 21 |
| Net Height; IN | 7.375 |
| Weight; LBS | 27.9 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 12.44 |
| Shipping Width; IN | 33.94 |
| Shipping Height; IN | 25.98 |
| Shipping Weight; LBS | 35.5 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Adjustable utensil bar
- Optional Ductless Recirculating Kit
 | |
|---|---|
| Design Features | |
Key Features |
|
Product Type |
|
| Dimensions & Capacity | |
Depth |
|
Height |
|
| Appearance & Specifications | |
Configuration |
|
Color |
|
