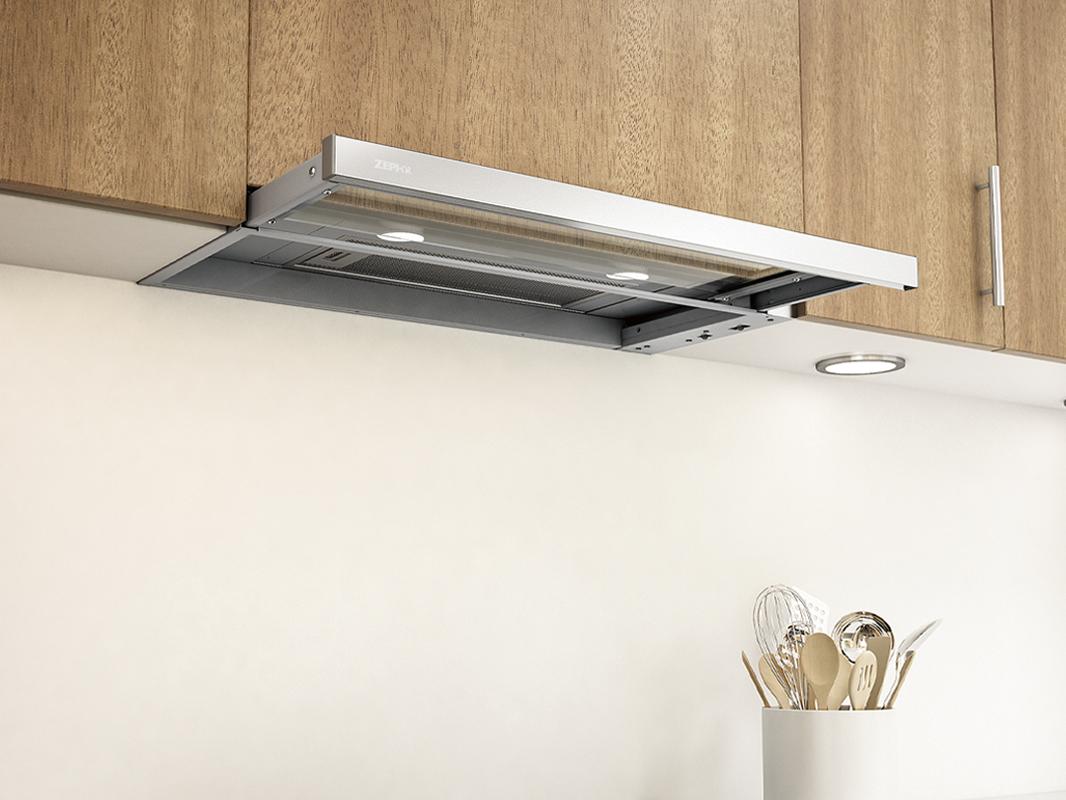

Pisa, UC, 24", Wht+Glass, 290 CFM
Model ZPIE24AW290
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
Pisa, UC, 24", Wht+Glass, 290 CFM
Model ZPIE24AW290Quick Specs
Depth
11.125
Height
9.563
Energy
NO
Pisa, UC, 24", Wht+Glass, 290 CFM is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$535.21
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
11.125
Height
9.563
Energy Star Rated
NO

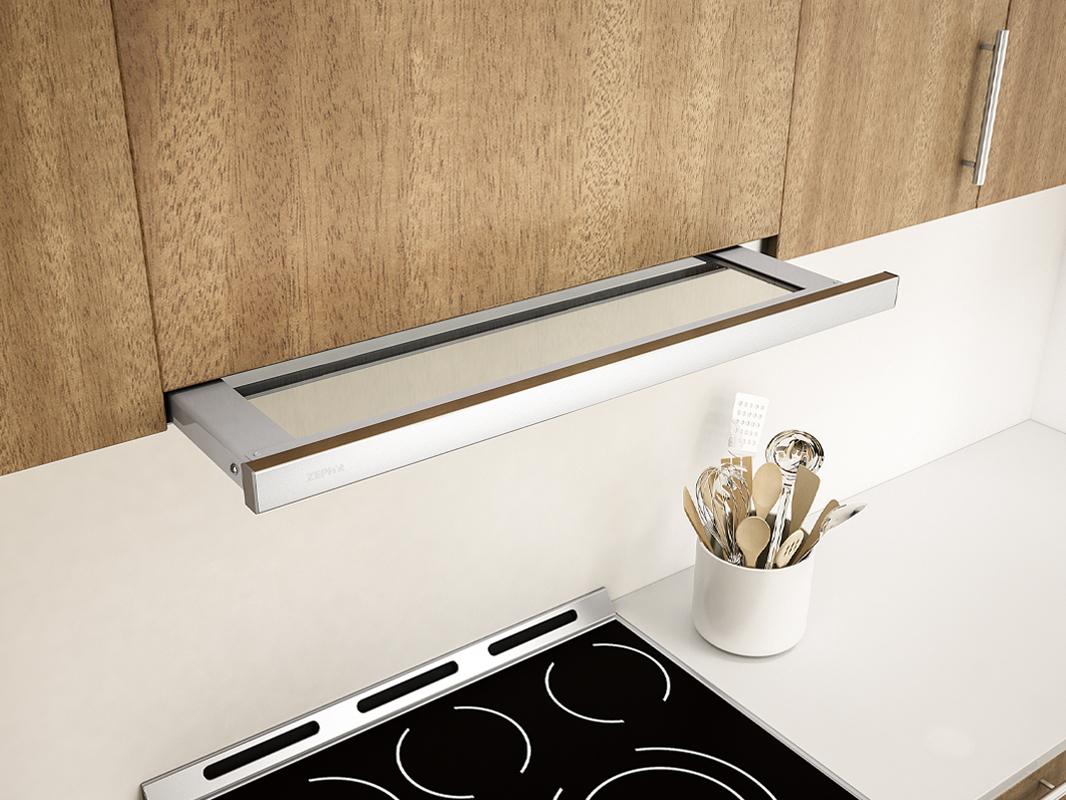

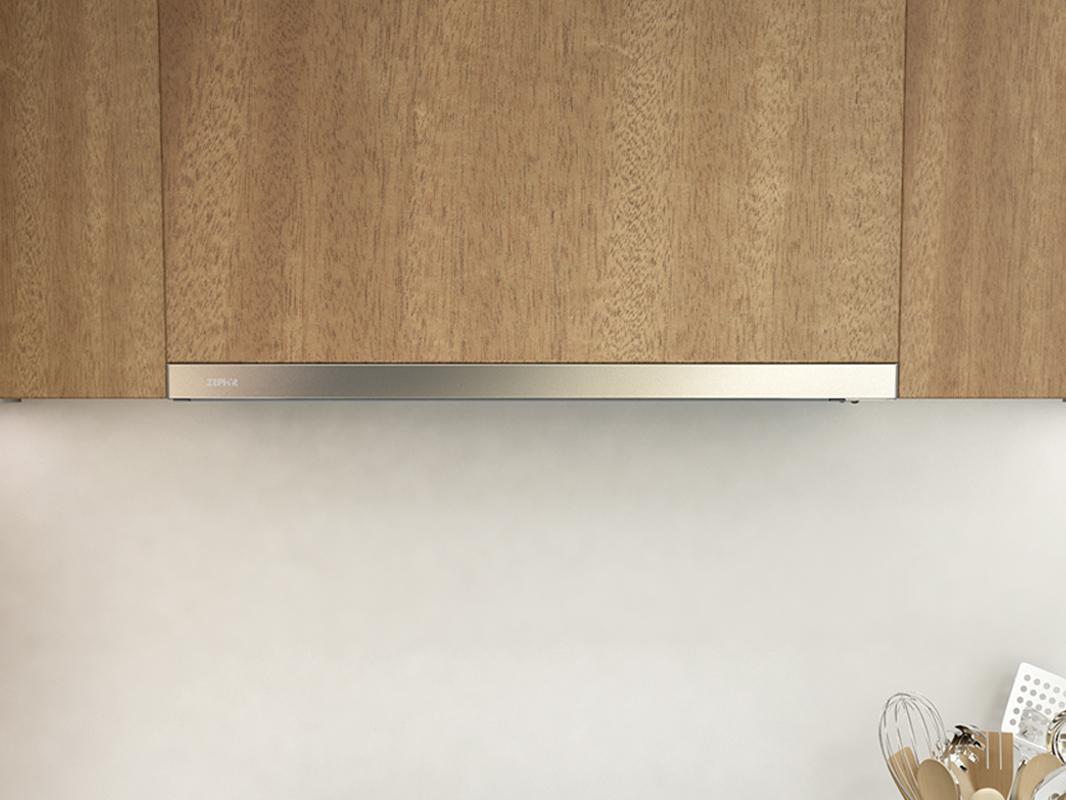

- Low-profile body
- Low-profile body for a minimalist appearance.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Vertical or horizontal ducting
- This hood has the ability to vent either out the top or out the back.
- Low-profile body
- Optional Ductless Recirculating Kit
- Vertical or horizontal ducting
Pisa, UC, 24", Wht+Glass, 290 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Under Cabinet |
| Vent Type | Convertible |
| UPC | 646328006463 |
| GTIN | 00646328006463 |
| Country of Origin | Taiwan |
| Model Group | ZPI-A |
| Model Name | Pisa |
| Collection | Core Collection |
| Replacement Model | ZPI-E24BW290 |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.3 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 180 |
| Installation Type | Under Cabinet |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Color | White |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 50 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200054 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 1.55 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00PI, Z0B0040, Z0F-C0PI |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 186 |
| Certification | UL |
| Nominal Width; IN | 24 |
| Net Width; IN | 24.9375 |
| Net Depth; IN | 11.9375 - 18.75 |
| Net Height; IN | 1.5 |
| Weight; LBS | 26.2 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 16 |
| Shipping Width; IN | 29 |
| Shipping Height; IN | 17 |
| Shipping Weight; LBS | 34 |
| Shipping Method | Small Parcel |
| Freight Class | 125 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Low-profile body
- Optional Ductless Recirculating Kit
- Vertical or horizontal ducting
 | |
|---|---|
