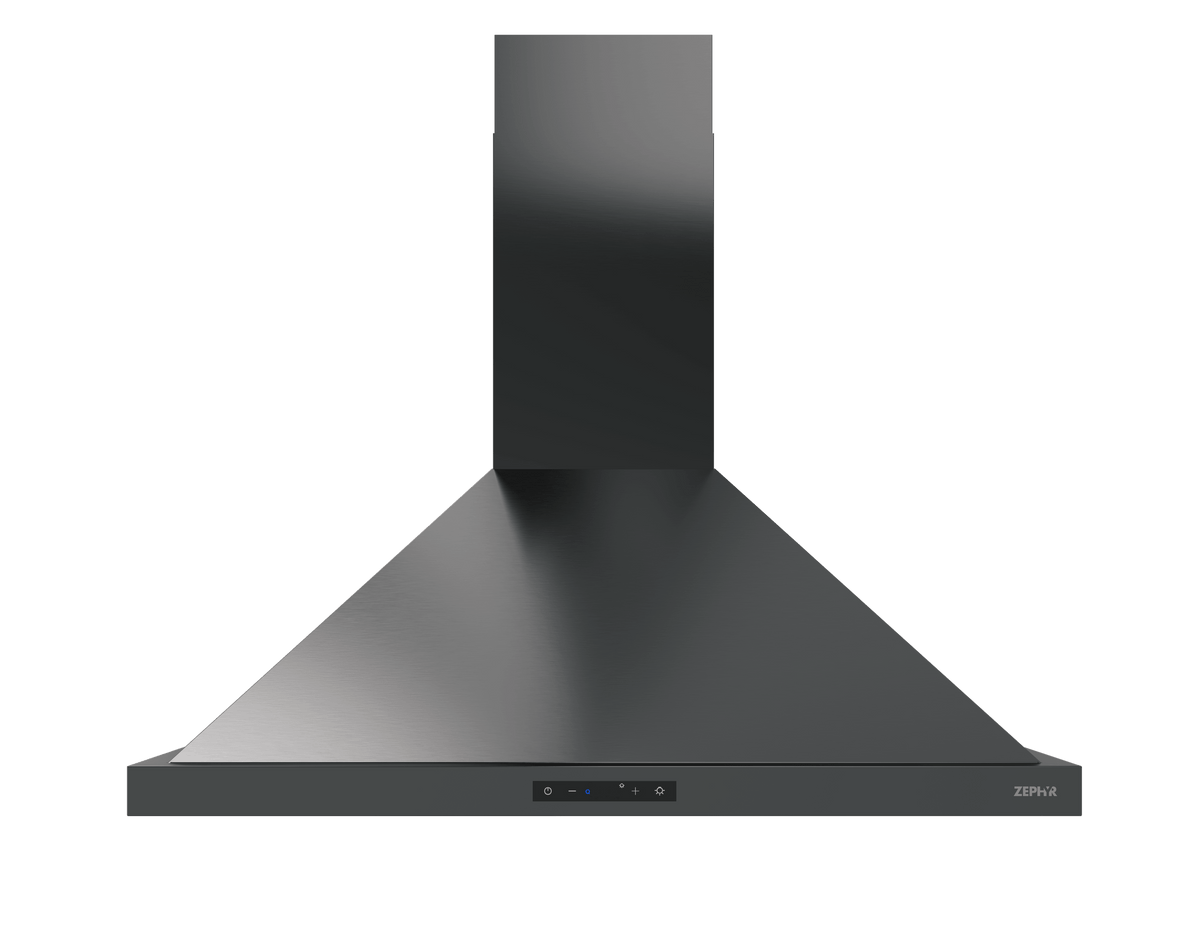

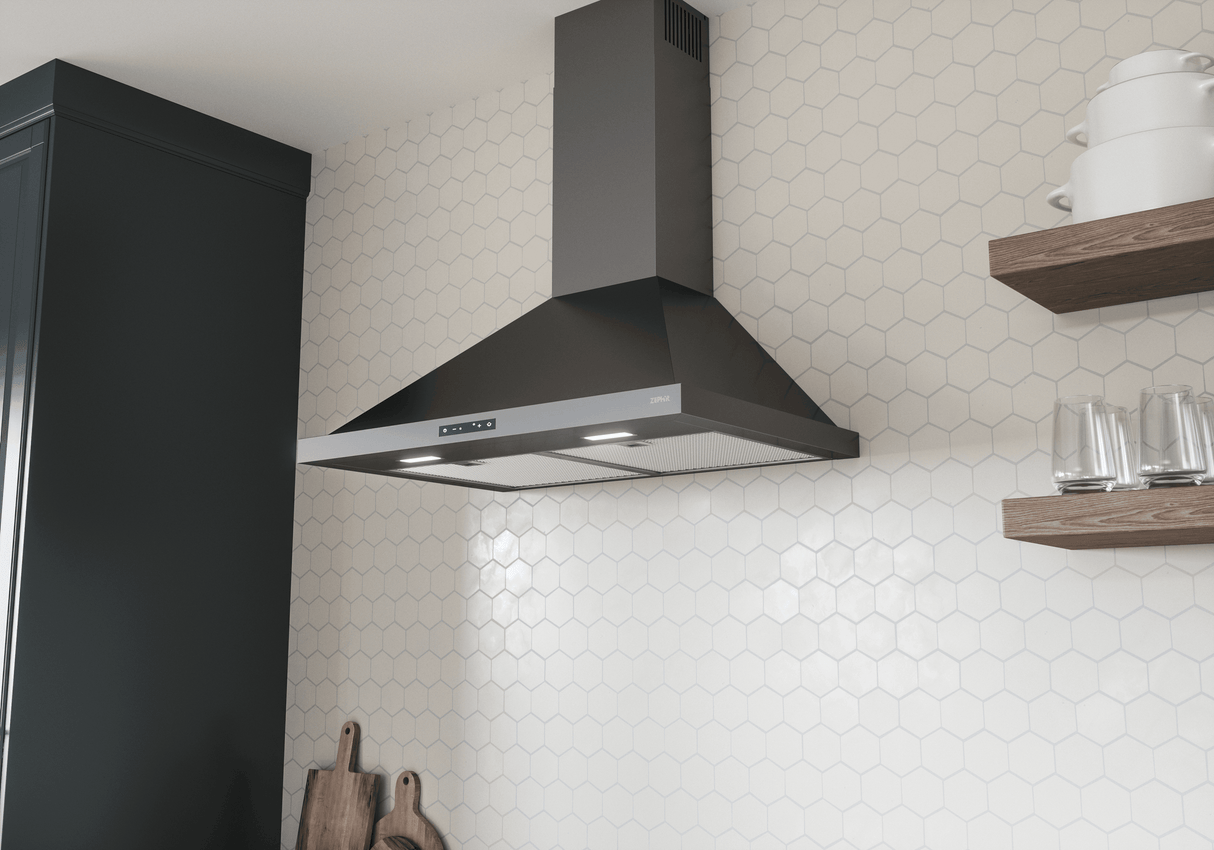

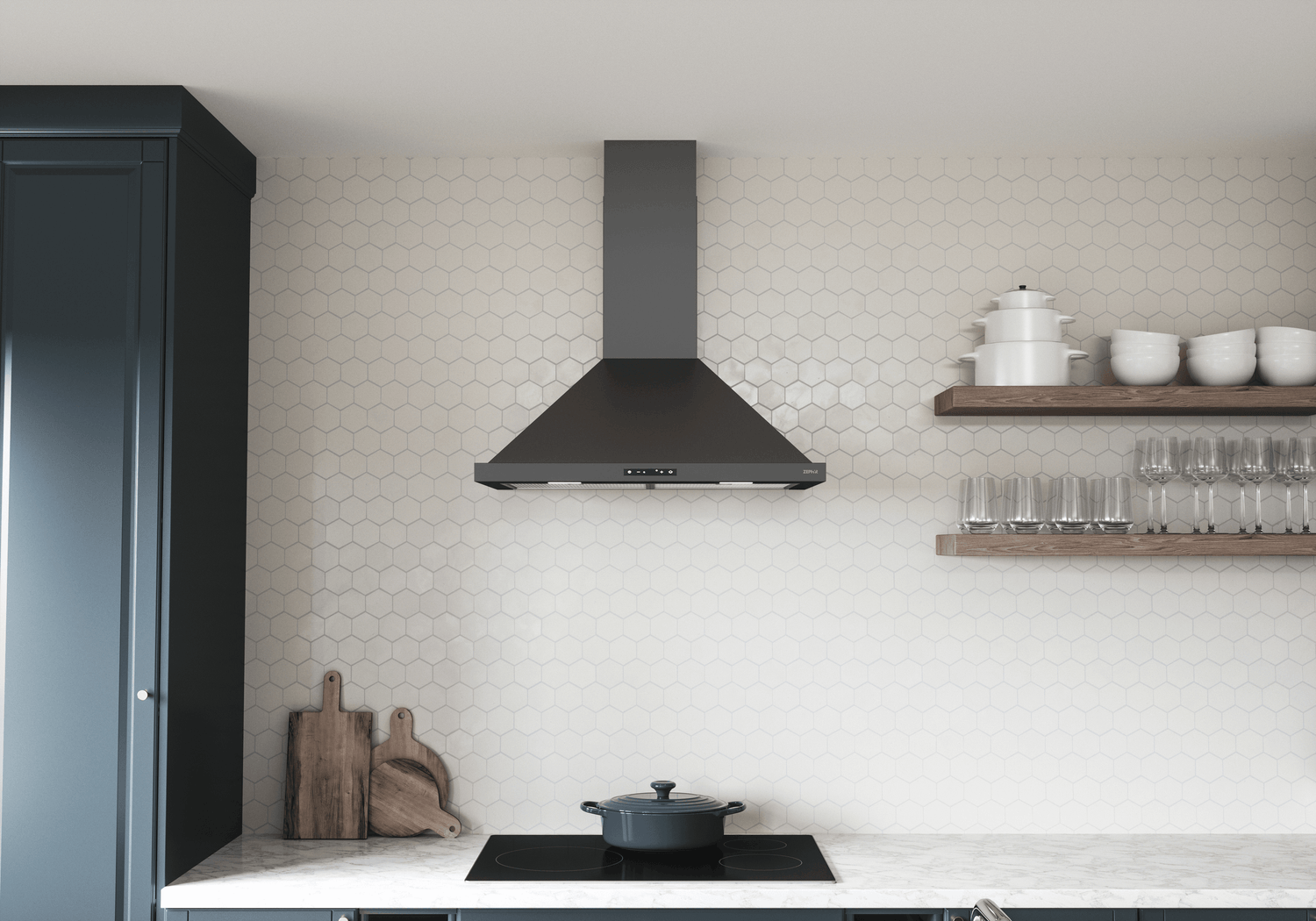

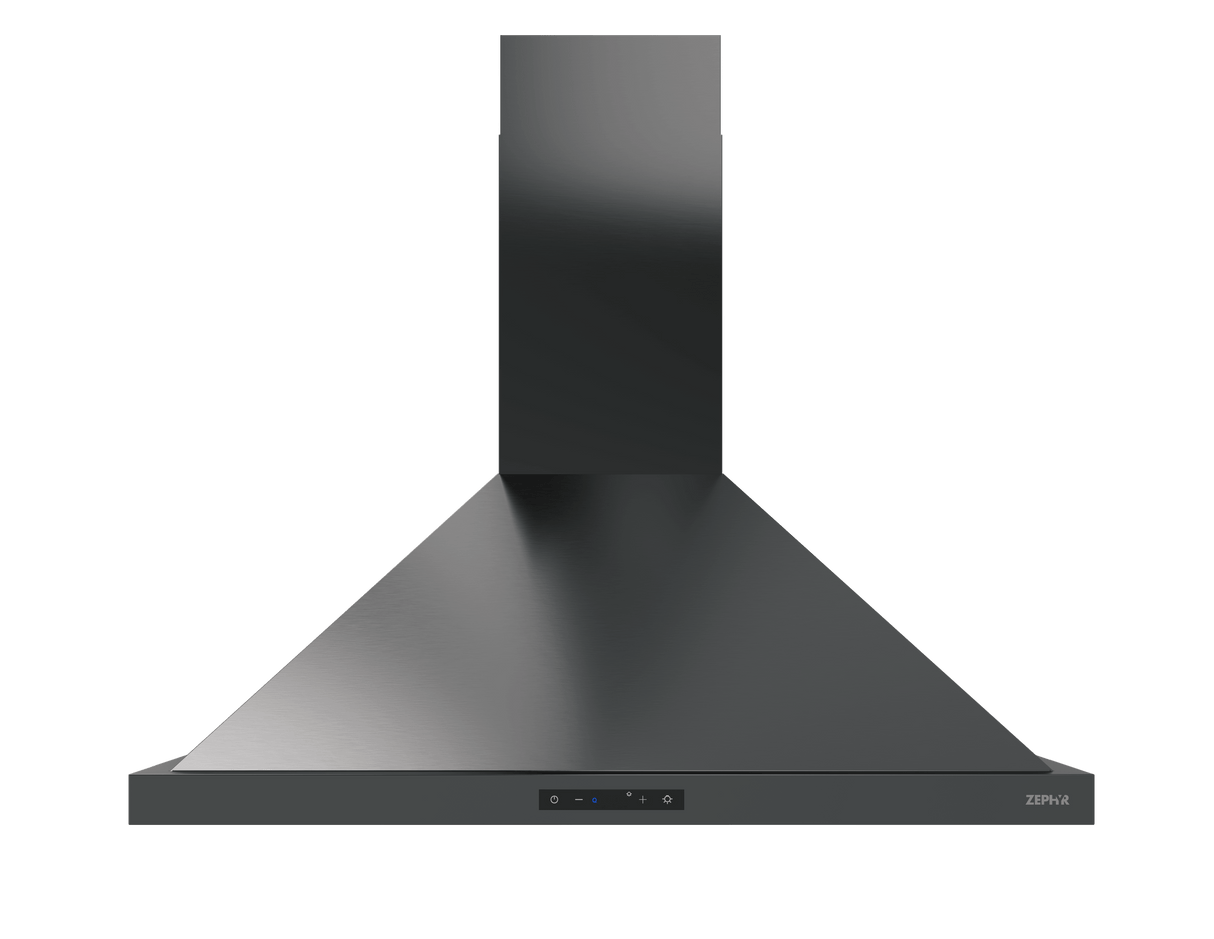

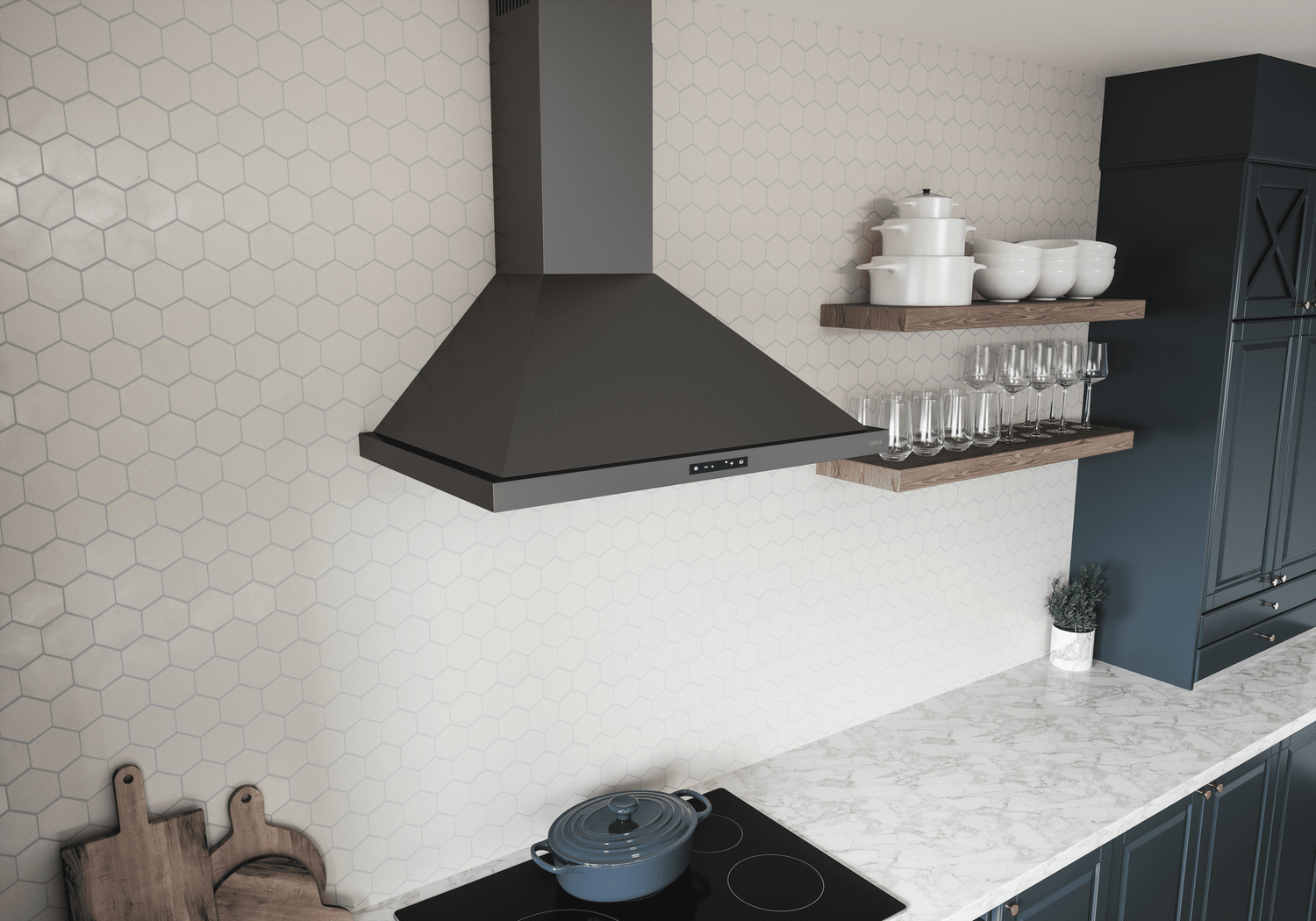

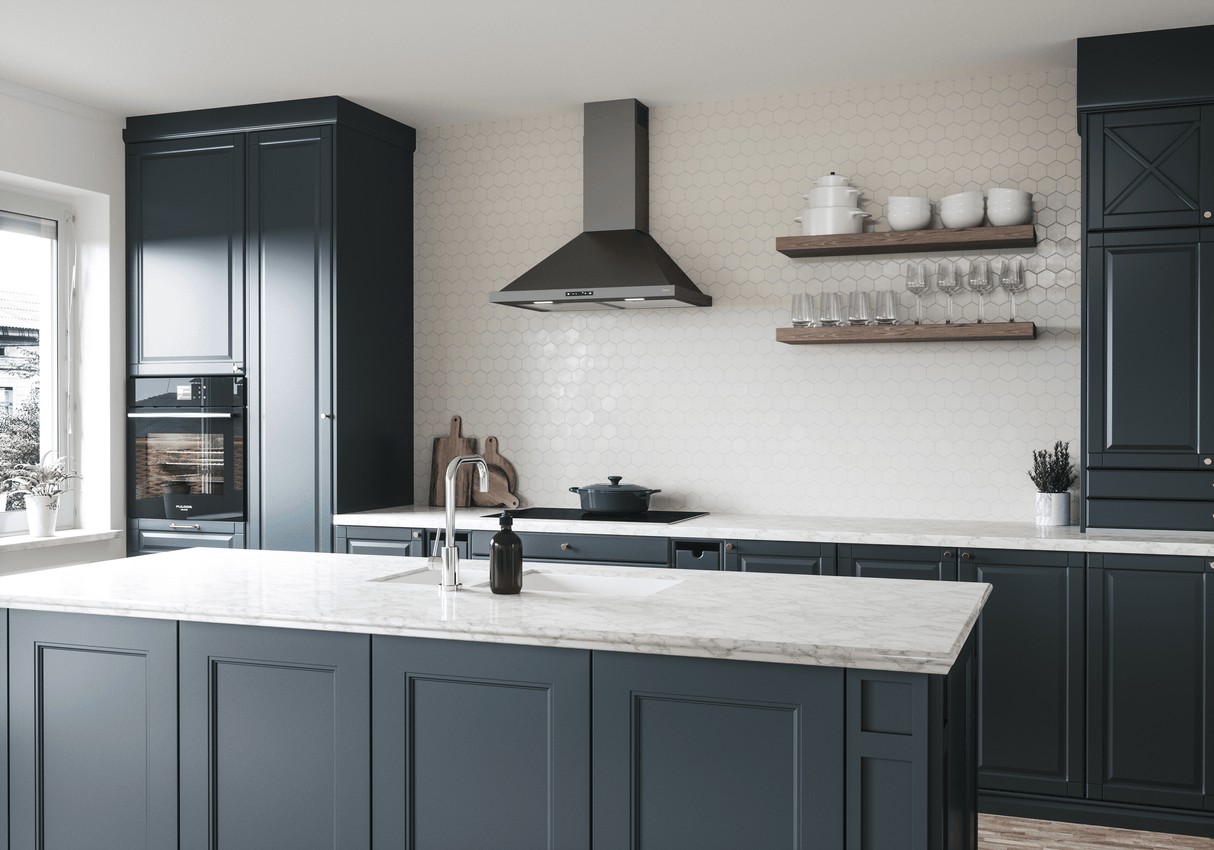

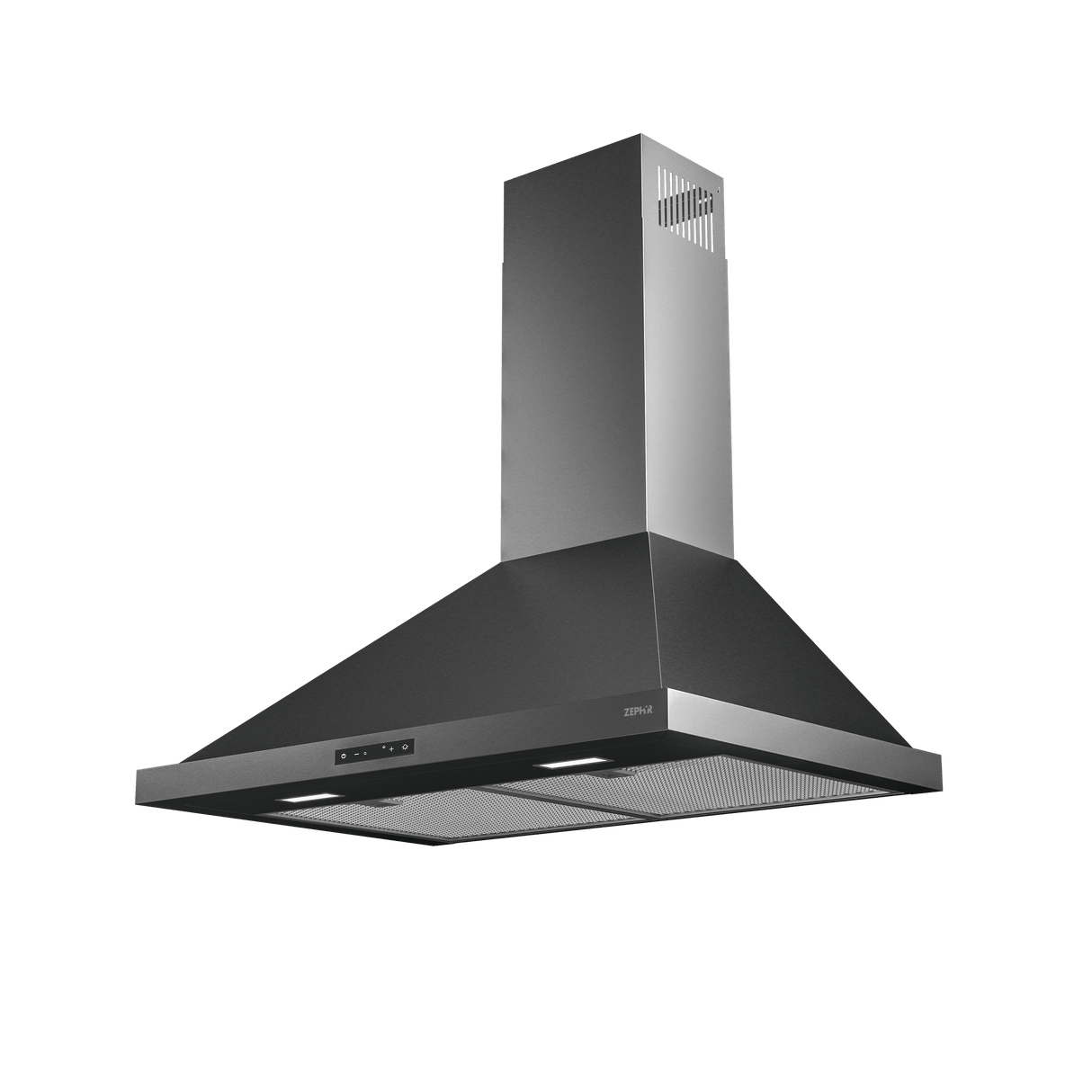

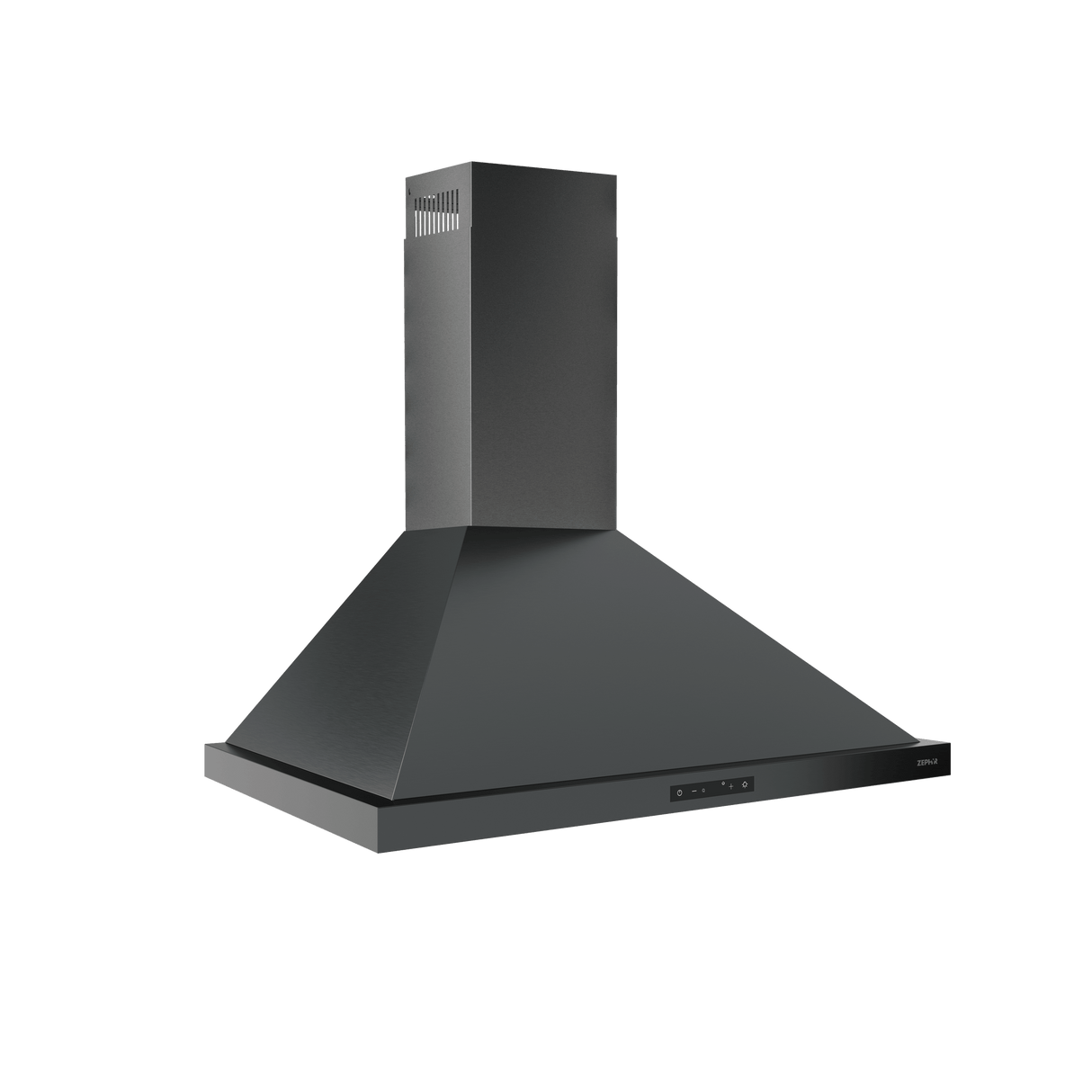

Ombra, Wall, 36", Blk SS, 600 CFM, ACT
Model: ZOME36ABS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Ombra, Wall, 36", Blk SS, 600 CFM, ACT
Model: ZOME36ABSQuick Specs
Depth
19.75
Height
42.5
Ombra, Wall, 36", Blk SS, 600 CFM, ACT is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$775.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.75
Height
42.5
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Capacitive Touch Controls
- Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional extension duct cover kit
- Airflow Control Technology(TM) (ACT(TM))
- Capacitive Touch Controls
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
Ombra, Wall, 36", Blk SS, 600 CFM, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328006395 |
| GTIN | 00646328006395 |
| Country of Origin | Taiwan |
| Model Group | ZOM-A |
| Model Name | Ombra Wall |
| Collection | Core Collection |
| Replacement Model | ZOM-E36BBS |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Black Stainless Steel |
| Controls Type | Capacitive Touch |
| Blower Speeds | 4 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | Z0F-B002 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 3.5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-01OM, Z1C-01OMBS, Z0F-B002, MUA006A, Z0B0040, Z0F-C091 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 420 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.875 |
| Net Depth; IN | 19.75 |
| Net Height; IN | 27.5 - 42.5 |
| Weight; LBS | 28.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 18 |
| Chimney Width in. | 8.75 |
| Chimney Depth in. | 6.87 |
| Shipping Length; IN | 16.34 |
| Shipping Width; IN | 40.15 |
| Shipping Height; IN | 25.6 |
| Shipping Weight; LBS | 33.5 |
| Shipping Method | Small Parcel |
| Freight Class | 250 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- Capacitive Touch Controls
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
