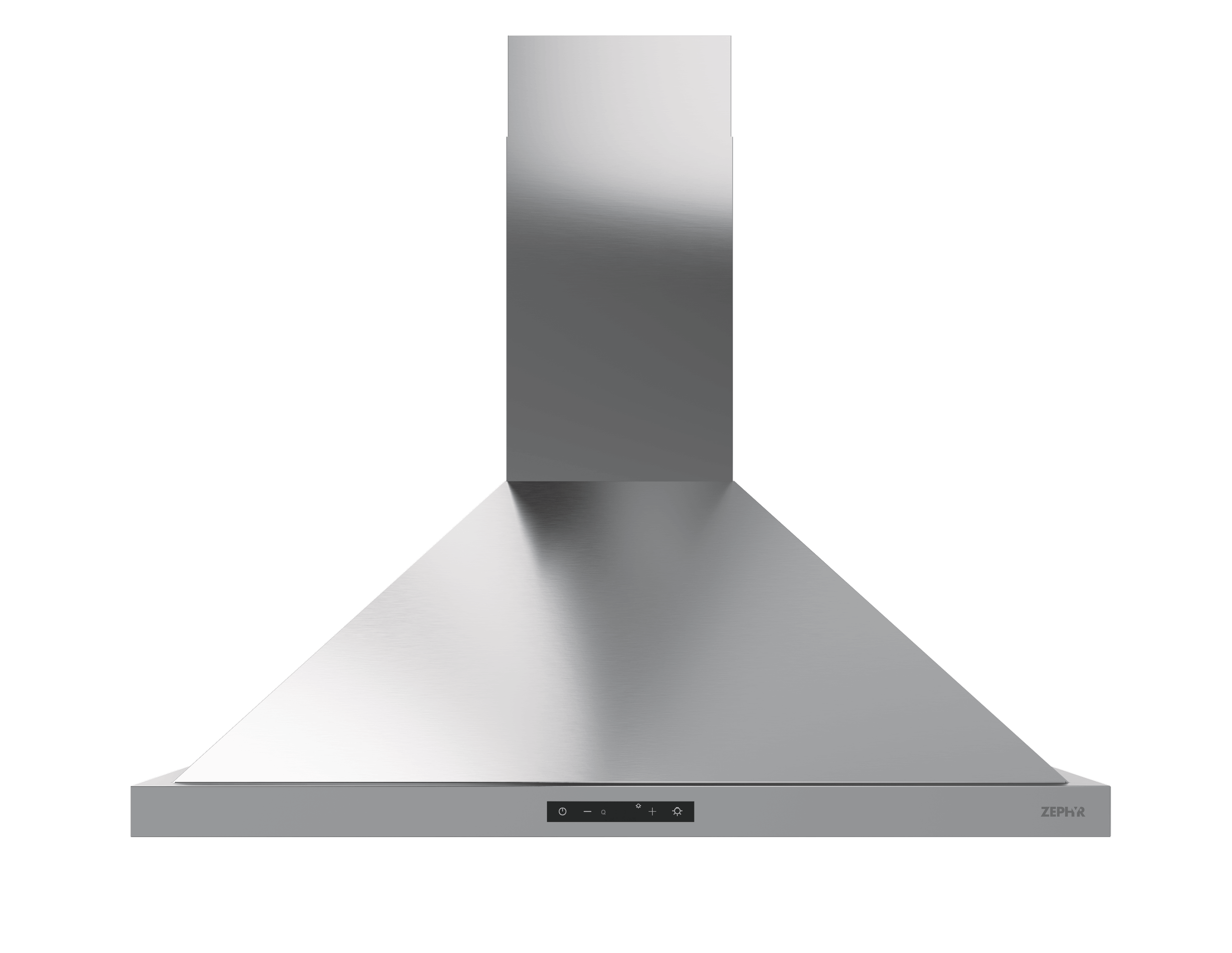

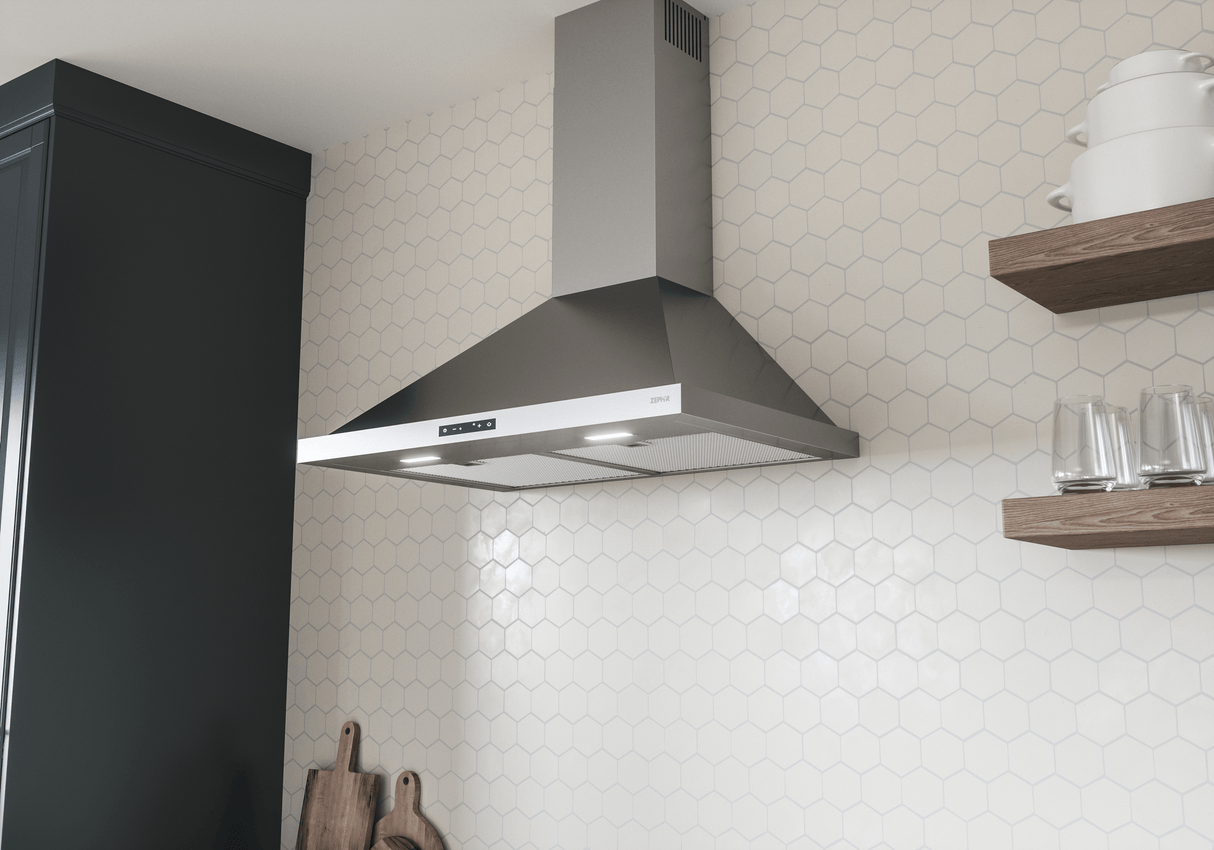

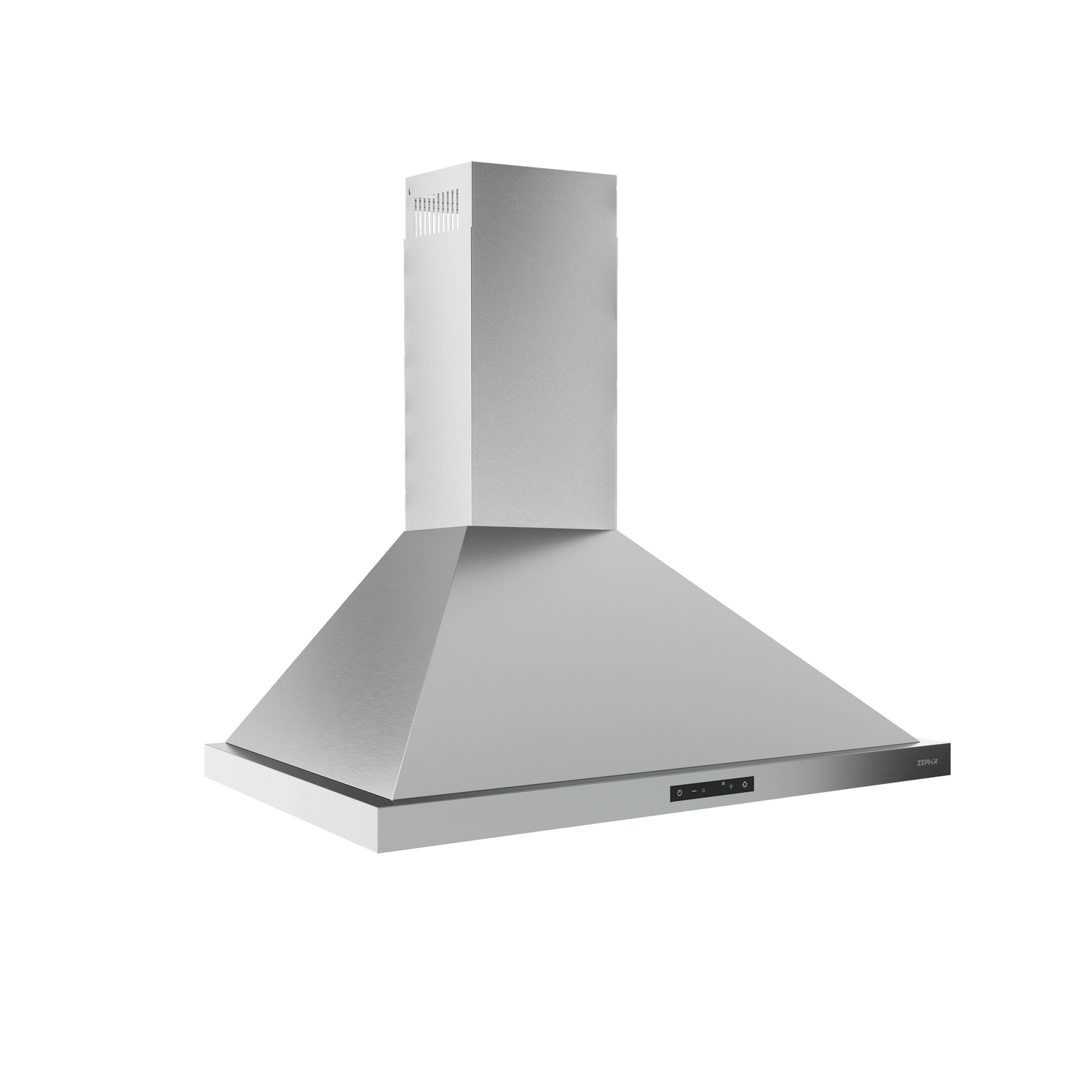

Ombra, Wall, 30", SS, 600 CFM, ACT
Model ZOME30AS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Ombra, Wall, 30", SS, 600 CFM, ACT
Model ZOME30ASQuick Specs
Depth
19.75
Height
42.5
Ombra, Wall, 30", SS, 600 CFM, ACT is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
19.75
Height
42.5
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Capacitive Touch Controls
- Capacitive touch controls utilize the same touch technology as your smart phone for a more integrated user interface.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional extension duct cover kit
- Airflow Control Technology(TM) (ACT(TM))
- Capacitive Touch Controls
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
Ombra, Wall, 30", SS, 600 CFM, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328006975 |
| GTIN | 00646328006975 |
| Country of Origin | Taiwan |
| Model Group | ZOM-A |
| Model Name | Ombra Wall |
| Collection | Core Collection |
| Replacement Model | ZOM-E30BS |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Capacitive Touch |
| Blower Speeds | 4 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | Z0F-B002 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 3.5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-01OM, Z1C-01OMS, Z0F-B002, MUA006A, Z0B0040, Z0F-C091 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 420 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.875 |
| Net Depth; IN | 19.75 |
| Net Height; IN | 27.5 - 42.5 |
| Weight; LBS | 25.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 18 |
| Chimney Width in. | 8.75 |
| Chimney Depth in. | 6.87 |
| Shipping Length; IN | 16.34 |
| Shipping Width; IN | 34.84 |
| Shipping Height; IN | 25.6 |
| Shipping Weight; LBS | 30.4 |
| Shipping Method | Small Parcel |
| Freight Class | 250 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- Capacitive Touch Controls
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
 | |
|---|---|
