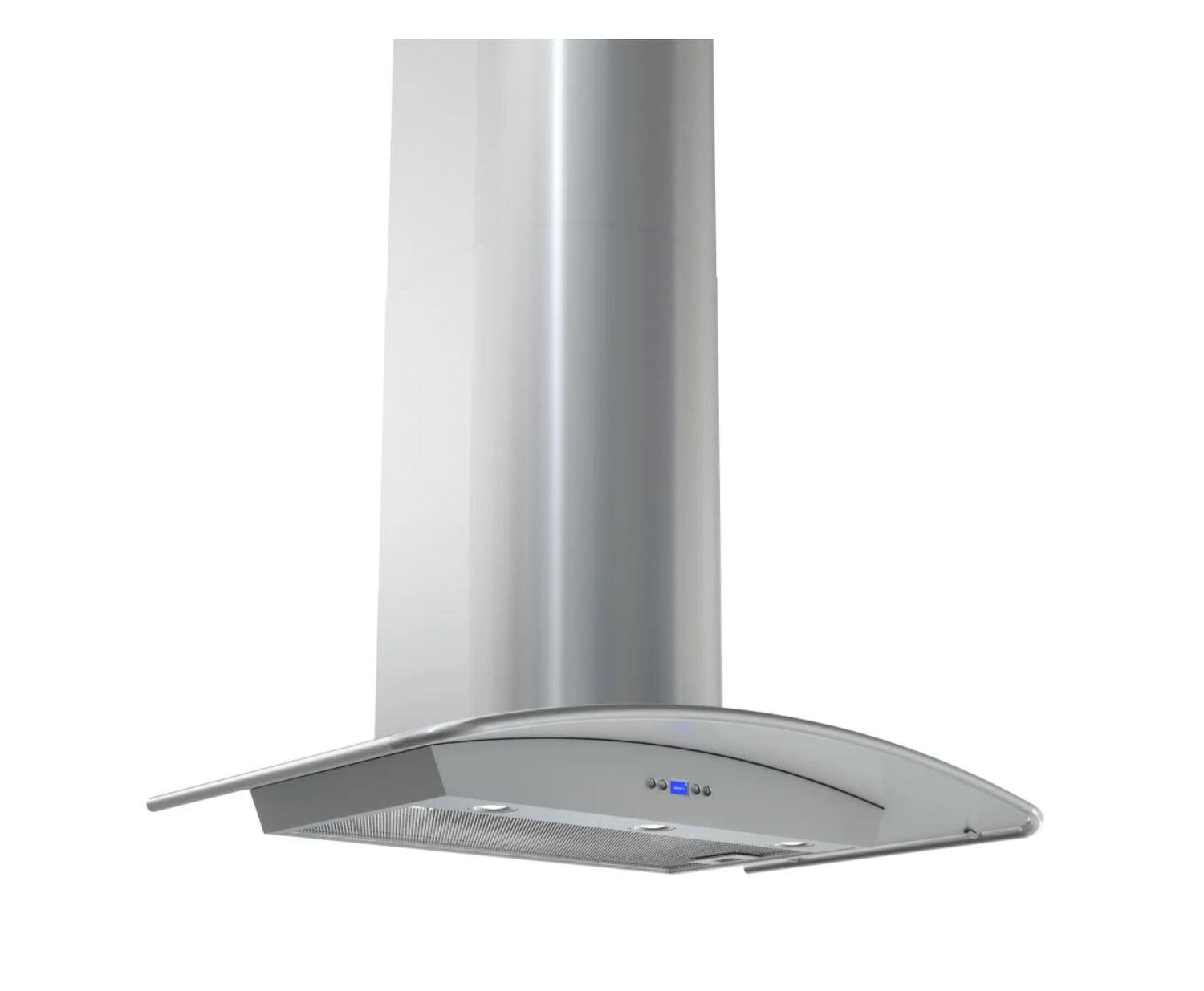

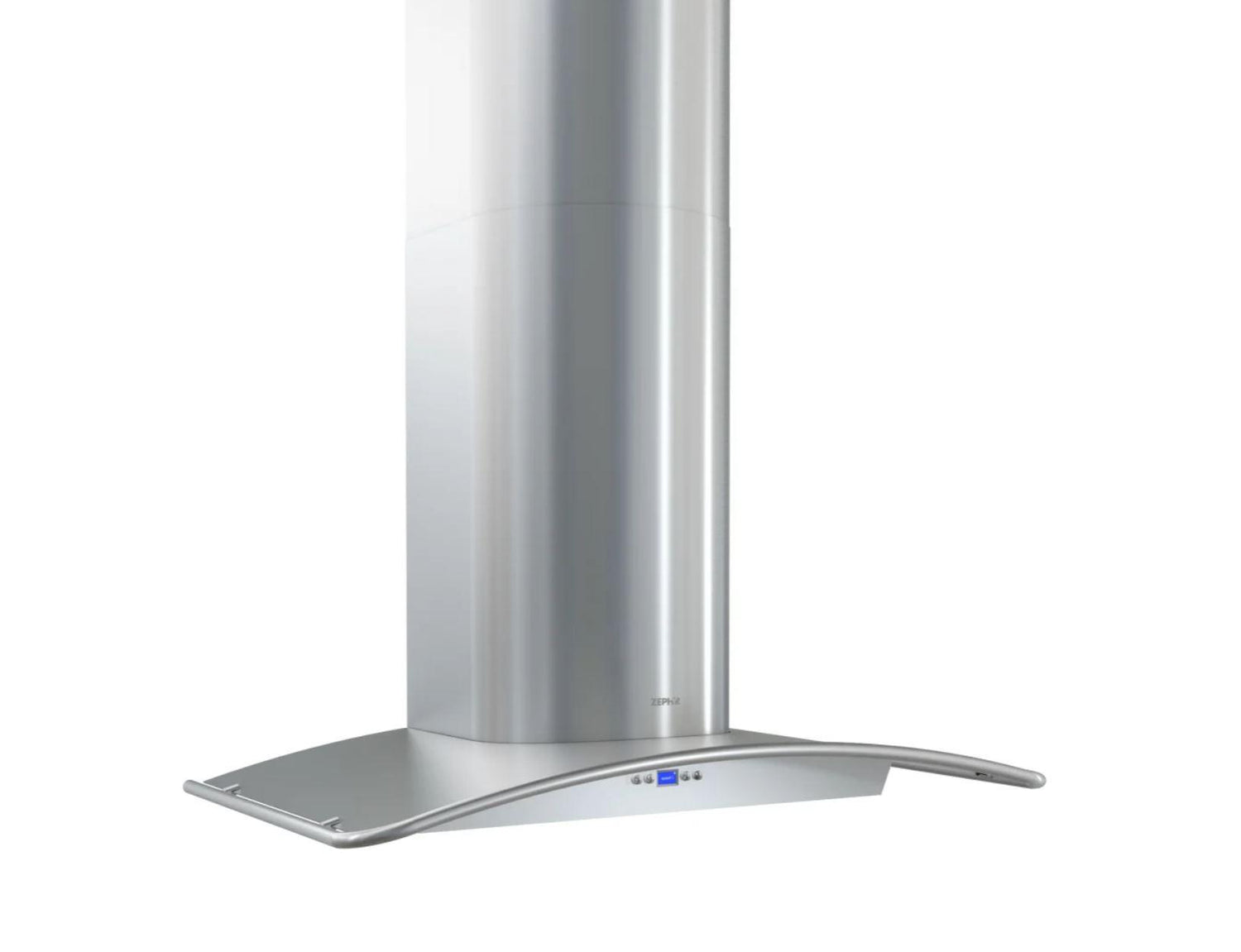

Milano, Wall, 90cm, SS+G, DCBL, ACT
Model: ZMIM90BG
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
Milano, Wall, 90cm, SS+G, DCBL, ACT
Model: ZMIM90BGQuick Specs
Depth
U_ 20 1/2
Height
U_ 26 1/2
Discontinued
Regular price
$1,486.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
U_ 20 1/2
Height
U_ 26 1/2
- DCBL Suppression System®
- Zephyrs DCBL Suppression System delivers the most silent, energy efficient and performance-driven range hoods available today. DCBL consists of a Direct Current Brushless Motor technology that uses energy more efficiently and generates less friction resulting in less wear and tear on the hoods motor. Increased torque also allows the blower to move more air at lower RPMs resulting in quieter operation.
- Bloom™ HD LED light bulbs
- With a lifetime of 25,000 hours and warm white light, Bloom HD LED light bulbs are an industry breakthrough and are unmatched in performance, light emission and value. These dimmable LEDs also have a patented lens that evenly distributes warm white light over the cooking surface.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Ultra-Quiet Performance
- Our range hoods are not just powerful, they are powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Optional extension duct cover kit
- DCBL Suppression System(R)
- Bloom(TM) HD LED light bulbs
- Airflow Control Technology(TM) (ACT(TM))
- Ultra-Quiet Performance
- Optional Ductless Recirculating Kit
- Optional extension duct cover kit
Milano, Wall, 90cm, SS+G, DCBL, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328001901 |
| GTIN | 00646328001901 |
| Country of Origin | Taiwan |
| Model Group | ZMI-B |
| Model Name | Milano Wall |
| Collection | Core Collection |
| Replacement Model | ZMI-M90CG |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 715 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 5.8 |
| Minimum CFM | 250 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200044 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00MI, Z1C-01MI, RC-0001, MUA008A, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 35.1875 |
| Net Depth; IN | 20.5 |
| Net Height; IN | 26.5 - 50 |
| Weight; LBS | 55.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 22.5 |
| Chimney Width in. | 12.81 |
| Chimney Depth in. | 13.62 |
| Shipping Length; IN | 24.57 |
| Shipping Width; IN | 38.9 |
| Shipping Height; IN | 27.09 |
| Shipping Weight; LBS | 75 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
