Spruce Outdoor Insert, 58in, SS, 1200 CFM
Model: AK9858AS
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
Spruce Outdoor Insert, 58in, SS, 1200 CFM
Model: AK9858ASQuick Specs
Depth
22.5
Height
12
Discontinued
Regular price
$2,154.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
22.5
Height
12
- High Quality 304S Stainless Steel
- Built with durable high-grade stainless steel.
- Outdoor Rated
- Zephyr range hoods are tested for use in outdoor environments and feature a full corrosion-resistant, 304-grade-stainless-steel exterior.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- 3 Speed Metallic Knob Dial
- Directional Halogen Lighting
- Powerful 1200-CFM Blowers
- The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Vertical 10 in. Round Ducting
- High Quality 304S Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- 3 Speed Metallic Knob Dial
- Directional Halogen Lighting
- Powerful 1200-CFM Blowers
- Vertical 10 in. Round Ducting

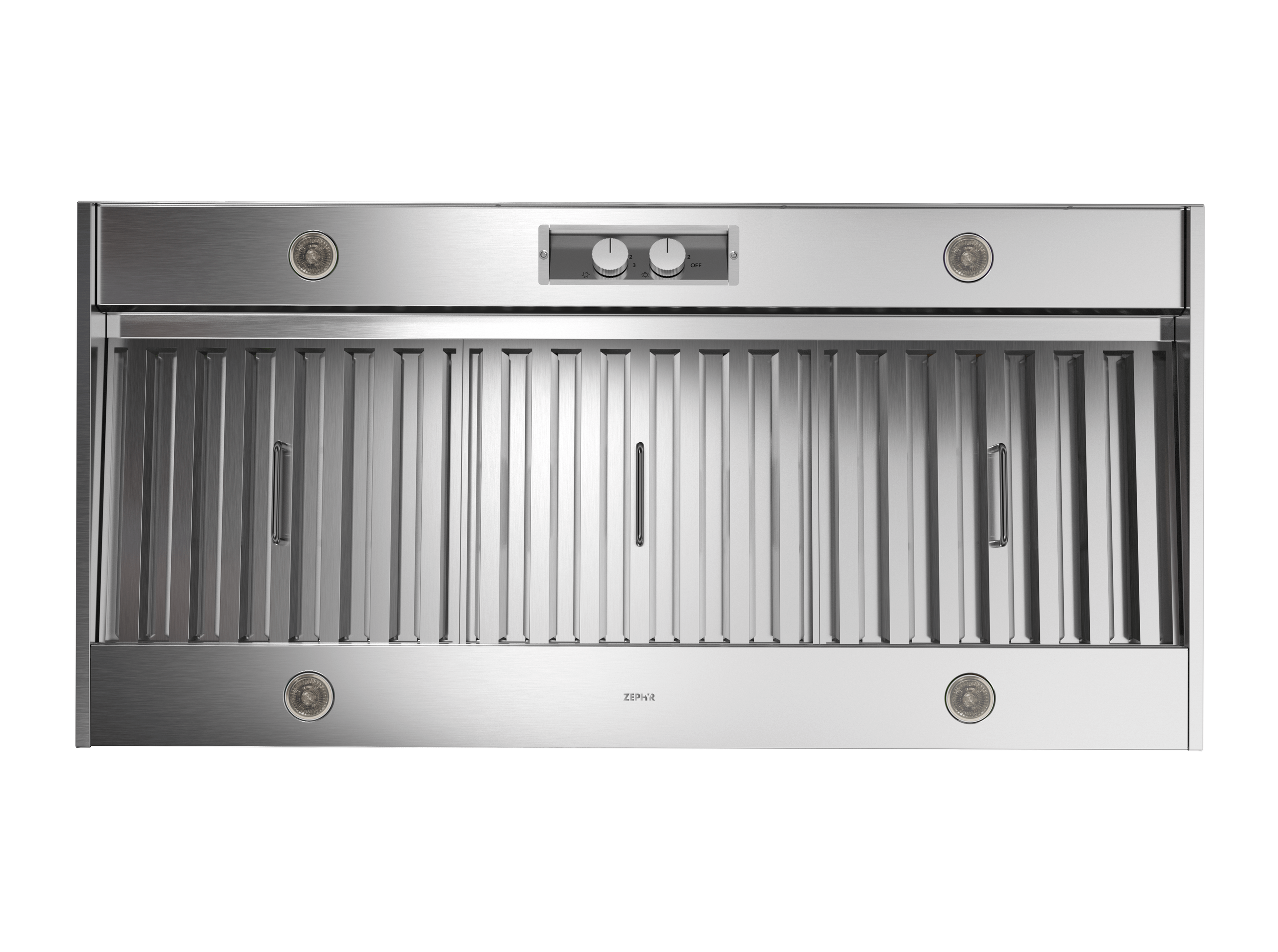

Spruce Outdoor Insert, 58in, SS, 1200 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328006555 |
| GTIN | 00646328006555 |
| Country of Origin | Taiwan |
| Model Group | AK98-A |
| Model Name | Spruce Insert Outdoor |
| Collection | Pro Collection |
| Replacement Model | AK9858BS |
| Blower Included | Yes |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 3.5 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 450 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | Yes |
| Color | Stainless Steel |
| Controls Type | Control Knob |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 4 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210031 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 10 |
| Mounting Height Above Cooktop; IN | 30 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | None |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 780 |
| Certification | UL |
| Nominal Width; IN | 60 |
| Net Width; IN | 58.875 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 12 |
| Weight; LBS | 82 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 62.87 |
| Shipping Width; IN | 17.09 |
| Shipping Height; IN | 28.82 |
| Shipping Weight; LBS | 84.4 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Cutout Depth in. | 22.625 |
| Cutout Width in. | 59 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- High Quality 304S Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- 3 Speed Metallic Knob Dial
- Directional Halogen Lighting
- Powerful 1200-CFM Blowers
- Vertical 10 in. Round Ducting
