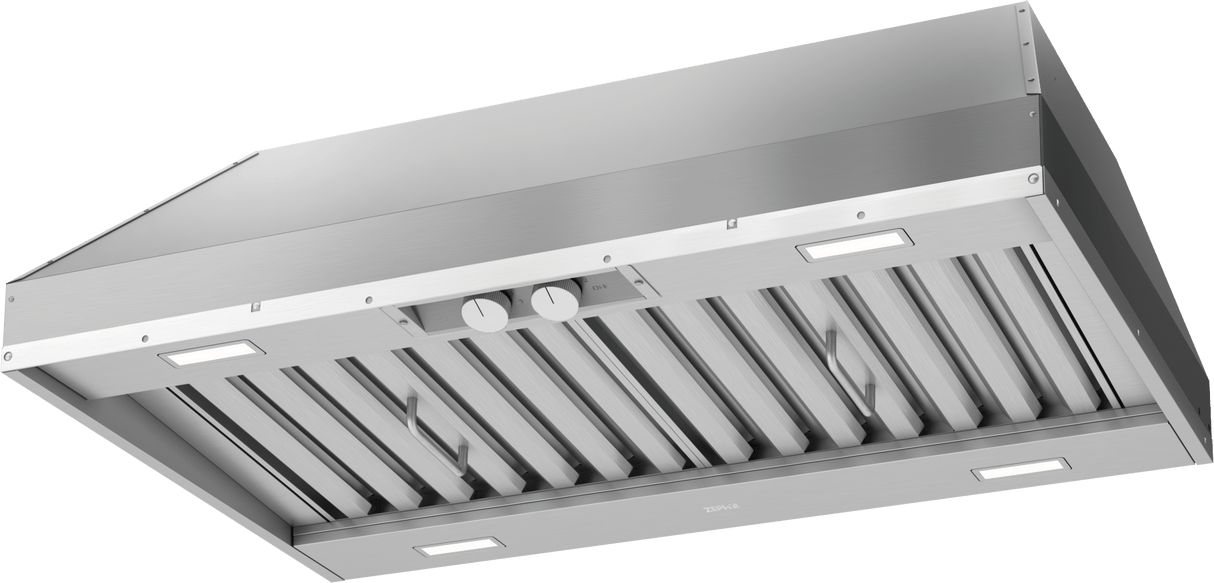

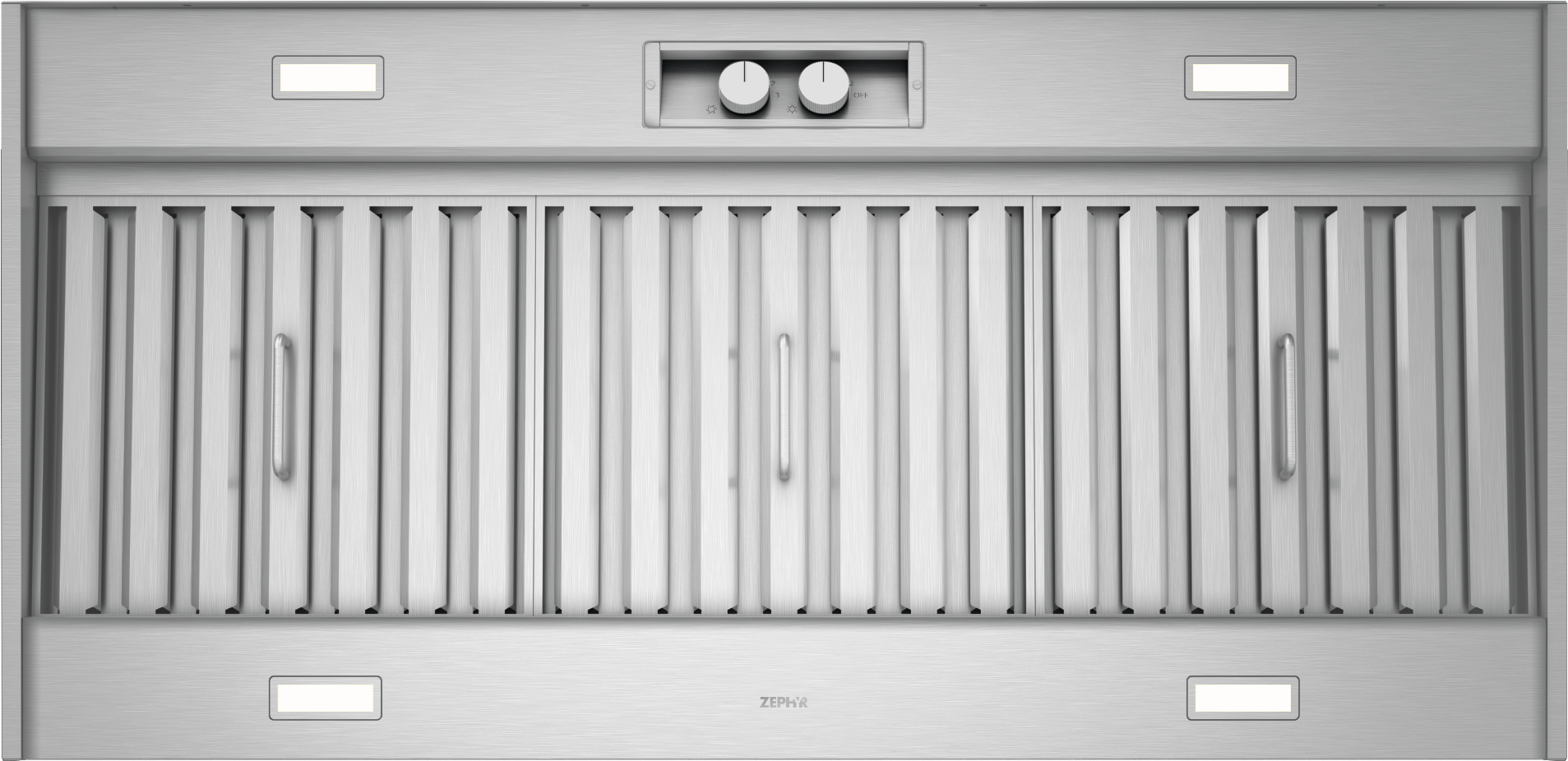

Spruce Outdoor Insert, 48in, LED, SS
Model AK9846BS
Authorized Dealer
1
of
4
Loading...
Authorized Dealer
Spruce Outdoor Insert, 48in, LED, SS
Model AK9846BSQuick Specs
Depth
22.5"
Height
12"
Energy
NO
Spruce Outdoor Insert, 48in, LED, SS is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
$2,199.00
$2,399.00
You save 8%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.5"
Height
12"
Energy Star Rated
NO
- LumiLight LED Lighting
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- High Quality 304S Stainless Steel
- Built with durable high-grade stainless steel.
- Outdoor Rated
- Zephyr range hoods are tested for use in outdoor environments and feature a full corrosion-resistant, 304-grade-stainless-steel exterior.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- 3-Speed Metallic Knob Controls
- Metallic knob controls are tested for use in outdoor environments and are built with corrosion-resistant, 304-grade stainless steel to withstand extreme heat and moisture.
- Powerful 1200-CFM Blowers
- The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Vertical 10 in. Round Ducting
- LumiLight LED Lighting
- High Quality 304S Stainless Steel
- Outdoor Rated
- Professional Baffle Filters
- 3-Speed Metallic Knob Controls
- Powerful 1200-CFM Blowers
- Vertical 10 in. Round Ducting
Spruce Outdoor Insert, 48in, LED, SS
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328010644 |
| GTIN | 00646328010644 |
| Country of Origin | Taiwan |
| Model Group | AK98-B |
| Model Name | Spruce Insert Outdoor |
| Collection | Pro Collection |
| Blower Included | Yes |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 3.5 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 450 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | Yes |
| Color | Stainless Steel |
| Controls Type | Control Knob |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210031 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 10 |
| Mounting Height Above Cooktop; IN | 32-42 |
| Voltage | 120 |
| Maximum Amperage | 8 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | None |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 960 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 46.375 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 12 |
| Weight; LBS | 72 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Shipping Length; IN | 17.1 |
| Shipping Width; IN | 49.9 |
| Shipping Height; IN | 28.82 |
| Shipping Weight; LBS | 78.8 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Cutout Depth in. | 22.625 |
| Cutout Width in. | 46.5 |
| Duct Type | Vertical |
| Duct Type | Vertical |
