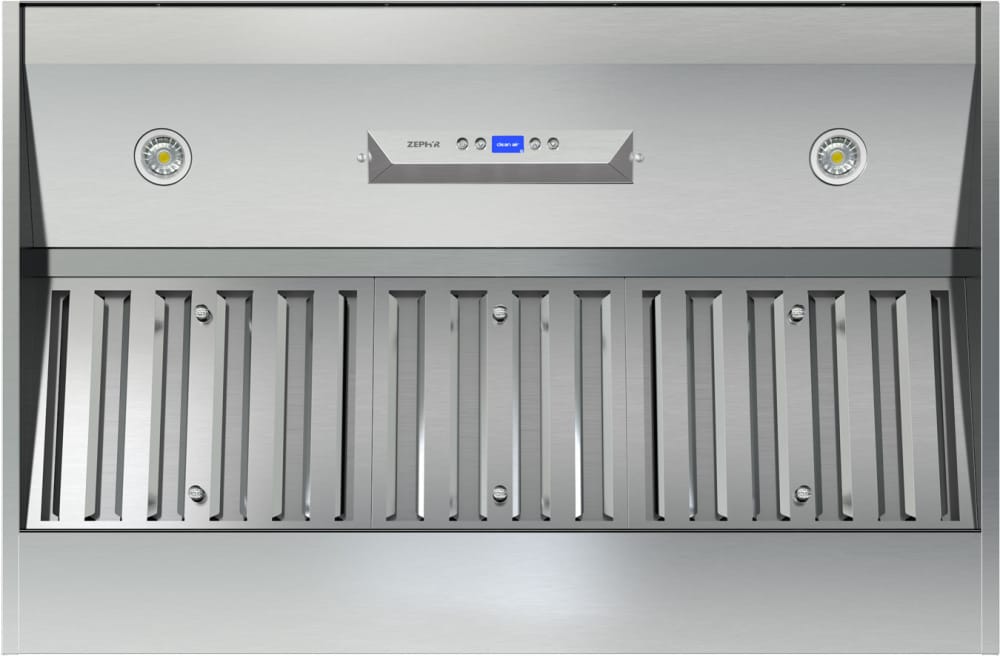

Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT
Model AK9428AS
Authorized Dealer
1
of
2
Loading...
Authorized Dealer
Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT
Model AK9428ASQuick Specs
RPM
-1.0
Energy
NO
Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Regular price
$1,093.26
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
RPM
-1.0
Energy Star Rated
NO
- DCBL Suppression System®
- Zephyrs DCBL Suppression System delivers the most silent, energy efficient and performance-driven range hoods available today. DCBL consists of a Direct Current Brushless Motor technology that uses energy more efficiently and generates less friction resulting in less wear and tear on the hoods motor. Increased torque also allows the blower to move more air at lower RPMs resulting in quieter operation.
- Bloom™ HD LED light bulbs
- With a lifetime of 25,000 hours and warm white light, Bloom HD LED light bulbs are an industry breakthrough and are unmatched in performance, light emission and value. These dimmable LEDs also have a patented lens that evenly distributes warm white light over the cooking surface.
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Ultra-Quiet Performance
- Our range hoods are not just powerful, they are powerfully quiet, serving up great ventilation free of noise so you can enjoy entertaining family and friends nearby.
- Includes wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- DCBL Suppression System(R)
- Bloom(TM) HD LED light bulbs
- Airflow Control Technology(TM) (ACT(TM))
- Ultra-Quiet Performance
- Includes wireless remote control
- Professional Baffle Filters
Monsoon DCBL, One-Piece Liner, 28-3/8", SS, 715 CFM, DCBL, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328002809 |
| GTIN | 00646328002809 |
| Country of Origin | Taiwan |
| Model Group | AK94 |
| Model Name | Monsoon DCBL |
| Collection | Core Collection |
| Replacement Model | AK9428BS |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 715 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 5.8 |
| Minimum CFM | 250 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 3.25 x 10 |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | MUA008A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 28.375 |
| Net Depth; IN | 22.5 |
| Net Height; IN | 12 |
| Weight; LBS | 40 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 17.48 |
| Shipping Width; IN | 31.89 |
| Shipping Height; IN | 28.54 |
| Shipping Weight; LBS | 50.2 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
