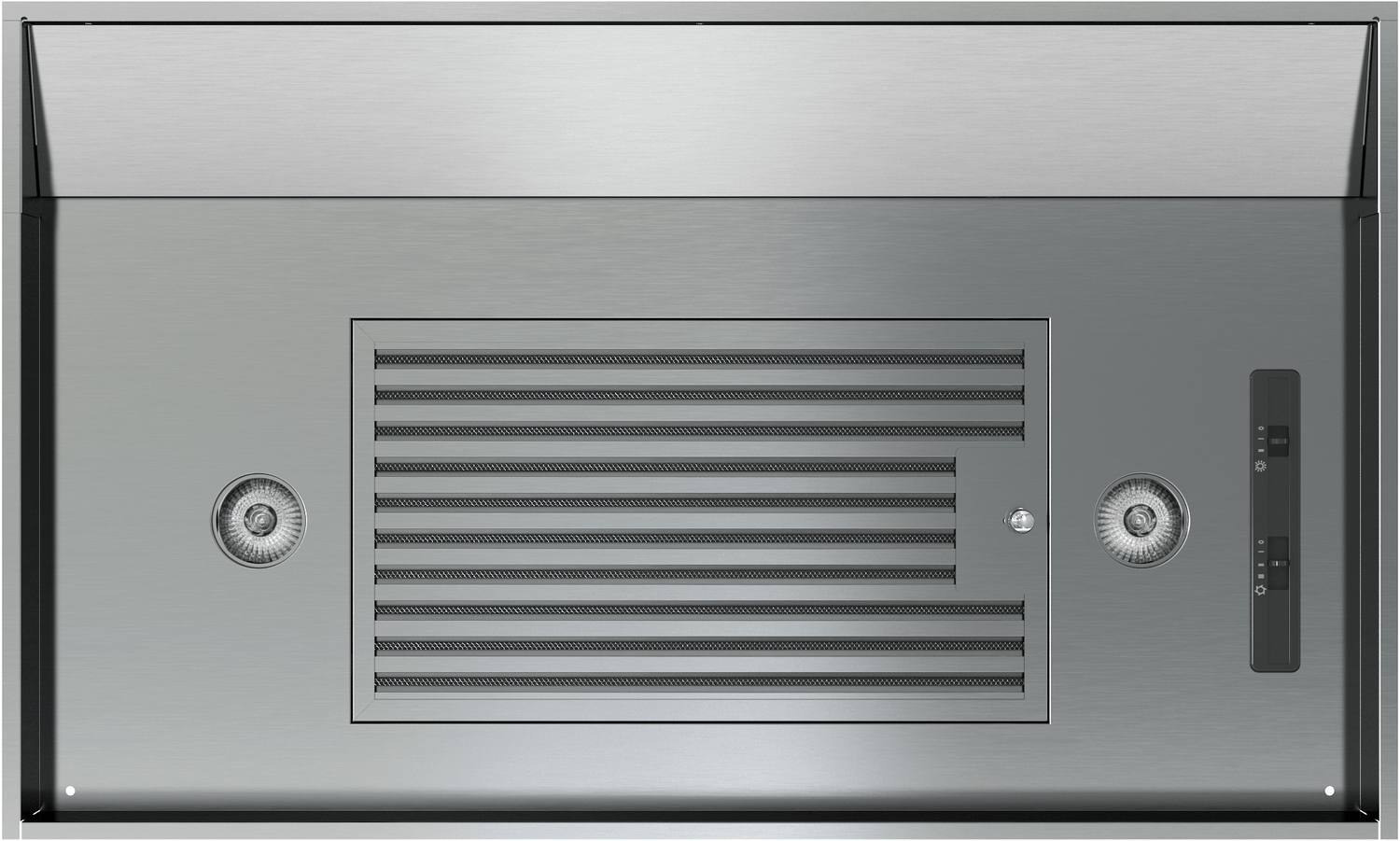

Vortex, One-Piece Liner, 34-3/8", SS, 390 CFM
Model: AK9034AS
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
Vortex, One-Piece Liner, 34-3/8", SS, 390 CFM
Model: AK9034ASQuick Specs
Depth
U_17 1/2
Height
U_12 5/16
Discontinued
Regular price
$519.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
U_17 1/2
Height
U_12 5/16
- Hybrid baffle filters
- Powerful 390-CFM Blower
- The range hood performance is measured in Cubic Feet per Minute (CFM). This is a measure of how much air can be removed from a given space in a single minute.
- Mechanical Slide Controls
- 3-speed mechanical slide controls move along a track to adjust the range hood blower and dual-level LED lighting.
- Adjustable In Depth
- Dual Level Halogen Lighting
- 3 Year Parts, 1 Year Labor Warranty
- With service at the forefront, we back our products with a generous 1-year labor and 3-year parts warranty.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Hybrid baffle filters
- Powerful 390-CFM Blower
- Mechanical Slide Controls
- Adjustable In Depth
- Dual Level Halogen Lighting
- 3 Year Parts, 1 Year Labor Warranty
- Optional Ductless Recirculating Kit
Vortex, One-Piece Liner, 34-3/8", SS, 390 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328002595 |
| GTIN | 00646328002595 |
| Country of Origin | Taiwan |
| Model Group | AK90 |
| Model Name | Vortex Insert |
| Collection | Core Collection |
| Replacement Model | AK9034BS |
| Blower Included | Yes |
| Internal Blower 1 CFM | 390 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 5 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210016 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 3 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9000, Z0B0040, Z0F-C090 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 360 |
| Certification | UL |
| Nominal Width; IN | 36 |
| Net Width; IN | 34.375 |
| Net Depth; IN | 17.5 - 20.5 |
| Net Height; IN | 12.3125 |
| Weight; LBS | 25.7 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 22.64 |
| Shipping Width; IN | 39.37 |
| Shipping Height; IN | 19.09 |
| Shipping Weight; LBS | 39.5 |
| Shipping Method | Small Parcel |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type | Vertical |
