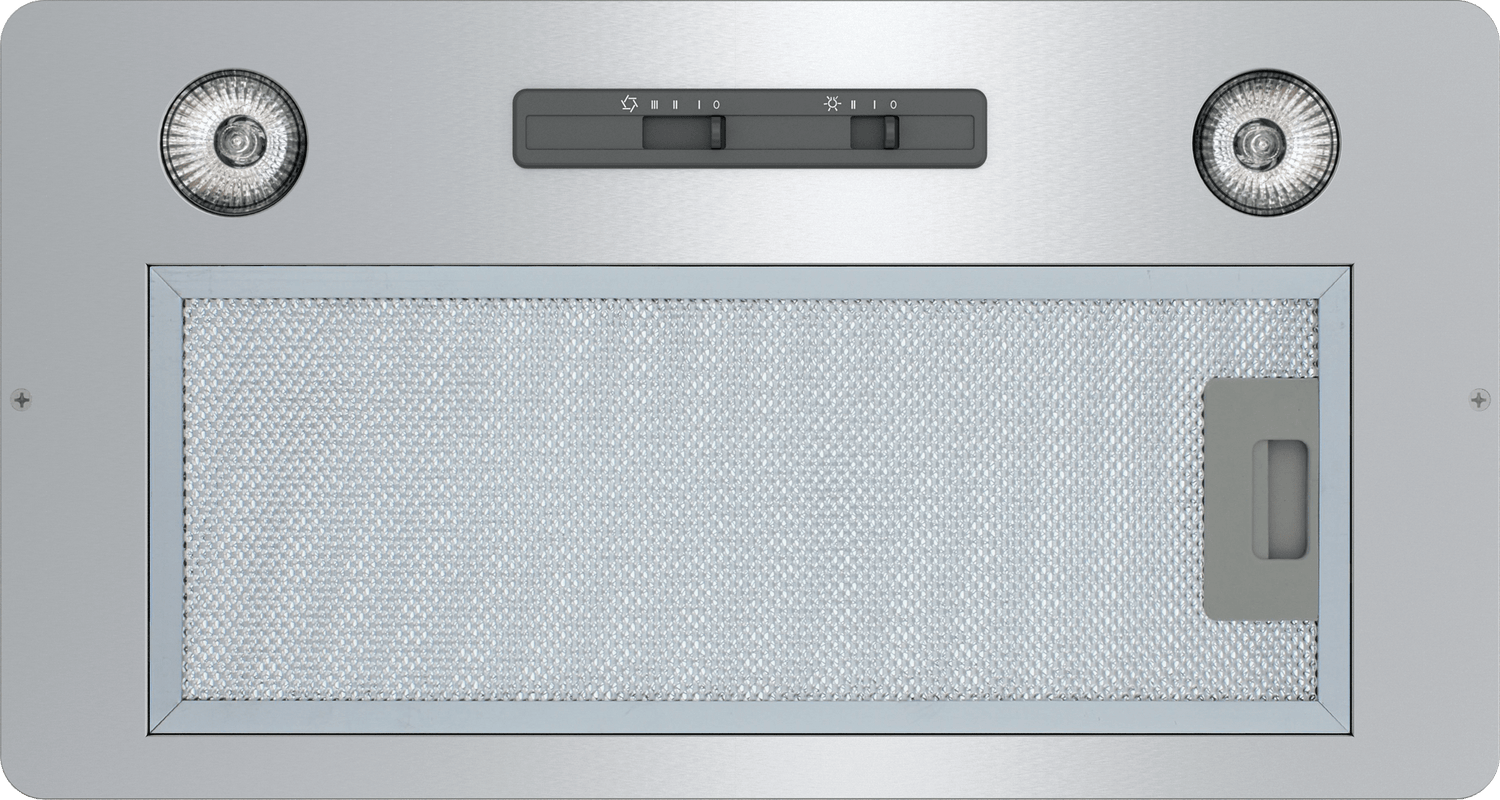

Tornado Mini, Power Pack, 20-9/16", SS, 290 CFM
Model: AK8400AS
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
Tornado Mini, Power Pack, 20-9/16", SS, 290 CFM
Model: AK8400ASQuick Specs
Depth
11
Height
20.563
Tornado Mini, Power Pack, 20-9/16", SS, 290 CFM is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$371.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
11
Height
20.563
- Value driven
- Ultra-Quiet Performance
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Value driven
- Ultra-Quiet Performance
- Optional Ductless Recirculating Kit
Tornado Mini, Power Pack, 20-9/16", SS, 290 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Convertible |
| UPC | 646328003462 |
| GTIN | 00646328003462 |
| Country of Origin | Taiwan |
| Model Group | AK84-A |
| Model Name | Tornado Mini |
| Collection | Core Collection |
| Replacement Model | AK8400BS |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.3 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 180 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200055 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 1.2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-8400A, AK0840AS, AK0846AS, Z0B0040, Z0F-C084 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 144 |
| Certification | UL |
| Nominal Width; IN | 21 |
| Net Width; IN | 20.5625 |
| Net Depth; IN | 11 |
| Net Height; IN | 9.6875 |
| Weight; LBS | 13.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 13.27 |
| Shipping Width; IN | 24.8 |
| Shipping Height; IN | 15.04 |
| Shipping Weight; LBS | 17.4 |
| Shipping Method | Small Parcel |
| Freight Class | 150 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Value driven
- Ultra-Quiet Performance
- Optional Ductless Recirculating Kit
