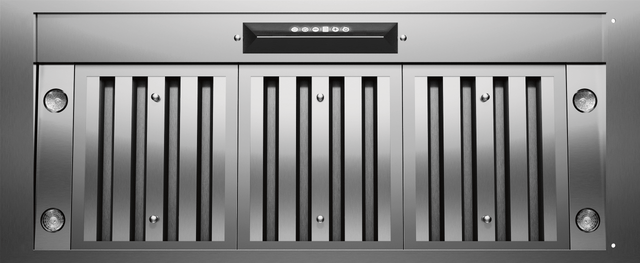

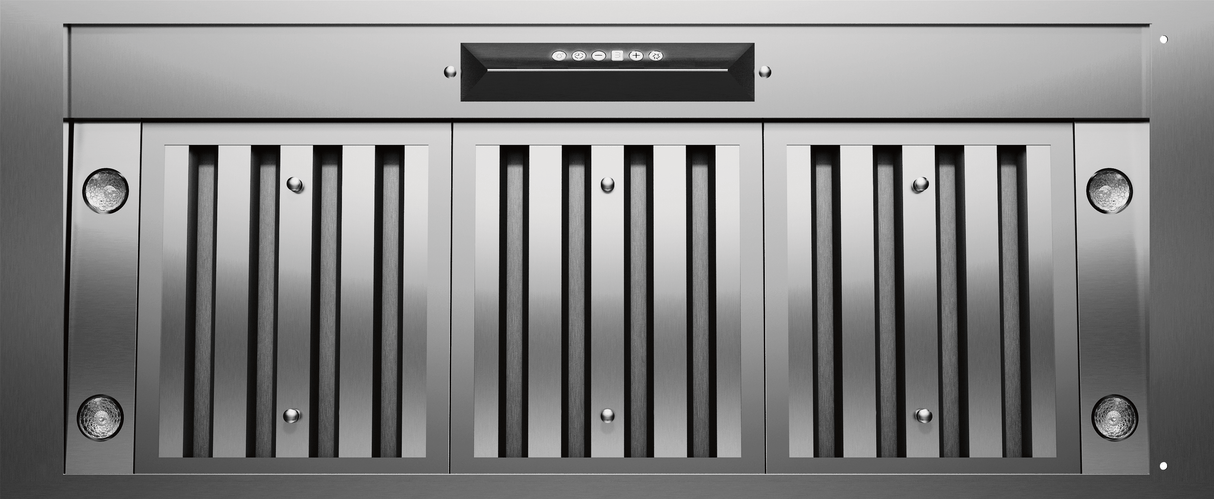

Tornado III, Power Pack, 38-7/16", SS, BODY ONLY
Model: AK8300ASX
Authorized Dealer
1
of
3
Loading...
Authorized Dealer
Tornado III, Power Pack, 38-7/16", SS, BODY ONLY
Model: AK8300ASXQuick Specs
Depth
15.813
Height
11.438
Tornado III, Power Pack, 38-7/16", SS, BODY ONLY is backordered and will ship as soon as it is back in stock.
Discontinued
Regular price
$961.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
15.813
Height
11.438
- Multiple Blower Options
- Multiple blower options are available to fit your application.
- Includes Wireless Remote Control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Longer warranty than competitors
- We back our products with an unparalleled level of service and a generous multi-year warranty.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Electronic Touch Controls
- Electronic touch controls adjust the range hood blower and LED light levels, and enable the auto delay-off function.
- Optional Liner Accessories Available
- An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.
- Multiple Blower Options
- Includes Wireless Remote Control
- Professional Baffle Filters
- Longer warranty than competitors
- CleanAir Function
- Electronic Touch Controls
- Optional Liner Accessories Available
Tornado III, Power Pack, 38-7/16", SS, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Insert |
| Vent Type | Ducted |
| UPC | 646328830037 |
| GTIN | 00646328830037 |
| Country of Origin | Taiwan |
| Model Group | AK83-A |
| Model Name | Tornado III Insert |
| Collection | Pro Collection |
| Replacement Model | AK8300BSX |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| Internal Blower 3 CFM | 1000 |
| Internal Blower 3 Max Sones | 8 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| Installation Type | Insert |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | Halogen |
| Lights Quantity | 4 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210010 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 10 / 1 |
| Compatible Appliances | AK0848AS, AK0854AS, AK0860AS, MUA006A, MUA008A, Z0B0040, CBI-290B, CBI-600B, PBI-1100A, PBN-1000A, CBE-1000, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 144 |
| Certification | UL |
| Nominal Width; IN | 38 |
| Net Width; IN | 38.4375 |
| Net Depth; IN | 15.8125 |
| Net Height; IN | 11.4375 |
| Weight; LBS | 25.4 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 21.38 |
| Shipping Width; IN | 43.15 |
| Shipping Height; IN | 16.54 |
| Shipping Weight; LBS | 33.8 |
| Shipping Method | Small Parcel |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Multiple Blower Options
- Includes Wireless Remote Control
- Professional Baffle Filters
- Longer warranty than competitors
- CleanAir Function
- Electronic Touch Controls
- Optional Liner Accessories Available
