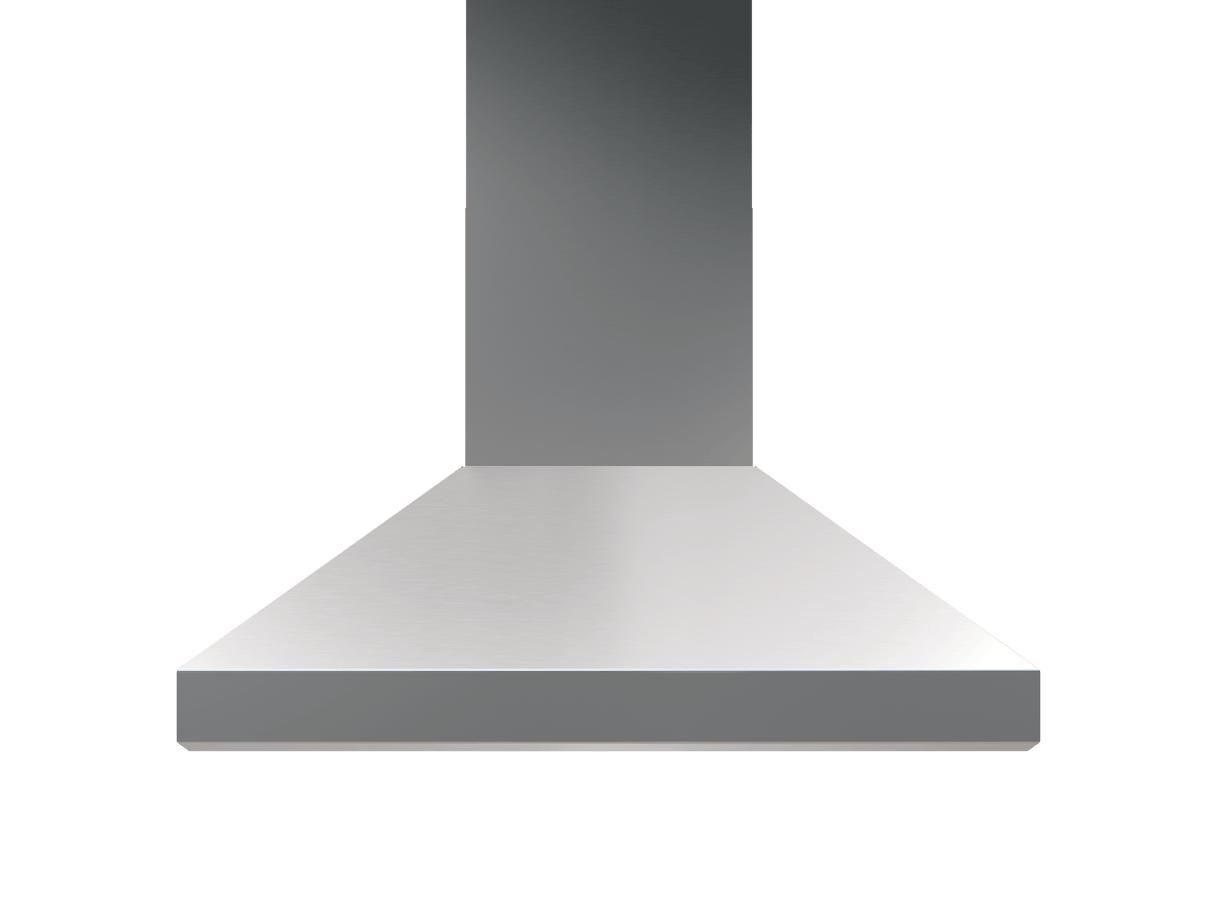

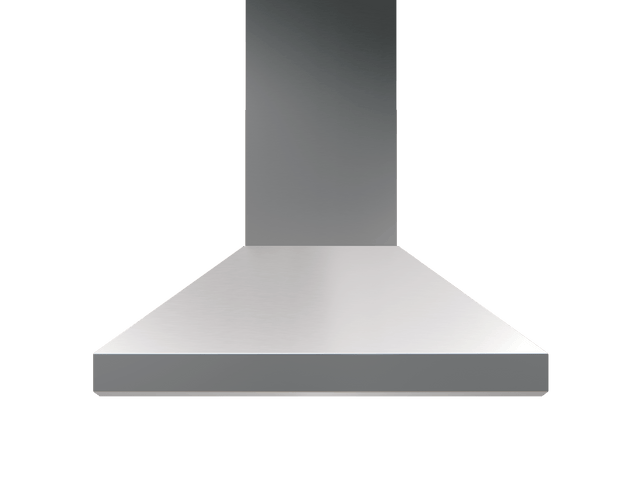

Titan Island, 48in, SS, PowerWave
Model: AK7748AS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Titan Island, 48in, SS, PowerWave
Model: AK7748AS
Discontinued
Regular price
$4,144.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.

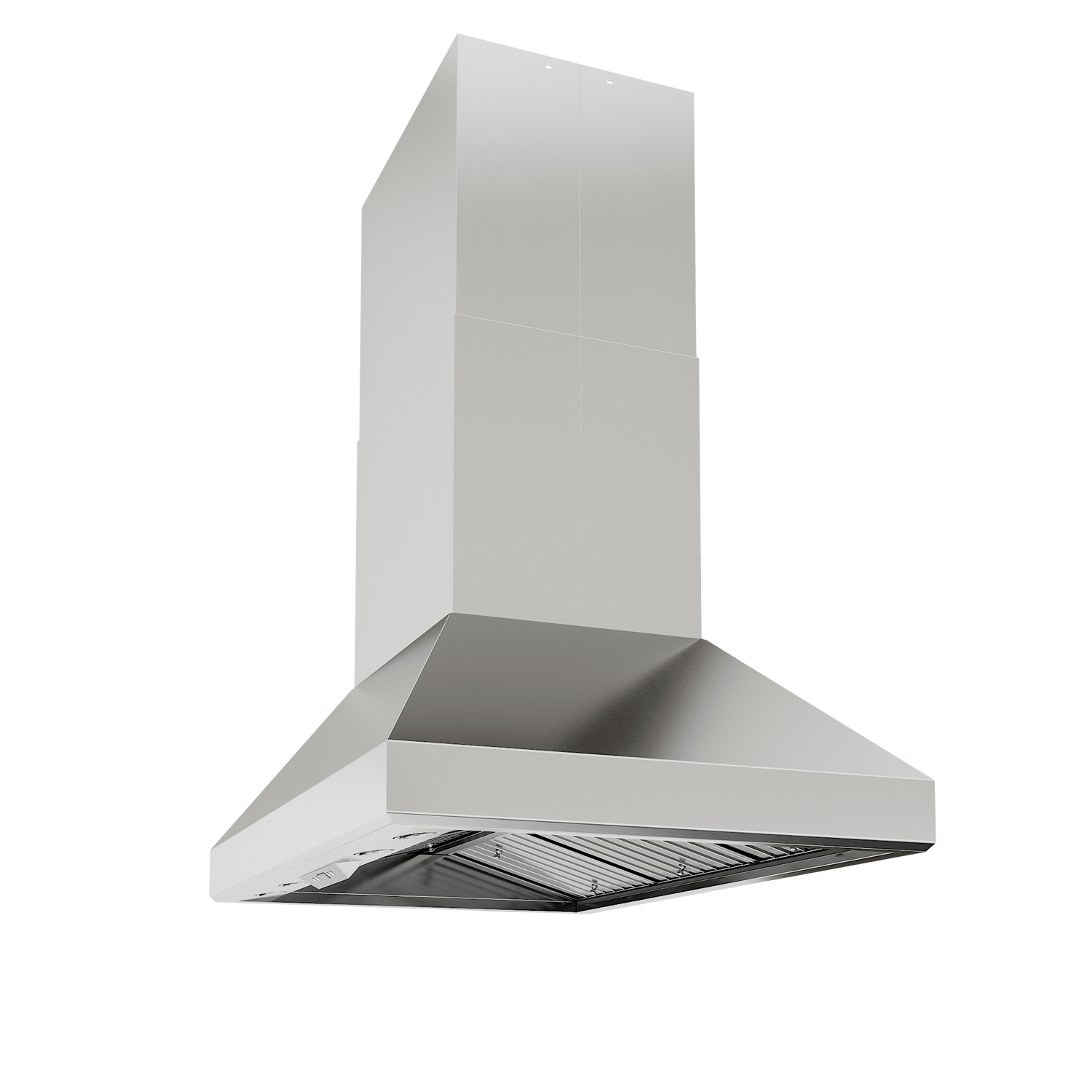

- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Directional Lighting
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Multiple Blower Options
- Multiple blower options are available to fit your application.
- Optional wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Directional Lighting
- CleanAir Function
- Multiple Blower Options
- Optional wireless remote control
- Optional Extension Duct Cover Kit
Titan Island, 48in, SS, PowerWave
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Island |
| Vent Type | Ducted |
| UPC | 646328007767 |
| GTIN | 00646328007767 |
| Country of Origin | Taiwan |
| Model Group | AK77 |
| Model Name | Titan Island |
| Collection | Pro Collection |
| Replacement Model | AK7748BS |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 750 |
| Internal Blower 1 Min. Sones | 0.5 |
| Internal Blower 1 Max Sones | 7 |
| Internal Blower 2 CFM | 1300 |
| Internal Blower 2 Max Sones | 8 |
| Minimum CFM | 200 |
| Installation Type | Island |
| Installation Type | Island |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210036 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 8 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 4.2 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1300A, Z1C-0177, 14000005, MUA008A, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 300 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.9375 |
| Net Depth; IN | 31.625 |
| Net Height; IN | 33 - 50 |
| Weight; LBS | 140.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 18.5 |
| Chimney Width in. | 21.62 |
| Chimney Depth in. | 16.25 |
| Shipping Length; IN | 52.76 |
| Shipping Width; IN | 37.2 |
| Shipping Height; IN | 36.42 |
| Shipping Weight; LBS | 150.6 |
| Shipping Method | LTL |
| Freight Class | 200 |
| Certification # | E127334 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Directional Lighting
- CleanAir Function
- Multiple Blower Options
- Optional wireless remote control
- Optional Extension Duct Cover Kit
