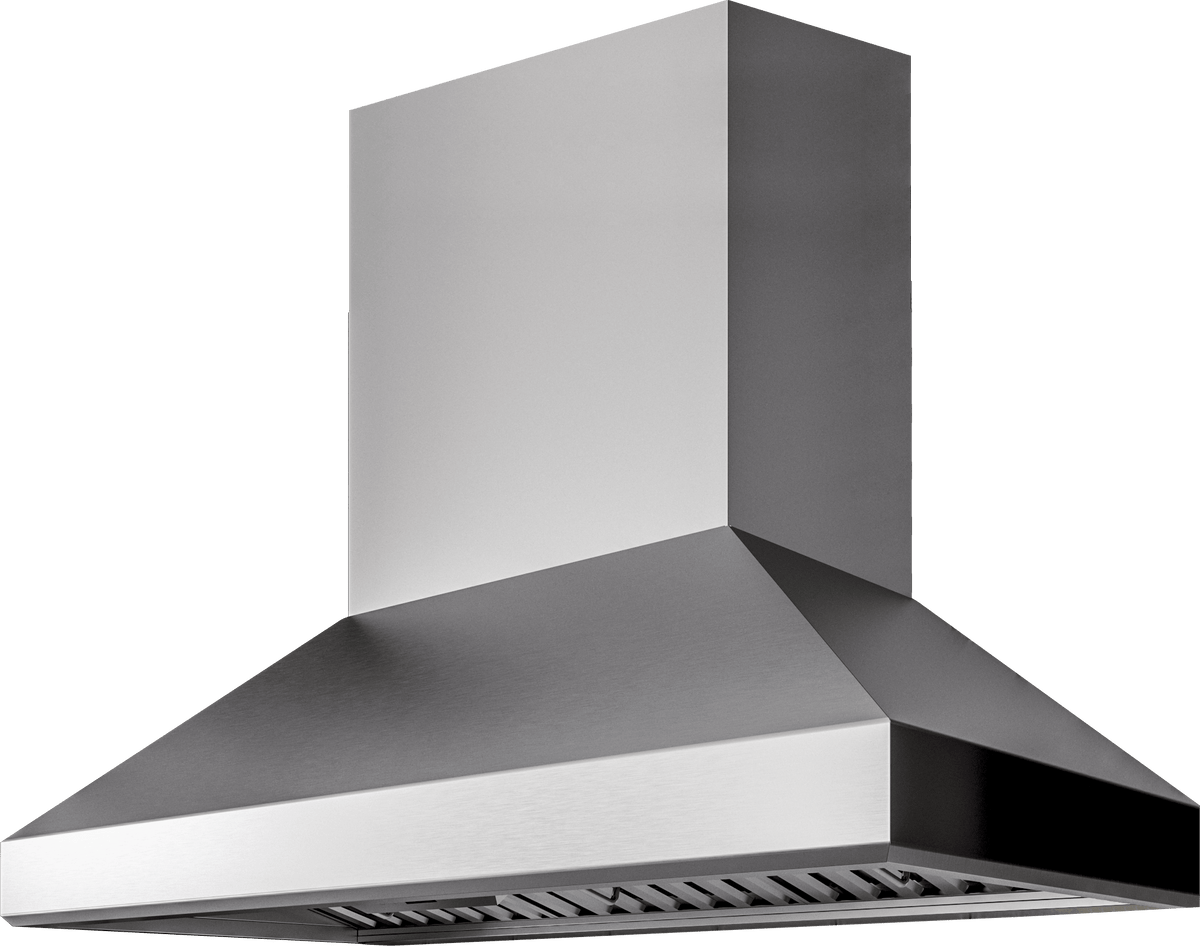

Titan, Wall, 48", SS, 750 CFM
Model: AK7648AS
Authorized Dealer
1
of
7
Loading...
Authorized Dealer
Titan, Wall, 48", SS, 750 CFM
Model: AK7648ASQuick Specs
Depth
24
Height
42.5
Discontinued
Regular price
$2,875.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
24
Height
42.5
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Directional Lighting
- Welded and polished body
- A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Directional Lighting
- Welded and polished body
- CleanAir Function
- Optional wireless remote control
- Optional Extension Duct Cover Kit
Titan, Wall, 48", SS, 750 CFM
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328006586 |
| GTIN | 00646328006586 |
| Country of Origin | Taiwan |
| Model Group | AK76-A |
| Model Name | Titan Wall |
| Collection | Pro Collection |
| Replacement Model | AK7648BS |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 750 |
| Internal Blower 1 Min. Sones | 0.5 |
| Internal Blower 1 Max Sones | 7 |
| Internal Blower 2 CFM | 1300 |
| Internal Blower 2 Max Sones | 8 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210033 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 10 |
| Duct Size; Vertical; IN | 8, 10 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 8 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1300A, Z1C-0176, 14000005, MUA006A, MUA008A, AK1718 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 300 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.9375 |
| Net Depth; IN | 24 |
| Net Height; IN | 30 - 42.5 |
| Weight; LBS | 85 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 15.5 |
| Chimney Width in. | 22 |
| Chimney Depth in. | 13.93 |
| Shipping Length; IN | 50.39 |
| Shipping Width; IN | 22.44 |
| Shipping Height; IN | 27.56 |
| Shipping Weight; LBS | 101.9 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Directional Lighting
- Welded and polished body
- CleanAir Function
- Optional wireless remote control
- Optional Extension Duct Cover Kit
