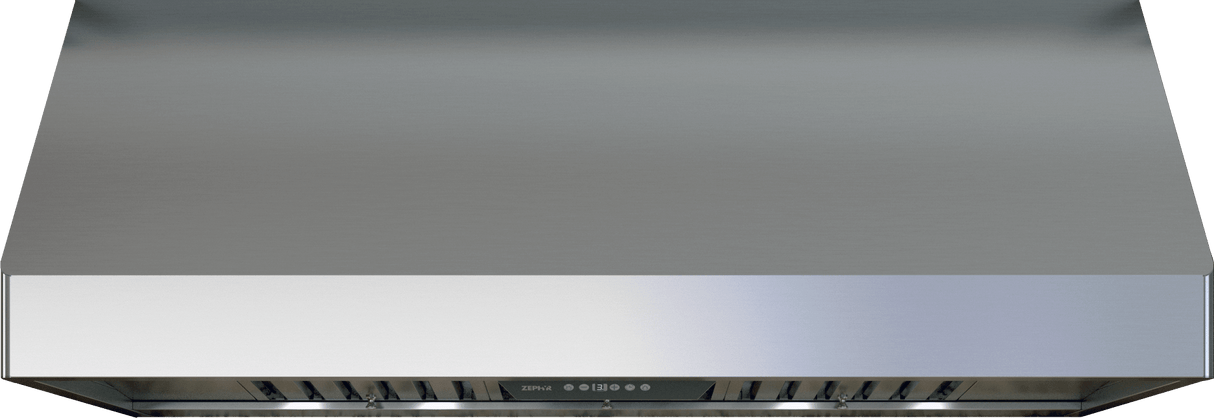

Tempest II, 18in Pro, 48", SS, 650 CFM, ACT
Model: AK7548BS
Authorized Dealer
1
of
6
Loading...
Authorized Dealer
Tempest II, 18in Pro, 48", SS, 650 CFM, ACT
Model: AK7548BSQuick Specs
Depth
24
Height
18
Discontinued
Regular price
$1,584.00
Unit price
/
Unavailable
Warranty
Selected warranty added with 'Add to Cart'.
SERVICES AVAILABLE
Selected service(s) added with 'Add to Cart'.
Couldn't load pickup availability
Quick Specs
Depth
24
Height
18
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Welded and polished body
- A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Welded and polished body
- CleanAir Function
- Optional wireless remote control
Tempest II, 18in Pro, 48", SS, 650 CFM, ACT
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328003134 |
| GTIN | 00646328003134 |
| Country of Origin | Taiwan |
| Model Group | AK75-B |
| Model Name | Tempest II Wall |
| Collection | Pro Collection |
| Replacement Model | AK7548CS |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 650 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 1200 |
| Internal Blower 2 Max Sones | 9 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | Halogen |
| Lights Quantity | 4 |
| Watts Per Bulb | 35 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210021 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 10, 3.25 x 10 |
| Duct Size; Vertical; IN | 8, 10 |
| Mounting Height Above Cooktop; IN | 26 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1200A, AK0728, 14000005, AK0718, MUA008A, MUA010A, Z0B0040, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.875 |
| Net Depth; IN | 24 |
| Net Height; IN | 18 |
| Weight; LBS | 72.4 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Shipping Length; IN | 23.15 |
| Shipping Width; IN | 50.98 |
| Shipping Height; IN | 28.31 |
| Shipping Weight; LBS | 92.2 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Airflow Control Technology(TM) (ACT(TM))
- Professional Baffle Filters
- Welded and polished body
- CleanAir Function
- Optional wireless remote control
