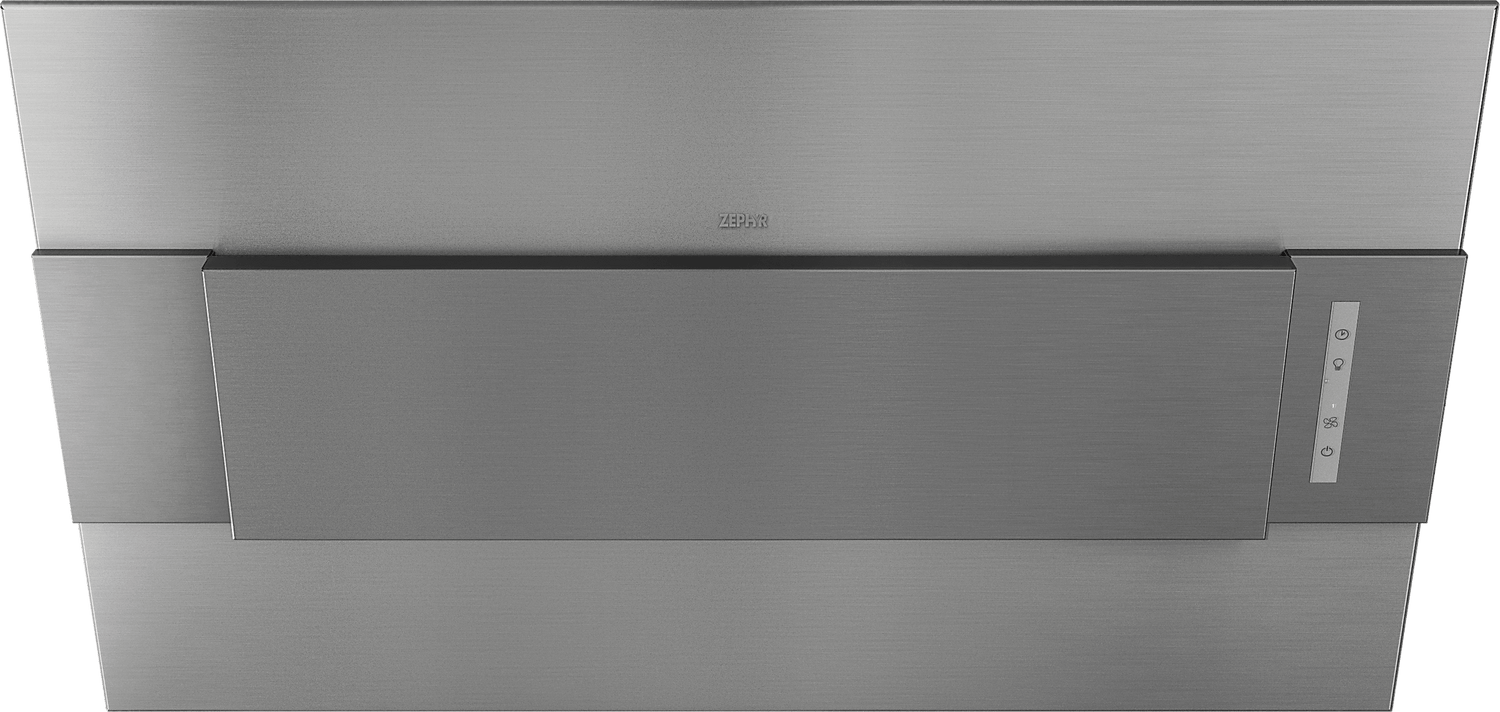

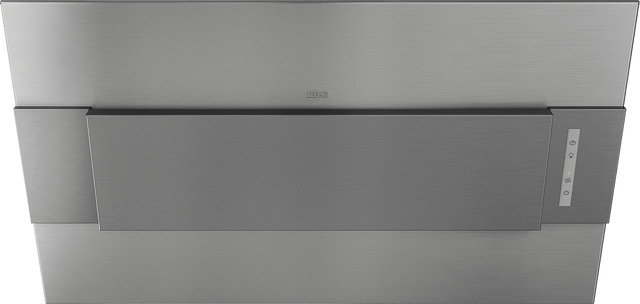

Incline, Wall, 80cm, SS, BODY ONLY
Model AINM80ASX
Authorized Dealer
Loading...
Authorized Dealer
Incline, Wall, 80cm, SS, BODY ONLY
Model AINM80ASXQuick Specs
Depth
16.313
Height
14.938
Incline, Wall, 80cm, SS, BODY ONLY is backordered and will ship as soon as it is back in stock.
Regular price
$882.34
Unit price
/
Unavailable
Out of stock
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
16.313
Height
14.938
- Capacitive touch controls
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Includes Wireless Remote Control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- LED light strip
- This multi-level LED light strip ensures even, warm white lighting while fully illuminating the cooking area.
- Dual filtration
- Cooking contaminates are pulled in and filtered through two entry points to improve capture performance.
- Optional Ductless Recirculating Kit
- Ductless recirculating kit used when venting air outside your home is not possible. Smoke and odors pass through charcoal filters allowing purified air to be reintroduced into the kitchen.
- Capacitive touch controls
- CleanAir Function
- Includes Wireless Remote Control
- LED light strip
- Dual filtration
- Optional Ductless Recirculating Kit
Incline, Wall, 80cm, SS, BODY ONLY
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328004223 |
| GTIN | 00646328004223 |
| Country of Origin | Italy |
| Model Group | AIN |
| Model Name | Incline Wall |
| Collection | Designer Collection |
| Blower Included | No |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 3 |
| Internal Blower 2 CFM | 600 |
| Internal Blower 2 Max Sones | 6 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Capacitive Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 8.5 |
| Lights Levels | 3 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200056 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 6, 8 |
| Duct Size; Vertical; IN | 6, 8 |
| Mounting Height Above Cooktop; IN | 22 - 32 |
| Voltage | 120 |
| Maximum Amperage | 6.5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | ZRC-00IN, Z1C-00IN, MUA006A, MUA008A, Z0F-02AC |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Nominal Width; IN | 31.5 |
| Net Width; IN | 31.5 |
| Net Depth; IN | 16.3125 |
| Net Height; IN | 14.9375 |
| Weight; LBS | 34 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Shipping Length; IN | 22.83 |
| Shipping Width; IN | 37 |
| Shipping Height; IN | 21.65 |
| Shipping Weight; LBS | 39.2 |
| Shipping Method | LTL |
| Freight Class | 300 |
| Duct Type | Vertical |
| Duct Type | Vertical |
- Capacitive touch controls
- CleanAir Function
- Includes Wireless Remote Control
- LED light strip
- Dual filtration
- Optional Ductless Recirculating Kit
