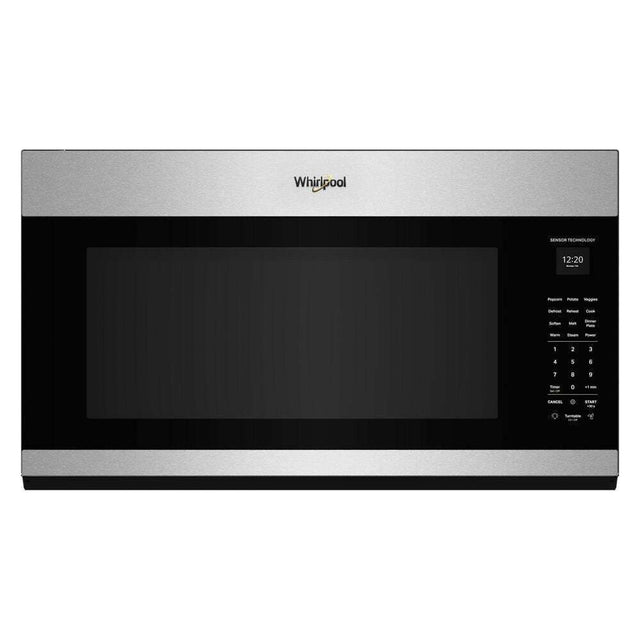

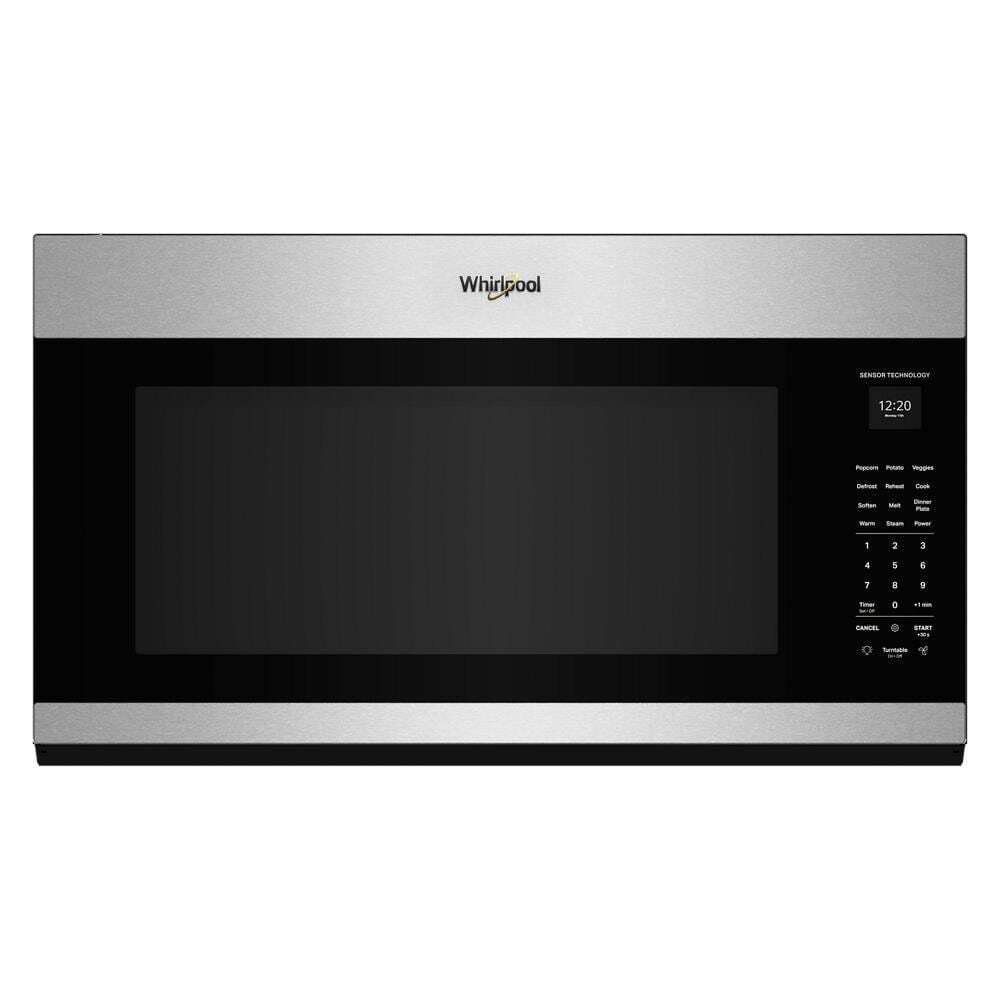

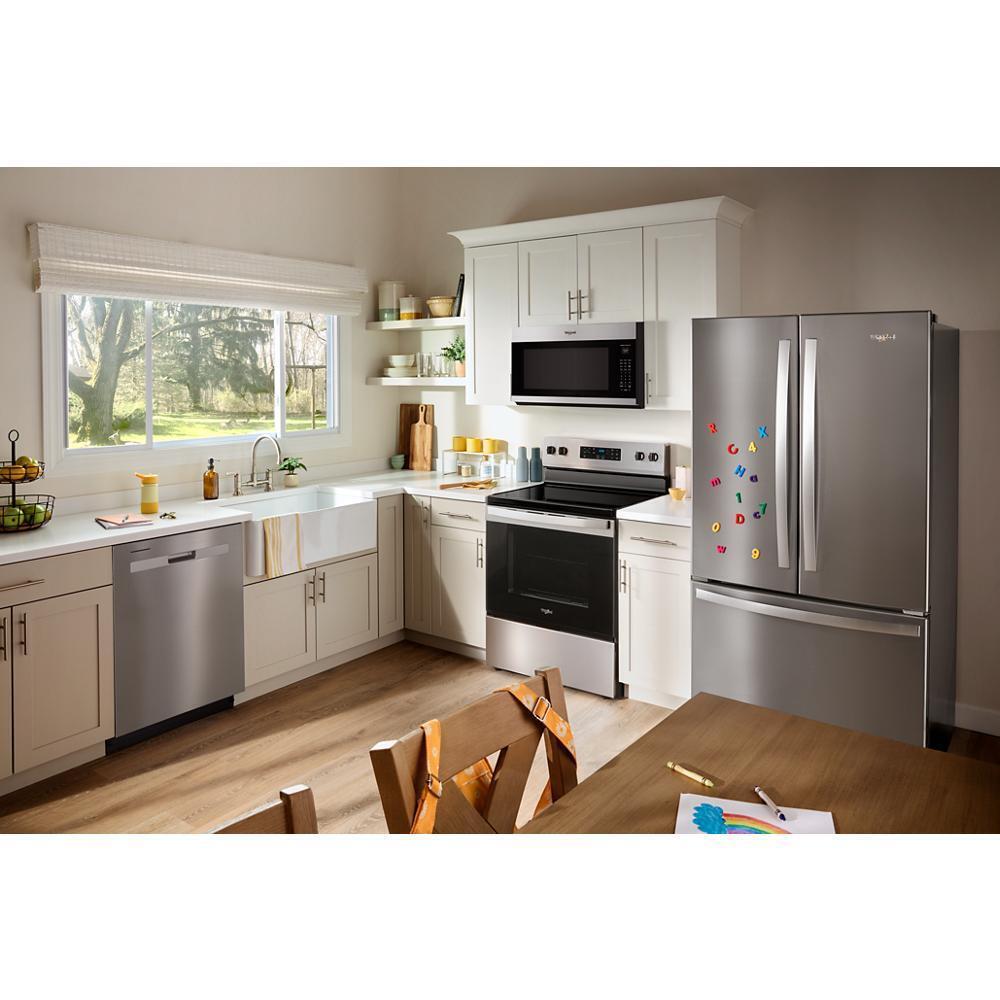

2.1 cu. ft. Microwave Hood with 4-Speed Venting
Model: WMMS5630TZ
Authorized Dealer
1
of
17
Loading...
Authorized Dealer
2.1 cu. ft. Microwave Hood with 4-Speed Venting
Model: WMMS5630TZQuick Specs
Depth
16.0
Height
17.13
Color
2.1 cu. ft. Microwave Hood with 4-Speed Venting is backordered and will ship as soon as it is back in stock.
Available to Order
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
16.0
Height
17.13
- 1,000-Watt Cooking Power
- Get quick and even cooking with 1,000 watts of cooking power.
- 12 Auto Cook Modes
- Simplify cooking by getting the right amount of heat and time with 12 Auto Cook Modes, that include over 35 recipe presets. Heating is hassle free whether you're using Reheat mode for yesterday's soup or casserole, Cook mode for oatmeal and bacon, or popcorn mode for movie night.

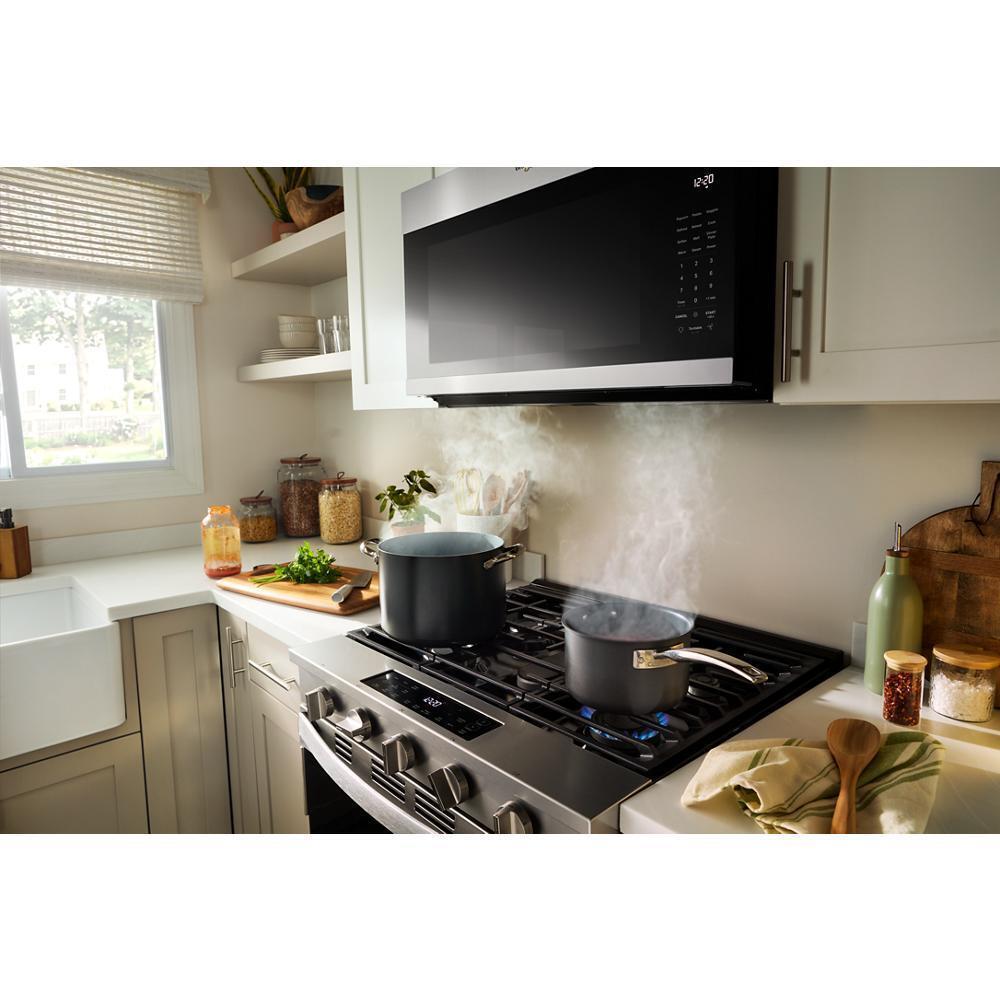

- 4-Speed Hood Vent
- The 4-Speed Hood Vent with 400 CFM Motor Class* helps keep your kitchen clear by quickly removing smoke, odor, and moisture.
*Peak performance varies based on installation. Resources available at aham.org. - 90 Hinge Door
- The 90 Hinge Door offers installation flexibility to fit over the range, including next to a wall.
- AccuPop™
- AccuPop™ helps prevent your popcorn from burning using sound sensing technology that tracks the time between pops and adjusts the cycle as needed.
- Add 30 Seconds Option
- Press the Add 30 Seconds Option to easily add seconds to an in-progress cooking time, or use it to add 30 seconds to the timer.

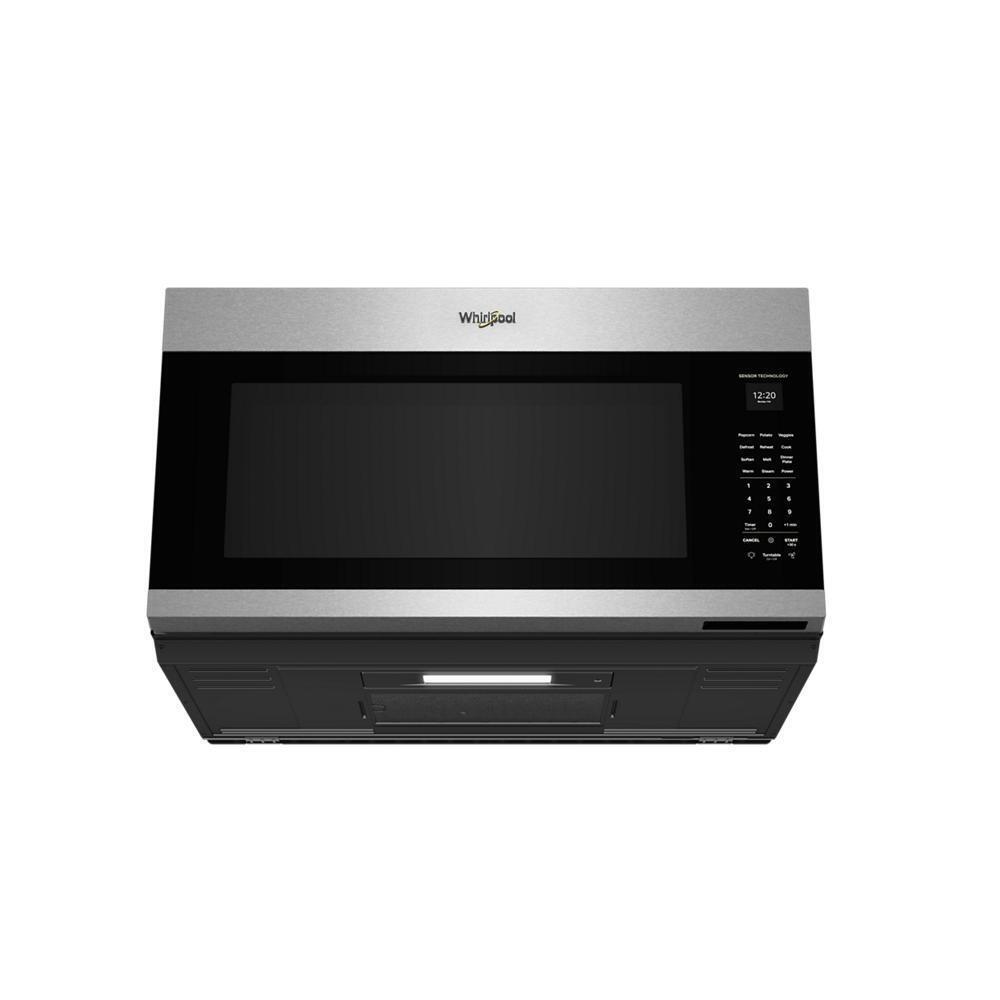

- Adjustable Cooktop Lighting
- Keep an eye on what s cooking below the microwave, or keep a nightlight on in the kitchen with Adjustable Cooktop Lighting that features 2 brightness levels.
- CleanRelease® Non-Stick Interior
- Help prevent spills from sticking with the CleanRelease® Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
- Dishwasher-safe turntable plate
- Clean up spills on the turntable by simply putting it in the dishwasher.

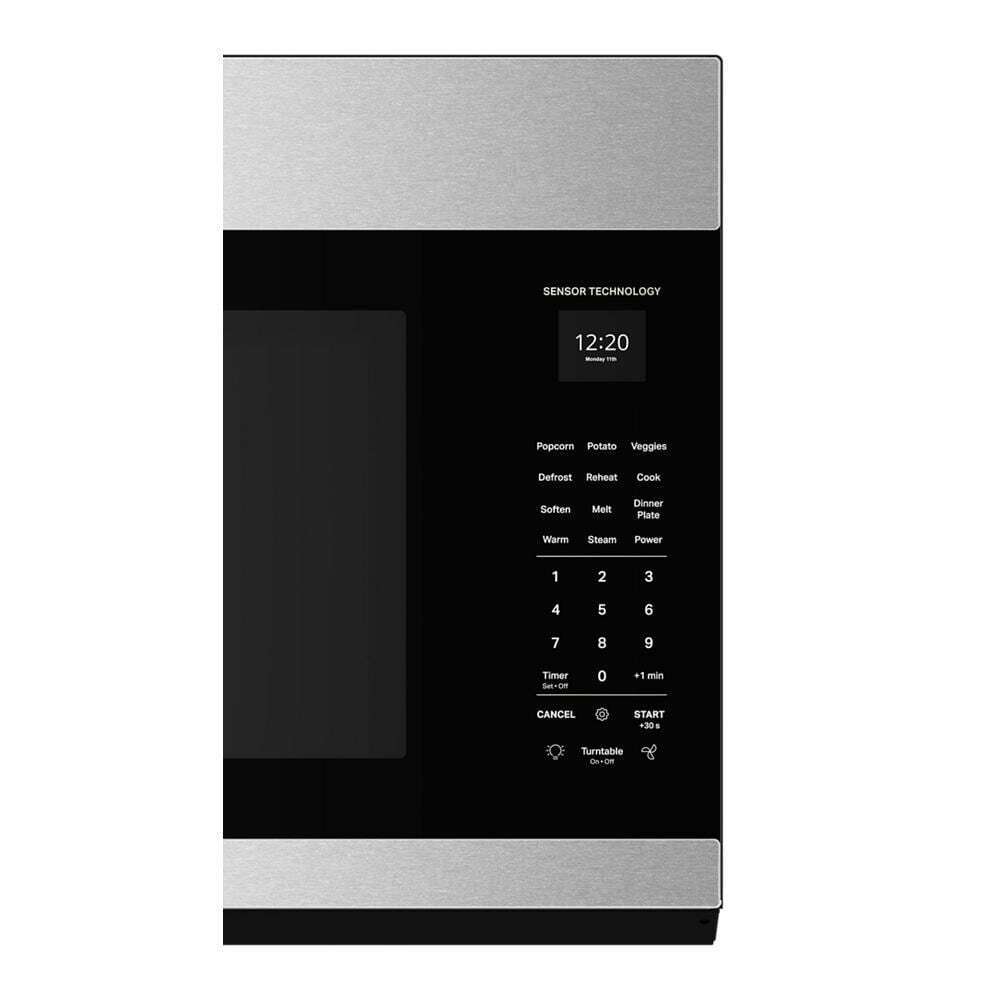

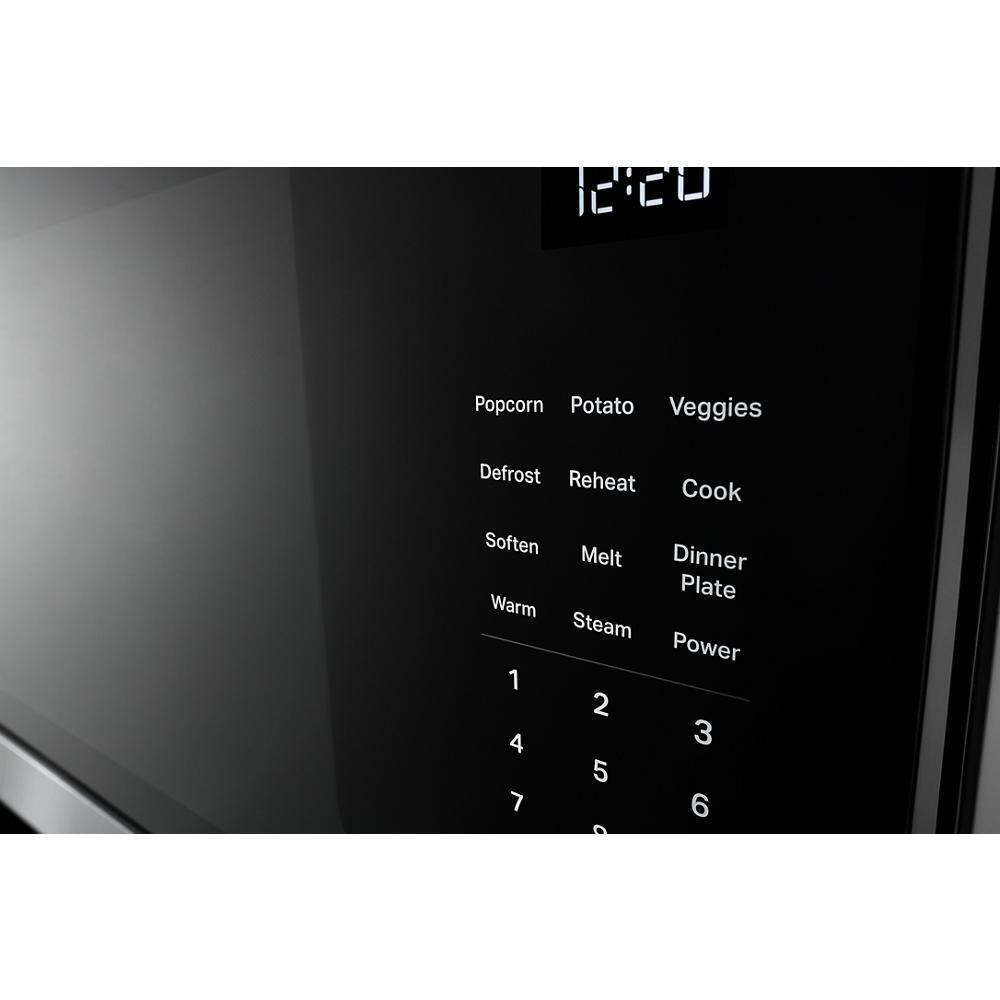

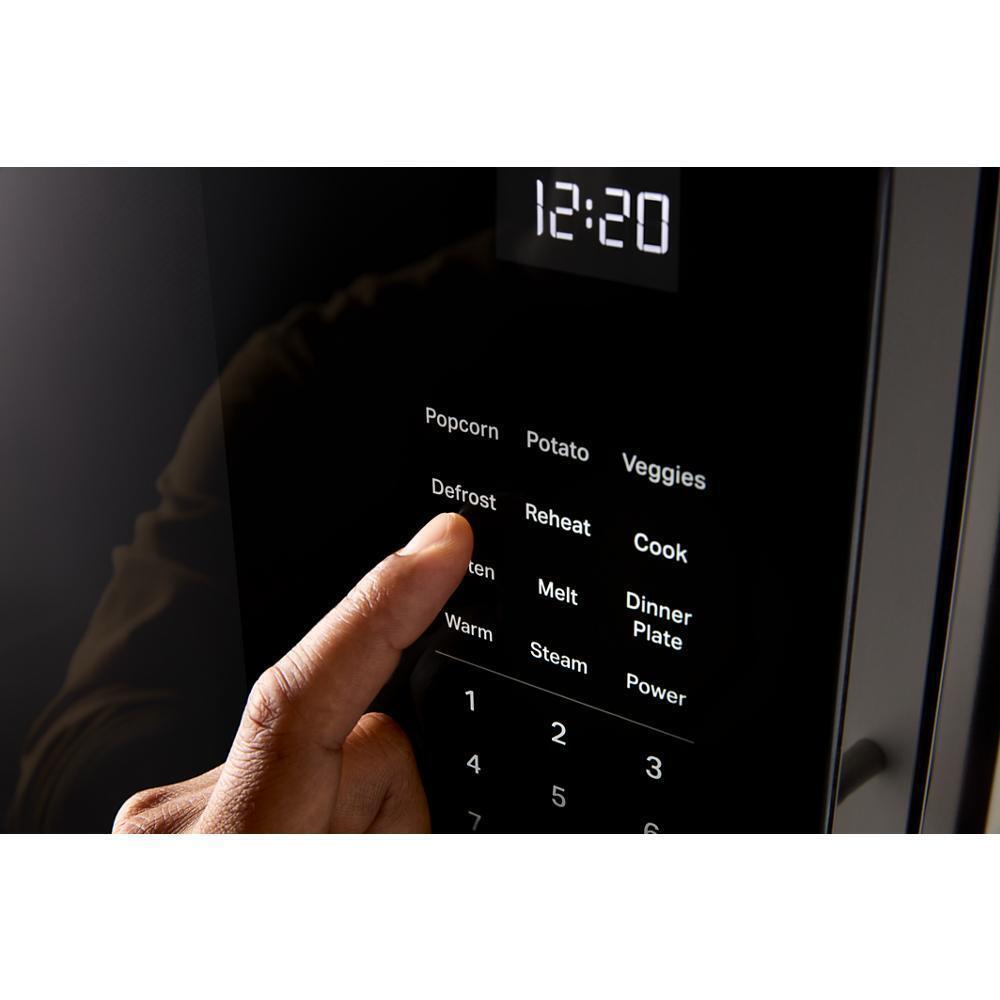

- Electronic Touch Controls
- Navigate through cooking modes and options with electronic touch controls that are as easy to use as they are to clean.
- Fingerprint Resistant
- Available in black stainless steel and stainless steel finishes, easy-to-clean steel resists fingerprints and smudges.
- Hidden Vent
- The concealed air outlet streamlines the exterior appearance of the microwave which also simplifies cleaning.
- Large Capacity

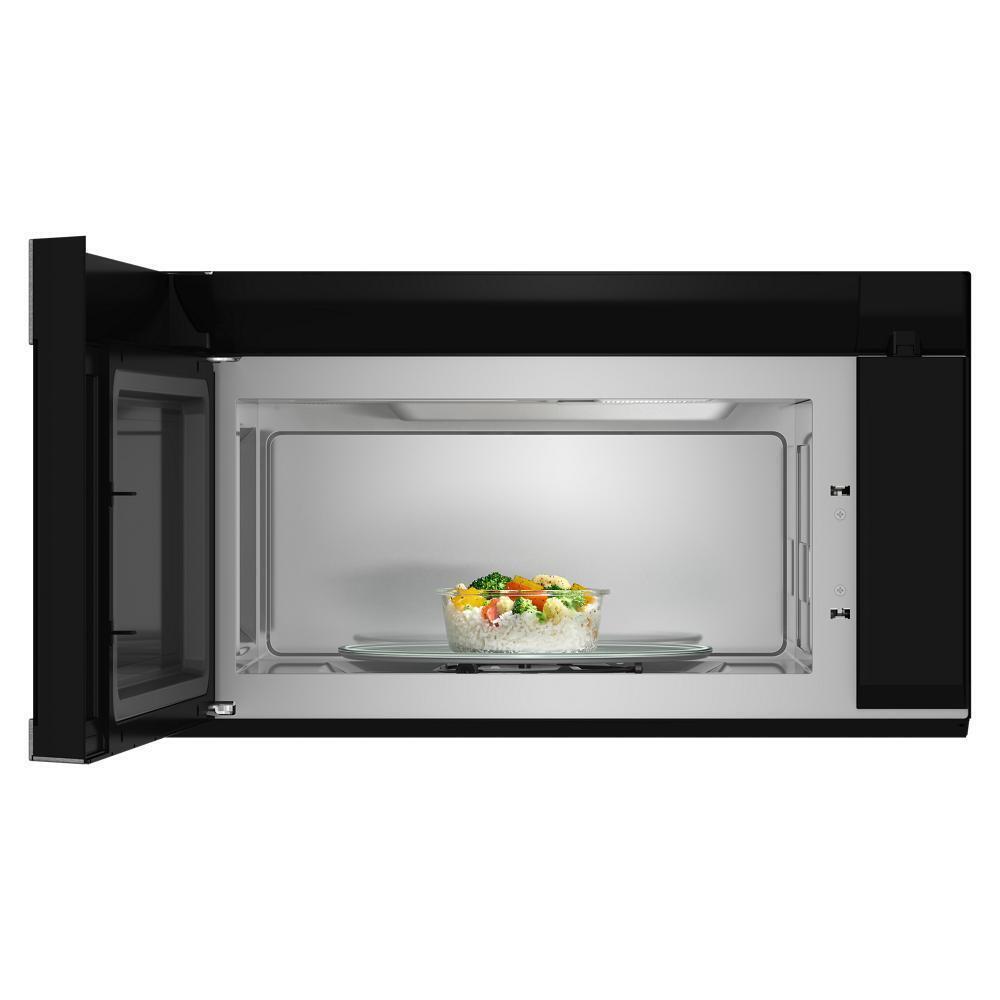

- Heat various dishes with Whirlpool's largest over-the-range microwave. From 5qt. bowls to 9" x 12" casserole dishes, the 2.1 cu. ft. capacity provides plenty of space to make heating easier whether it's for yourself or your next big gathering.
- Sensor Cooking Technology
- Take the guesswork out of heating with Sensor Cooking technology. It monitors humidity levels to gauge cooking progress, and it automatically adjusts cook time and power level for delicious results.
- Steam cooking accessory
- Clear up cooktop space by steaming foods like rice, vegetables and chicken right in the microwave. Steam accessory available separately.
- Turntable On/Off Option
- Press the Turntable On/Off Option and choose whether the turntable rotates or not to accommodate a wide range of dish sizes.
- Whirlpool's Most Even Defrost Among Over-the-Range Microwaves
- Get a more even thaw with Whirlpool's Over-The-Range Most Even Defrost, and go from freezer to ready-to-cook in minutes.
- Whirlpool's Quietest Ventilation Among Over-The-Range Microwaves
- Keep background noise in your kitchen to a minimum with Whirlpool's Quietest Ventilation system among our line of over-the-range microwaves. The 4 Speed Hood Vent with 400 CFM Motor Class* helps quickly and quietly remove smoke, odor, and moisture to keep your kitchen clear.
*Peak performance varies based on installation. Resources available at aham.org.
- 1,000-watt cooking power for quick and even cooking
- Get the right amount of heat and time with 12 Auto Cook Modes
- Resists fingerprints and smudges with steel that's easy to clean
- The air outlet is concealed for a streamlined look
- Whirlpool's largest over-the-range microwave keeps you ready to heat food for yourself or for a crowd
- Sensor Cooking auto-adjusts cook time and power for delicious results
- Save space and steam in the microwave-accessory sold separately
- The Turntable On/Off Option selects if the turntable rotates or not
- A more even thaw with Most Even Defrost in Whirlpool's line of over-the-range microwaves
- Whirlpool's Quietest Ventilation System among our line of over-the-range microwaves
- The 4 Speed Hood Vent helps quickly remove smoke, odor and moisture
- Fits directly over your range with a 90 Hinge Door
- Help prevent your popcorn from burning with AccuPop(TM)
- Add 30 Seconds Option gives you more cook time
- Adjustable Cooktop Lighting that features 2 brightness levels
- Clean up quickly with a CleanRelease(R) Non-Stick Interior
- Clean up spills easily with the dishwasher-safe turntable plate
- Easily navigate through settings with electronic touch controls
This 2.1 cu. ft. microwave uses smart features to take the mystery out of cooking. Smart Sensors auto-adjust the cook time and power for delicious results. AccuPopTM uses sound sensors to help stop popcorn from burning. And our quietest ventilation system among our line of over-the-range microwaves keeps background noise to a minimum.
| Certifications | |
| Cec Listed | Yes |
| Cul | No |
| Prop65 | CA |
| Star K Certified | No |
| Ul | Yes |
| Controls | |
| Control Location | Right |
| Control Type | Electronic Touch |
| Convenience Cooking Controls | Yes |
| Display Color | White |
| Electronic Display Type | PMVA LCD |
| Microwave Selections | AccuPop™; Add 30 Seconds; Auto Cook; Cook Power; Cook Time; Defrost; Dinner Plate; Keep Warm; Potato; Reheat; Soften/Melt; Steam; Steam Clean |
| Number of Convenience Control Pads | 30 |
| Number of Keypads | 30 |
| Number of Power Levels | 10 |
| Number of Quick Touch/one-touch Selections | 2 |
| Number of Sensor Control Keypads | 3 |
| One Touch Cooking | Yes |
| Scrolling Electronic Display | Yes |
| Details | |
| 90 Degree Articulating Hinge | Yes |
| Cavity Finish | Non-Stick |
| Clock | Yes |
| Cooking Items Included | Turntable |
| Door Opening Direction | Right |
| Fingerprint Resistant | Yes |
| Grill | No |
| Microwave Configuration | Microwave Hood Combination |
| Microwave Type | Over-the-Range |
| Number of Vent Speeds | 4 |
| Turntable | Stoppable |
| Work Surface Light | LED |

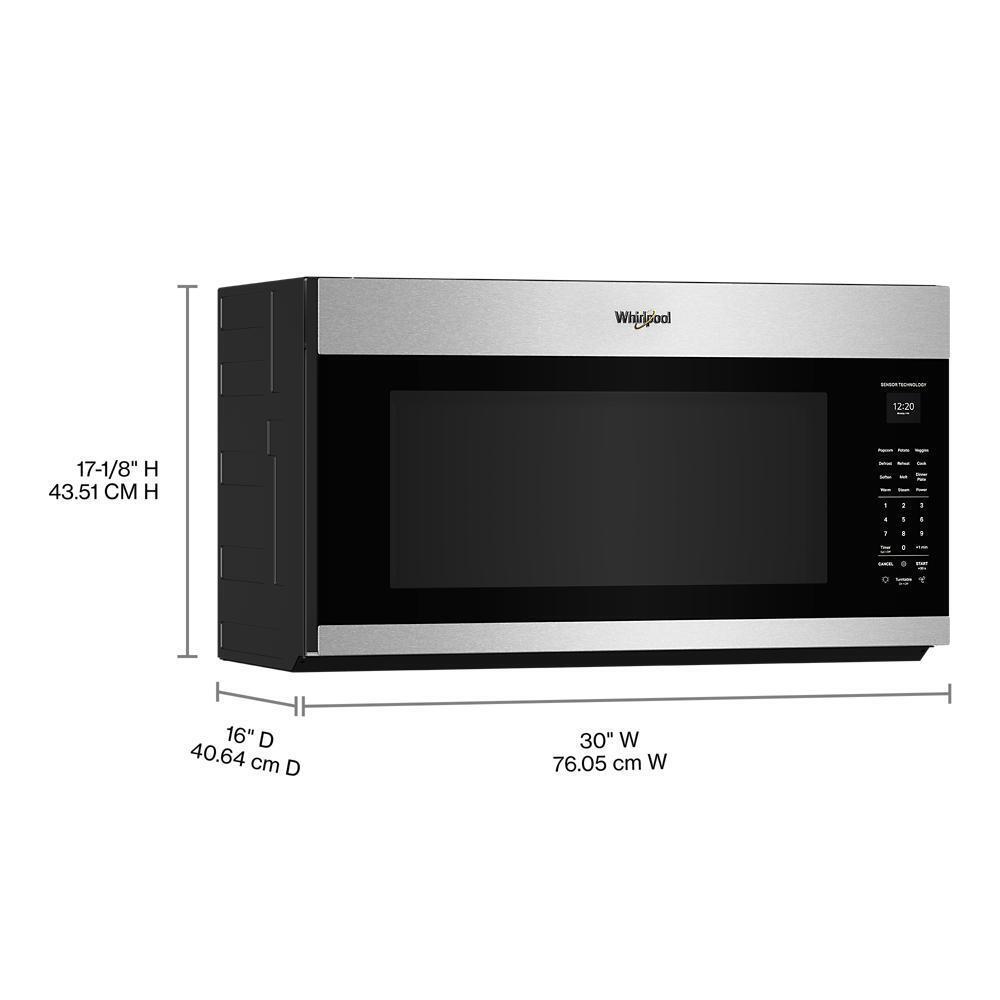

| Dimensions | |
| Product Height | 17.13 |
| Carton Height | 20.67 |
| Gross Weight | 64.76 |
| Display Screen Diagonal Length | 2.03 |
| Carton Width | 32.52 |
| Product Depth | 16.0 |
| Cutout Depth Max | 14 |
| Depth With Door Open 90 Degree | 46 |
| Cutout Width Min | 30 |
| Interior Depth | 14.13 |
| Depth Excluding Doors | 14 |
| Depth Closed Excluding Handles | 16 |
| Interior Height | 10.17 |
| Carton Depth | 20.08 |
| Cutout Depth Min | 12 |
| Net Weight | 56.96 |
| Product Width | 29.94 |
| Interior Width | 21.06 |
| Electrical | |
| Power Cord Included | Yes |
| Exterior Details | |
| Cabinet Color | Stainless Steel Fingerprint Resistant |
| Handle Color | N/A |
| General | |
| Microwave Features | Accupop™; Add 30 Seconds Button; CleanRelease® Non-Stick Interior; Keep Warm Function; Steam Cleaning Feature; Steam Cooking; Turntable On/Off Feature |
| Microwave Interior Light | LED |
| Microwave Details | |
| Door Release | |
| Sensor Cooking | Yes - Microwave |
| Turntable Diameter Size | 14 |
| Oven Details | |
| Convection | No |
| Cooking Power | 1,000 |
| Smart Compatibility | |
| Smart Appliance | No |
| Ventilation Details | |
| Blower Type | Centrifugal |
| Cfm Motor Class | 400 |
| Duct Direction | Vertical or Horizontal |
| Duct Outlet Size | 3.25 W x 10 H |
| Duct Type | Rectangular |
| Fan Speed Indicator | Yes |
| Filters | Charcoal Odor Removing Filter; Grease Filters |
| Night Light | Yes |
| Vent Fan Location | Back |
| Ventilation Type | Updraft |
| Venting | Exterior or Recirculating |
