18" Panel-Ready Dishwasher with Flush Install - 48 dBA
Model: UDPS5118SP
Authorized Dealer
1
of
15
Loading...
Authorized Dealer
18" Panel-Ready Dishwasher with Flush Install - 48 dBA
Model: UDPS5118SPQuick Specs
Width
17.625"
Depth
22.04"
Height
32.48"
Sabbath
NO
ADA
YES
Wifi
NO
SS Tub
YES
Dish Cycles
6
18" Panel-Ready Dishwasher with Flush Install - 48 dBA is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-4 days
In Stock
Regular price
$1,322.00
Unit price
/
Unavailable
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
17.625"
Depth
22.04"
Height
32.48"
Sabbath Mode
NO
ADA
YES
Wifi Connected
NO
Stainless Steel Tub
YES
Dish Cycle Count
6
Energy Star Rated
NO

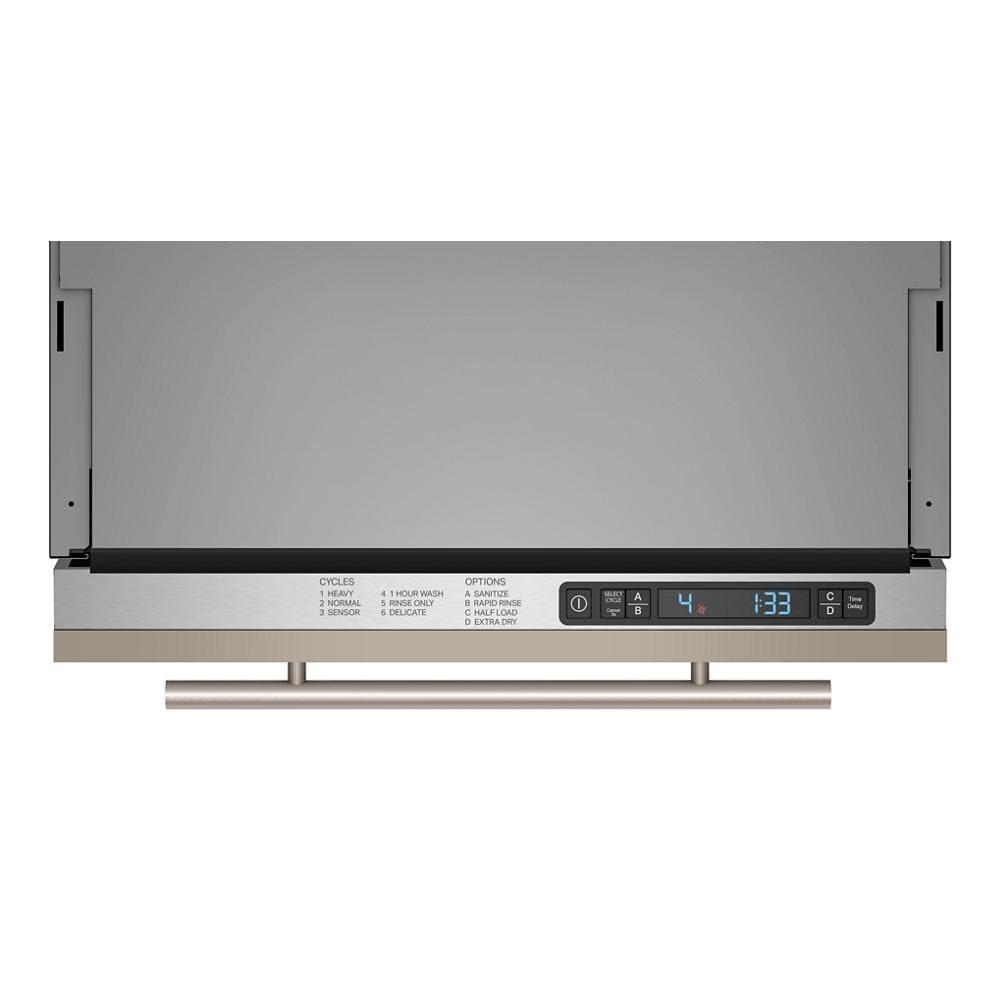

Fully Integrated Controls
YES
- 48 dBA Sound Level
- Run your dishwasher without disrupting family time with an updated design and improved sound rating.*
*From 50 dBA on UDPS5118PP to 48 dBA on current model - ADA Compliant
- This dishwasher meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

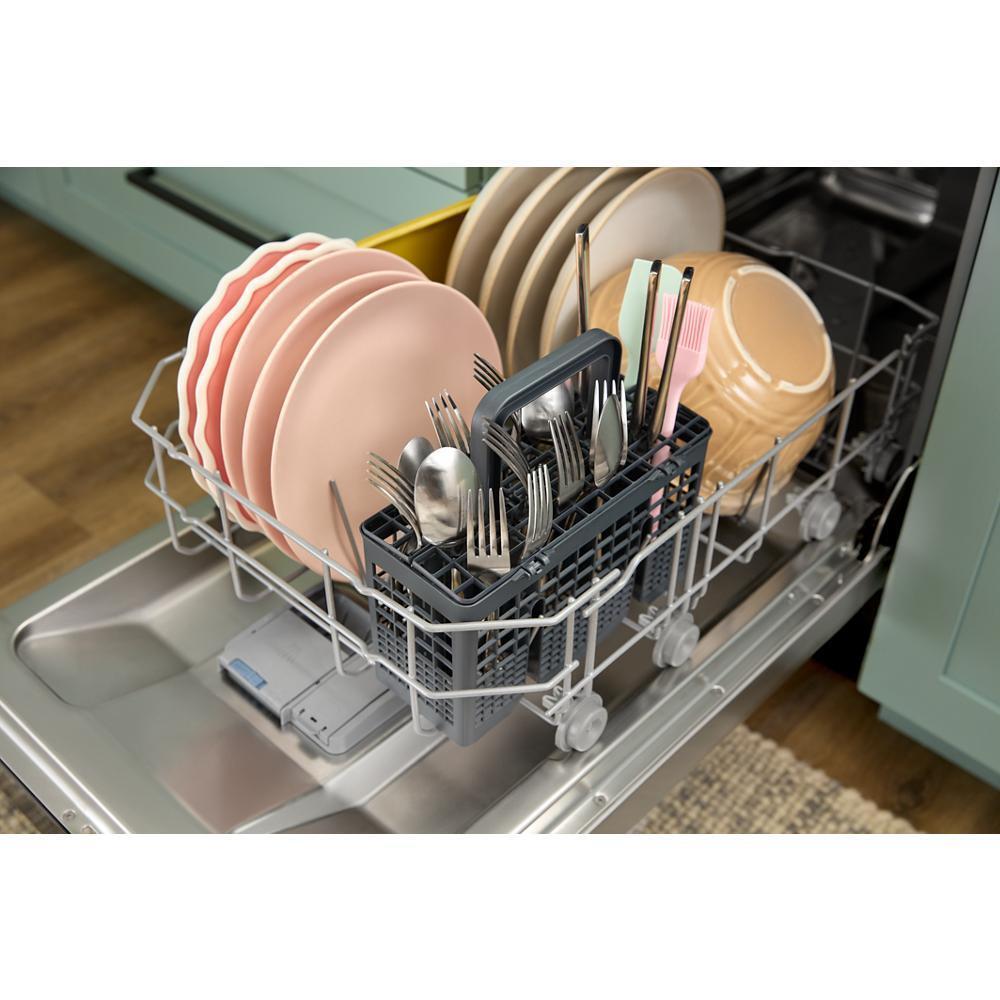

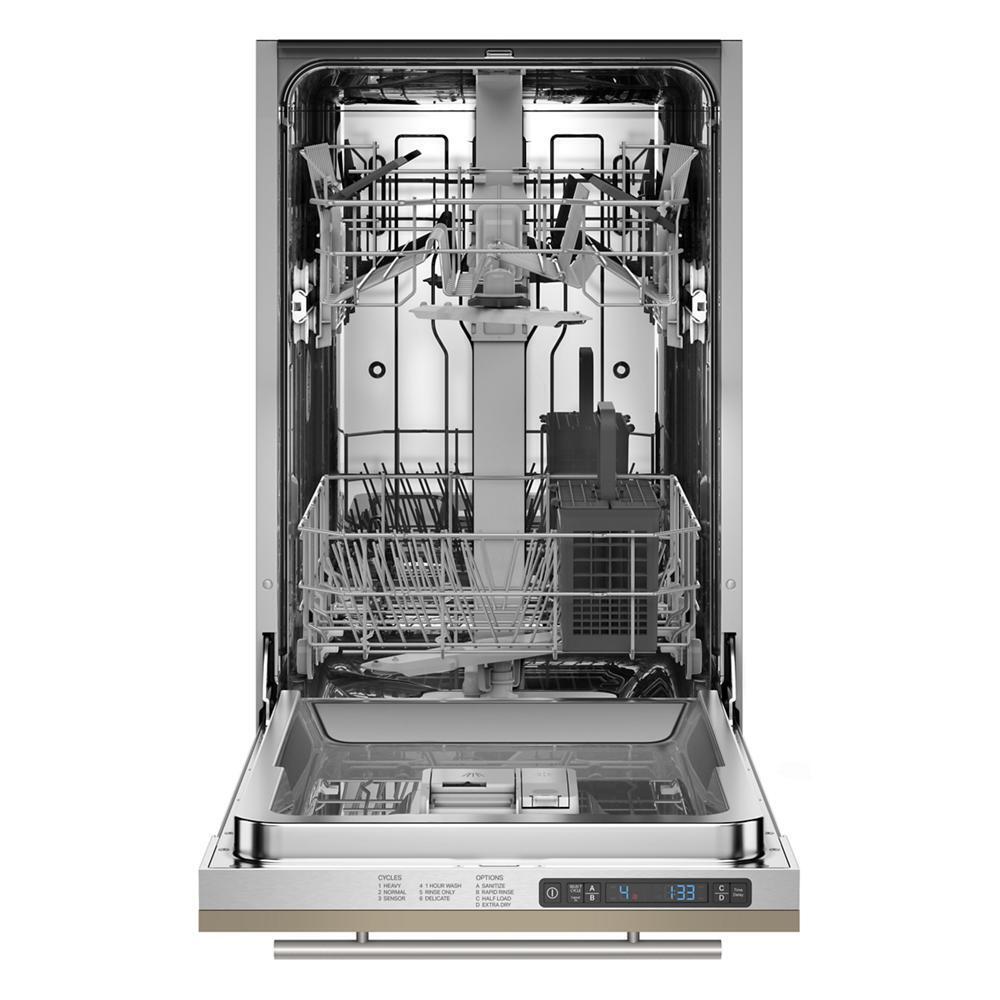

- Adjustable Racks and Tines
- With a movable silverware basket, adjustable rack, adjustable cup shelf, adjustable tines, you'll find the flexible space you need for water bottles,casserole dishes, and other odds and ends your family piles up.
- Delicate Cycle
- Clean glassware and china with lower wash temperatures and gentle wash action with the Delicate Cycle.
- ENERGY STAR® qualified
- Exceed government efficiency standards, so they are better for your wallet and the environment.
- Extra Dry
- Add a boost of heat to your drying cycle with the Extra Dry option.

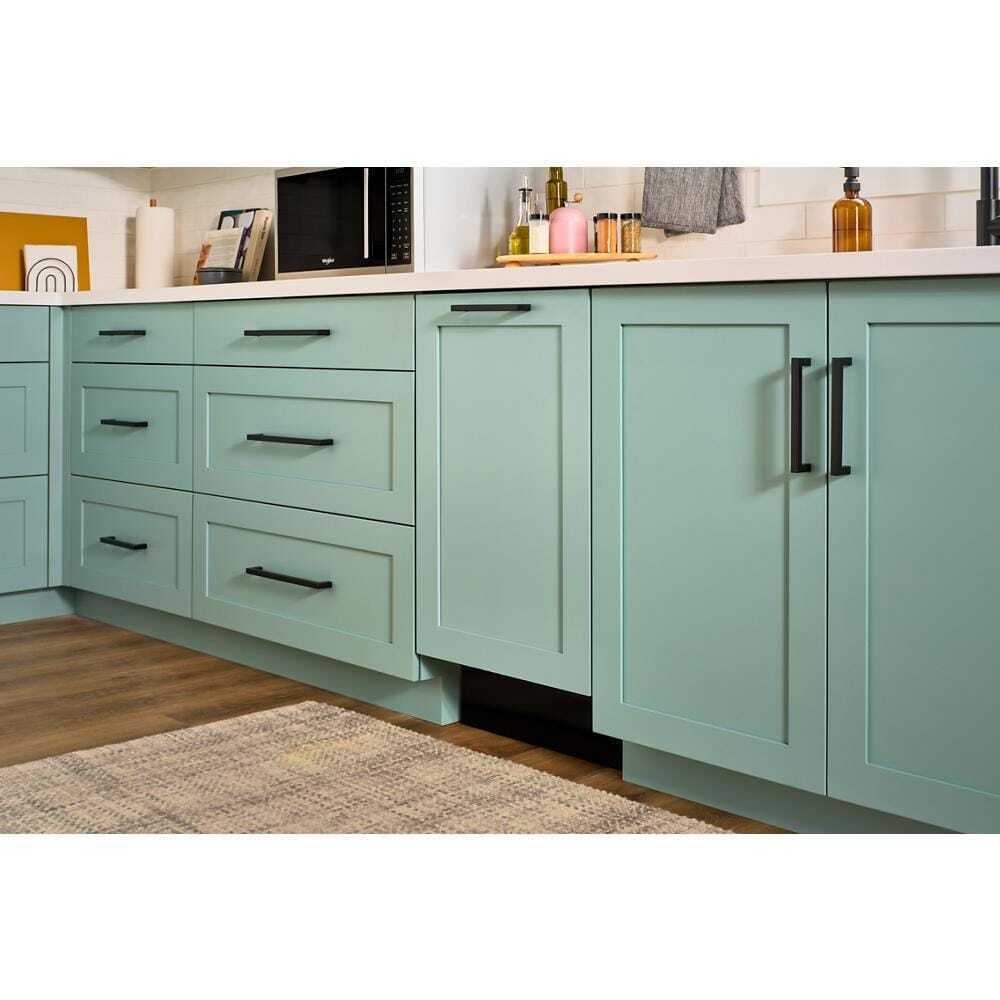

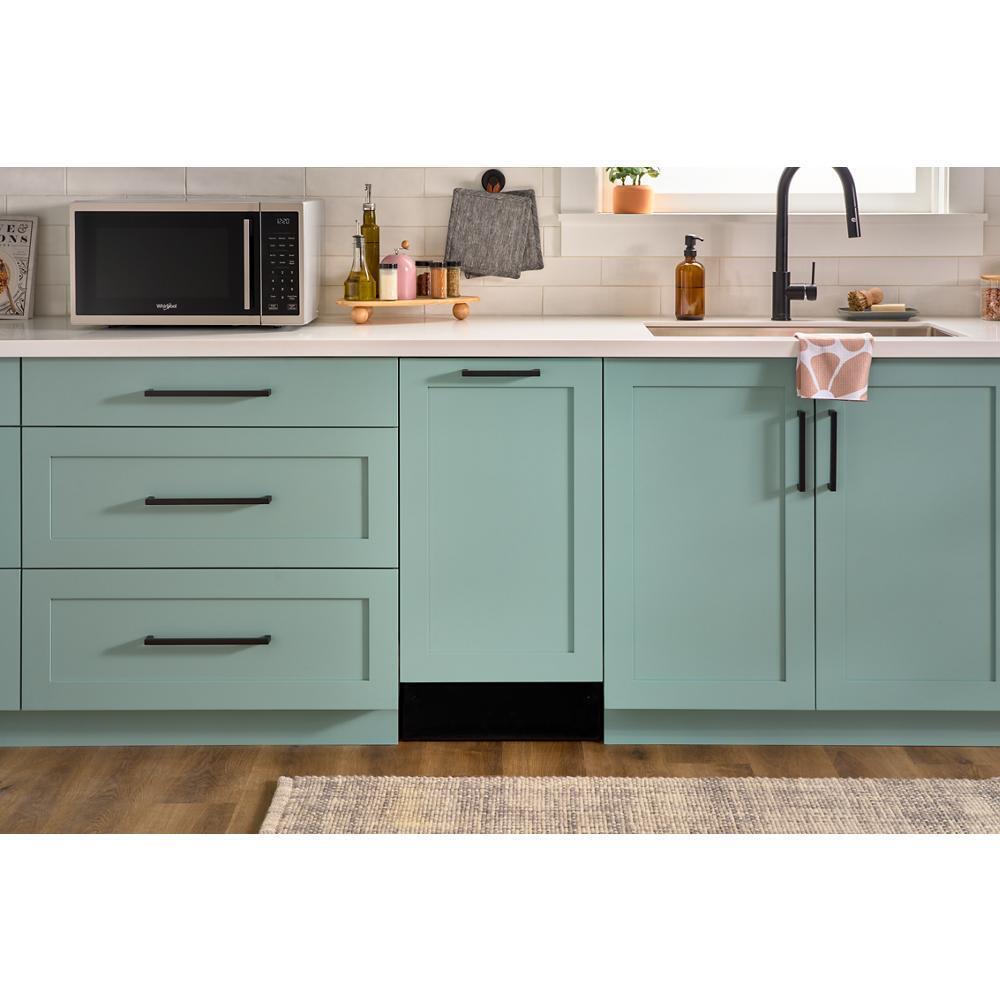

For the best results, pair with rinse aid - Flush to Cabinet
- Allows dishwasher to fit evenly with countertops and cabinetry to help give the kitchen a seamless look and feel.
- Half Load
- Load the top rack only and skip waiting for a full dishwasher to get dishes cleaned with the Half Load Cycle.
- Heavy Cycle
- The Heavy Cycle is designed to wash heavily soiled and other hard-to-clean messes.
- Normal Cycle
- Use the Normal Cycle to clean up leftover messes from day-to-day meals.

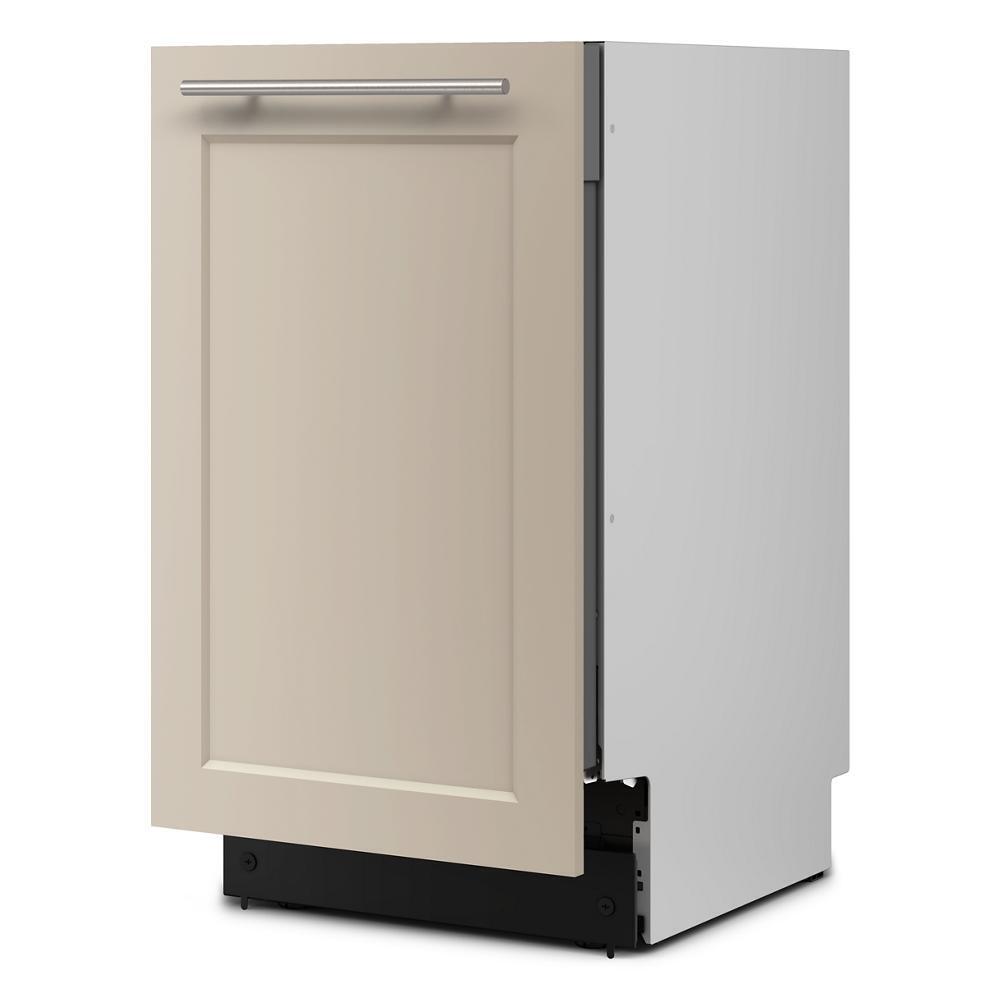

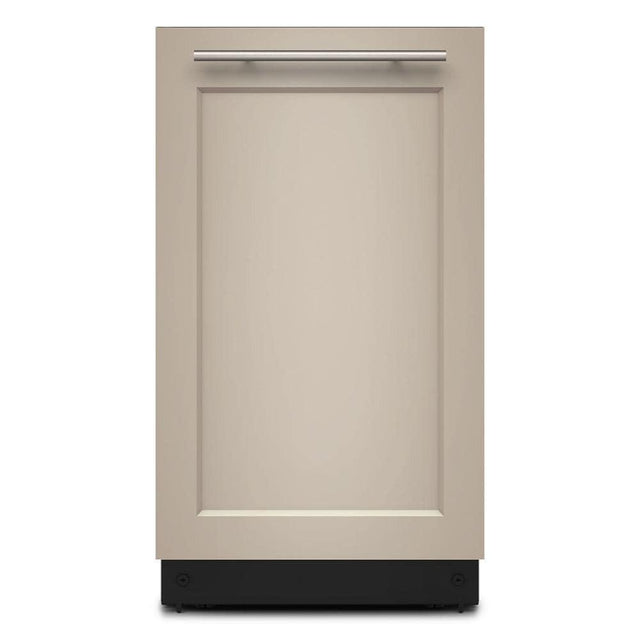

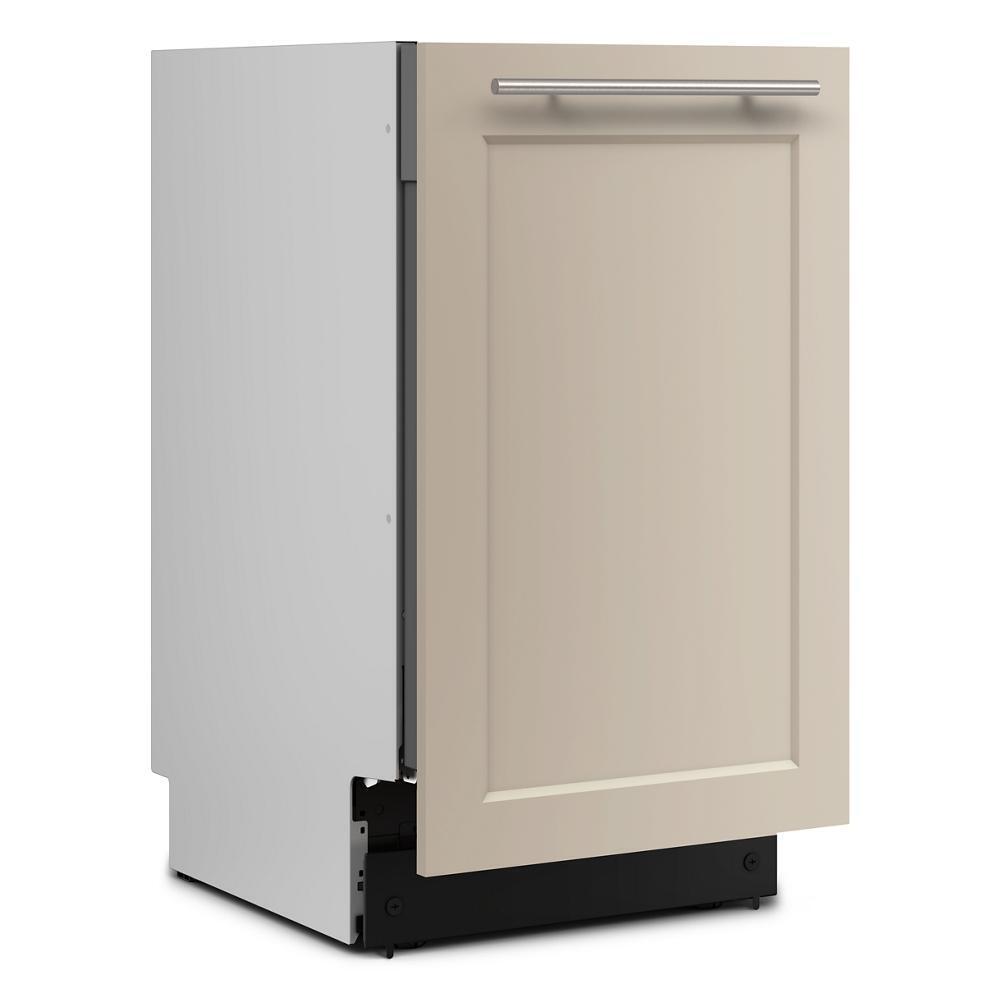

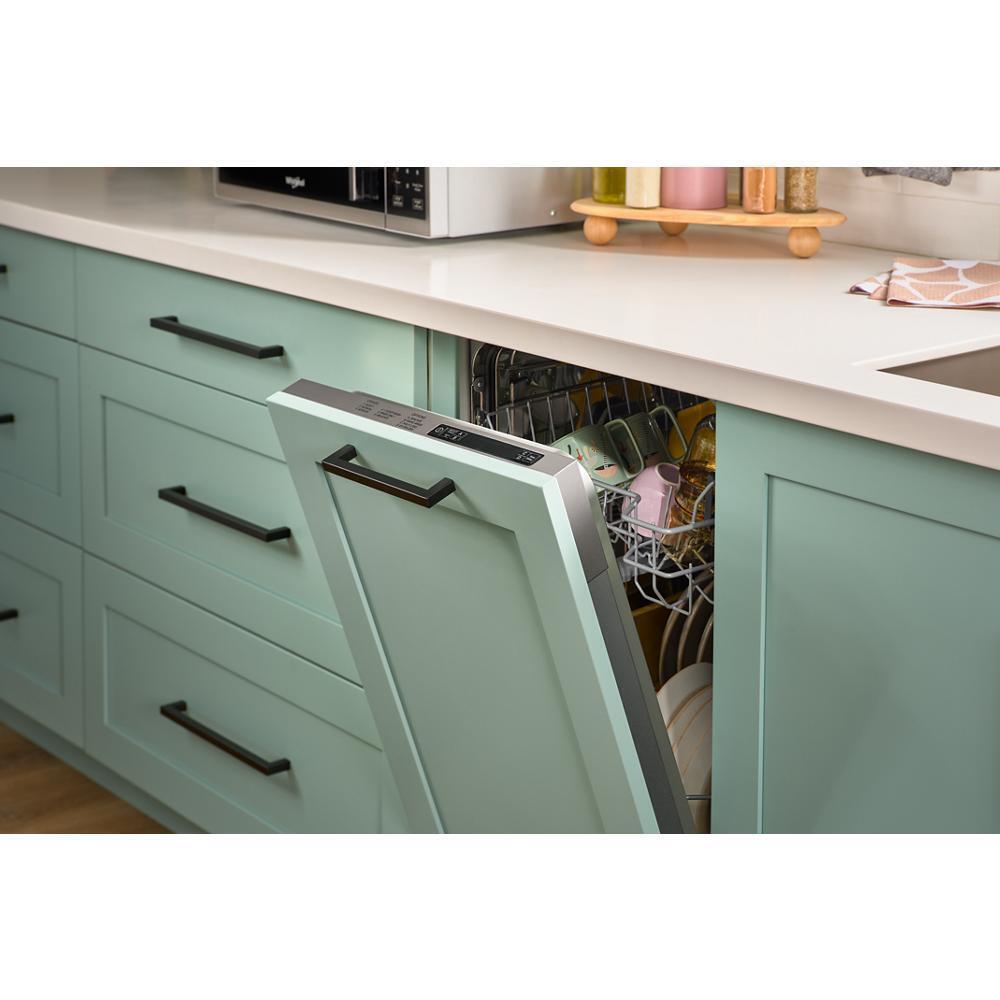

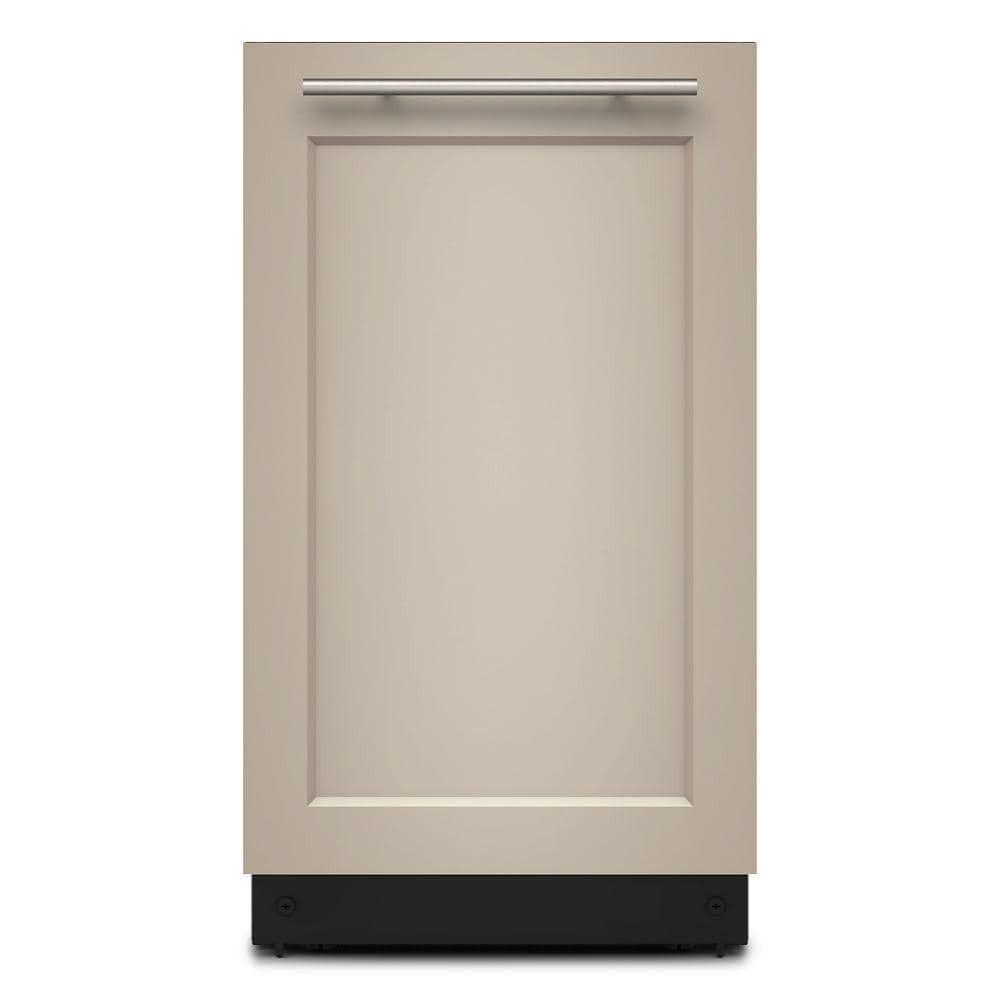

- Panel-Ready Design
- Allows you to install a custom front panel and handle over the dishwasher door, helping to create a seamless, custom look with kitchen cabinetry.*
*Panel and handle not included. - Quick Wash Cycle
- The speedy 35 minute Quick Wash Cycle allows smaller loads to get cleaned fast.
- Rapid Rinse
- Use the high-speed Rapid Rinse cycle for a quick refresh between loads, designed to keep food from sticking when you aren't ready for a full wash.
- Rinse Only Cycle
- A quick, Rinse Only cycle designed to keep dishes fresh and prevent dried-on food between washes.
- Sanitize
- Sanitize Cycle raises the water temperature in the final rinse to meet the requirements of NSF/ANSI STANDARD 184 for Residential Dishwashers.
- Sensor Cycle
- The Sensor Cycle determines how dirty dishes are and adjusts the cycle as needed to make sure dishes come out clean.

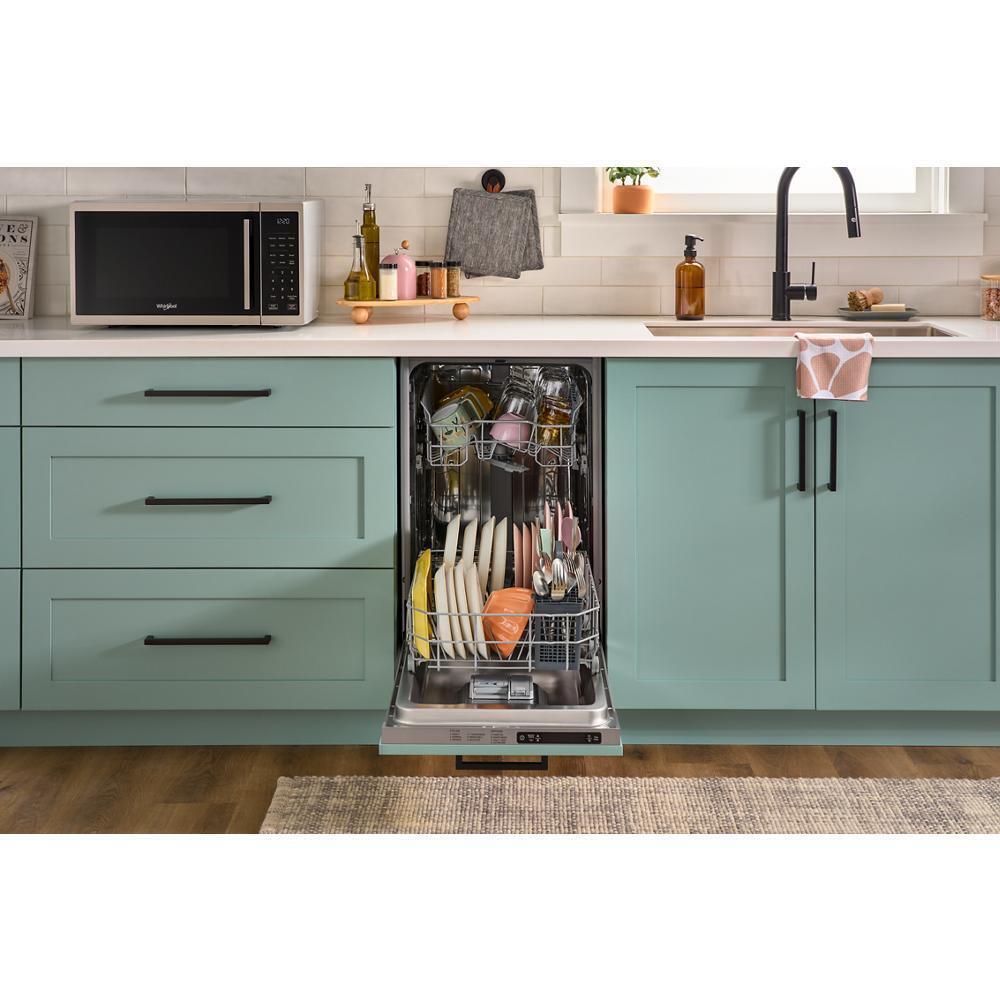

- Small Space Solution
- Fit 8 place settings in this compact dishwasher that offers more flexibility and room to work in the kitchen.
- Keep the kitchen quiet during cleanup with a low sound level.
- Meets ADA Standards for Accessible Design
- Get clean dishes fast with the Quick Wash Cycle
- Quickly rinse dishes with Rapid Rinse
- Help prevent food from drying on dishes with Rinse Only Cycle
- Sanitize dishes with raised temperatures
- Ensure dishes come out clean with the Sensor Cycle
- Fit 8 place settings with a small space solution
- Get the space you need with adjustable racks and tines
- Clean glassware and china with the Delicate Cycle
- Add a boost of heat with the Extra Dry Option

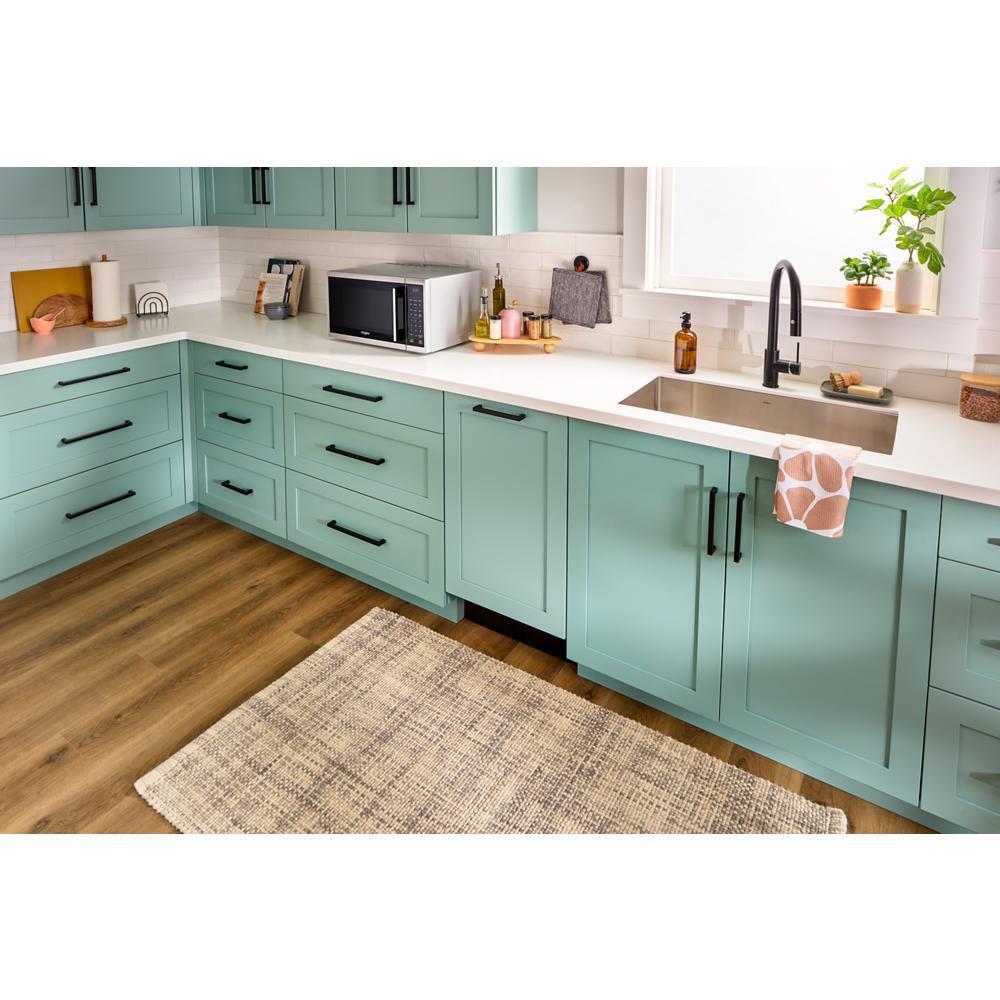

- Installs flush to cabinets
- Handle small loads on the top rack only with Half Load Cycle
- Clean heavily soiled messes with the Heavy Cycle
- Clean everyday dirty dishes with the Normal Cycle
- Panel-Ready Design allows for a custom look with kitchen cabinetry
The 18 Panel-Ready Dishwashers with Flush to Cabinet Installation is designed to integrate into your kitchen, whether it s in an efficiency apartment or a second kitchen for an in-law suite. With space for up to 8 place settings, adjustable racks, and tines, you'll find a place for all your dishes. This dishwasher meets ADA compliance, is Energy Star Certified, and has a sound level of 48 dBAs per IEC standards.
| Certifications | |
| Ada Compliant | Yes |
| Cee Tier Rating | Tier I |
| Cul | Yes |
| Energy Rating (kwh/year) | 240 |
| Nsf Certified | No |
| Prop65 | CA |
| Controls | |
| Automatic Temperature Controls | Yes |
| Control Location | Top Hidden |
| Control Type | Electronic Touch |
| End of Cycle Signal | Yes |
| Status Light | White |
| Cycles | |
| Number of Wash Cycles | 6 |
| Details | |
| Built-in Water Softener | No |
| Dishwasher Cycle Selection | Glass; Heavy; Light/China; Normal; Quick Wash; Rinse |
| Dishwasher Option Selections | 1-24 Hour Delay; Heated Dry; Hi Temp Wash |
| Dishwasher Type | Built-In |

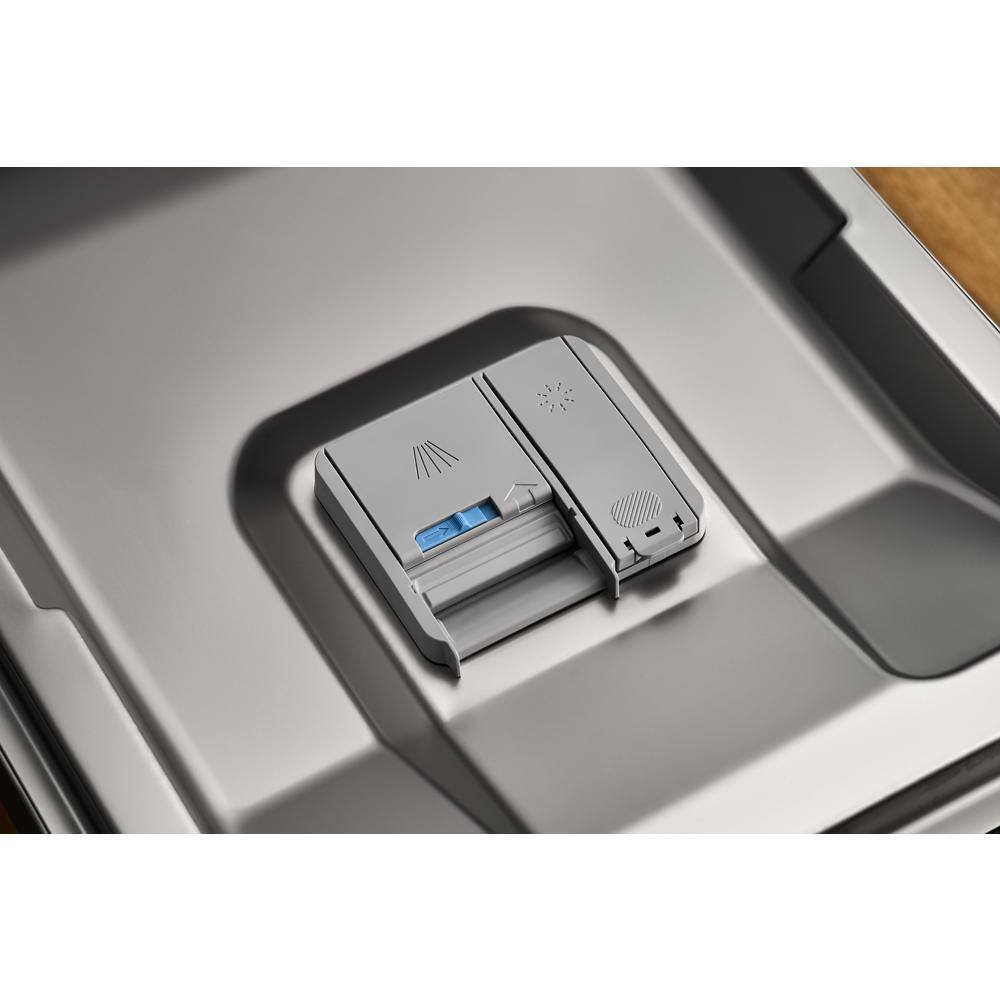

| Dispensers | Detergent and Rinse Aid |
| Drying System Type | Recessed Heating Element |

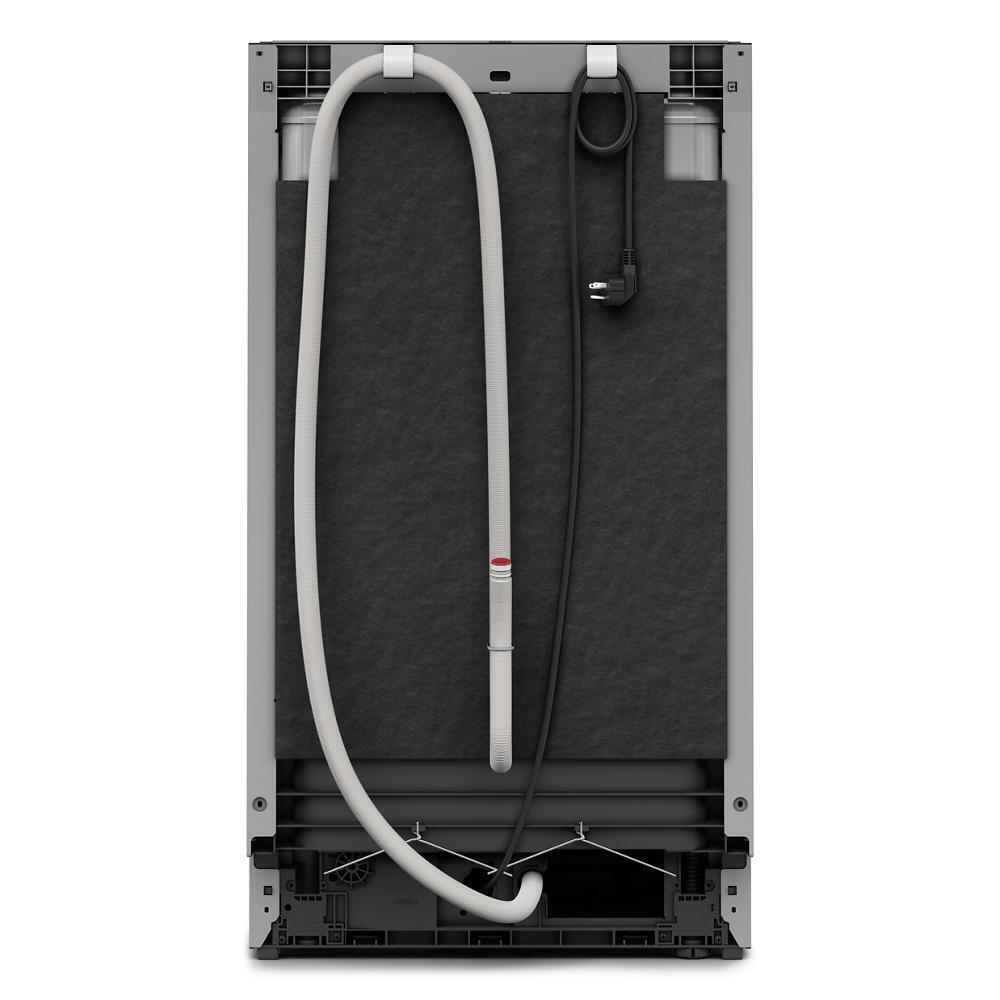

| Hoses Included | Yes, Drain |
| Leak Detect | Yes |
| Number of Place Settings | 8 |
| Number of Racks | 2 |
| Number of Wash Levels | 4 |
| Number of Washarms | 2 |
| Rinse Aid Dispenser Level Indicator | Yes |
| Sensor | Yes |
| Sound Package | Yes |
| True Hold Door | Yes |
| Tub Material | Stainless Steel |
| Tub Style | Built-in 18in. Tub |
| Wash System | Filter |
| Wash System Type | Removable Filter |
| Water Filtration | Yes |

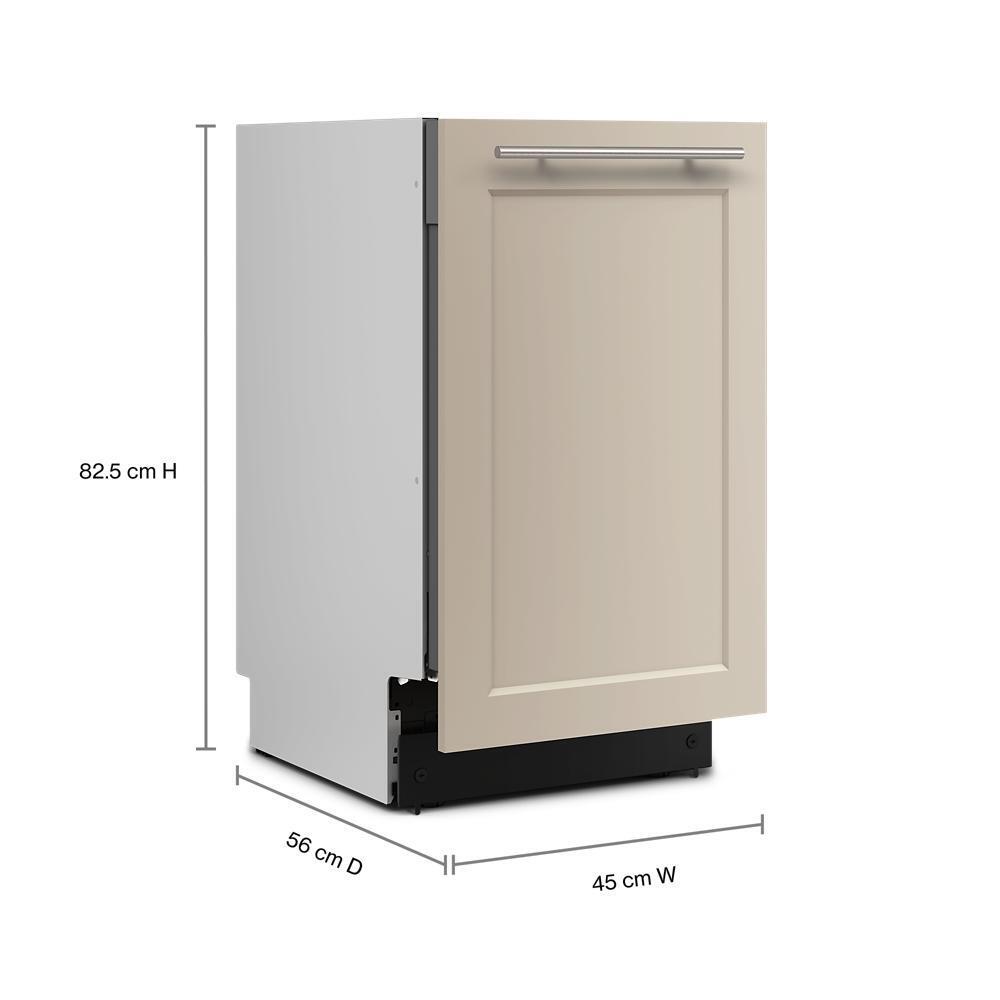

| Dimensions | |
| Carton Depth | 26.02 |
| Carton Height | 33.82 |
| Carton Width | 19.45 |
| Cutout Depth | 22 |
| Cutout Height | 34.5 |
| Cutout Width | 18 |
| Depth Closed Excluding Handles | 22 |
| Depth Closed Including Handles | 22.438 |
| Depth With Door Open 90 Degree | 44.5 |
| Gross Weight | 69.23 |
| Net Weight | 65.99 |
| Electrical | |
| Power Cord Included | No |
| Exterior Details | |
| Door Style | Flat |
| Magnetic Door | No |
| Window | No |
| General | |
| Decibel Level (dba) | 50 |
| Dishwasher Rack Material | Nylon |
| Energy Star® Qualified | ENERGY STAR® Qualified |
| Kosher Consumer Friendly | Yes |
| Oven Details | |
| Interior Light | No |
| Lower Rack Glides | Rollers |
| Lower Rack Utility Basket | Yes |
| Rack Details | |
| Lower Rack Cushion-tip Tines | Yes |
| Lower Rack Extras | No |
| Lower Rack Fold-down Tines | No |
| Lower Rack Style | Extended |
| Second Level Rack Adjustable | Yes |
| Second Level Rack Cushion-tip Tines | Yes |
| Second Level Rack Extras | 1-Fold Down Wire Cup Shelf |
| Second Level Rack Fold-down Tines | 1 Fold Down |
| Second Level Rack Glides | Rollers |
| Third Level Rack Glides | N/A |
| Third Level Rack Removable | No |
| Silverware Basket Details | |
| Culinary Basket | No |
| Silverware Basket Covers | Yes |
| Silverware Basket Location | Bottom Rack |
| Silverware Basket Type | Full Length Non Splittable |
| Smart Compatibility | |
| Connectivity | No |
| Works With | No |
