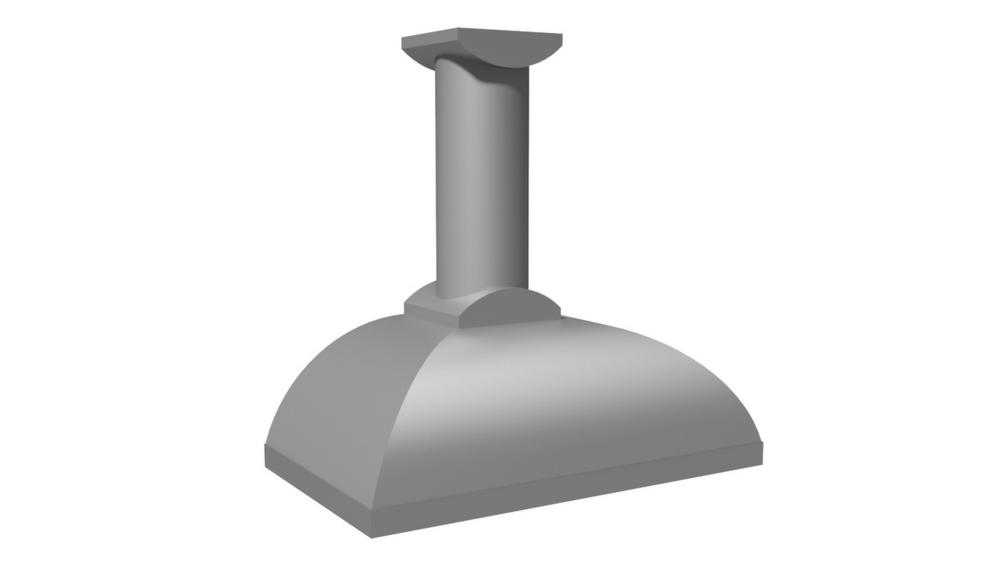

36" Wall Mounted Contemporary Range Hood
Model: XLH12236BSS
36" Wall Mounted Contemporary Range Hood
Model: XLH12236BSSQuick Specs
36" Wall Mounted Contemporary Range Hood is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Convex with lip styling. Lip trim is included - specify real brass [B], real copper [C], mirror stainless steel [M], or brushed stainless steel [S]. Simply select the model you need, and then specify the lip treatment finish. Hood available in stainless steel. Recommended mounting height 24" above the cooking surface. Shown with matching finished duct pipe and trim collars [sold separately], available in standard sizes for 7', 8', and 9' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 36" |
| DEPTH : | 21" |
| HEIGHT : | 12" |
| CFM : | 600 |
| SONES : | 6.5 |
| Amps : | 4.0 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 600 |
| Equiv. CFM$ | 900 |
| CFM [email protected]" | 531 |
| CFM [email protected]" | 480 |
| CFM [email protected]" | 430 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.5 |
- 600 CFM B200 Dual Blower (Top View)
- (Front View)
- Back Venting Guide
- Finished Round Duct (two required) Note: Top end of finished round duct is crimped to allow for duct connection in the ceiling (crimp is not included in the overall height of the finished round duct).
- Technical Specifications
- Installation Instructions
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(XLH12 - Premier Magic Lung(R) Contemporary Wall Mounted)
- Round Duct Collar Square Duct Collar 10" x 10" Square Duct Cover
- Dimension Diagram(XLH12-236B SS)
 | |
|---|---|
