48" Liner Inserts Range Hood
Model TLH248
Authorized Dealer
Loading...
Authorized Dealer
48" Liner Inserts Range Hood
Model TLH248Quick Specs
Width
48"
Depth
19.5"
Height
24.25"
Energy
NO
48" Liner Inserts Range Hood is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
48"
Depth
19.5"
Height
24.25"
Energy Star Rated
NO

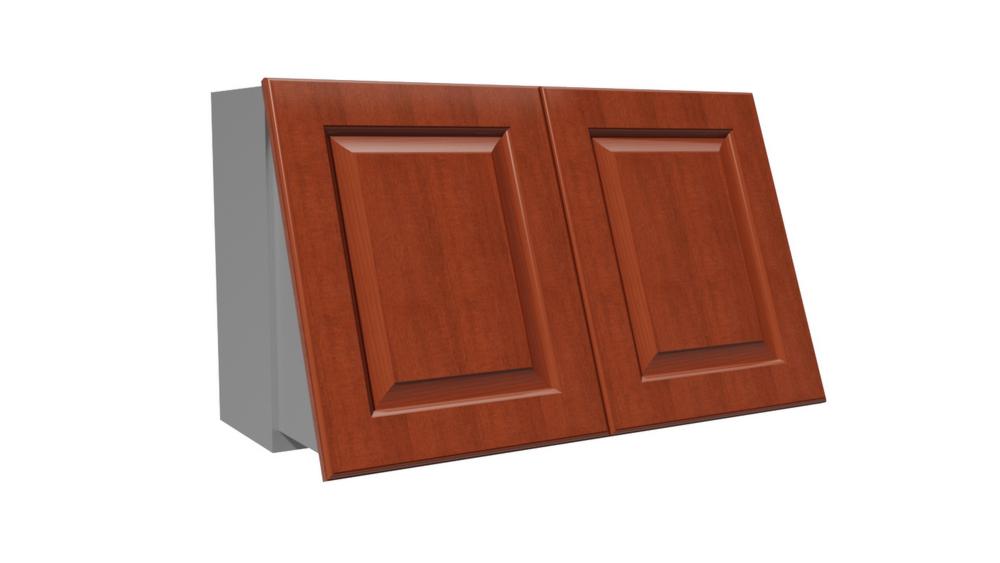

This hidden canopy, fronted with your own cabinet material provides visual continuity of cabinetry. Easy to pull out and close, this model successfully blends into cabinets. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. Recommended mounting height is 23 3/4" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 48" |
| DEPTH : | 19 1/2" |
| HEIGHT : | 24 1/4" |
| CFM : | 600 |
| SONES : | 6.5 |
| Amps : | 4.0 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 600 |
| Equiv. CFM$ | 900 |
| CFM [email protected]" | 531 |
| CFM [email protected]" | 480 |
| CFM [email protected]" | 430 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.5 |
