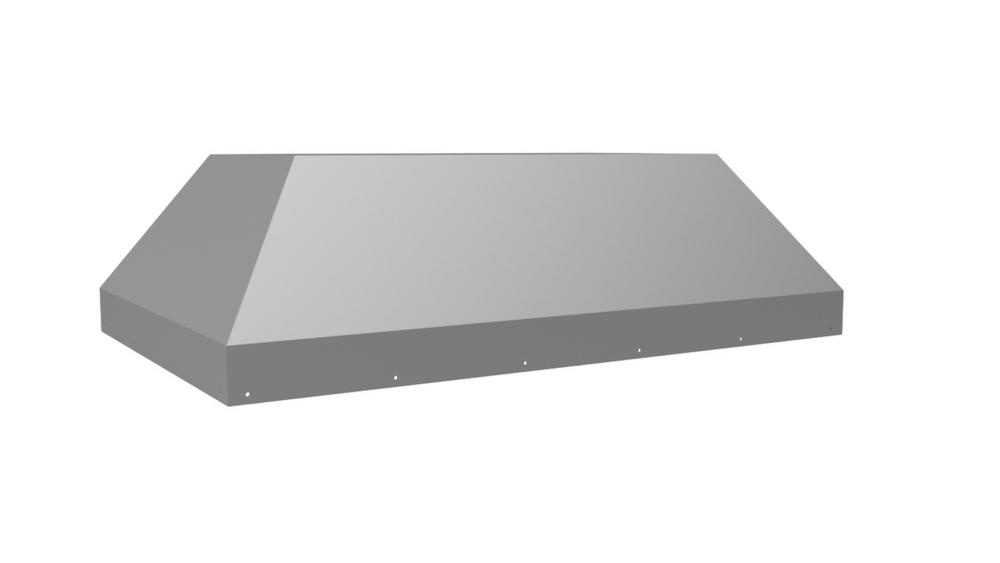

48" Liner Inserts Island Range Hood
Model TH248SLE
Authorized Dealer
Loading...
Authorized Dealer
48" Liner Inserts Island Range Hood
Model TH248SLEQuick Specs
Depth
27
Height
12
Energy
NO
48" Liner Inserts Island Range Hood is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
Sale Price
Sale price
$2,270.79
Regular price
$2,681.00
Unit price
/
Unavailable
You save 15%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
27
Height
12
Energy Star Rated
NO
The standard ventilation of the THSLE model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 27" deep. Recommended mounting height is 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit(BR)
| WIDTH : | 48" |
| DEPTH : | 27" |
| HEIGHT : | 12" |
| CFM : | 550 |
| SONES : | 6.0 |
| Amps : | 4.0 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | T200 Island Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 550 |
| Equiv. CFM$ | 900 |
| CFM [email protected]" | 507 |
| CFM [email protected]" | 471 |
| CFM [email protected]" | 431 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.0 |
 48" Liner Inserts Island Range Hood$2,270.79 | |
|---|---|
| Design Features | |
Product Type |
|
| Dimensions & Capacity | |
Depth |
|
Height |
|
| Appearance & Specifications | |
Configuration |
|
Energy Star Rated |
|
