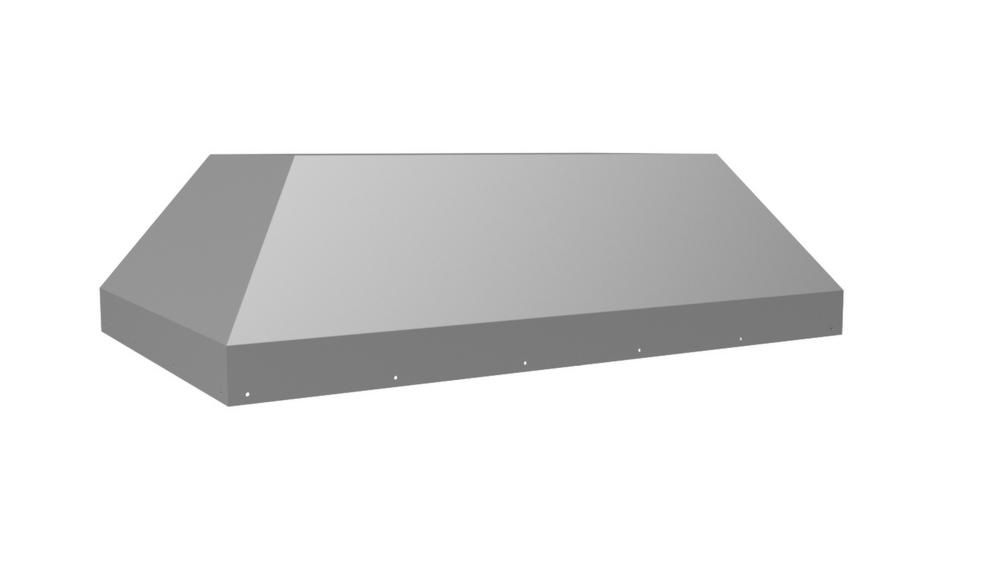

36" 550 CFM Island Liner Insert Stainless Steel
Model: TH236SLESS
Authorized Dealer
Loading...
Authorized Dealer
36" 550 CFM Island Liner Insert Stainless Steel
Model: TH236SLESSQuick Specs
Width
36"
Depth
27"
Height
12"
ADA
YES
Wifi
NO
CFM
550 CFM
Energy
NO
36" 550 CFM Island Liner Insert Stainless Steel is backordered and will ship as soon as it is back in stock.
Estimated to ship in 2-3 weeks
Available to Order
Sale Price
Sale price
$2,676.00
Regular price
$3,197.00
Unit price
/
Unavailable
You save 16%
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Width
36"
Depth
27"
Height
12"
ADA
YES
Wifi Connected
NO
Vent CFM
550 CFM
Energy Star Rated
NO
- $2,668
- 36 x 27 x 12
- 68
The standard ventilation of the THSLE model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 27" deep. Recommended mounting height is 30" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit(BR)
| WIDTH : | 36" |
| DEPTH : | 27" |
| HEIGHT : | 12" |
| CFM : | 550 |
| SONES : | 6.0 |
| Amps : | 4.0 |
| Num. Lights : | 4 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | T200 Island Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 550 |
| Equiv. CFM$ | 900 |
| CFM [email protected]" | 507 |
| CFM [email protected]" | 471 |
| CFM [email protected]" | 431 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.0 |
- $2,668
- 36 x 27 x 12
- 68
 | |
|---|---|
