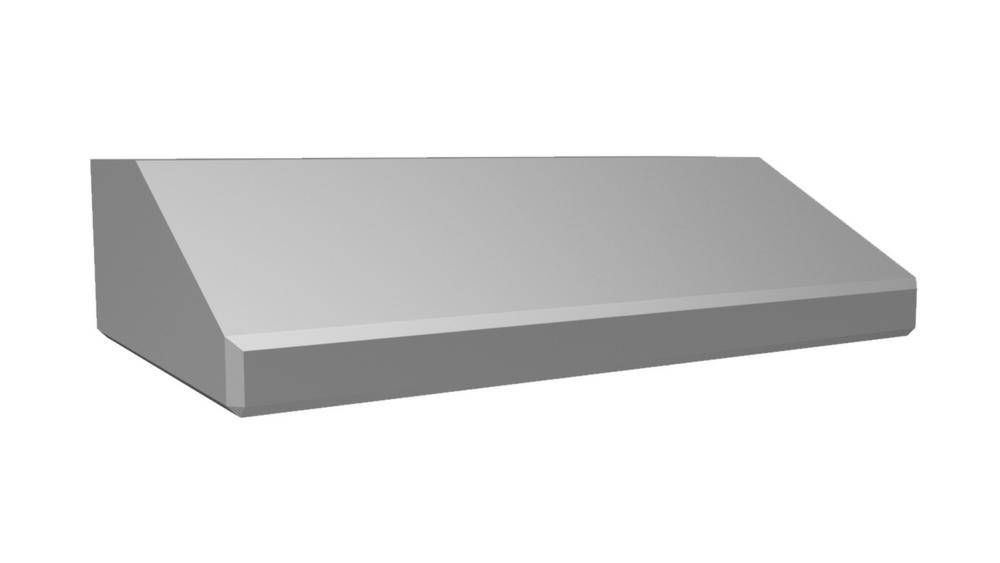

42" Under Cabinet Range Hood
Model SLH9342
Authorized Dealer
Loading...
Authorized Dealer
42" Under Cabinet Range Hood
Model SLH9342Quick Specs
Width
42"
Depth
21"
Height
9"
Energy
NO
42" Under Cabinet Range Hood is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
42"
Depth
21"
Height
9"
Energy Star Rated
NO
Soft cut corners of the patented Emerald lip yield a contemporary feel. Includes the Magic Lung® blower system. Lights feature a dual switch for dimming. Equipped with the SensaSource® heat sensor. Available in popular standard or custom paint colors, stainless steel, real brass, real copper or hammered copper. Recommended mounting height is 24" - 27" above the cooking surface. Suitable for use in covered outdoor applications when installed in a GFCI protected branch circuit. Also available in custom sizes.(BR)
| WIDTH : | 42" |
| DEPTH : | 21" |
| HEIGHT : | 9" |
| CFM : | 900 |
| SONES : | 6.3 |
| Amps : | 6.0 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual & B100 Single |
| Volts | 115 |
| Amps+ | 6.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 900 |
| Equiv. CFM$ | 1350 |
| CFM [email protected]" | 804 |
| CFM [email protected]" | 725 |
| CFM [email protected]" | 655 |
| Min. Round Duct Size | 10" (79 sq. in.) |
| Sones# | 6.3 |
- 900 CFM B200 Dual & B100 Single Blower (Top View) VP562 Transition (Optional) For B300 (B200 Dual Blower & B100 Single Blower) VP562 transition centers outlet over top of hood.
- Back Venting Guide
- Technical Specifications
- Installation Instructions
- Back Venting Guide
- Ducting and Parts
- Dimension Diagram(SLH9 - Premier Magic Lung(R) Under Cabinet)
- Dimension Diagram(SLH9-342)
