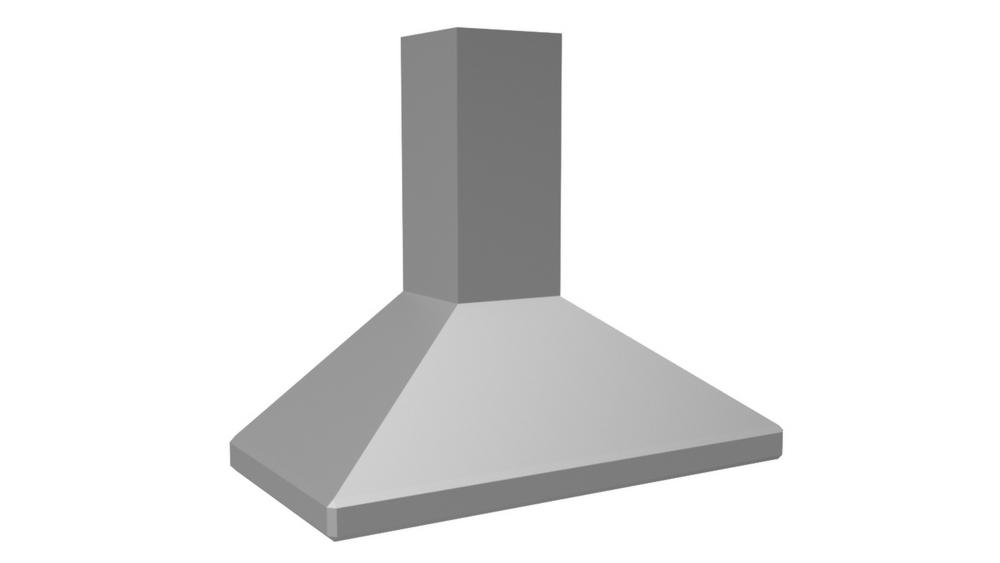

48" Wall Mounted Euro Style Range Hood
Model SLDH1424848" Wall Mounted Euro Style Range Hood
Model SLDH14248Quick Specs
48" Wall Mounted Euro Style Range Hood is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
This Euroline Series with Emerald Lip is a versatile European style hood that can stand alone or be installed between cabinets. Heat lamps are not available on this model. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel.] Not available in real brass, real copper, or hammered copper. Recommended mounting height is 24" from the cooking surface. Shown with matching wall mount duct cover [sold separately], available in standard sizes for 7', 8', and 9' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 48" |
| DEPTH : | 21" |
| HEIGHT : | 14" |
| CFM : | 600 |
| SONES : | 6.5 |
| Amps : | 4.0 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 600 |
| Equiv. CFM$ | 900 |
| CFM [email protected]" | 531 |
| CFM [email protected]" | 480 |
| CFM [email protected]" | 430 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.5 |
