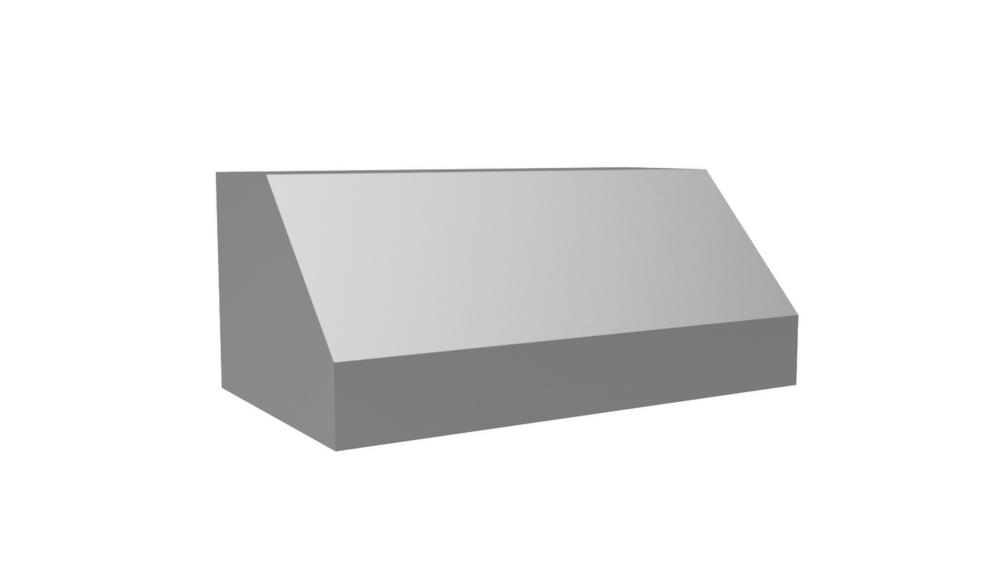

42" Wall Mounted Range Hood
Model PRH1814242" Wall Mounted Range Hood
Model PRH18142Quick Specs
42" Wall Mounted Range Hood is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Linear styling perfectly accents the professional-styled kitchen. Includes the Magic Lung® blower system. Lights feature a dual switch for dimming. Equipped with the SensaSource® heat sensor. Available in popular standard or custom paint colors, stainless steel, real brass, real copper or hammered copper. Recommended mounting height is 30" above the cooking surface. Suitable for use in covered outdoor applications when installed in a GFCI protected branch circuit. Also available in custom sizes.(BR)
| WIDTH : | 42" |
| DEPTH : | 24" |
| HEIGHT : | 18" |
| CFM : | 300 |
| SONES : | 5.4 |
| Amps : | 2.5 |
| Num. Lights : | 3 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B100 Single |
| Volts | 115 |
| Amps+ | 2.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 300 |
| Equiv. CFM$ | 450 |
| CFM [email protected]" | 273 |
| CFM [email protected]" | 245 |
| CFM [email protected]" | 225 |
| Min. Round Duct Size | 6" (28 sq. in.) |
| Sones# | 5.4 |
