Quick Specifications
Quick Specifications
- Type : HOODS
- Style : DUCTED HOOD
- Width : 42"
- Height : 18"
- Depth : 24"
- Energy Star Rated : NO
Documents
Documents
- 900 CFM B200 Dual & B100 Single Blower (Top View) VP562 Transition (Optional) For B300 (B200 Dual Blower & B100 Single Blower) VP562 transition centers outlet over top of hood.
- Back Venting Guide
- Technical Specifications
- Back Venting Guide
- Installation Instructions
- Dimension Diagram(NPH18 - Premier Magic Lung(R) Professional/Standard Wall Mounted)
- Ducting and Parts
- Dimension Diagram(NPH18-342)
Delivery
Delivery
Professional delivery and installation is available for every product we sell. We would be happy to coordinate delivery and installation for you.
Warranty
Warranty
Extended warranties are usually very inexpensive and can save you thousands in the future. Some can even cover extra costs that result, such as cost of food that spoils when your fridge dies. It's simple and inexpensive to purchase extended warranties and one of the smartest ways to protect your investment.
Appliances can be large, heavy and expensive. You probably don't have the special tools or expertise needed to fix them in a crisis. If you can spare a few thousand dollars without batting an eyelash for new appliances should they break tomorrow, don't buy a warranty. But if you're like most of us, protect yourself by purchasing inexpensive extended warranties when you buy a new product and save yourself big money in the long run.

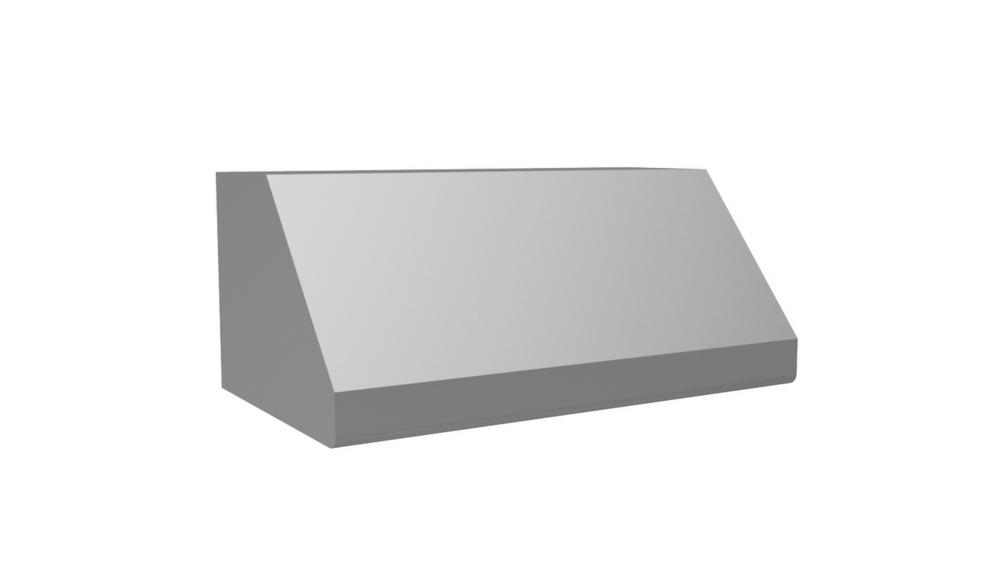

Rounded front lip provides a modern visual impact. Includes the Magic Lung® blower system. Lights feature a dual switch for dimming. Equipped with the SensaSource® heat sensor. Available in popular standard or custom paint colors, stainless steel, real brass, real copper or hammered copper. Recommended mounting height is 30" above the cooking surface. Suitable for use in covered outdoor applications when installed in a GFCI protected branch circuit. Also available in custom sizes.(BR)
WIDTH : | 42" |
DEPTH : | 24" |
HEIGHT : | 18" |
CFM : | 900 |
SONES : | 6.3 |
Amps : | 6.0 |
Num. Lights : | 3 |
ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
Model | B200 Dual & B100 Single |
Volts | 115 |
Amps+ | 6.0 |
Hz | 60 |
RPM | 1550 |
CFM SP@0.0" | 900 |
Equiv. CFM$ | 1350 |
CFM SP@0.1" | 804 |
CFM SP@0.2" | 725 |
CFM SP@0.3" | 655 |
Min. Round Duct Size | 10" (79 sq. in.) |
Sones# | 6.3 |
