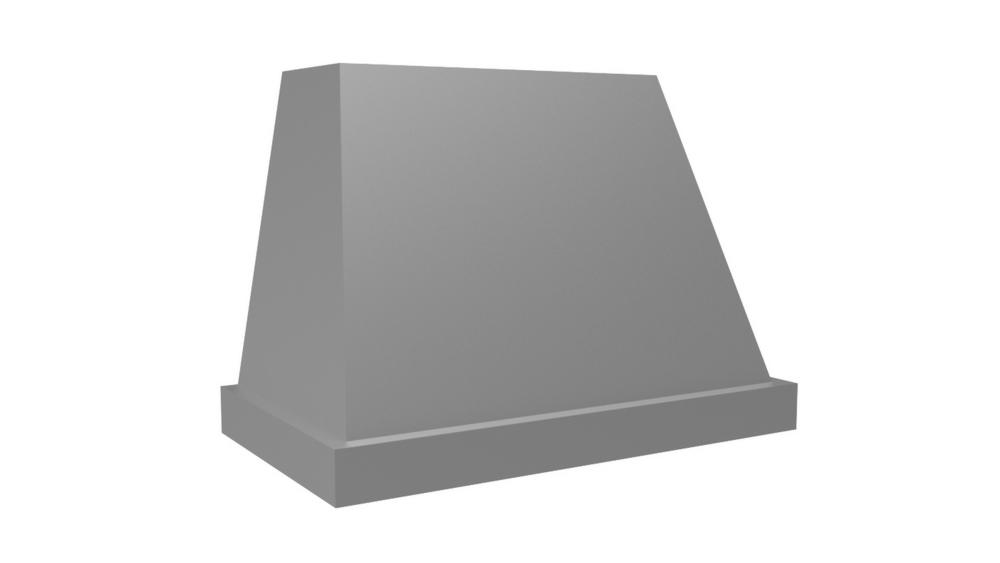

36" Wall Mounted Designer Series Range Hood
Model JPH236C2
Authorized Dealer
Loading...
Authorized Dealer
36" Wall Mounted Designer Series Range Hood
Model JPH236C2Quick Specs
Width
36"
Depth
24"
Height
30"
Energy
NO
36" Wall Mounted Designer Series Range Hood is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
36"
Depth
24"
Height
30"
Energy Star Rated
NO
Pyramid with offset lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.(BR)
| WIDTH : | 36" |
| DEPTH : | 24" |
| HEIGHT : | 30" |
| CFM : | 600 |
| SONES : | 6.5 |
| Amps : | 4.0 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 600 |
| Equiv. CFM$ | 900 |
| CFM [email protected]" | 531 |
| CFM [email protected]" | 480 |
| CFM [email protected]" | 430 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.5 |
