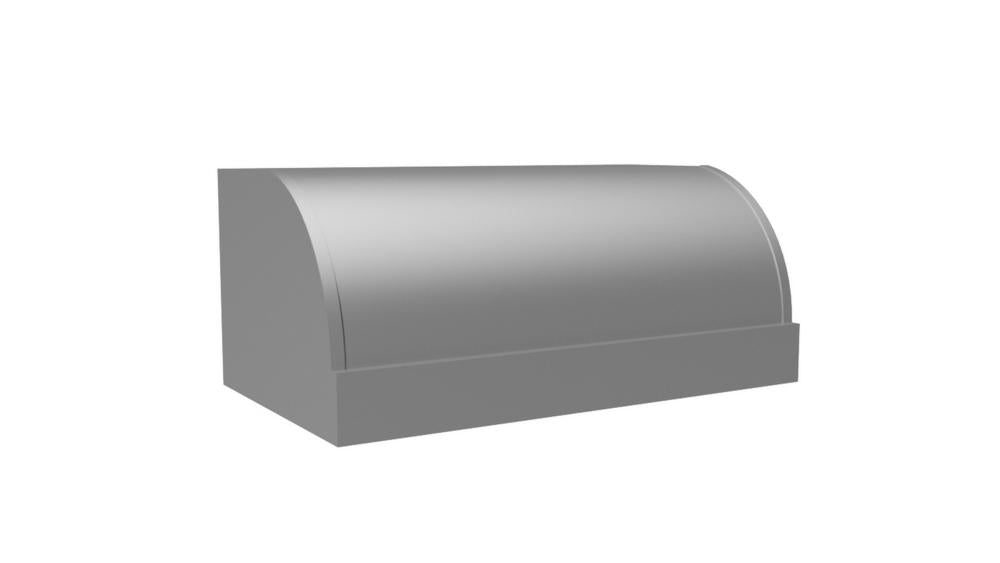

42" Wall Mounted Range Hood
Model CXH18M4242" Wall Mounted Range Hood
Model CXH18M42Quick Specs
42" Wall Mounted Range Hood is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
Subtle, stainless steel bands and rounded shape of this European wall-mount hood create a unique design. Click on the models for a list of our base model numbers for standard sizes. Hood is available in stainless steel. Recommend mounting height is 30" above the cooking surface. Matching wall mount duct cover [sold separately] is available in standard sizes for 8', 9', and 10' ceiling heights or in custom sizes. PLEASE NOTE, TWO BLOWER OPTIONS ARE AVAILABLE. M600 [630 CFM] AND M1200 [1035 CFM].(BR)
| WIDTH : | 42" |
| DEPTH : | 24" |
| HEIGHT : | 18" |
| CFM : | See Chart |
| SONES : | N/A |
| Amps : | See Chart |
| Num. Lights : | 3 |
| (Chart A) Electrical/Mechanical Specifications For Blower Unit | |
| Model | M600 Single |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 630 |
| CFM [email protected]" | 625 |
| CFM [email protected]" | 615 |
| CFM [email protected]" | 600 |
| CFM [email protected]" | 580 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M600 w/WHM300 Harness |
| Volts | 115 |
| Amps* | 5.0 |
| Hz | 60 |
| CFM [email protected]" | 302 |
| CFM [email protected]" | 300 |
| CFM [email protected]" | 295 |
| CFM [email protected]" | 288 |
| CFM [email protected]" | 278 |
| Min. Round Duct Size | 6" (28in.^2) |
| - | |
| Model | M1200 Dual |
| Volts | 115 |
| Amps* | 10.0 |
| Hz | 60 |
| CFM [email protected]" | 1035 |
| CFM [email protected]" | 1015 |
| CFM [email protected]" | 1000 |
| CFM [email protected]" | 995 |
| CFM [email protected]" | 915 |
| Min. Round Duct Size | 10" (79in.^2) |
