36" Wall Mounted Range Hood
Model CWEH6K3636" Wall Mounted Range Hood
Model CWEH6K36Quick Specs
36" Wall Mounted Range Hood is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

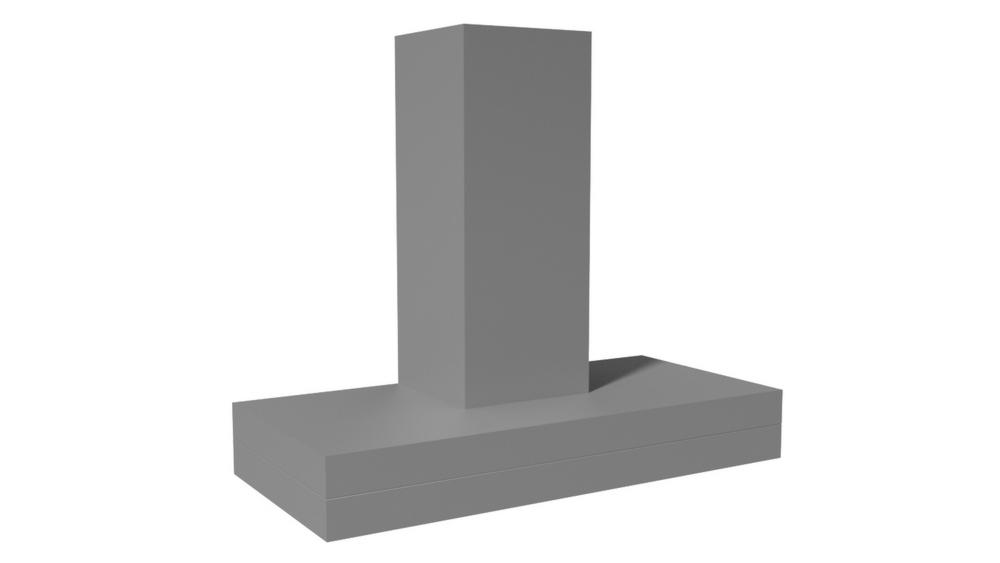

Compact split-layered visual effect is the ideal addition to any contemporary kitchen. Includes the Power Lung K Series blower system, which is perfect for light to moderate cooking [sound rating is 7.4 Sones at high speed]. Lights feature a dual switch for dimming. Available in popular paint colors [biscuit, black, gunsmoke and white only] and stainless steel. Shown with matching wall mount duct cover [sold separately]. Recommended mounting height is 24" above the cooking surface. Suitable for use in covered outdoor applications when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 36" |
| DEPTH : | 19 1/2" |
| HEIGHT : | 6" |
| CFM : | 250 |
| SONES : | 7.4 |
| Amps : | 3.5 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | K250 (Top Vent) |
| Volts | 115 |
| Amps+ | 3.5 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 250 |
| Equiv. CFM$ | 375 |
| CFM [email protected]" | 223 |
| CFM [email protected]" | 220 |
| CFM [email protected]" | 190 |
| Min. Round Duct Size | 7" (38 sq. in.) |
| Sones# | 7.4 |
