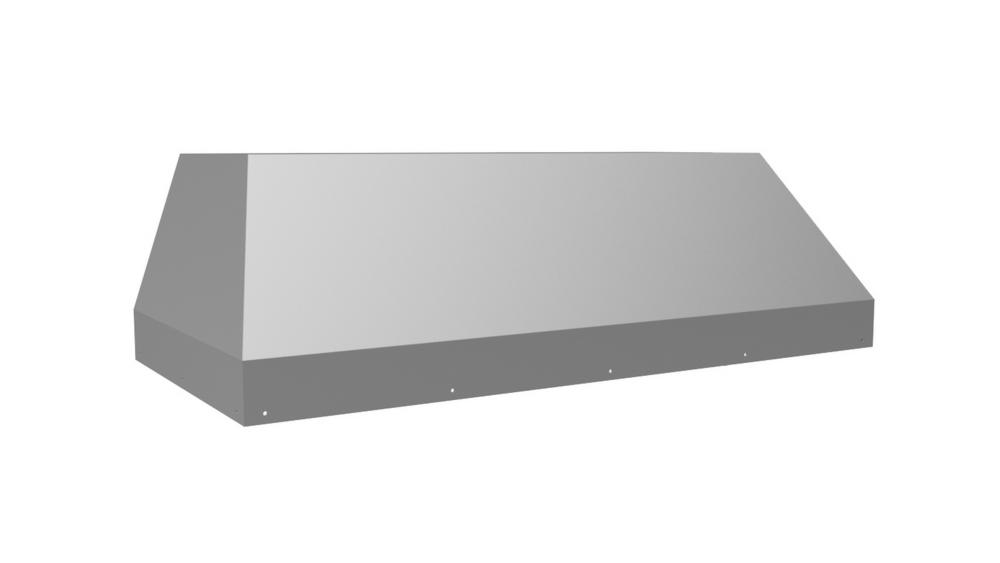

34 3/8" Liner Inserts Range Hood
Model BH234SLD
Authorized Dealer
Loading...
Authorized Dealer
34 3/8" Liner Inserts Range Hood
Model BH234SLDQuick Specs
Width
34 3/8
Depth
19 1/4
Height
12
Energy
NO
34 3/8" Liner Inserts Range Hood is backordered and will ship as soon as it is back in stock.
This item qualifies for free delivery
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/29/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Out of stock
Quick Specs
Width
34 3/8
Depth
19 1/4
Height
12
Energy Star Rated
NO
The standard ventilation of the BHSLD model is intended for use over standard cooking equipment. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted or stainless steel]. All liners in this series are 19 1/4" deep. Recommended mounting height is 24" - 27" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.(BR)
| WIDTH : | 34 3/8" |
| DEPTH : | 19 1/4" |
| HEIGHT : | 12" |
| CFM : | 600 |
| SONES : | 6.5 |
| Amps : | 4.0 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM [email protected]" | 600 |
| Equiv. CFM$ | 900 |
| CFM [email protected]" | 531 |
| CFM [email protected]" | 480 |
| CFM [email protected]" | 430 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.5 |
