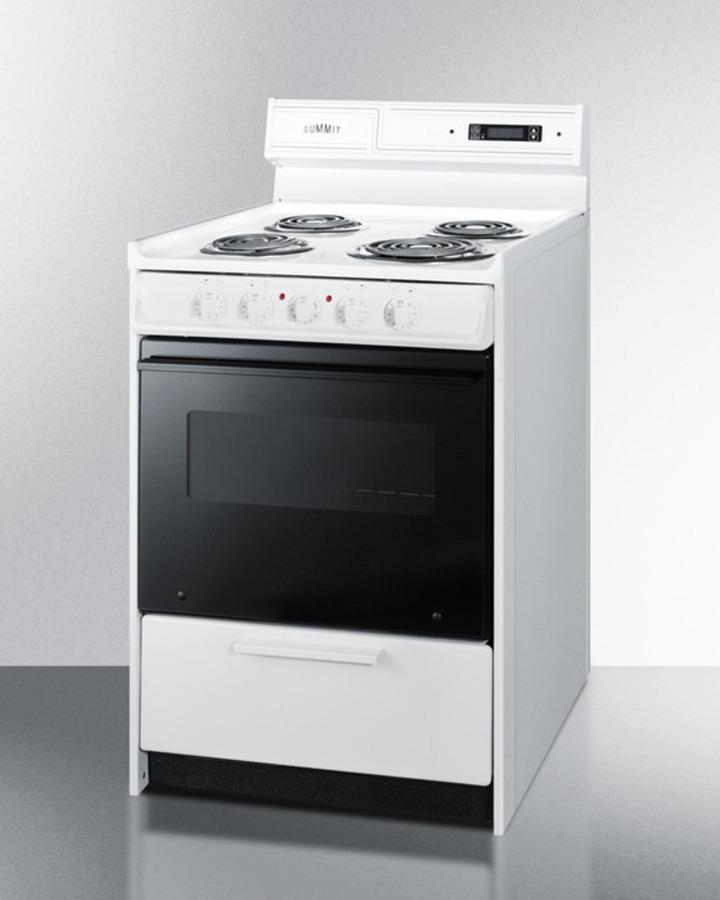

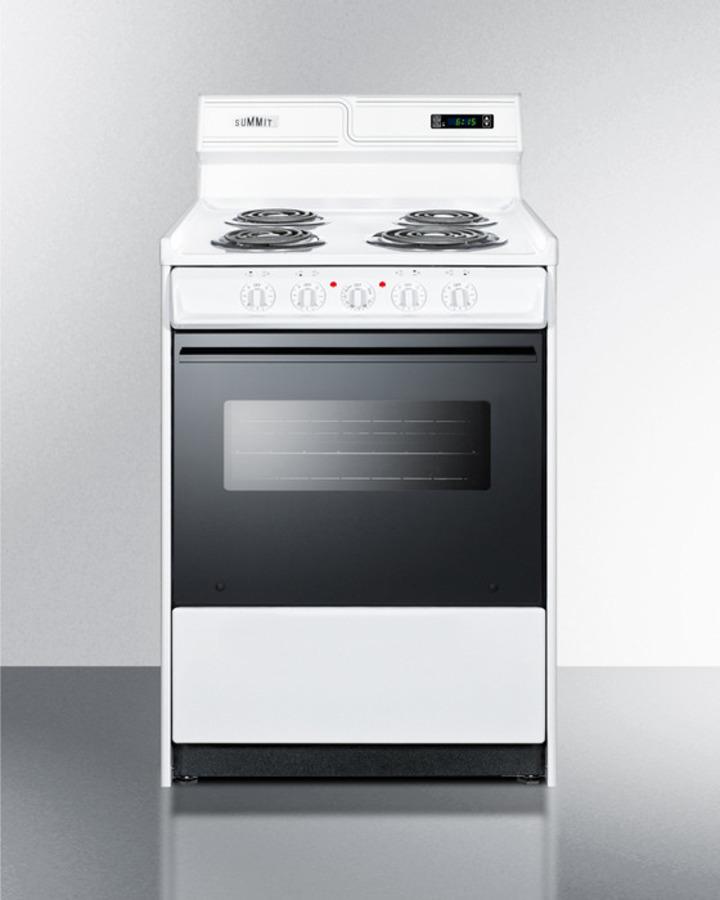

24" Wide Electric Coil Top Range
Model WEM630DK
24" Wide Electric Coil Top Range
Model WEM630DKQuick Specs
24" Wide Electric Coil Top Range is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Made in the USA
- Designed and constructed domestically
- Slim 24 inch width
- Apartment-sized width offers all the functionality you need in a smaller footprint
- 24 inch depth
- Shallower fit is ideal for L-shaped and galley kitchens\t
- Storage compartment
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Four coil elements
- Three standard 6" and one large 8" element\t
- Safety burners with low wattage outputs
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off\t
- Chrome drip pans
- Each coil element includes a removable chrome pan for easier cleaning
- Waist-high broiler\t
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor\t
- Oven window and light
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door\t
- Porcelain and steel construction
- Solid construction built to hold up to everyday use
- Recessed oven door in black glass\t
- Smart design limits the depth and protects adjacent cabinets
- Deluxe backguard
- 8" high backguard helps to protect your walls from spills and splashes
- Digital clock and timer
- Backguard includes time readout
- Upfront oven/burner controls
- Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust\t
- Push-to-turn knobs
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn\t
- Indicator lights
- Control panel includes an 'on' light for the oven and burners for added safety when using the range\t
- Removable oven door and range top
- Allows for easier cleaning as needed\t
- Anti-tip bracket
- Included for user installation to help prevent tipping
- Broiler tray included
- Two-piece porcelain broiler tray with grease well\t
- Cord not included
- Compatible with standard 40 amp 3 or 4-wire range cords\t
- Designed and constructed domestically
- Apartment-sized width offers all the functionality you need in a smaller footprint
- Smart design limits the depth and protects adjacent cabinets
- 8" high backguard helps to protect your walls from spills and splashes
- Backguard includes time readout
- Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Allows for easier cleaning as needed
- Included for user installation to help prevent tipping
- Two-piece porcelain broiler tray with grease well
- Compatible with standard 40 amp 3 or 4-wire range cords
- Shallower fit is ideal for L-shaped and galley kitchens
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Each coil element includes a removable chrome pan for easier cleaning
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Solid construction built to hold up to everyday use

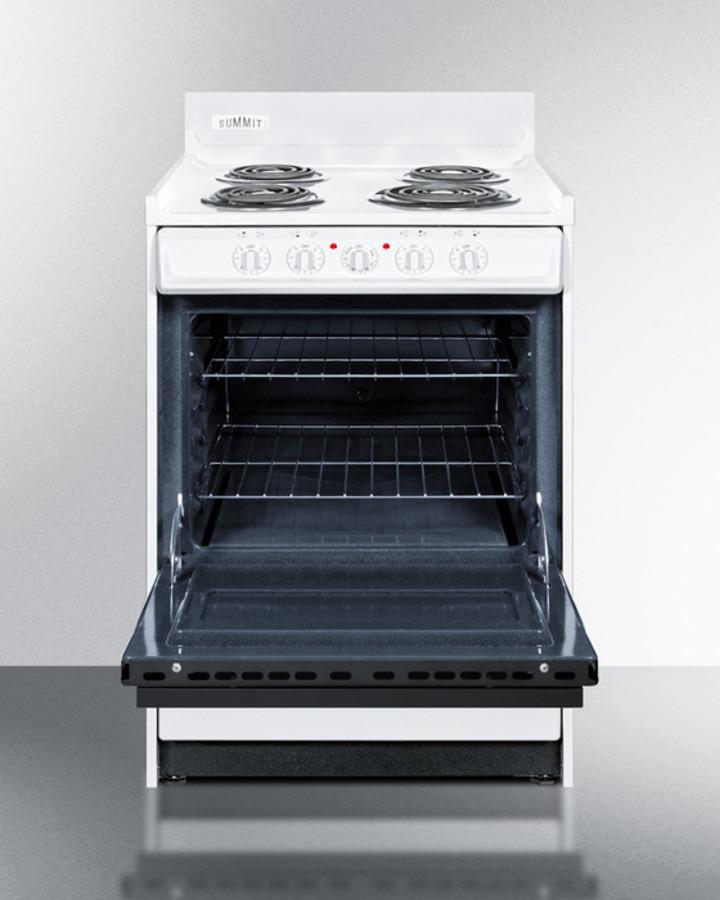

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The WEM630DK is an apartment-sized 220V electric range sized at just 24" wide, with a generous 2.92 cu.ft oven interior that can accommodate large trays. The black glass oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines. The WEM630DK comes in a classic white finish to suit any kitchen. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 30", and 36" wide fits.
| Overview | |
| Nominal Height | 44.0" (112 cm) |
| Height of Cabinet | 44.0" (112 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 24.0" (61 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 24.0" (61 cm) |
| Door | Black |
| Cabinet | White |
| US Electrical Safety | CSA |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 155.0 lbs. (70 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101003580 |
| Electric Range | |
| Oven Capacity | 2.92 cu.ft. (83 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 675.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 8.0" (20 cm) |
| Element #4 Wattage | 950.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Backguard | Yes |
| Backguard Display | Yes |
| Oven Interior Height | 14.0" (36 cm) |
| Oven Interior Width | 19.0" (48 cm) |
| Oven Interior Depth | 19.0" (48 cm) |
| Power Source | 220V |
| Individual Indicator Lights | Yes |
| Broiler Location | Inside Oven |
| Oven Door | Black Glass |
- Designed and constructed domestically
- Apartment-sized width offers all the functionality you need in a smaller footprint
- Smart design limits the depth and protects adjacent cabinets
- 8" high backguard helps to protect your walls from spills and splashes
- Backguard includes time readout
- Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust
- Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
- Control panel includes an 'on' light for the oven and burners for added safety when using the range
- Allows for easier cleaning as needed
- Included for user installation to help prevent tipping
- Two-piece porcelain broiler tray with grease well
- Compatible with standard 40 amp 3 or 4-wire range cords
- Shallower fit is ideal for L-shaped and galley kitchens
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Three standard 6" and one large 8" element
- Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Each coil element includes a removable chrome pan for easier cleaning
- Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Solid construction built to hold up to everyday use
