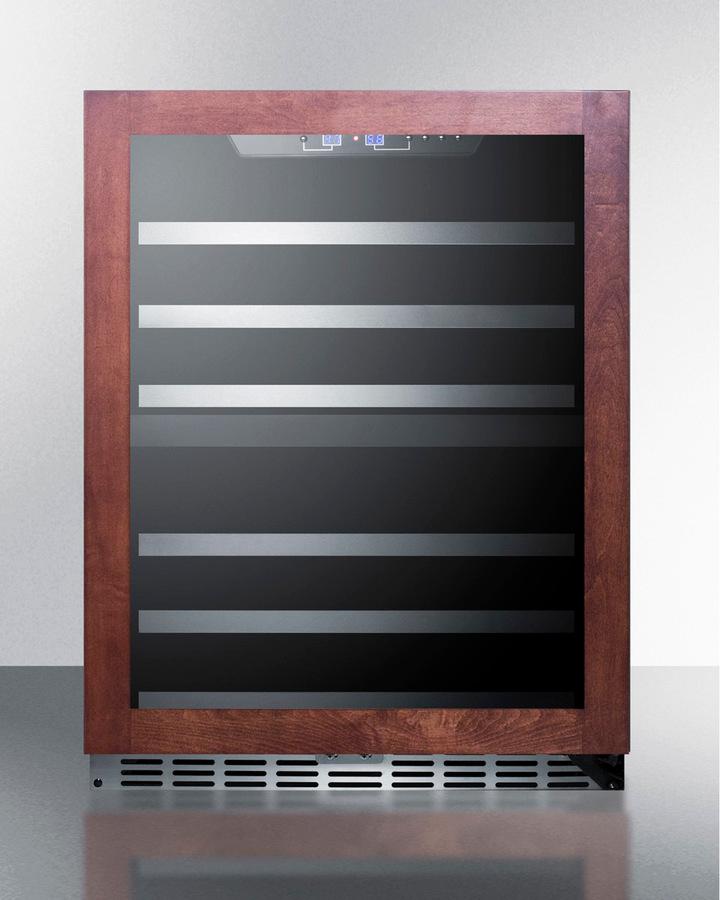

24" Wide Built-in Wine Cellar
Model SWC532LBISTPNR
24" Wide Built-in Wine Cellar
Model SWC532LBISTPNRQuick Specs
24" Wide Built-in Wine Cellar is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs

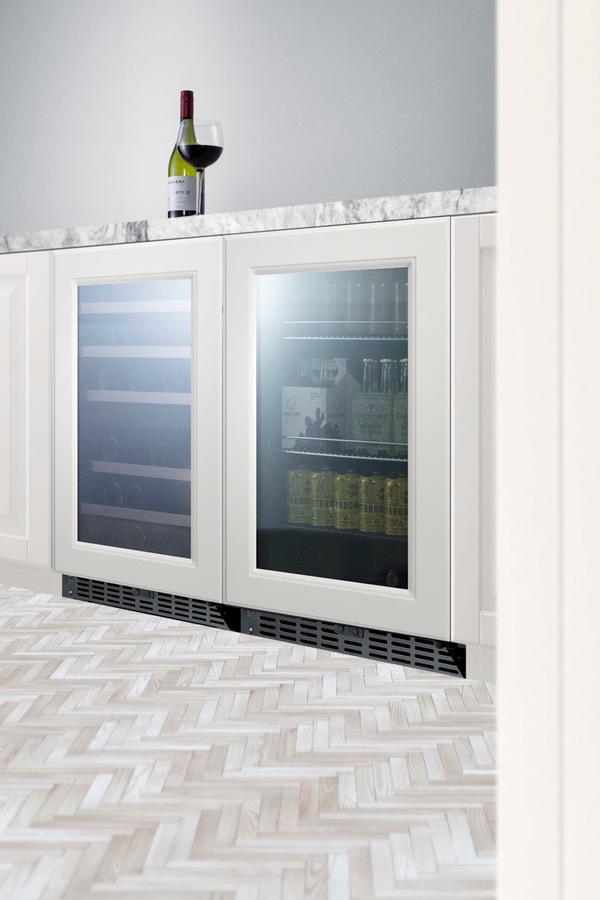

- Make the best use of space by installing your appliance under the counter
- Lower zone for reds has a temperature range of 54 to 72 F; Upper zone stores whites and sparkling wine between 41 to 54 F
- In the event of power failure, all previous temperature settings are automatically saved
- User reversible door swing
- Allows the unit to be used freestanding
- Ships with a stainless steel handle. Customers can also substitute their own for a custom look
- Environmentally friendly design with no ozone-damaging chemicals
- Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays that can show the temperature in Celsius or Fahrenheit

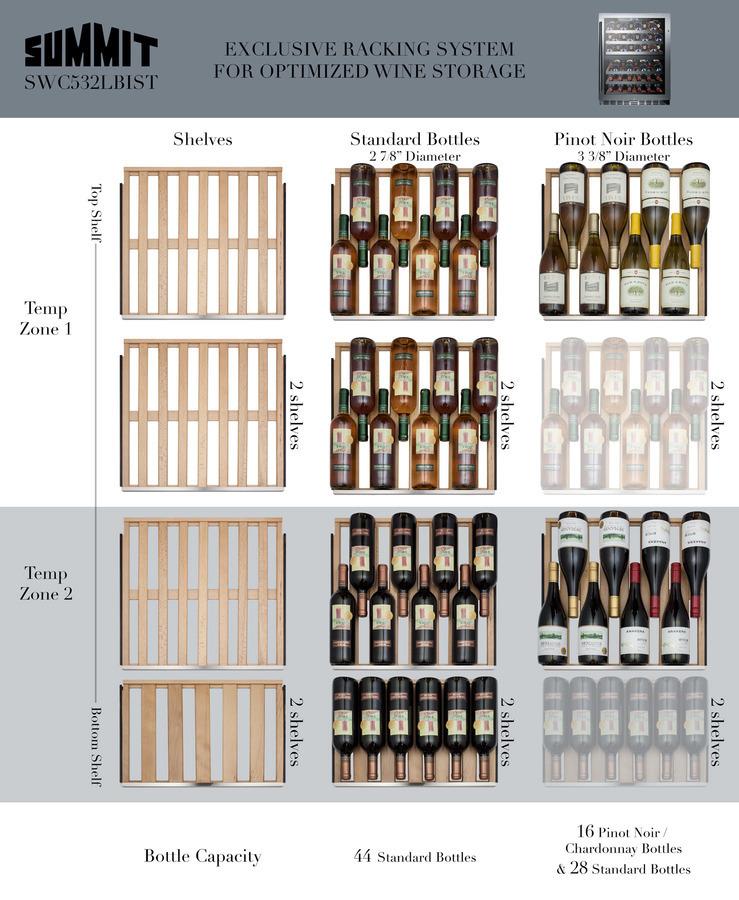

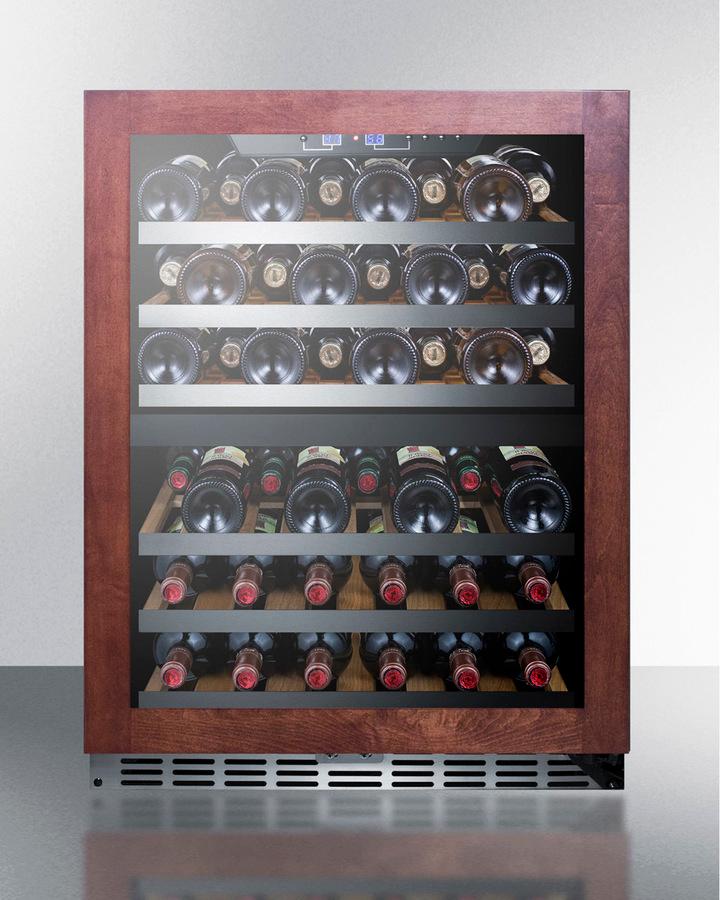

- Interior holds up to 44 standard Bordeaux style bottles. Lower red wine section can store up to 16 larger Burgundy/Pinot Noir style bottles as well
- Door frame can be customized with a custom overlay panel (panel frame: 29 7/8" H x 23 3/8" W; trim is 1 3/4" high and wide)
- Shelves securely glide all the way out for easier loading and unloading
- Reduced maintenance with auto defrost system
- Classic style with an added touch of elegance
- Provides a full display of your collection
- Elegant lighting in an attractive white hue
SUMMIT offers a deluxe line of built-in undercounter wine cellars designed to bring luxury and convenience to the home. The SWC532LBISTPNR is a dual zone wine cellar sized with an easy-fitting 24" footprint. The front-breathing system allows built-in installation under counters, while the fully finished black cabinet also enables freestanding use. The reversible glass door features a panel-ready door trim, allowing you to customize the front and match surrounding cabinetry. Interior LED lighting in an elegant white hue provides a stunning view. Inside, the SWC532LBISTPNR is divided into two temperature zones for optimum storage. Each section has three slide-out stainless steel trimmed wooden shelves that extend all the way out for easier loading. The interior can hold up to 44 standard Bordeaux style bottles, or 28 standard bottles and an additional 16 Burgundy bottles with a larger diameter. The lower zone is designed for red wine stored between 54 and 72 F, and while the upper zone operates between 41 and 54 to best store white wine. The fan-cooled interior utilizes automatic defrost for easy user maintenance. With its elegant design and user-friendly features, the SWC532LBISTPNR brings quality wine storage and stunning style to any undercounter space. For a matching customizable beverage center, see the SCR2466PNR.
| Overview | |
| Height of Cabinet | 33.5" (85 cm) |
| Height to Hinge Cap | 34.0" (86 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.63" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 46.0" (117 cm) |
| Capacity | 5.43 cu.ft. (154 L) |
| Bottles | 44 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 112.0 lbs. (51 kg) |
| Shipping Weight | 117.0 lbs. (53 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056289 |
| Wine Cellar | |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 103.0 |
| Interior Height 1 | 13.0" (33 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.63" (47 cm) |
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 20.5" (52 cm) |
| Compressor Step Depth | 6.5" (17 cm) |
| Temperature Range | 41 to 72 F |
| Interior Height 2 | 13.25" (34 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.63" (47 cm) |
