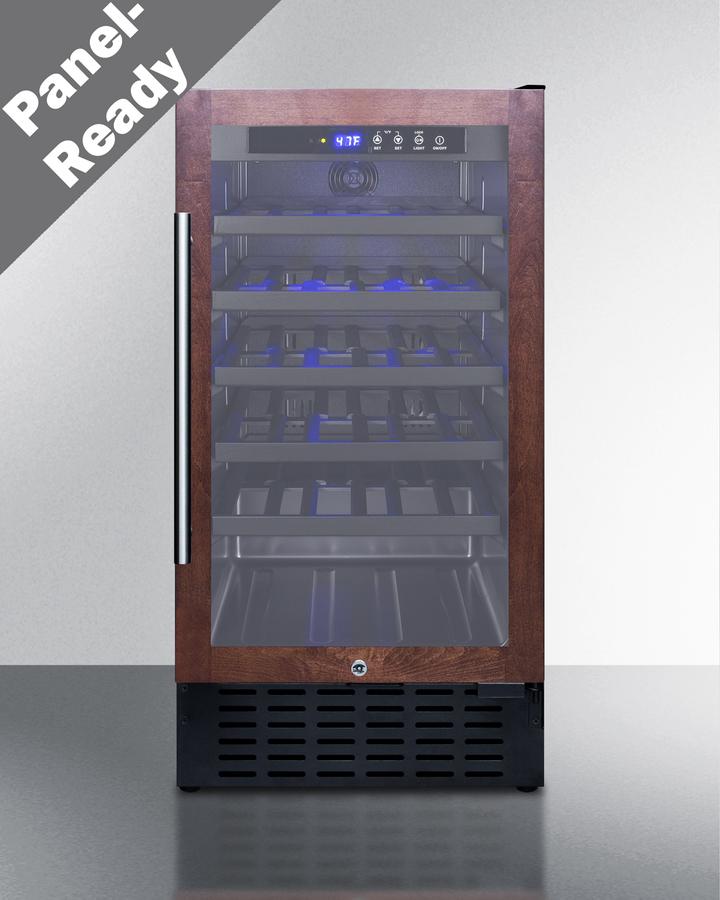

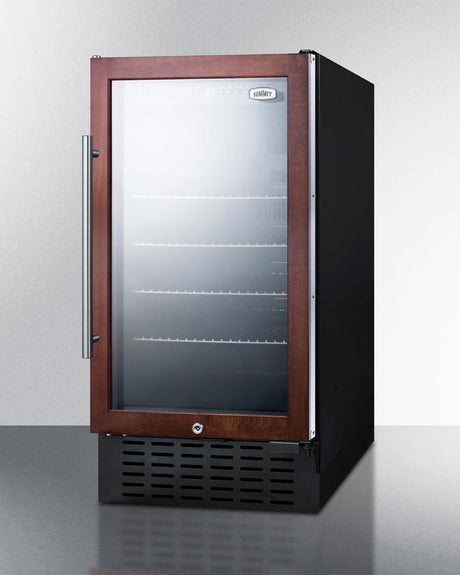

18" Wide Undercounter Wine Cellar (panel Not Included)
Model SWC1840BPNR
18" Wide Undercounter Wine Cellar (panel Not Included)
Model SWC1840BPNRQuick Specs
18" Wide Undercounter Wine Cellar (panel Not Included) is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Make the best use of space by installing your appliance under the counter
- ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
- Reduced maintenance with the convenience of auto defrost
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
- Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
- Double pane tempered glass to provide an elegant display with added protection
- Keyed security on the door
- Electronic controls for precise temperature management.
- Temperature readout can be shown in Celsius or Fahrenheit
- Gentle illumination with an on/off switch
- 5 shelves offer the perfect storage for wine bottles in a classic wooden finish
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. Sized just under 18" wide, the SWC1840BPNR is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). A factory-installed lock offers added security as needed. NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD. Users provide their own handle. Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy-style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a deep red color. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management. With its slim fit and convenient design, the SWC1840BPNR makes an attractive addition to any room. The SWC1840BPNR is also available in a 32" height for use in ADA compliant settings (see the SWC1840BPNRADA) and can be paired with our matching beverage center for a complete set, see the SCR1841BPNR. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
| Overview | |
| Height of Cabinet | 34.25" (87 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Capacity | 3.3 cu.ft. (93 L) |
| Bottles | 34 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Shipping Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101073699 |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 4 |
| Temperature Range | 41 to 68 F |
- Make the best use of space by installing your appliance under the counter
- ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
- Reduced maintenance with the convenience of auto defrost
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)
- Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
- Double pane tempered glass to provide an elegant display with added protection
- Keyed security on the door
- Electronic controls for precise temperature management.
- Temperature readout can be shown in Celsius or Fahrenheit
- Gentle illumination with an on/off switch
- 5 shelves offer the perfect storage for wine bottles in a classic wooden finish
