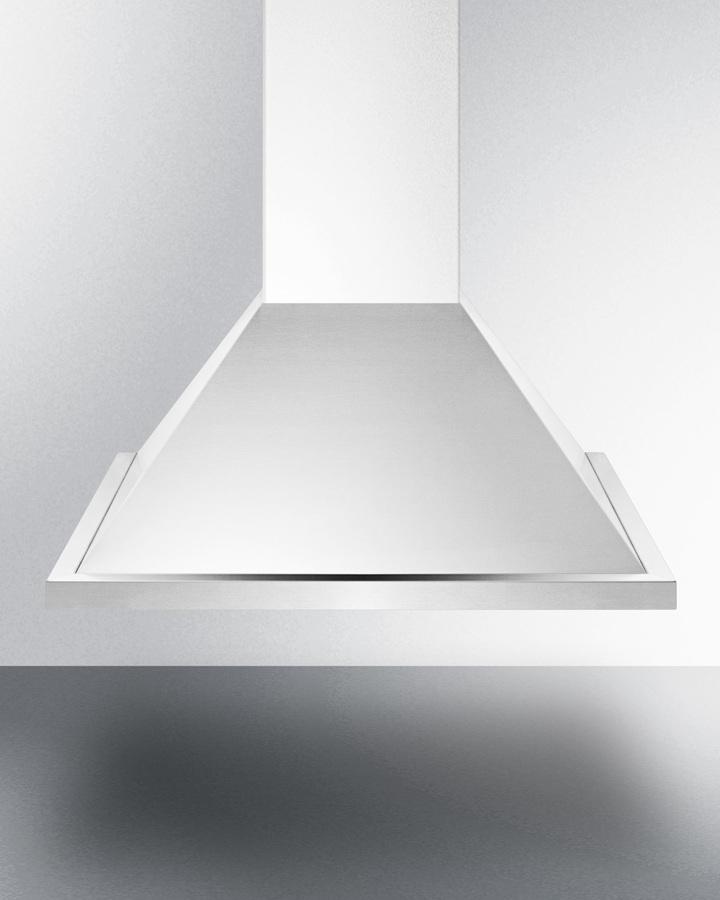

30" Wide Wall-mounted Range Hood, ADA Compliant
Model SEH1530CADA
30" Wide Wall-mounted Range Hood, ADA Compliant
Model SEH1530CADA30" Wide Wall-mounted Range Hood, ADA Compliant is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
- Quality material with an elegant look in brushed stainless steel
- Ideal for most kitchen settings
- Professional motor is preinstalled for easy use
- Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set
- Dishwasher safe filters offer wide filtration area for better ventilation
- Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
- Includes two preinstalled incandescent bulbs
- Offers more options for ventilation
- Designed and manufactured in Spain with all UL-Listed components
- Chimney height can be set from 21 3/4" to 41 3/4"
Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Made in Spain, the SEH1530CADA is a 30" wide range hood with a pre-installed 530 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two halogen light bulbs are pre-installed, offering an elegant illumination of your range. The SEH1530CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This wall-mounted hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Spain and ships in one box. Additional wall-mounted and under cabinet hoods are available in an ADA compliant design. Browse our website for more choices.
| Overview | |
| Height of Cabinet | 32.0" (81 cm) |
| Width | 29.75" (76 cm) |
| Depth | 19.63" (50 cm) |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Weight | 30.0 lbs. (14 kg) |
| Shipping Weight | 50.0 lbs. (23 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101063553 |
| Range Hood | |
| Installation | Wall-Mounted |
| Venting | Convertible w/ Filter Set |
| Controls | Slide |
| Light | Yes |
| Number of Lights | 2 |
| Light Type | Incandescent |
| Number of Fan Speeds | 3 |
| Maximum Air Movement | 530.0 CFM |
| Sone Rating | 11 |
| Minimum Height | 31.0" (79 cm) |
| Maximum Height | 50.0" (127 cm) |
| Duct Shape | 6" Round |
- Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
- Quality material with an elegant look in brushed stainless steel
- Ideal for most kitchen settings
- Professional motor is preinstalled for easy use
- Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set
- Dishwasher safe filters offer wide filtration area for better ventilation
- Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
- Includes two preinstalled incandescent bulbs
- Offers more options for ventilation
- Designed and manufactured in Spain with all UL-Listed components
- Chimney height can be set from 21 3/4" to 41 3/4"
