Compact All-freezer
Model FS22L7
Compact All-freezer
Model FS22L7Quick Specs
Compact All-freezer is backordered and will ship as soon as it is back in stock.
SERVICES AVAILABLE
Couldn't load pickup availability
Quick Specs
- CSA-S listed to NSF standards for commercial use
- Allows the unit to be used freestanding
- Environmentally friendly design without ozone-damaging chemicals
- Keyed lock for a secure interior
- Operates at safe temperature for storage of select sensitive material
- Static cooling system for improved temperature stability
- Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
- Rear mounted to prevent accidental adjustments
- Wire shelf for storage convenience
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

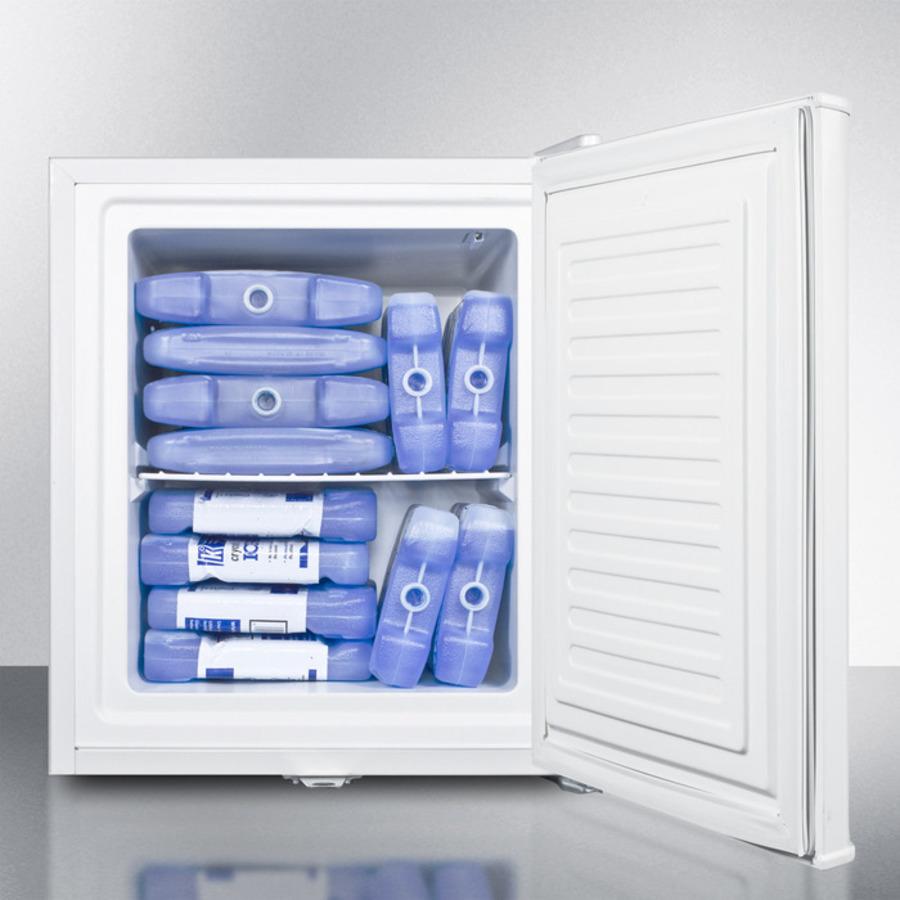

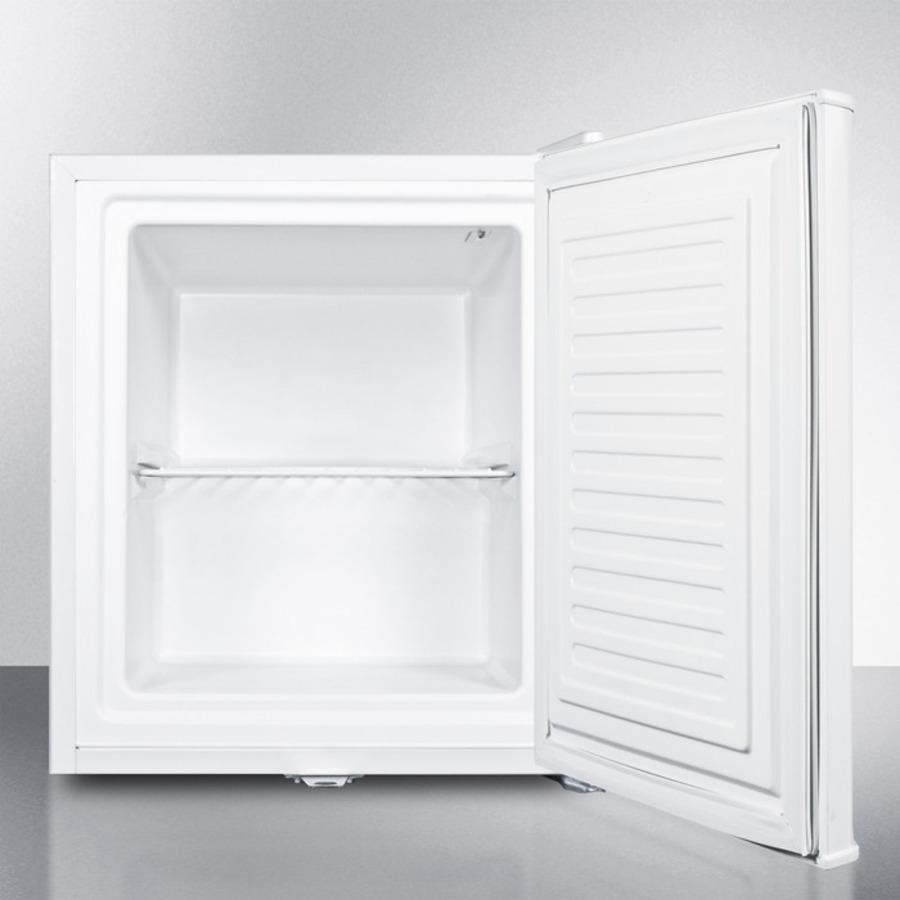

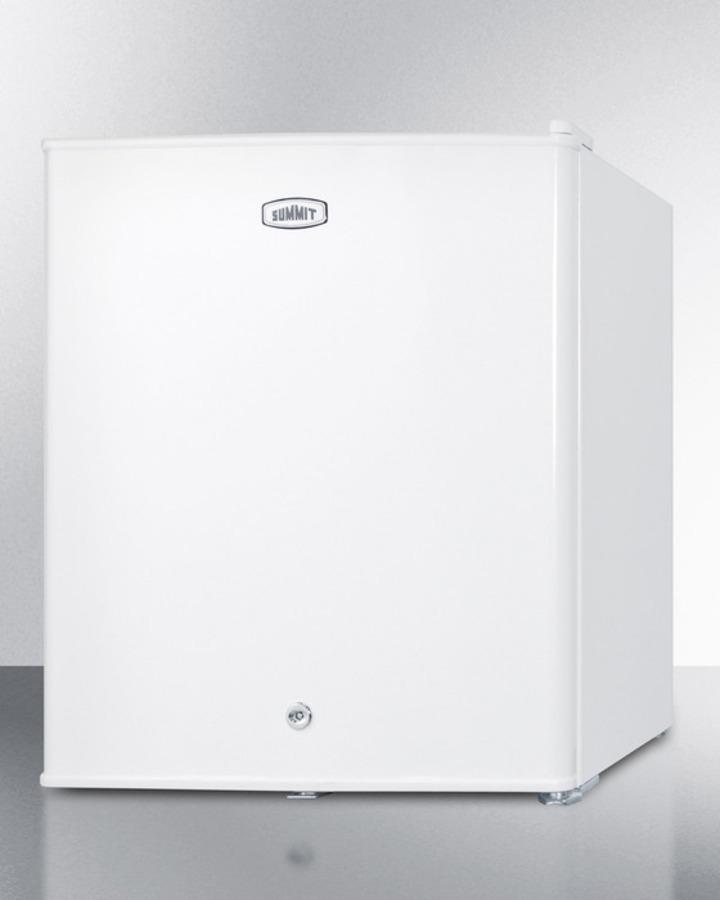

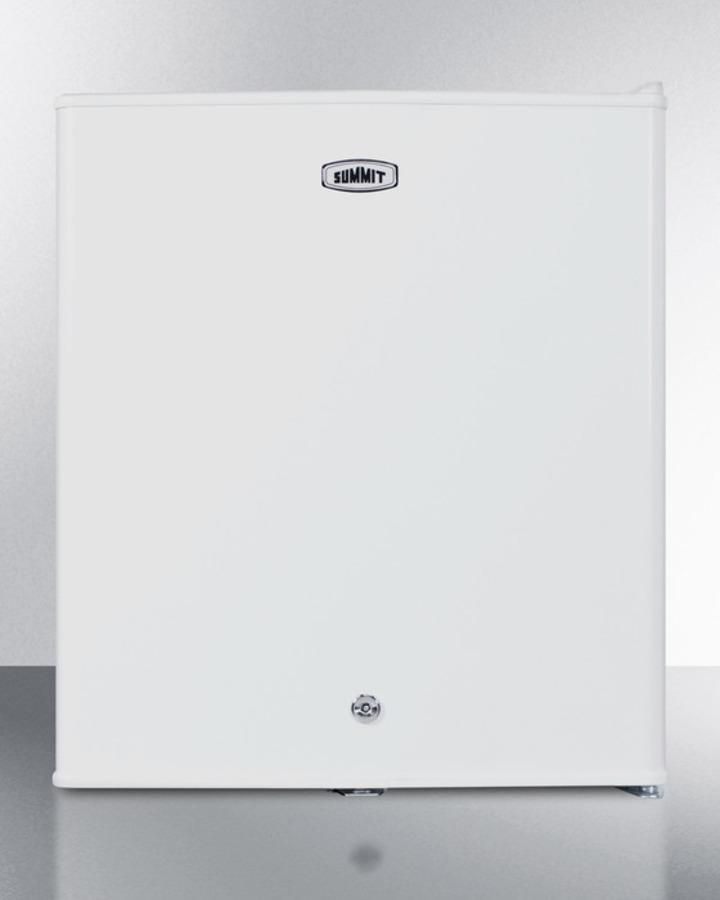

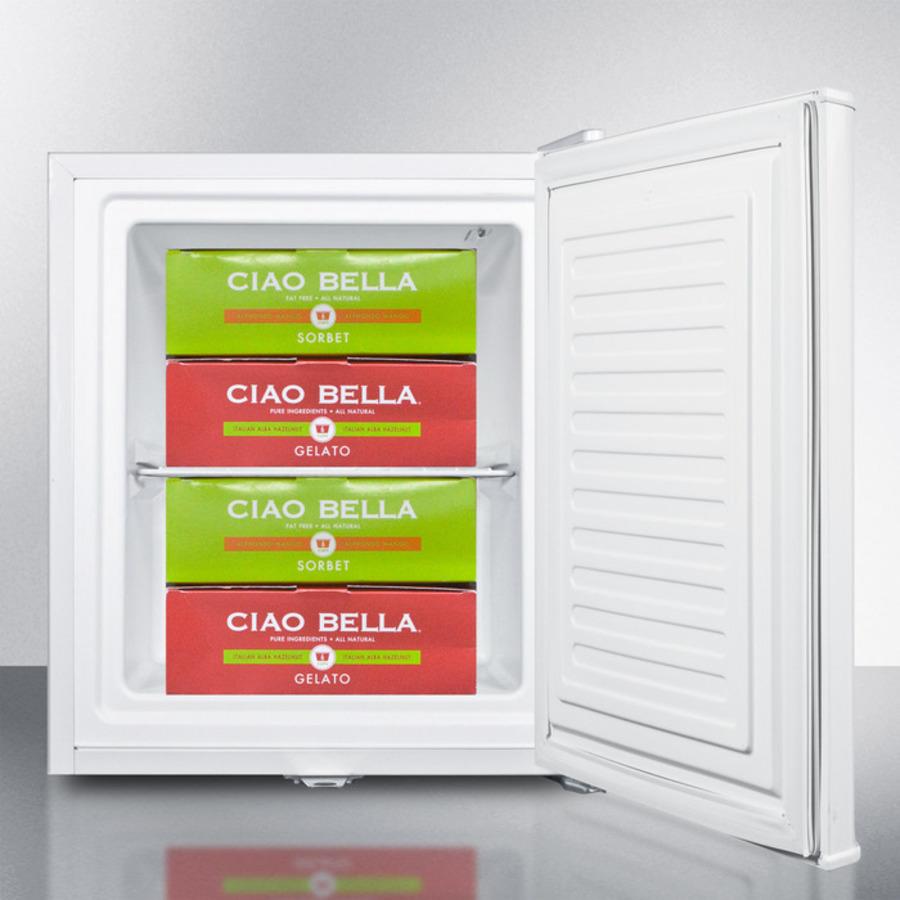

SUMMIT's FS22L7 all-freezer provides maximum cooling in a compact, easy-to-place size. The FS22L7 can operate at temperatures as low as -20 C, ideal for certain vaccines and samples. Manual defrost operation and extra thick insulation ensures a stable temperature performance. This unit has a rear-mounted adjustable dial thermostat. The flat door liner conforms to the CDC's recommendations for vaccine storage. With a compact footprint, the FS22L7 fits easily on top of counters. The reversible door allows users to place the unit in any location, while the front-mounted lock offers security. A removable wire shelf is included. This unit is CSA-S listed to NSF-7 standards for commercial use. For a matching refrigerator, see the FFAR22LW7.
| Overview | |
| Height of Cabinet | 20.13" (51 cm) |
| Height to Hinge Cap | 20.5" (52 cm) |
| Width | 17.38" (44 cm) |
| Depth | 19.0" (48 cm) |
| Capacity | 1.42 cu.ft. (40 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | CSA |
| Sanitation | CSA-S |
| Energy Usage/Year | 272.0kWh/year |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 40.0 lbs. (18 kg) |
| Shipping Weight | 55.0 lbs. (25 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101034003 |
| Freezer | |
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 14.63" (37 cm) |
| Interior Width | 12.38" (31 cm) |
| Interior Depth | 14.5" (37 cm) |
| Shelf Type | Wire |
| Shelf Qty | 1 |
| Thermostat Type | Dial |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.67 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 103.0 |
| Level Legs | 2 |
| Compressor Step Height | 7.0" (18 cm) |
| Compressor Step Width | 12.38" (31 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
