18" Wide Built-in Beverage Center (panel Not Included)
Model CL181WBVPNRLHD
Authorized Dealer
Loading...
Authorized Dealer

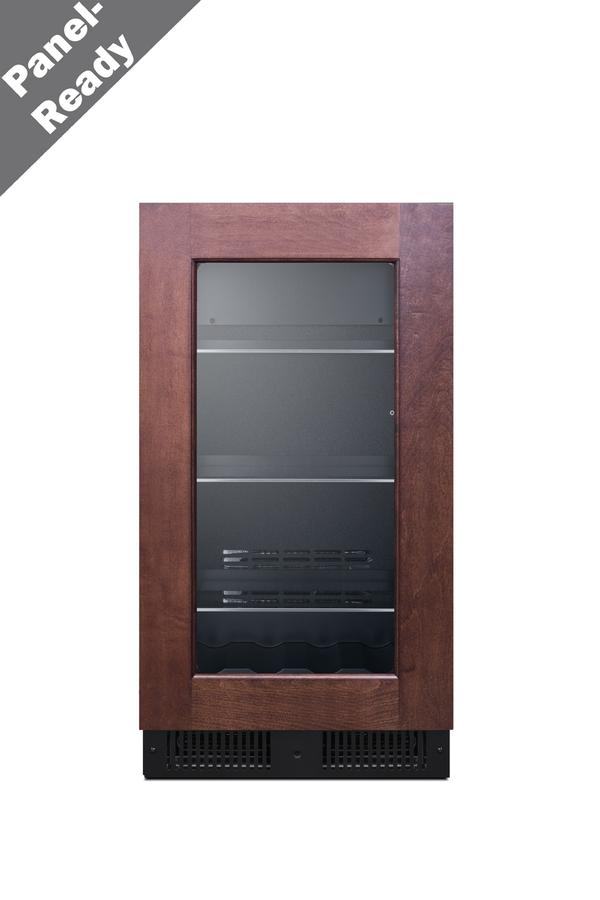

18" Wide Built-in Beverage Center (panel Not Included)
Model CL181WBVPNRLHDQuick Specs
Depth
22.75
Height
33.75
Sabbath
YES
Fresh
2.9
Freezer
2.9
Cu Ft
2.9
Size
2.9
Shelves
3
18" Wide Built-in Beverage Center (panel Not Included) is backordered and will ship as soon as it is back in stock.
Ships Out Within: 2 - 4 Business Days
Shipping Date By: 06/27/2026
SERVICES AVAILABLE
Selection will add
$0.00
to the price
Couldn't load pickup availability
Quick Specs
Depth
22.75
Height
33.75
Sabbath Mode
YES
Fresh food Capacity
2.9
Freezer Capacity
2.9
Capacity (cu ft.)
2.9
Refrigerator Size
2.9
Refrigerator number of Shelves
3
ADA
NO
Dispenser
NO
Icemaker
NO
Wifi Connected
NO
- 18" Wide Beverage Center
- Undercounter glass door beverage refrigerator for built-in or freestanding use
- Built-in capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Panel-ready door trim
- European style articulating door hinge and 2-piece bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 17 3/8" W with a 3 1/4" H x 3 1/4" W inner frame
- Double pane tempered glass door
- Heat-safe glass ensures your items are stored safely
- Digital thermostat
- Electronic controls for precise temperature management
- Digital display
- Temperature readout can be shown in Celsius or Fahrenheit
- Adjustable glass shelves
- Spill-proof glass shelves make it easy to store and display bottles and cans
- Bottle slots
- Floor is specially slotted to store wine and other bottles safely in place
- White LED lighting
- Unique white lighting located inside the walls offers elegant illumination for the jet black interior
- Professional handle
- Vertically mounted handle in brushed stainless steel
- Left hand door swing
- For this unit with the door opening from the other side, see model CL181WBVPNR
- Factory-installed lock
- Keyed lock located in the kickplate for optional security
- Sabbath Mode
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Temperature alarm
- Audibly alerts if the interior temperature is too warm
- Open door alarm
- Audible alarm will sound if the door is left ajar for over 60 seconds
- Fan-forced cooling
- Internal fan ensures the interior is evenly cooled from top to bottom
- Automatic defrost
- Reduced maintenance and steady temperature performance
- Sealed back
- Space saving design with easier cleanability
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Fully finished black cabinet
- Allows the unit to be used freestanding
- Fully articulating European style hinge
- Smoother opening and a better fit with an integrated European hinge
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Undercounter glass door beverage refrigerator for built-in or freestanding use
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- For this unit with the door opening from the other side, see model CL181WBVPNR
- Keyed lock located in the kickplate for optional security
- Optional setting lets you disable the lighting and alarm for up to 48 hours
- Audibly alerts if the interior temperature is too warm
- Audible alarm will sound if the door is left ajar for over 60 seconds
- Internal fan ensures the interior is evenly cooled from top to bottom
- Reduced maintenance and steady temperature performance
- Space saving design with easier cleanability
- Unit will retain its last settings when power is restored in the event of power loss
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- European style articulating door hinge and 2-piece bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 17 3/8" W with a 3 1/4" H x 3 1/4" W inner frame
- Allows the unit to be used freestanding
- Smoother opening and a better fit with an integrated European hinge
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Heat-safe glass ensures your items are stored safely
- Electronic controls for precise temperature management
- Temperature readout can be shown in Celsius or Fahrenheit
- Spill-proof glass shelves make it easy to store and display bottles and cans
- Floor is specially slotted to store wine and other bottles safely in place
- Unique white lighting located inside the walls offers elegant illumination for the jet black interior
- Vertically mounted handle in brushed stainless steel
Summit's assortment of undercounter beverage centers includes uniquely sized 18" wide choices designed for reliable storage in the home. The CL181WBVPNRLHD is an 18" wide beverage center. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation that highlights stored products. The CL181WBVPNRLHD includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature. Uniquely styled and fully featured, the CL181WBVPNRLHD is an elegant solution to bringing reliable beverage storage to a variety of applications. In addition to this beverage centers, Summit manufactures a variety of 18" wide undercounter units, including wine cellars, freezers, icemakers, and drawer refrigerators. Browse the full lineup to find the right fit for your space.
| Overview | |
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.75" (86 cm) |
| Nominal Width | 18.0" (46 cm) |
| Width | 17.5" (44 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with Panel | 23.5" (60 cm) |
| Depth with door at 90° | 39.63" (101 cm) |
| Capacity | 2.9 cu.ft. (82 L) |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 255.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145648 |
| Refrigerator Features | |
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Light | Yes |
| Temperature Range | 36 to 43 F |
| Dimensions | |
| Interior Height | 23.0" (58 cm) |
| Interior Width | 12.25" (31 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 12.25" (31 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
